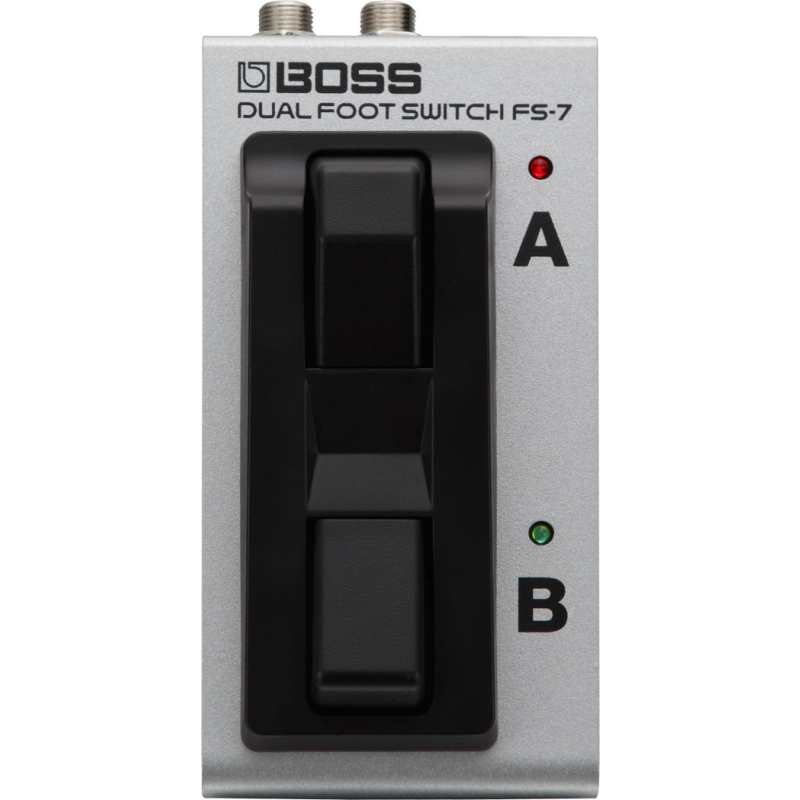

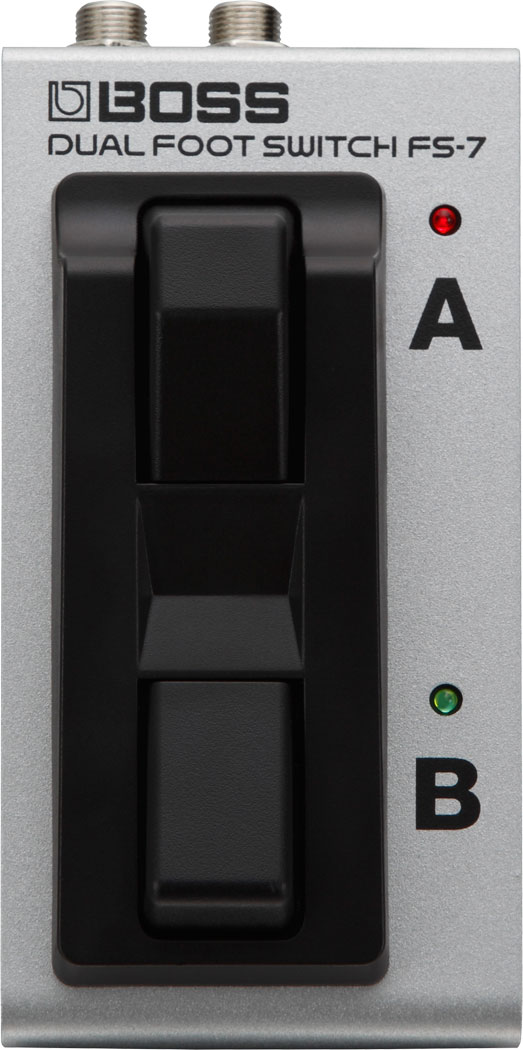

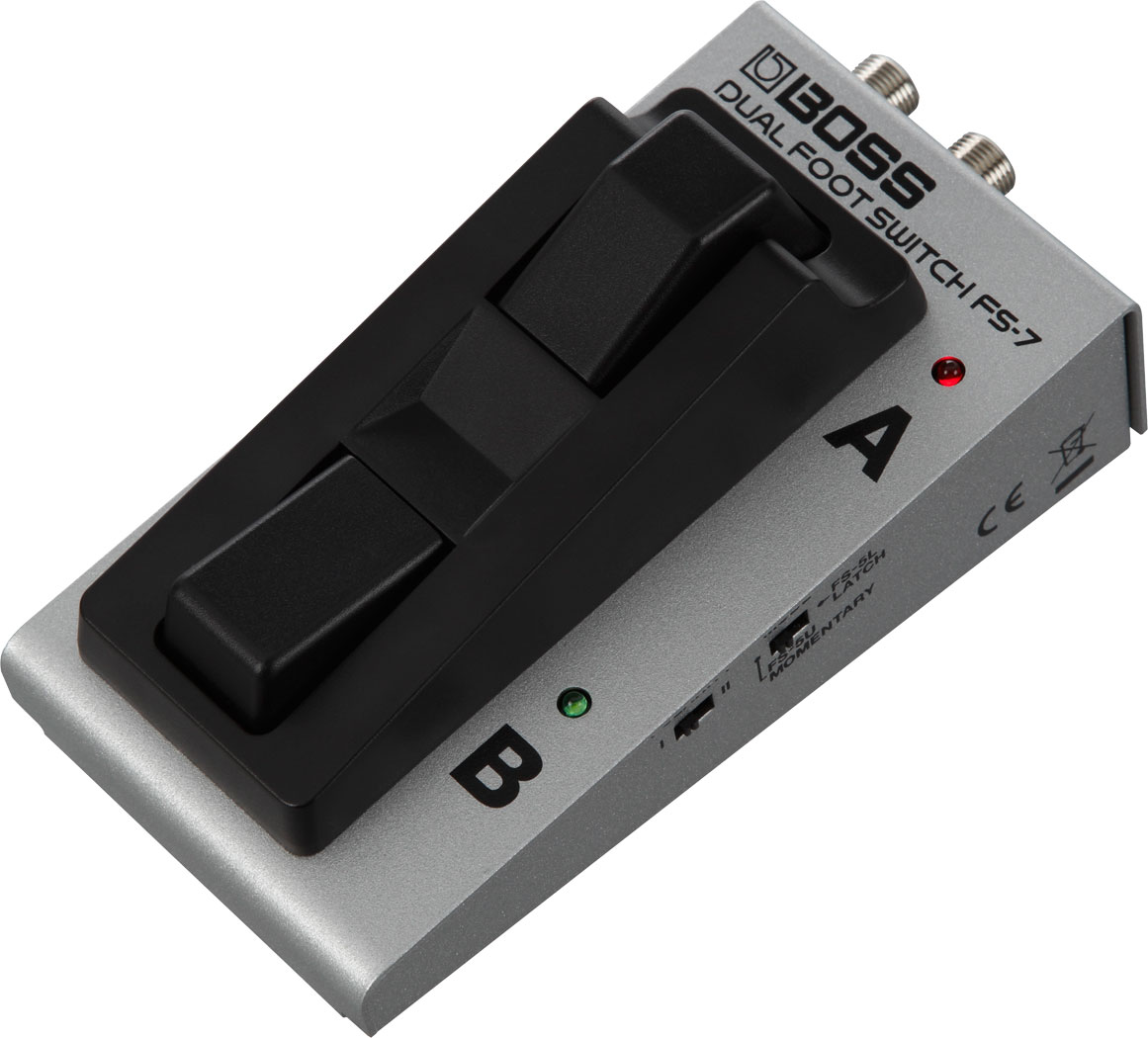

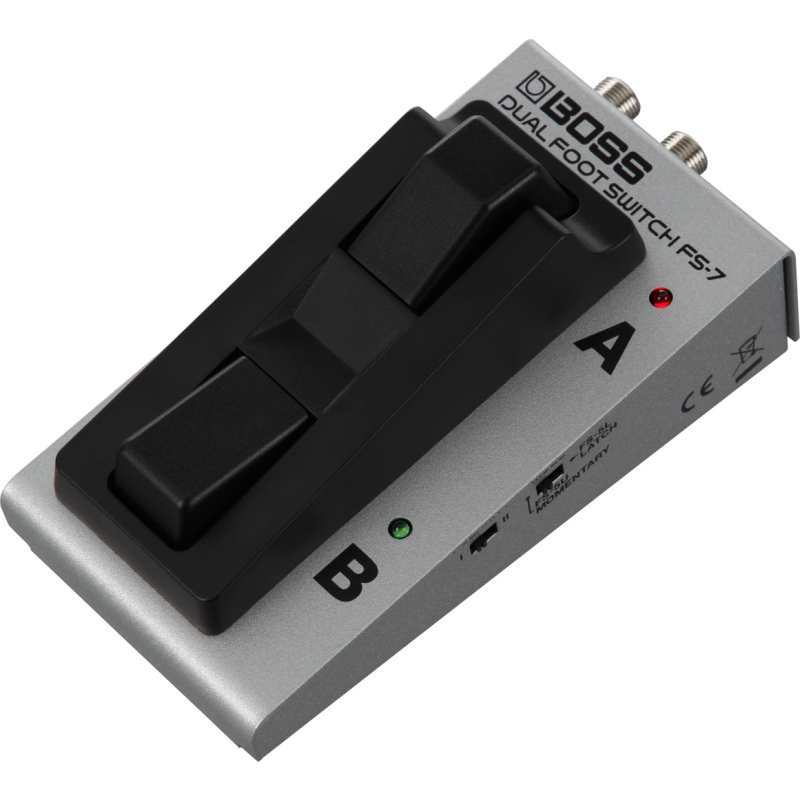

Space-Saving, Multifunctional Dual Footswitch
FS-7 is a compact dual footswitch for remote control of effect pedals or amp channel switching. Two footswitches are arranged in tandem, which saves space on effects pedal boards. Two selectable modes for latch or momentary allow for control of a wide range of equipment.
Dual footswitch in a small footprint
- Latch/momentary switching function (common to A and B)
- Durable steel chassis
- Battery-free operation ideal for pedal boards
- Power via 9v adapter (power splitter included)
- Operates as momentary switch with no power*
*LEDs will not illuminate without AC power.
Specifications

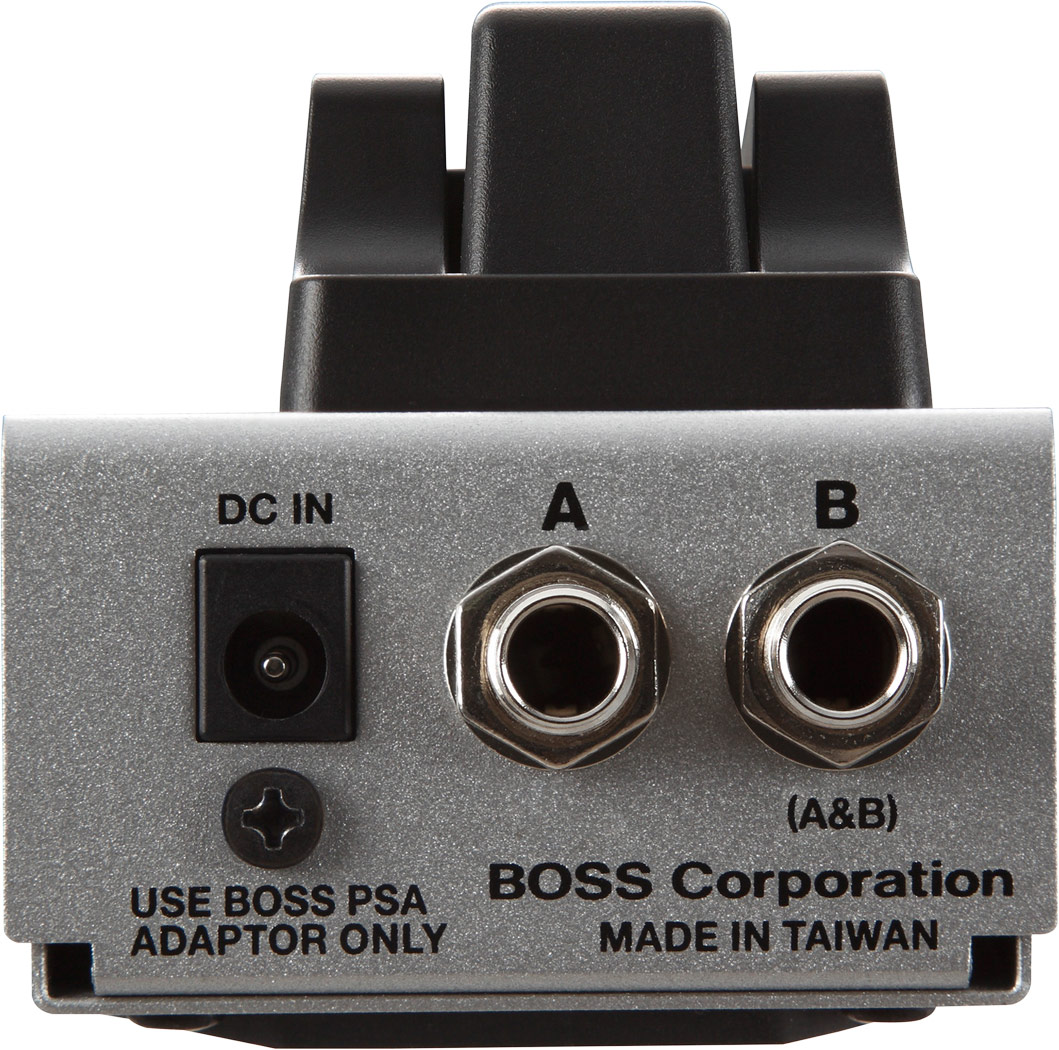

Connectors
A jack: 1/4-inch TRS phone type (*)
B jack: 1/4-inch phone type
DC IN jack
* You can also connect a 1/4-inch phone plug.
Indicators
A, B

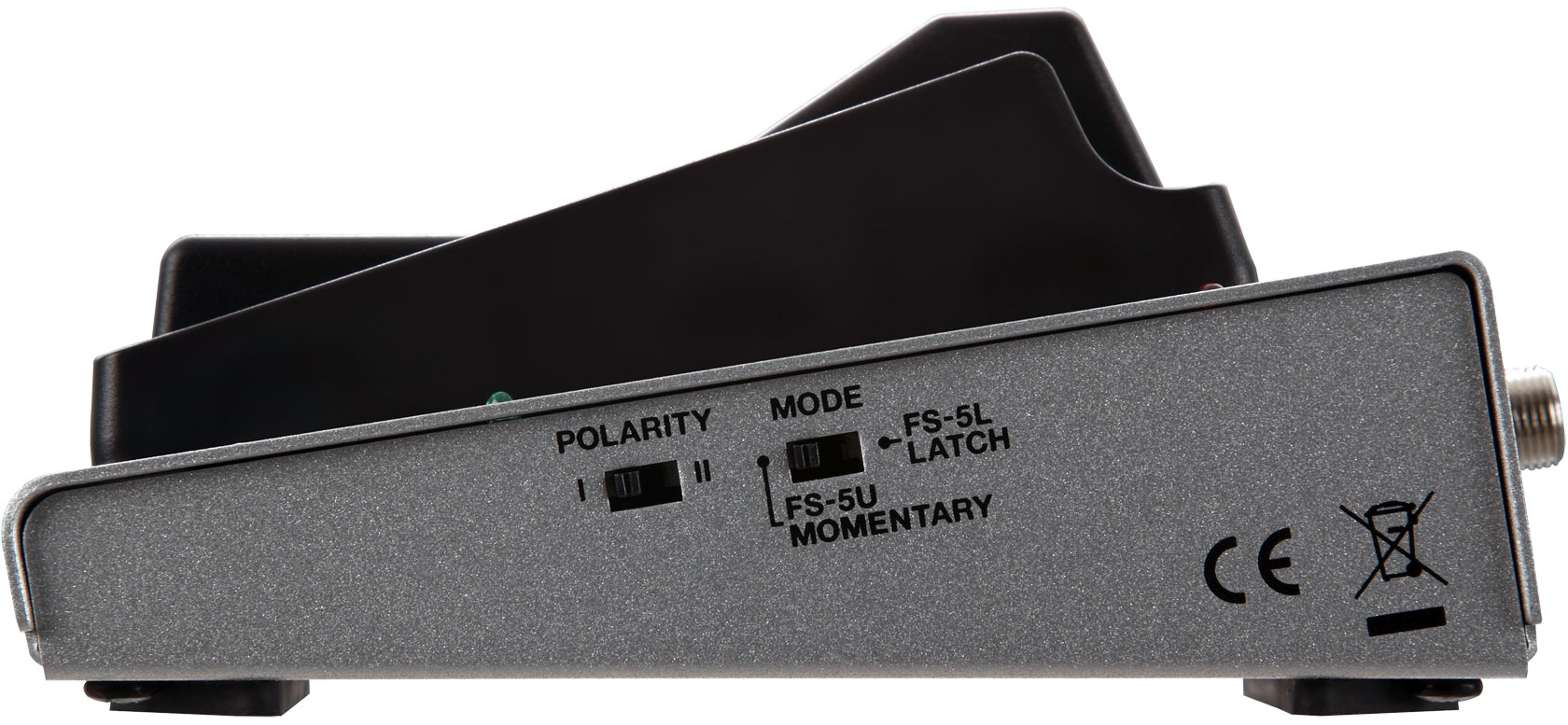

Controls
[MODE] switch
[POLARITY] switch
Power Supply
AC adaptor (PSA series: sold separately)
Current Draw
25 mA
Accessories
Parallel DC cable
Owner's Manual
Size and Weight
Width
62 mm
2-1/2 inches
Depth
131 mm
5-3/16 inches
Height
60 mm
2-6/16 inches
Weight
290 g
0 lbs. 11 oz.
*The specifications are subject to change without notice.
