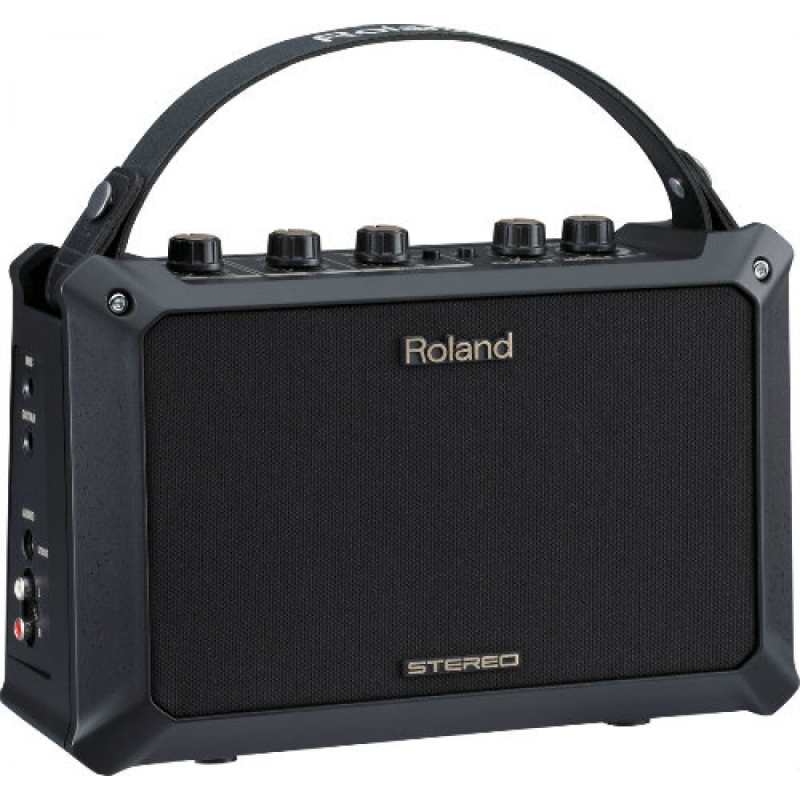

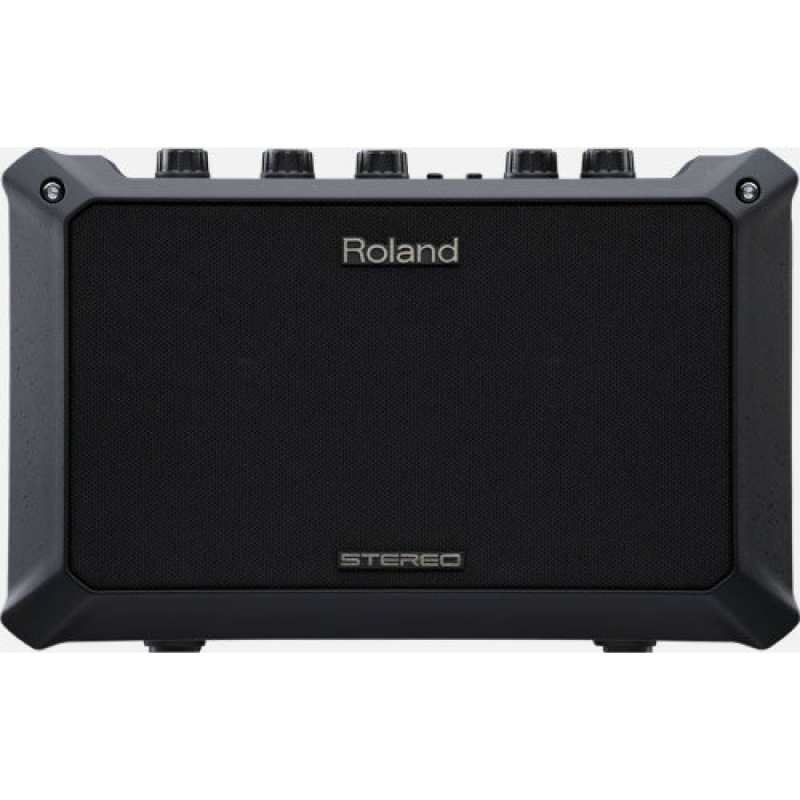

MOBILE AC Acoustic Chorus
Your First Acoustic Guitar Amp
If you’re new to the world of acoustic guitar and would like to explore an extra dimension in sound, creativity, and convenience, the new MOBILE AC is your perfect amp. Optimized for acoustic guitar and designed to travel, the MOBILE AC delivers big sound in a package that can easily fit into a backpack. The amp can be used for up to 15 hours at a time via battery power, so you can take it anywhere. Simply plug in your acoustic guitar, turn up the volume, and enjoy clean, clear, and surprisingly powerful, spacious stereo sound from a compact amp. You can also add deep stereo chorus or lush reverb effects, and you can incorporate a portable media player and microphone for sing-along fun. Strum your guitar and sing, play along with backing tracks, and enjoy the MOBILE AC at home or outdoors. It’s also a handy personal monitor for use on stage, with a big sound that defies its small size.
Rated Power Output
2.5 W + 2.5 W
Nominal Input Level (1 kHz)
AUDIO: -10 dBu
MIC: -50 dBu
GUITAR: -10 dBu
Speakers
10 cm (4 inches) x 2
Controls
POWER switch
WIDE switch
TONE knob
REVERB knob
[AUDIO]
VOLUME knob
[MIC]
VOLUME knob
[GUITAR]
VOLUME knob
CHORUS switch
Indicator
Power
Connectors
MIC jack (1/4-inch phone type)
GUITAR jack (1/4-inch phone type)
AUDIO jacks (Stereo miniature phone type, RCA phono type)
PHONES jack (Stereo miniature phone type)
DC IN jack
Power Supply
Alkaline battery (AA, LR6) x 6
or
AC Adaptor (sold separately)
Current Draw
175 mA (DC 9 V)
Accessories
Strap
Alkaline battery (AA, LR6) x 6
Owner’s Manual
Option (sold separately)
AC adaptor (PSB series)
Expected battery life under continuous use
Alkaline battery (AA, LR6): approximately 15 hours
Size and Weight
Width
280 mm
11-1/16 inches
Depth
108 mm
4-5/16 inches
Height
177 mm
7 inches
Weight
2.5 kg
5 lbs. 9 oz.
* 0 dBu = 0.775 Vrms
