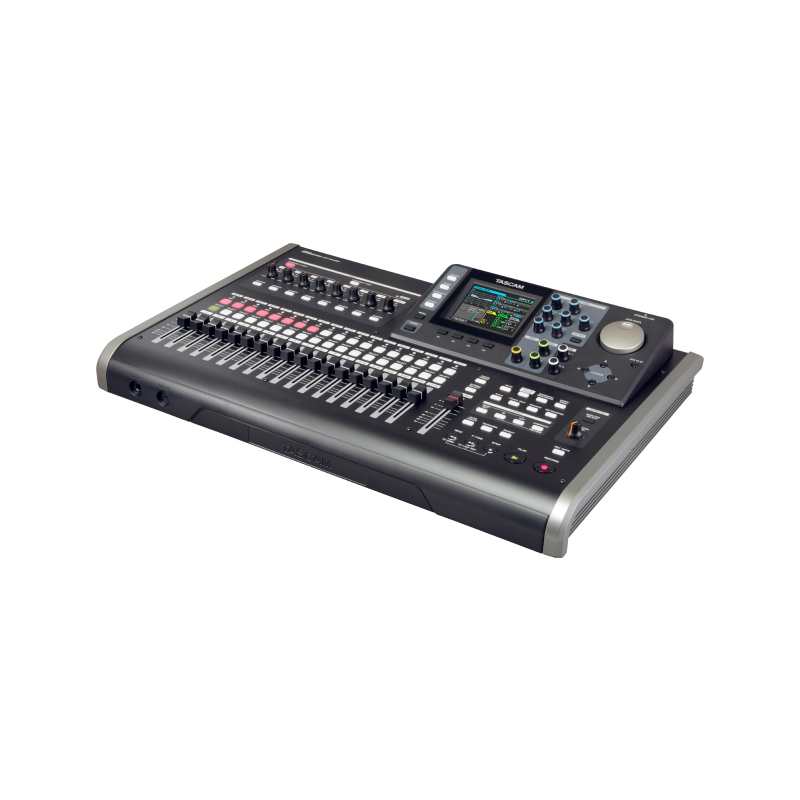

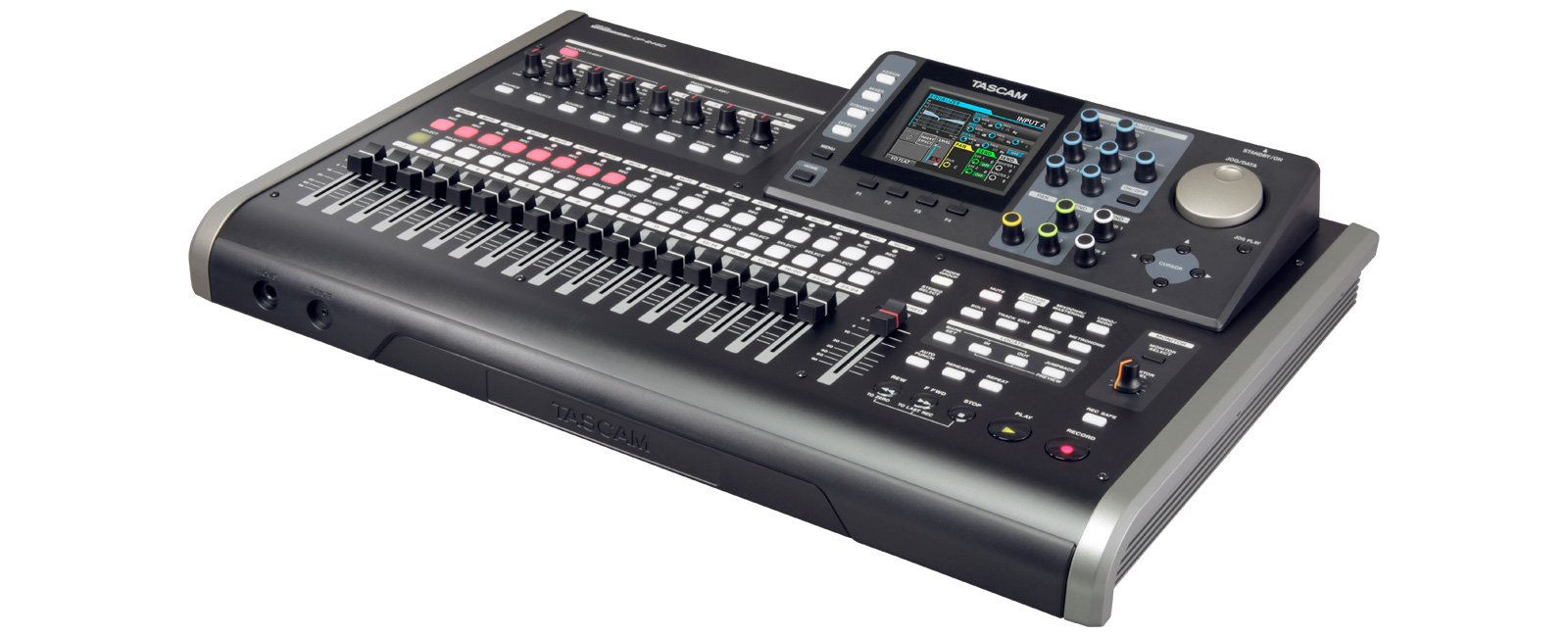

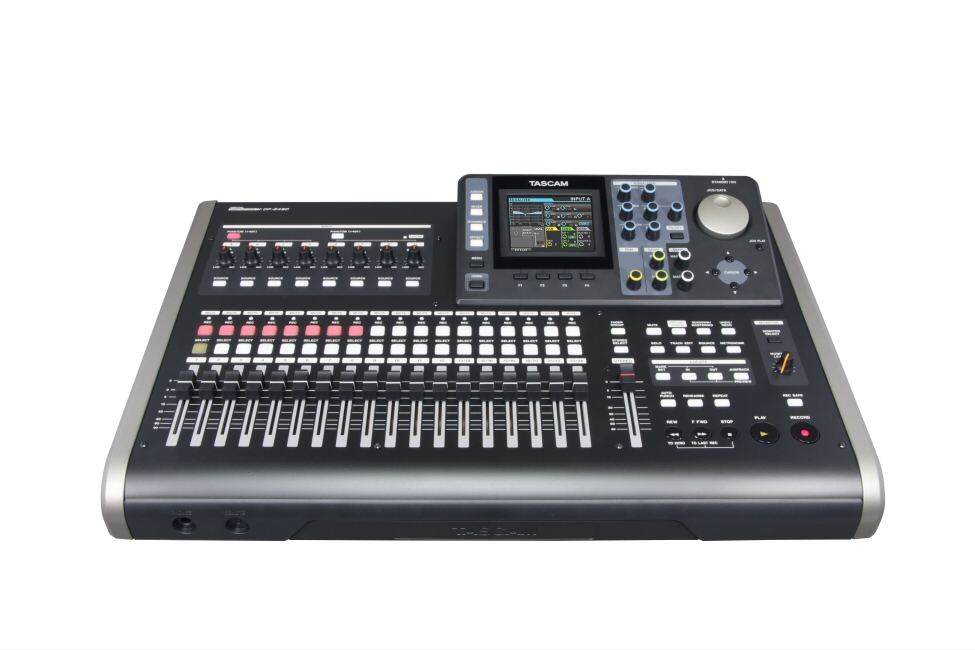

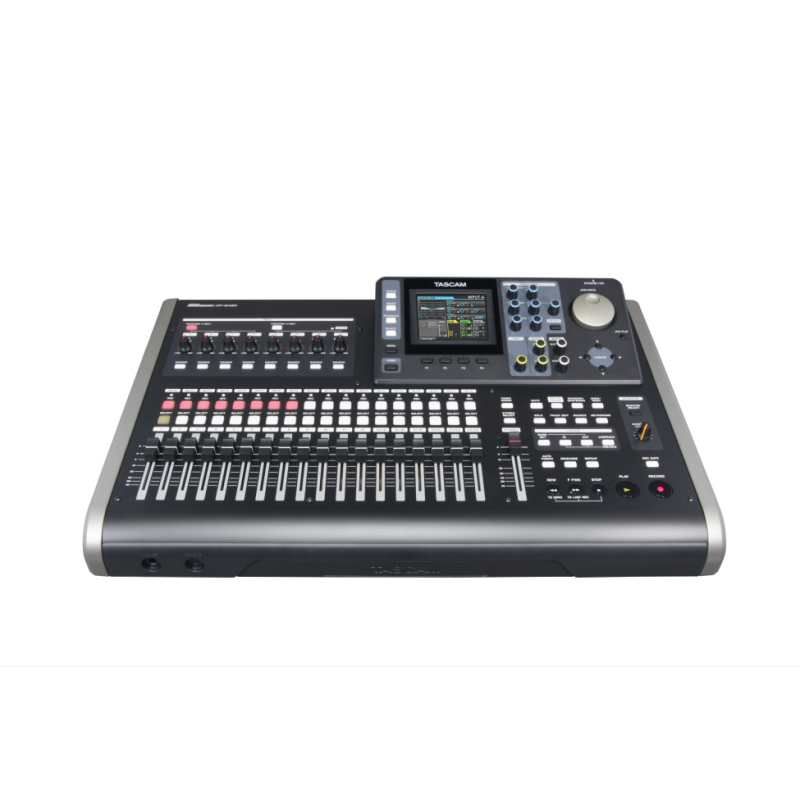

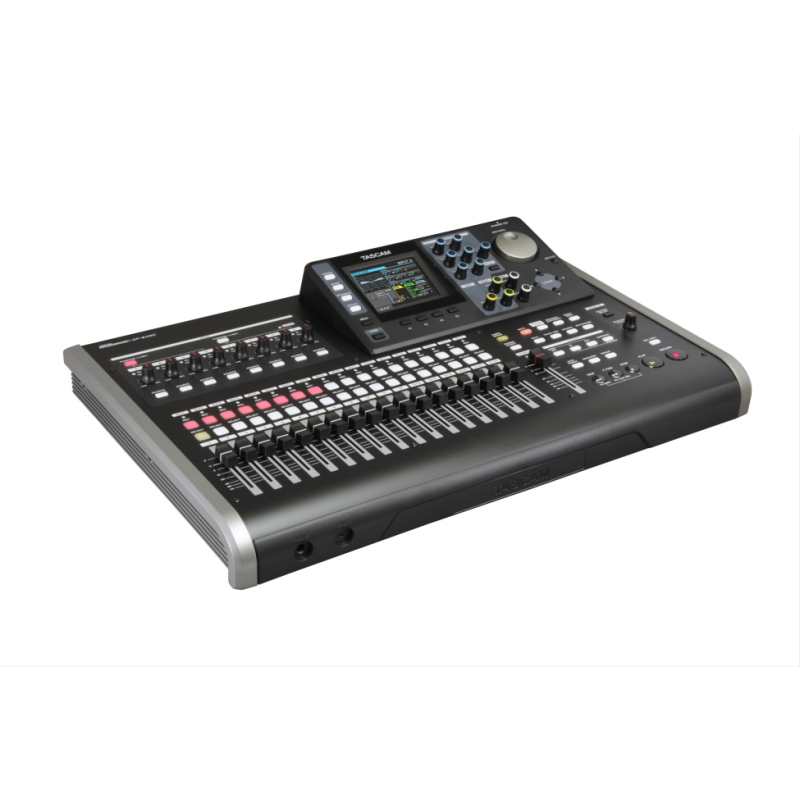

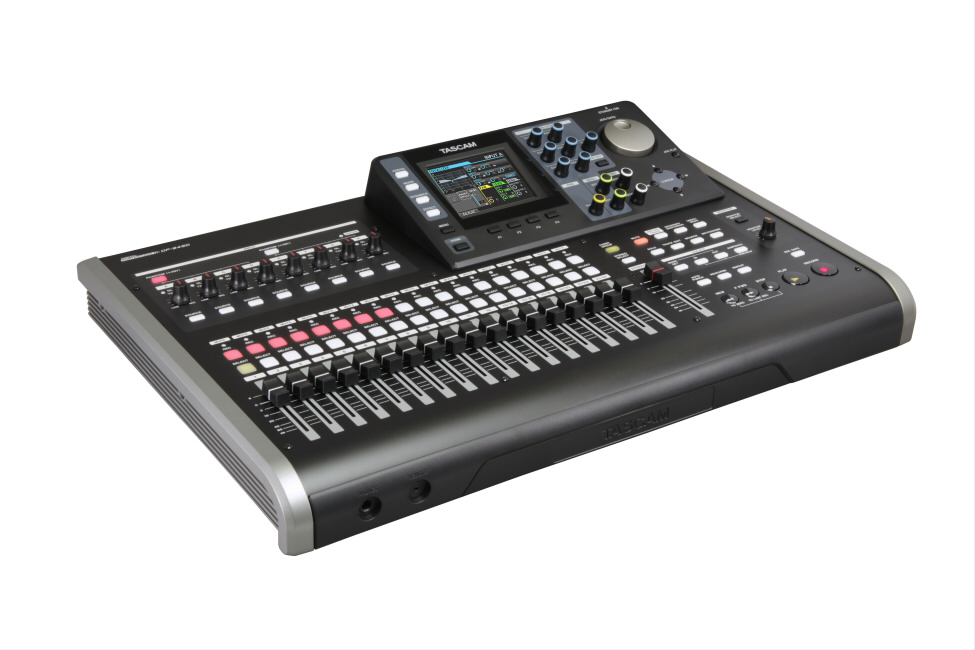

DP-24SD Digital Portastudio
The DP-24SD is a 24-track Digital Portastudio with solid-state recording, a colour LCD and channel strip controls to make recording simple so you stay creative. Up to eight tracks can be recorded at a time through its combination XLR and 6.3-mm combo jacks. Input processing like compression and limiting are available during recording, as well as guitar amp simulation and multi-effects for use with the instrument-level input.
Once recorded, tracks can be viewed on the large display and mixed with dedicated mixing controls like nineteen linear faders and a dozen channel strip encoders. Two mixdown effects including reverb and chorus are also available, as well as a mastering effect. Once finished, songs can be transferred to computer over USB for further processing or sharing with other people.
Main Features
24-track digital Portastudio
12 mono tracks + 6 stereo tracks, 19 faders
Simultaneous playback of 24 tracks
Simultaneous recording of 8 tracks
44.1 kHz or 48 kHz sampling rate, 16 bit or 24 bit resolution
8 XLR/TRS combo connectors for inputs
Phantom power supplied on all inputs (switchable A–D, E–H)
Instrument-level input for direct recording of guitar or bass
Inputs A–H and each track equipped with 3-band EQ
Colour LC display and 12-encoder channel strip for simple operation
Dedicated controls for EQ, pan and effect sends
Peak-hold function for level meters on display
Stereo RCA output
2 effect send outputs (6.3-mm TS jack)
Headphones output with 70 mW per channel
Remote connector for optional RC-3F footswitch to enable hands-free control of several functions
Automatic punch in/out
Track bounce function
8 virtual tracks per track for alternative takes
Up to 99 locate marks per song
Various edit functions (copy insert, copy paste, move insert, move paste, open, cut, silence, clone track, clean out)
Editing on sub-frame level
Undo and Redo function with undo history
Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
Guitar multi-effects (Noise Suppression, Amp Simulation, Compression, Chorus, Flanger, Phaser, Tremolo, Auto Wah, Delay)
Mix-down effects (Reverb, Delay, Stereo Chorus)
Mastering tools (Equalizer, Multi-band Compressor, Normalizer)
Chromatic tuner
Metronome
File transfer via USB 2.0
Dedicated AC adapter included (GPE248-120200-Z)
Solid-state recording to SD cards for better shock resistance than hard drive recording
SD card included
Specifications
Media and file systems
Recording media SD card (512 MB to 2 GB)
SDHC card (4–32 GB)
Analogue audio inputs and outputs

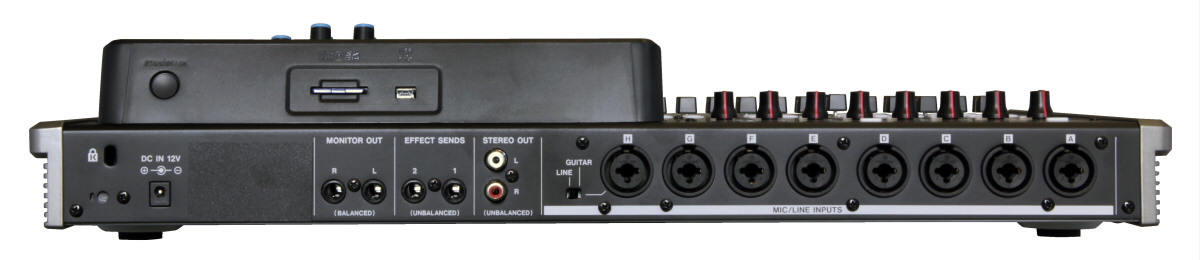

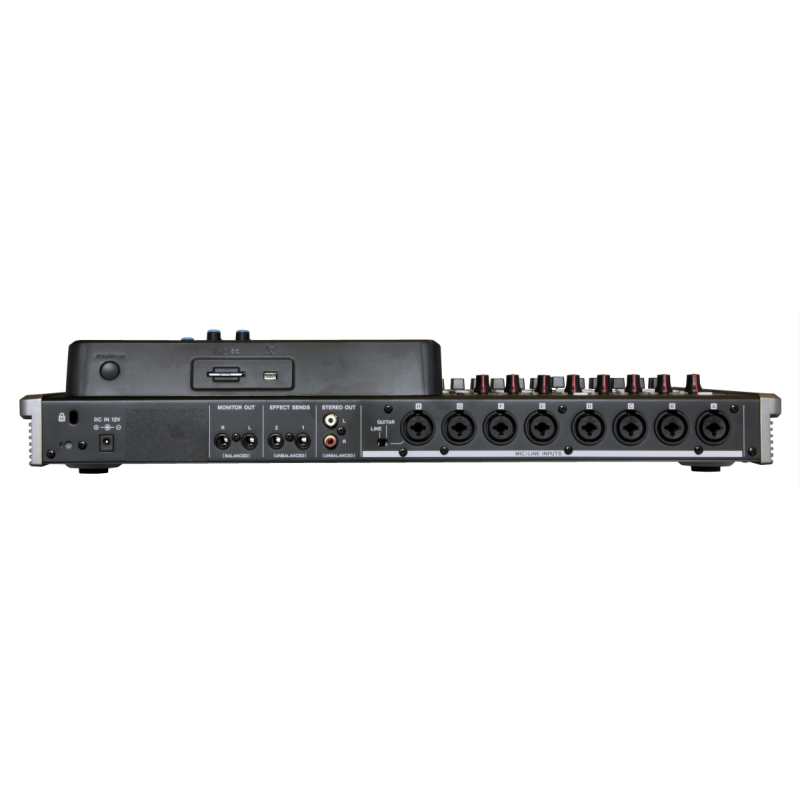

MIC/LINE INPUTS A to H
XLR connector (balanced) XLR-3-31 (1: GND, 2: HOT, 3:COLD)
Input impedance 2.4 kΩ
Nominal input level –14 dBu
Maximum input level +2 dBu
Phone connector (balanced) 6.3-mm TRS phone jack
Input impedance >22 kΩ
INPUT H, when LINE-GUITAR switch is set to GUITAR: 1 MΩ
Nominal input level +4 dBu
Maximum input level +20 dBu
Stereo output (L/R) RCA pin jack
Nominal output level –10 dBV
Maximum output level +6 dBV
Output impedance 200 Ω
Effect sends 1/2 6.3-mm TS phone jack
Nominal output level –10 dBV
Maximum output level +6 dBV
Output impedance 200 Ω
Monitor output L/R 6.3-mm TRS phone jack
Nominal output level –2 dBu
Maximum output level +14 dBu
Output impedance 200 Ω
Headphones output 6.3-mm TRS phone jack
Maximum output power 70 mW + 70 mW or more (THD + N 0.1% or less, 32 Ω load)
Control inputs and outputs
USB port USB 4-pin mini-B type
Format Mass Storage Class USB 2.0 High Speed
Remote connector 2.5-mm TRS jack
Audio performance
Frequency response 20 Hz to 20 kHz, +1 dB/–1 dB
INPUT (MIC/LINE) to STEREO OUT/EFFECT SENDS/MONITOR OUT
Distortion ≤0.01%
INPUT (MIC/LINE) to STEREO OUT/EFFECT SENDS/MONITOR OUT
S/N ratio >90 dB
INPUT (MIC/LINE) to STEREO OUT/EFFECT SENDS/MONITOR OUT
Operating requirements
Windows Pentium 300 MHz or faster
128 MB or more memory
Mac Power PC, iMac, G3, G4 266 MHz or faster
64 MB or more memory
Recommended USB port USB 2.0
Recommended USB host controller Intel chipset
Supported operating systems Windows 8 (including 8.1), Windows 7, Windows Vista, Windows XP
Mac OS X 10.2 or later
Power requirements and other specifications
Power requirements AC adapter (GPE248-120200-Z)
Power consumption 12 W (Phantom power on)
Dimensions 104 mm x 514 mm x 340 mm
Weight 5.8 kg
Operating temperature range 5–35 °C
Design and specifications subject to change without notice.
