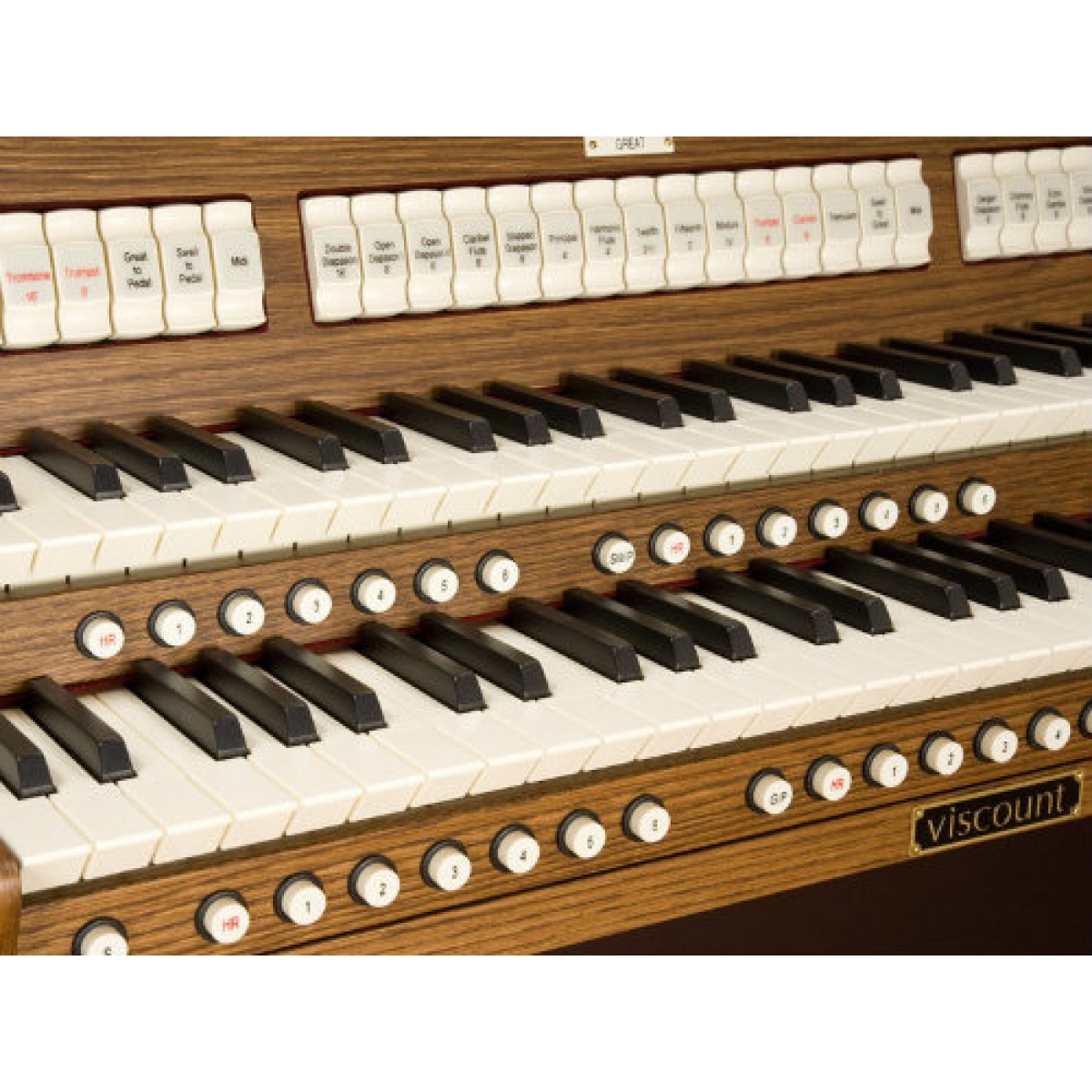

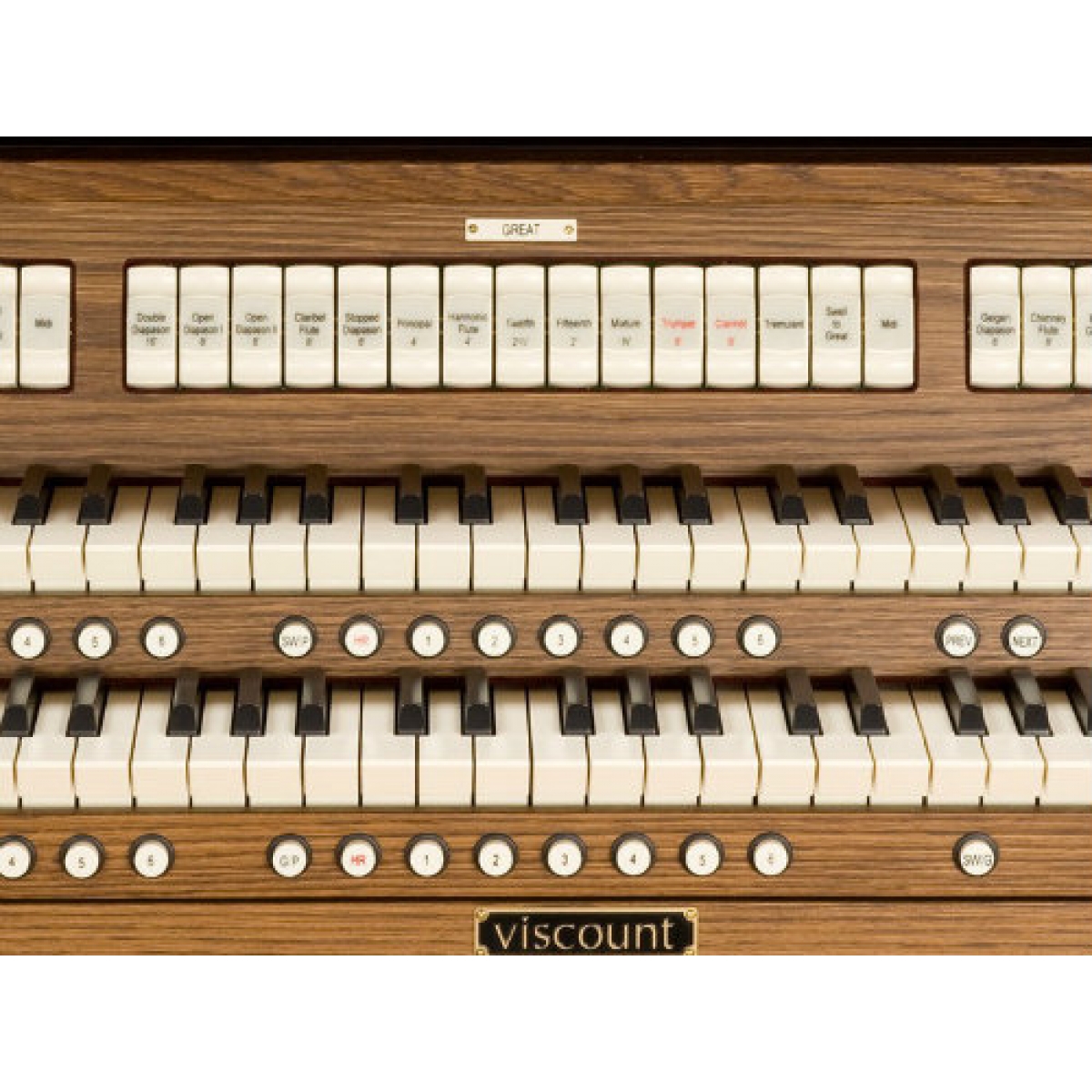

Keyboards
|
2 x 61 notes "tracker touch" keyboards, with velocity control for MIDI and Orchestra sections.
|
|

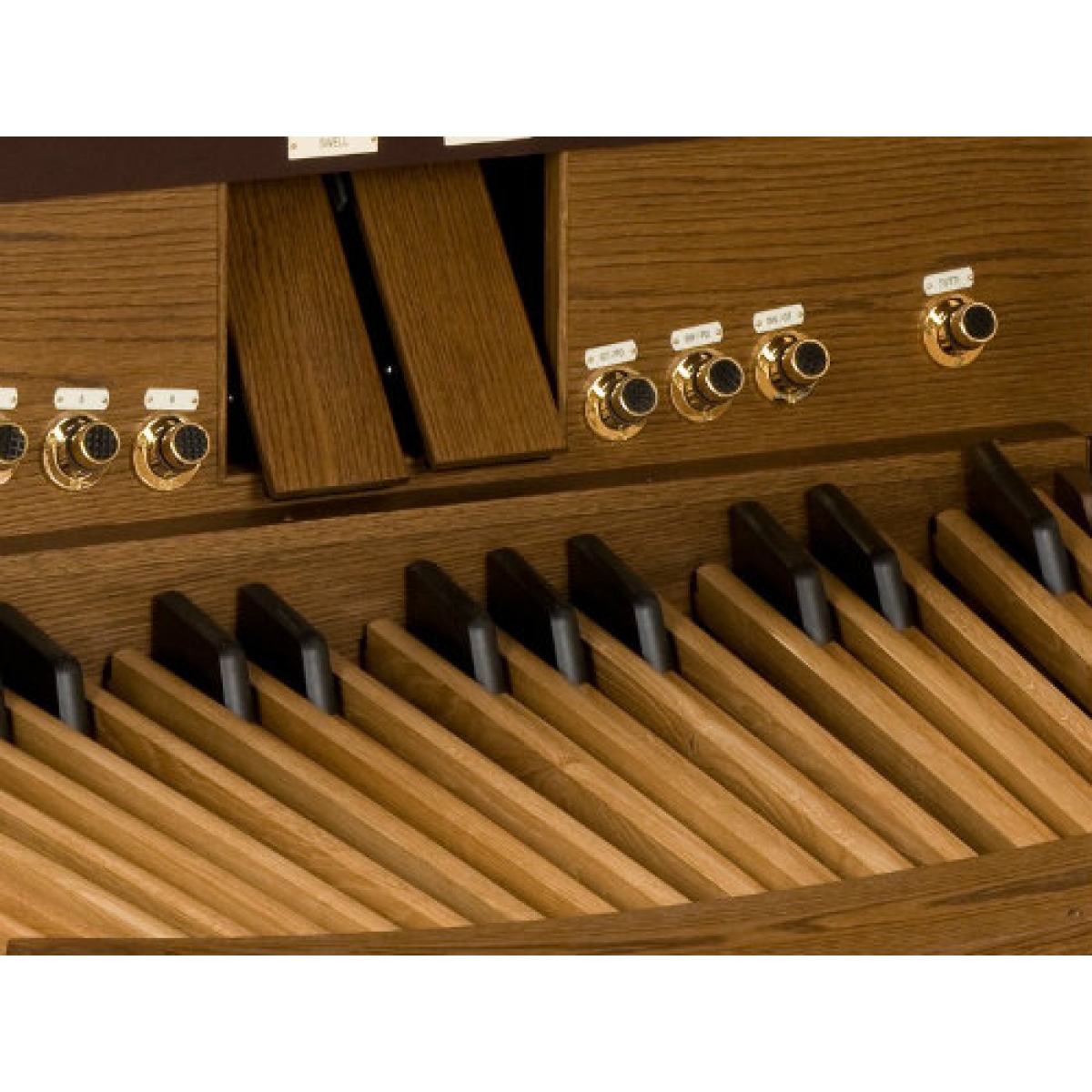

Pedalboard
|
32 notes straight, straight concave, radiating concave
|
|
Stop Type
|
Tilt tab
|
|
Audio Amplifiers
|
2 x 60 Watt + 1 x 100 Watt
|
|
Speakers
|
5
|
|
Expression Pedals
|
1, wooden pedal
|
|
Crescendo Pedal
|
Yes, wooden pedal
|
|
|
|
STOPS and VOICES
|
|
|
Pedal
|
10
|
|
Great
|
12
|
|
Swell
|
13
|
|
Total Speaking Stops
|
35. Hundreds voices in the internal sound bank
|
|
Sound Styles
|
4 Preset + 4 User. Hundreds sound styles can be loaded and/or stored from/to internal memory and pen drive
|
|
Alternative Voices
|
Selectable additional sound for each stop
|
|
Orchestra Voices
|
Selectable additional sound for dedicated stop
|
|
|
|
ACCESSORIES
|
|
|
General Pistons
|
6
|
|
Divisional Pistons
|
6
|
|
Memory Bank
|
16
|
|
Total Memories
|
96 general, 288 divisional, tens of thousands with pen drive
|
|
Piston Sequencer
|
Prev - Next pistons
|
|
Toe Studs
|
10
|
|
Automatic Pedal
|
Yes
|
|
Enclosed piston
|
Yes
|
|
Couplers
|
3, with Stops, Pistons and Toe Studs
|
|
Transposer
|
-6/+5
|
|
General Volume - Reverb Volume
|
With rotary potentiometers
|
|
Divisional Midi Enable
|
Yes
|
|
Orchestra and Midi Sustain
|
Kick switch located on the side of the expression pedal
|
|
Pen Drive Mass Storage
|
Usual Usb pen drive can be used as mass storage
|
|
Sequencer Remote Control
|
Optional radio no directive 50 mt distance remote control with built in 2x16 display
|
|
|
|
DISPLAY
|
128 x 64 dots graphic with backlight
|
|
Edit Voice Parameters
|
Stop by stop adjustable voice parameters
|
|
Divisional Volume
|
Separate for each division
|
|
Tremulant
|
2, Separately for each manuals depth and speed adjustable
|
|
Reverberation
|
8 Types
|
|
Ensemble Effect
|
Adjustable
|
|
Insufficient Air Pressure Effect
|
Proportional to the active Voices
|
|
Tracker Keyboard Effect
|
Yes
|
|
Historic Temperaments
|
Kirnberger II, Kirnberger III, Werckmeister III, Werckmeister IV, Werckmeister V, Vallotti, Silbermann I, Silbermann II, Kellner 1975, Meantone, Meantone pure minor third, Zarlino, Sauveur I, Sauveur II, Barca, Rameau, Pythagorean; each with programmable "Tonic" Key Note
|
|
Keyboards Inversion
|
Yes
|
|
Output Router
|
Stop by stop adjustable windchest layout
|
|
External Out Volume Control
|
independent volume control for each channel
|
|
External Out 5 Band Equalizer
|
independent equalizer for each channel
|
|
Internal Ampl. 5 Band Equalizer
|
Yes
|
|
Midi Programmable
|
Tx/Rx Midi Ch., Tx/Rx Midi Filter, Send PG, Keyb. Midi Velocity
|
|
Sequencer
|
Interactive song sequencer with overdubbing function
|
|
Demo Songs
|
Yes
|
|
File Management
|
Copy, Load, Save, Rename, Delete etc.
|
|
Lock Organ
|
With password
|
|
|
|
CONNECTIONS
|
|
|
Midi In, Out, Thru
|
Yes
|
|
Stereo Headphone Out
|
Yes
|
|
Stereo Aux In
|
Yes
|
|
Mic In
|
With gain control
|
|
Multiple Line Out
|
5, 13 with output optional expansion board
|
|
USB (device) to PC (For Viscount Organ Editor)
|
For finest finishing and personalization like Stop by Stop, Note by Note Volume and Pitch Regulation, Stop disposition, Internal and External Routing, etc. (optional)
|
|
USB (host) for Pen Drive
|
Yes
|
|
|
|

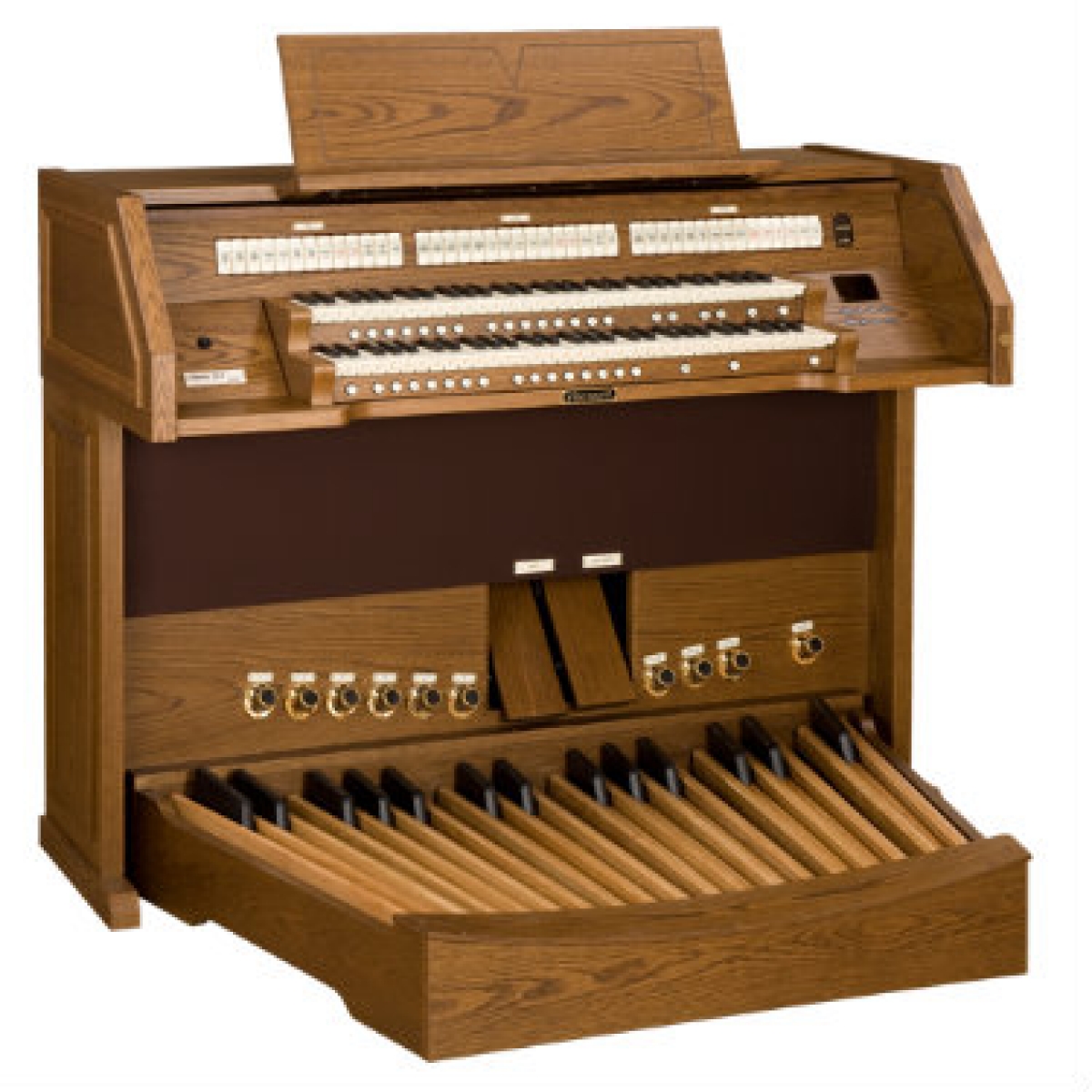

CONSOLE
|
|
|

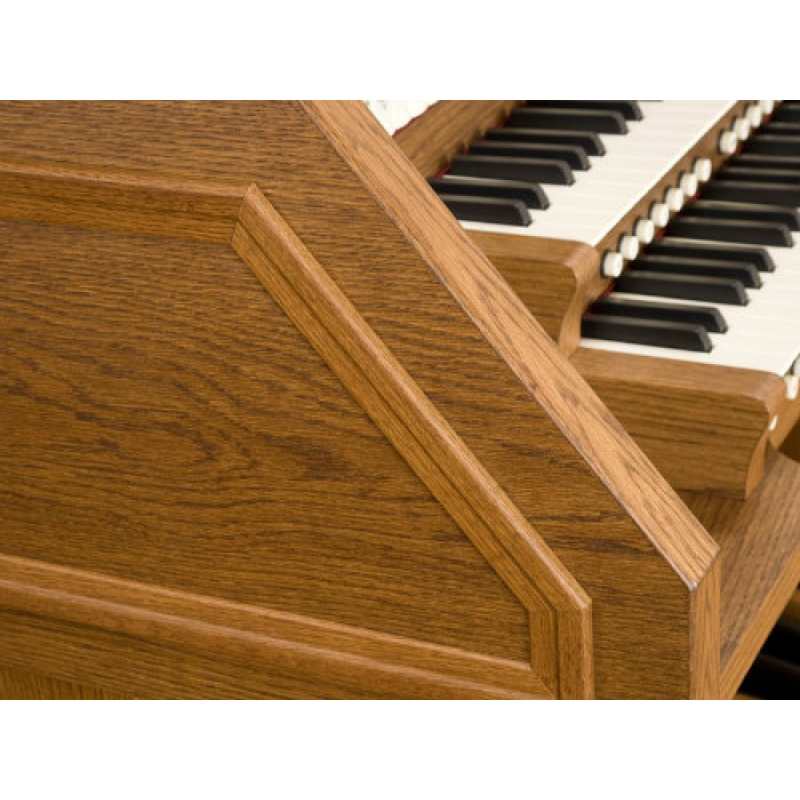

Cabinet
|
Elegant wooden console in dark, medium or light oak, elegant wooden lighted music rack, roll cover and matching bench
|
|
Width x Height x Depth without pedalboard
|
cm 145,8x114,5x66,5
|
|
Width x Height x Depth with 32 notes AGO pedalboard
|
cm 145,8x114,5x111,7
|
|
Weight
|
139 kg
|
