MADE IN GERMANY
AER – AUDIO ELECTRIC RESEARCH
ACOUSTIC LINE

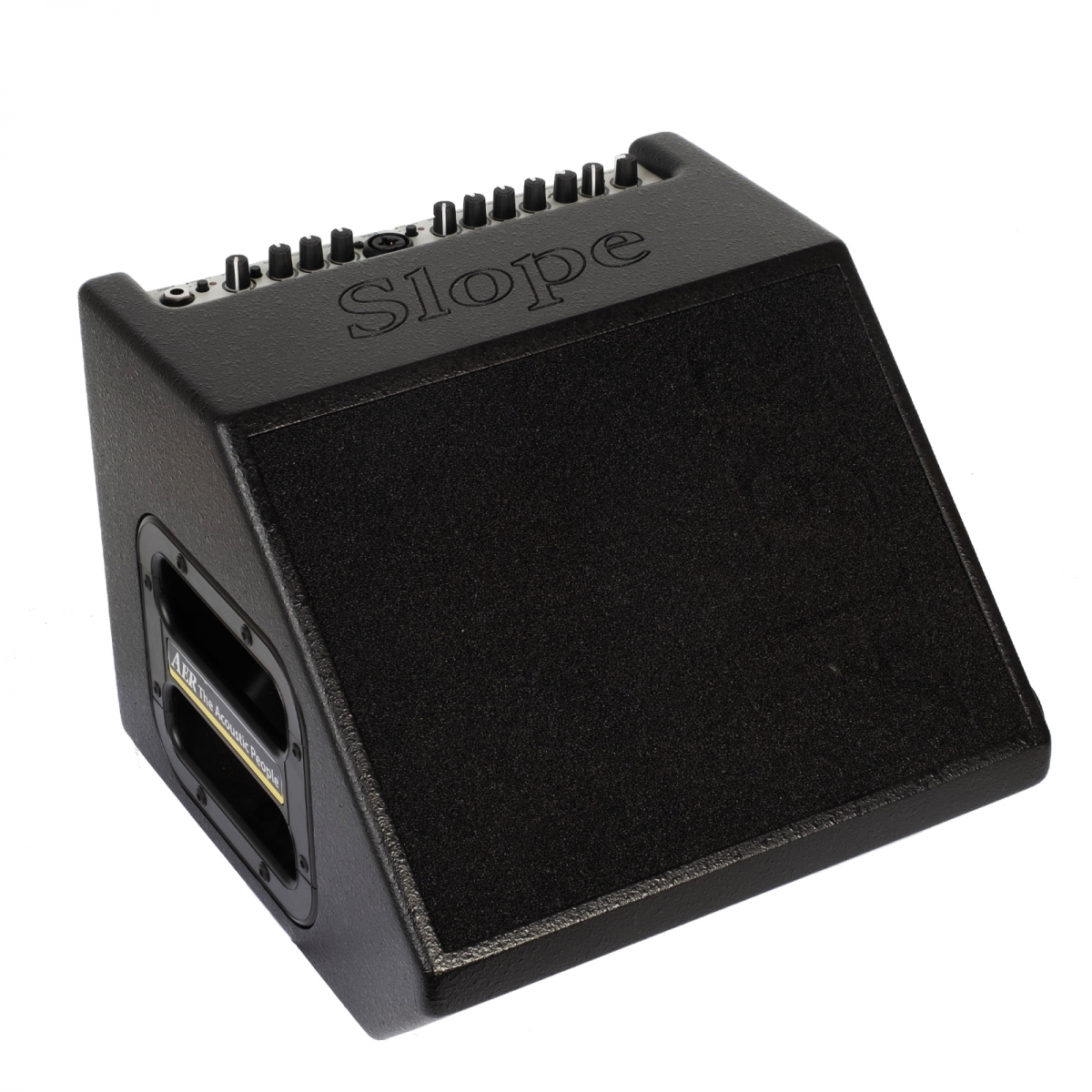

Compact Slope – Basically the AER COMPACT 60 Mk IV but in a sloping monitor form – this can be helpful when used as though a monitor on stage.
PRODUCT DESCRIPTION
Full functionality of the Compact 60_4 in a wedge design cabinet.
- Monitor plus design
- 60 watts, dynamic control
- 8“ twin cone speaker system
- Twin-channel, 3 and 2 band EQ
- Digital effect processor with 4 presets
- 7,2 kg (15,87 lbs)
TECHNICAL SPECIFICATIONS
Channel 1
6.3 mm (1/4”) input jack socket as
high impedance line input stage with
pad (high/low attenuation) 9 V phantom power
and gain control
Channel 2
combined XLR/6.3 mm (1/4”) input jack socket as high
quality line or balanced microphone input stage 48 V
phantom power, gain control
Equalizer
three band tone controls for channel 1 and
two band tone controls for channel 2
Colour
‘mid-cut-treble-boost’-filter
Effects
digital effect processor with
4 presets: 2 x reverb, delay, chorus
Power amp
60W / 4 ohms, dynamic control
Speaker system
8” (200 mm) twin cone speaker
Features
headphones, line out, DI-out,
external effect loop
via send and return, footswitch
(internal/external effect on/off )
Wedge angle
45°
Dimensions
260 mm x 330 mm x 137/235 mm
(10.19“ x 13.03“ x 5.39“ x 12.84“)HxWxD
Weight
7,2 kg (15.87 lbs)
