ADAM

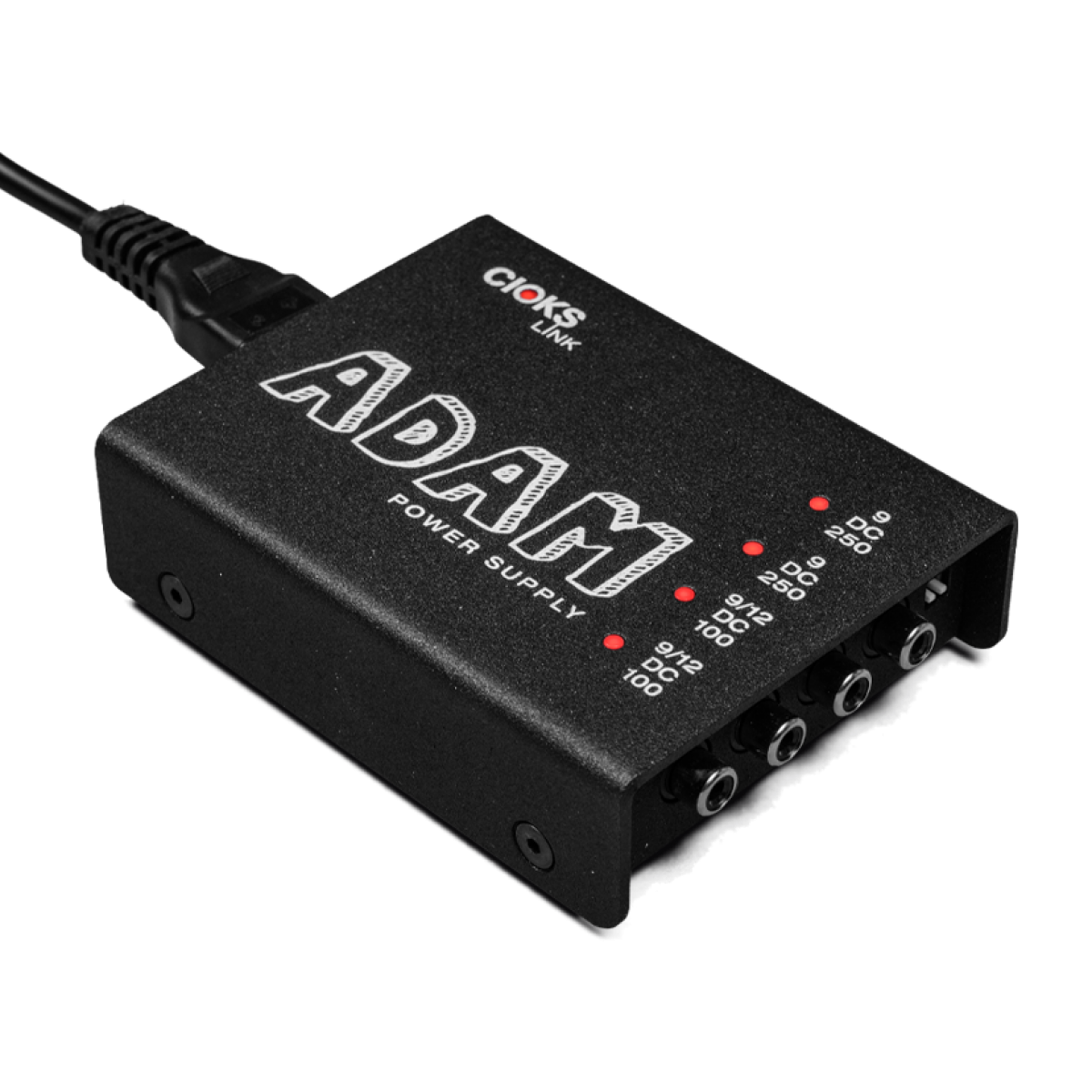

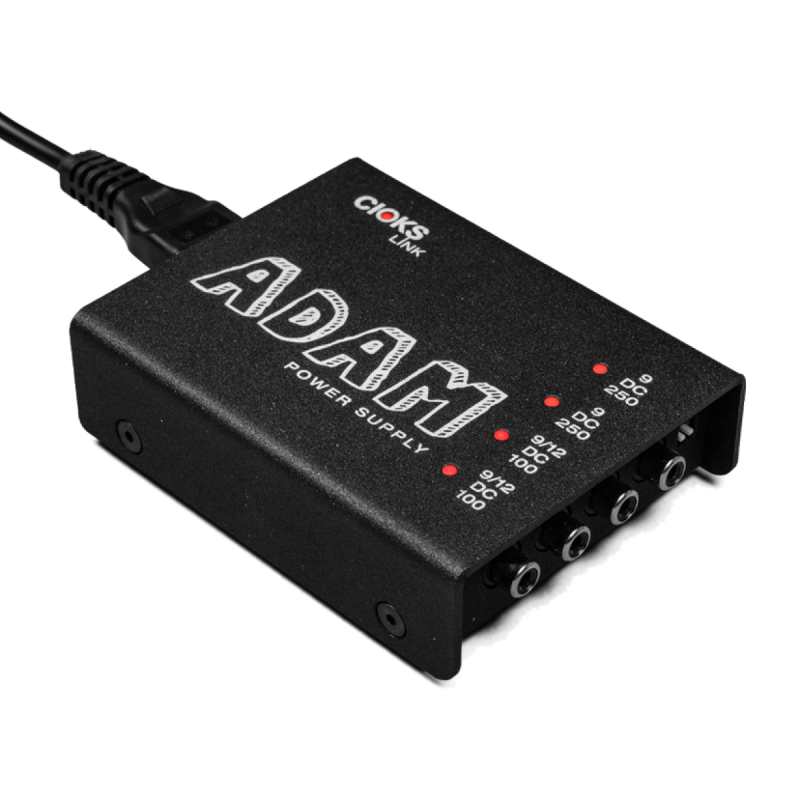

Adam link is a small and very flat power supply for effect pedals with 4 isolated outlets. Being only 31mm high it fits under the flat Pedaltrain nano, mini, new nano+ and all metro boards. It offers voltages 9 or 12V and a total output current of 700mA. The top two fixed 9V outlets will power any two Strymon or other two medium current pedals. The bottom two outlets, configurable to either 9 or 12V, will power two or even more standard low current pedals when used with Split Flex or 3-way daisy chain Flex. If needed, all 4 isolated outlets will give you 9V DC in the default position of the settings switch.
Features
- 4 isolated outlets with 9 or 12V
- Total output current of 700mA
- Two medium current 9V outlets with 250mA each
- Can power any two Strymon pedals
- Short circuit protection of all outlets
- LED monitoring of each outlet
- 120 or 230V mains voltage operation
- Detachable mains power cord
- CIOKS unique mains link feature
- ADAM easily adds 4 extra isolated outlets to another link power supply
- Total of 6 Flex cables included
- Split Flex for powering two pedals of one outlet included
- Super flat design, fits under Pedaltrain nano, mini, the new nano+ and all metro boards
- Compatible with Temple Audio pedalboards
- All pedalboard mounting hardware included
What's in the box?
- CIOKS Adam power supply
- Mains power cord
- 6 Flex cables:
- Type 1 – black with 5,5/2,1mm centre negative DC plug x4
- Type 5 – black with 3,5mm tip positive Jack plug x1
- Split Flex type 1 – black, powers two pedals of a single outlet x1
- Pedalboard mounting hardware: 2 screws and a hex key
- Manual
- Product sheet (drill template)
- Flex guide
