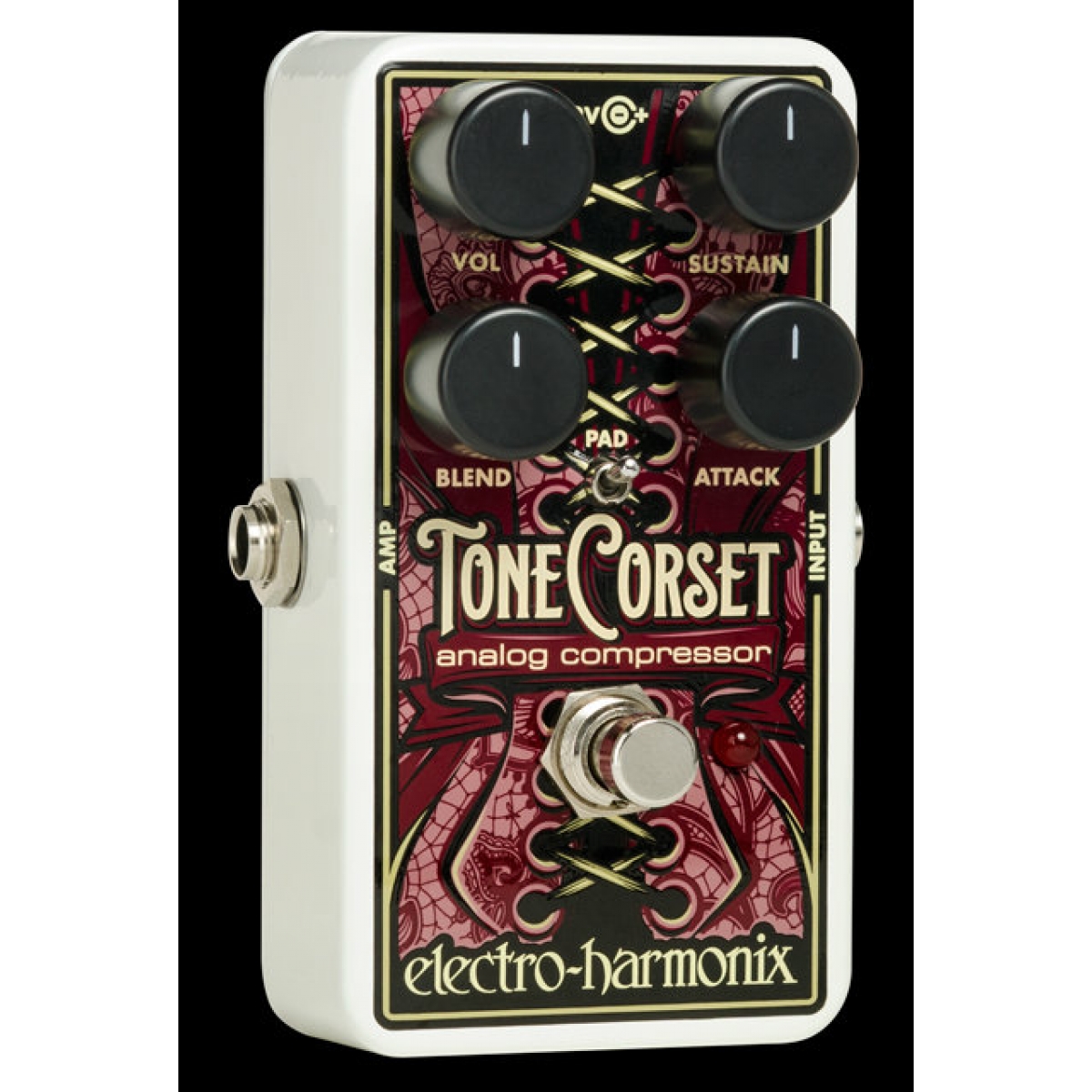

EHX Tone Corset Analog Compressor
The Tone Corset, our four-knob analog compressor, squeezes your guitar tone in all the right ways! Mike Matthews says, "The Tone Corset is the funkiest analog compressor I ever heard on guitar!"
Quick Specs
– Four-knob design provides excellent control and gives the user the ability to precisely shape their instrument’s dynamics.
– The Sustain knob controls the amount of compression applied to the guitar signal.
– The Attack know adjusts how quickly the compressor recovers. As Attack is turned clockwise the pedal’s response is slower and more initial pick attack comes thru.
– The Blend knob adjusts the mix of the dry and compressed signals.
– Volume controls the overall output level.
– The Pad switch pads down the input signal to prevent undesirable distortion if the Tone Coret is used with high output humbuckers, bass guitar, etc.
– True Bypass for maximum signal path integrity.
– 9-Volt battery included, also accepts optional EHX 9.6VDC-200mA power supply
– Current Draw: 9mA @ 9VDC
– Dimensions in inches: 2.75(w) x 4.5(l) x 2(h)
– Dimensions in mm: 70(w) x 115(l) x 51(h)
VOLUME KNOB: Adjusts the output level of the effect
SUSTAIN KNOB: Controls the amount of the compression
ATTACK KNOB: Controls how quickly the compressor will recover
BLEND KNOB: Adjusts the mix of the dry and compressed signal set to the output
PAD SWITCH: Pads down the input signal to prevent undesirable distortion
BYPASS FOOTSWITCH & STATUS LED
The Footswitch selects whether the Tone Corset is engaged or in True Bypass mode. When the effect is engaged, the LED is lit.
INPUT JACK
The ¼” jack is the audio input for the Tone Corset. The input impedance is 1MΩ.
AMP JACK-
The ¼” jack is the audio out for the Tone Corset. The output impedance is 100Ω.
