Badder Monkey
Go APE!
DESCRIPTION
Though the re-release of a Bad Monkey has been loudly demanded by fans across the world, and fans would have been sufficiently satisfied by a simple reissue, the Badder Monkey™ is far more than that. The world has never seen an overdrive like the Badder Monkey™!
It not only includes a faithful reproduction of the original circuit and sound but far exceeds its predecessor in features and versatility. From its three completely independent Behaved™, Bad™, and Badder™ overdrive circuits giving you three pedals in one, to its unique parallel blending enabled by the patent-pending Barrel Control™, further enhanced by optional out-of-phase combinations, to the all-three-in-parallel Troop™mode, the Badder Monkey™ represents unheard-of variability in an affordable compact overdrive pedal!
Also included is the new patent-pending reversible StagePlate™ with both a rubber skid pad side and a “hook and loop” side for clean and convenient pedal board mounting.
• 3 independent overdrives in 1 pedal!
• Replicates the original Bad Monkey™ circuit
• NEW higher-gain Badder™ overdrive circuit
• NEW lower-gain Behaved™ overdrive circuit
• Grunt™ (Low) & Screech™ (Mid-High) cut/boost Mood™ EQ
• NEW Patent-Pending Barrel Control™ for blending overdrives
• Overdrives can be used independently or blended in parallel
• Troop™ mode blends all 3 overdrives in parallel
• Bad Monkey™ phase invert function for increased blended tonal variety
• Triple-gang Bananas™ (Gain) control
• Curiosity™ (Output Level) control
• NEW Patent-Pending reversible StagePlate™ with skid pad on one side & hook-and-loop on the other side for clean & convenient pedal board mounting
• Tri-color LED indicates blending mode
• Standard +9V DC tip-negative barrel jack
• Optional 9V “baddery” operation
• True Bypass
The Origin
Featuring widely acclaimed original “Bad Monkey” circuit
The Evolution

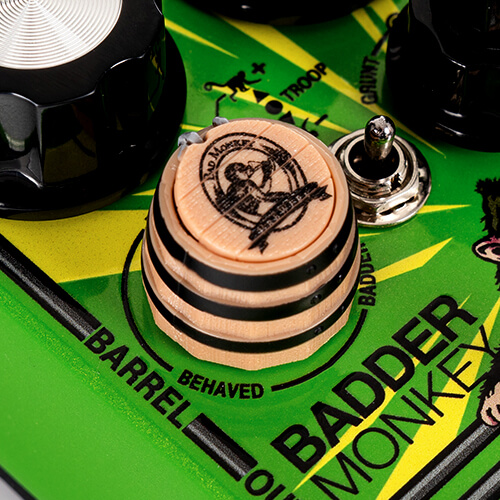

Patent-pending 360-degree rotating Barrel Control selects Behaved, Bad, Badder Circuits. Blend any 2 of the 3 to get hundreds of different mixture combinations. Or combine all 3 in Troop Mode!
Reversible StagePlate™
The Badder Monkey’s reversible StagePlate™ lets you quickly switch between a grippy skid pad and a hook surface for pedalboard mounting, giving you maximum stability and convenience.
Badder Monkey
SPECIFICATIONS
| General Specification | |
|---|---|
| Dimensions | 4.68” (11.8cm) x 2.63” (6.9cm) x 2.25” (5.7cm) (L x W x H) / Jack Width = 2.92” (7.4cm) |
| Weight | 0.62 lbs. (0.28 kg) |
| Input | ¼” Instrument Phone Jack |
| Input Impedance | >500kΩ |
| Output | ¼” Instrument Phone Jack |
| Output Impedance: | <1kΩ |
| Chassis | Aluminum |
| Power Input | 2.1mm DC Barrel Jack, center (tip) negative |
| Power Supply | PS0913DC Power Supply, Other well-regulated 9V center (tip) negative supply, +18 V tolerant, 9V alkaline “baddery” |
| Consumption | <25mA typical |
| Product Information | |
|---|---|
| SKU | DOD-BADDERMONKEY |
| SKU UPC | 8 10147 52012 1 |
| Packaged Dimentions | 4.88” (12.4cm) x 3.38” (8.6cm) x 2.55” (6.5cm) (L x W x H) |
| Packaged Weight | 0.94 lbs. (0.43 kg) |
| Warranty | 1 year |
| Designed In | Salt Lake City, UT, USA & Seoul, South Korea |
