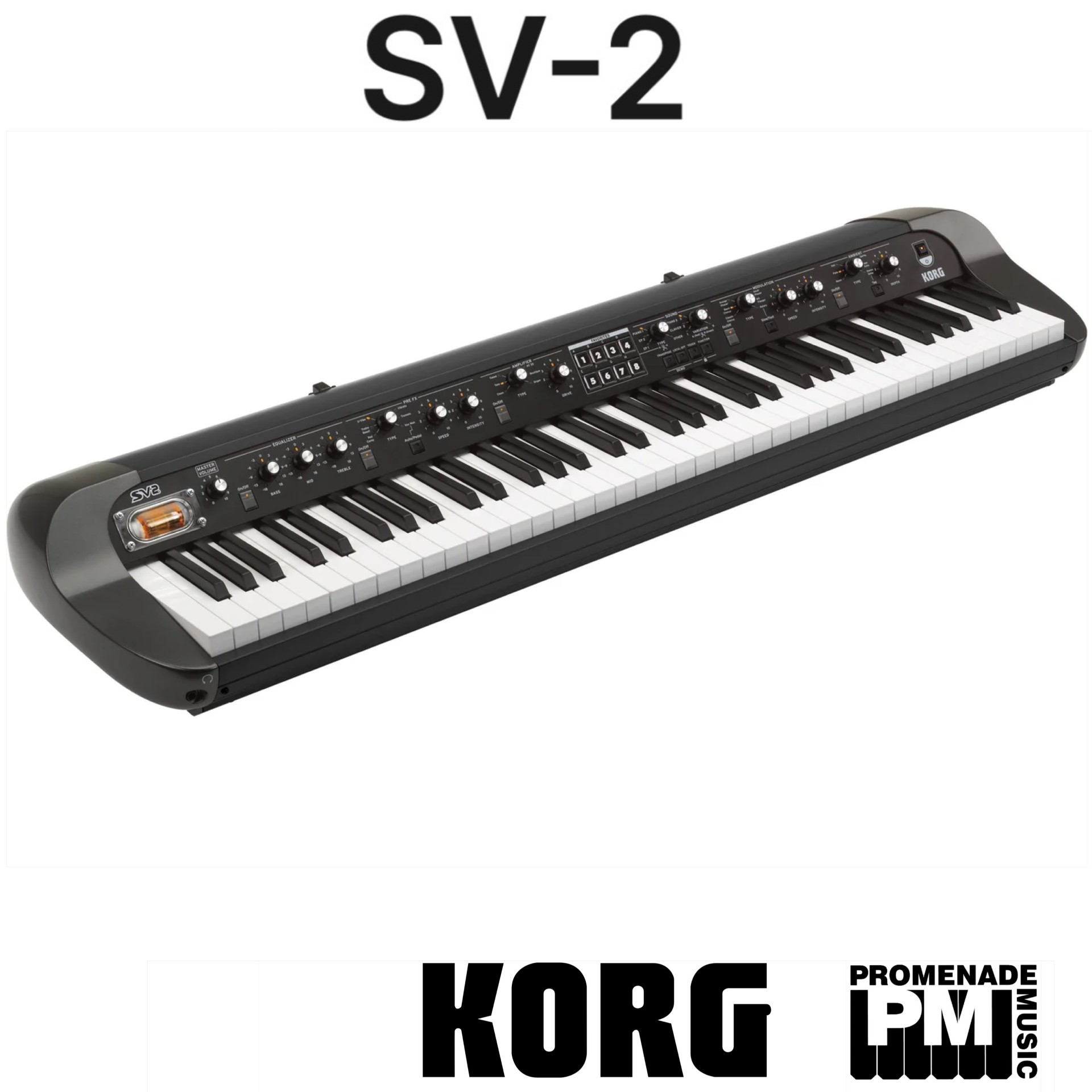

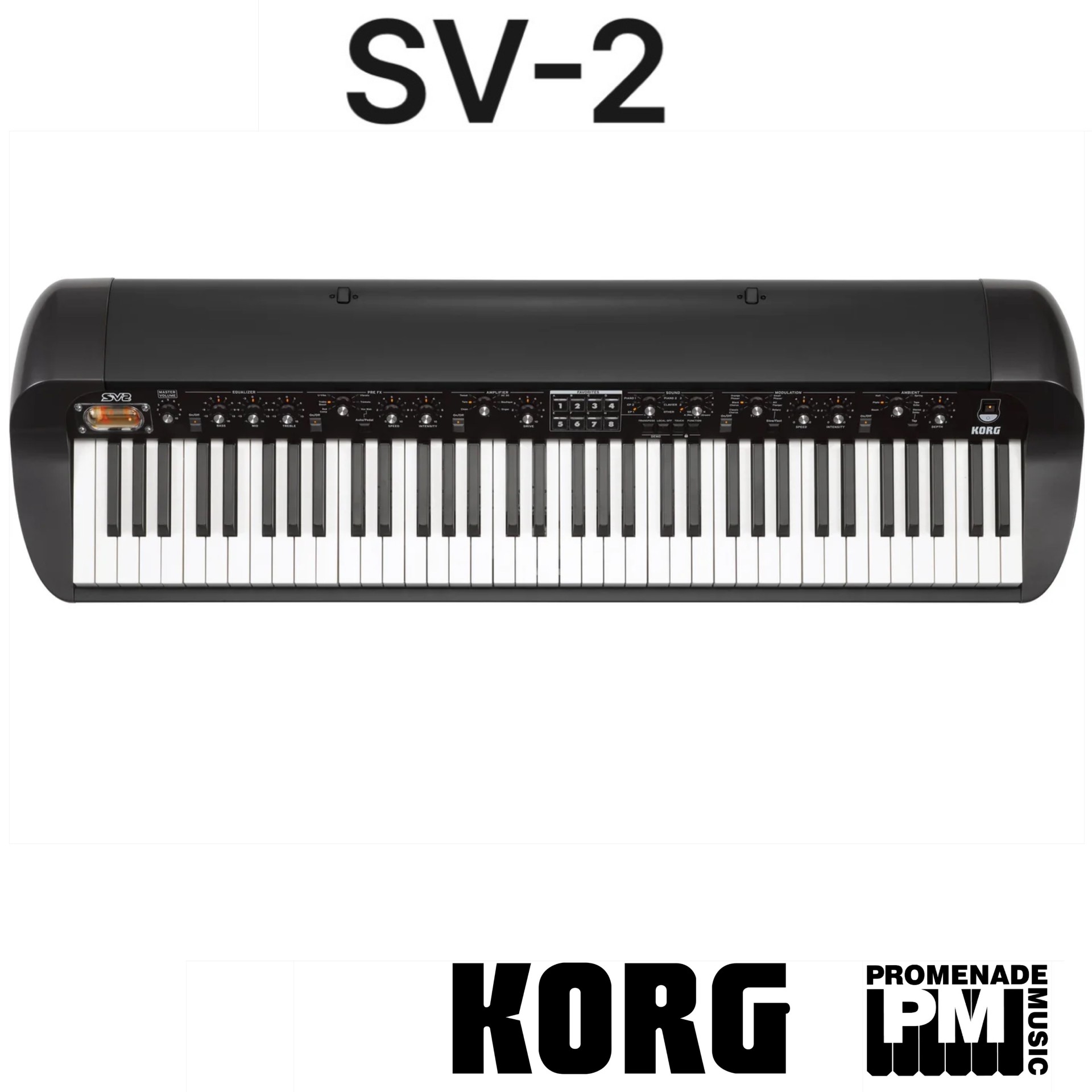

Korg SV2-73 Stage Vintage Piano (No Built-In Speakers)

£1,599.00
£1,680.00

The Evolution of a Modern Classic

Easy to use and simple to control.

  • 73 Keys
  • Weighted Hammer Action
  • Classic Electric Pianos
  • Classic Organs & More!
Out of Stock - 01524 410202
Free UK shipping on applicable items
  • Found it cheaper elsewhere? Contact us to see if we can beat their price!
  • Call us for experienced and friendly advice
Safe Checkout

The Evolution of a Modern Classic

Never before has a single instrument captured the signature sound, the unique performance experience, and the aesthetic satisfaction of so many definitive keyboards as the KORG SV-2 Stage Vintage.

Ten years ago, KORG launched the Stage Vintage line to wild acclaim. The combination of an intuitive live panel, the premier keybed, the ultimate realization of coveted vintage sounds, the clarity of world-class pianos, the warmth and character of period-proper effects, and the distinctively smooth shape has inspired musicians from around the globe for over a decade. Available with either 88 keys or 73 keys, these SV-2 models are the latest additions to the Stage Vintage series, featuring more of everything that makes an SV great. More Sounds. More Memory. More Polyphony. More Presets. More Control. It is quite literally everything one could want in a performance stage piano … and more. Plus, be sure to check out the SV-2S models, equipped with an internal K-ARRAY speaker system.


More. More. More.

The SV-2 contains over ten times the sample data available in previous SV models, providing ample memory for many all-new piano and keyboard sounds. The SV-2 is home to 72 compelling sounds, and provides 64 memory locations to store edited Favorites for instant access during performance. Using the SV-2 Editor software, users are now free to create their own split and layered programs and save them to one of the Favorites locations. In fact, a single favorite can access up to three timbres at once – A piano/bass split with a layer of strings, for example. While user splits must be created using the SV-2 Editor, the split point on the keyboard can be adjusted directly from the front panel. Plus, polyphony of the SV-2 now stands at 128 voices, allowing more effective layering of sounds or sustained chording.

Faithful Sound Reproduction

The SV-2 represents the pinnacle of audio sampling techniques and careful instrument preparation, delivering the most exacting and accurate rendition of so many keyboard classics. Using only the best-maintained instruments and the latest multi-mic’ing methods, every sound has been captured as precisely as possible. The slap of the tine, the release of the hammer, the click of the contacts—every element is amazingly preserved in the RX Layer; mix in as much or as little of these authentic artifacts as you need. In addition, the full dynamic range of each instrument has been faithfully preserved, recreating all of the timbral and volume changes generated from a ppp (pianississimo) touch to an fff (fortississimo) strike – and everything in between. This detailed sampling regime creates a three-dimensional sense of presence, allowing the sound to fully occupy its place in the mix or in the performance space.

Coveted Classics

Experience a treasure trove of classic electro-mechanical, transistorized, tape-driven, analog, and digital keyboard instruments, all reproduced with stunning realism. These sounds defined decades of popular music, and are now once again in demand. The SV-2 places all of these sought-after sounds right at the fingertips – in perfect tune and in impeccable playing condition – no maintenance required. It’s all here. Electric pianos now include nearly all the American tine and reed models, a Japanese electric grand, as well as a rare German electric piano. And then there all those clavis, created using a range of settings. Prefer electronic pianos? There are analog, digital, VPM, FM, and sampled versions – including the ever-popular KORG M1 piano. Looking for Organs? Select from tone-wheel classics; VOX combo, Italian transistor, or American tube organs; and now church and cathedral organs. Need some strings? Choose from a 70s-era analog string machine, prog-era tape strings, or a warm orchestral section. Plus, the SV-2 contains mallets, brass and choir sounds, guitar and bass sounds, even solo and pad synths that are ideal for layering or creating convenient splits.

Plenty of Pianos

The SV-2 remains, at heart, a stage piano. At the touch of a button, you can summon the most outstand-ing grand piano sounds from around the world – including exemplary pianos from the leading German, Italian, Austrian, and Japanese instrument makers. For a more intimate setting, choose one of the authentic Japanese or German upright pianos. Also included are a real honky-tonk piano and a genuine “tack” piano. Last but not least, the SV-2 contains two gorgeous harpsichords, one French and one Italian. Featured alone, layered with another sound, or split across the keyboard, these outstanding piano sounds deliver a strong foundation while delivering additional performance options.

The SV-2 invites you to take command of your sound. There is no LCD screen, no menus to dive through. Instantly inviting and familiar, the front panel is always live, so go ahead – grab a knob, rotate it, tweak it, and experiment. Change your mind? Pressing in on the knob quickly restores it to the programmed value. Switches with LED indicators show which effects are active, transposition, and more. Sounds are selected through a pair of rotary switches. Eight illuminated buttons in the center of the panel can quickly recall any of 64 Favorite presets, each containing your own customized sounds and settings. Best of all, the SV-2 now offers a Panel Lock function that prevents the accidental switching of sounds if the Favorites buttons are inadvertently touched while performing – and also prevents curious fingers from switch-ing settings between sets. More detailed and convenient control is offered via the free SV-2 Editor soft-ware.


Agility and Expression

All SV-2 Stage Vintage instruments share the finest KORG RH3 graded-hammer action keybed. As on a grand piano, the weighting of the keys is graduated across the keyboard; heavier in the lower registers and becoming lighter in the upper registers. This RH3 keybed is remarkably sensitive to the nuances of every performance, accurately delivering every expressive element. Selecting one of the eight distinct velocity curves allow the keyboard response to match any playing technique of performance style. Authentic to the end, the SV-2 offers eight tuning schemes including equal, grand piano stretch, electric piano stretch, electric grand, upright stretch, detuned and two user-definable types (configurable using the free SV-2 Editor). The overall tuning, or concert pitch, of the SV-2 can be adjusted to match another instrument or a previously recorded track. Needless to say, the SV-2 can be transposed into any key.


Making it Real

Adding the right effects provides layers of sonic splendor and adds a crowning level of authority to any vintage keyboard sound. The SV-2 features six independent stages of studio-grade signal processing, highlighted by the KORG Valve Reactor. This Valve Reactor circuit delivers the added warmth or snarl that only a true 12AX7A vacuum tube can provide. As with the sounds themselves, all of the effect mod-els are faithful to the originals and are designed to match the performance, limitations, and behavior of the chosen effect. Effect stages include:

– 3-BAND EQUALIZER (Bass, Middle and Treble)
– PRE FX (Red Compressor, Treble Boost, U-Vibe, Vibrato, Tremolo, VOX Wah)
– AMP MODEL (Clean, Twin, Tweed, AC30, Boutique, Organ, plus several types of Cabinet Simulators and Noise Reduction)
– MODULATION FX (Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, MX Flanger, Rotary)
– REVERB/DELAY (Room, Plate, Hall, Spring, Tape Echo and Stereo Delay)
– TOTAL FX (Stereo Mastering Limiter, Stereo Limiter)



Easy to use and simple to control, these period-accurate effects and amp models add authenticity to your vintage and modern sonic pursuits.

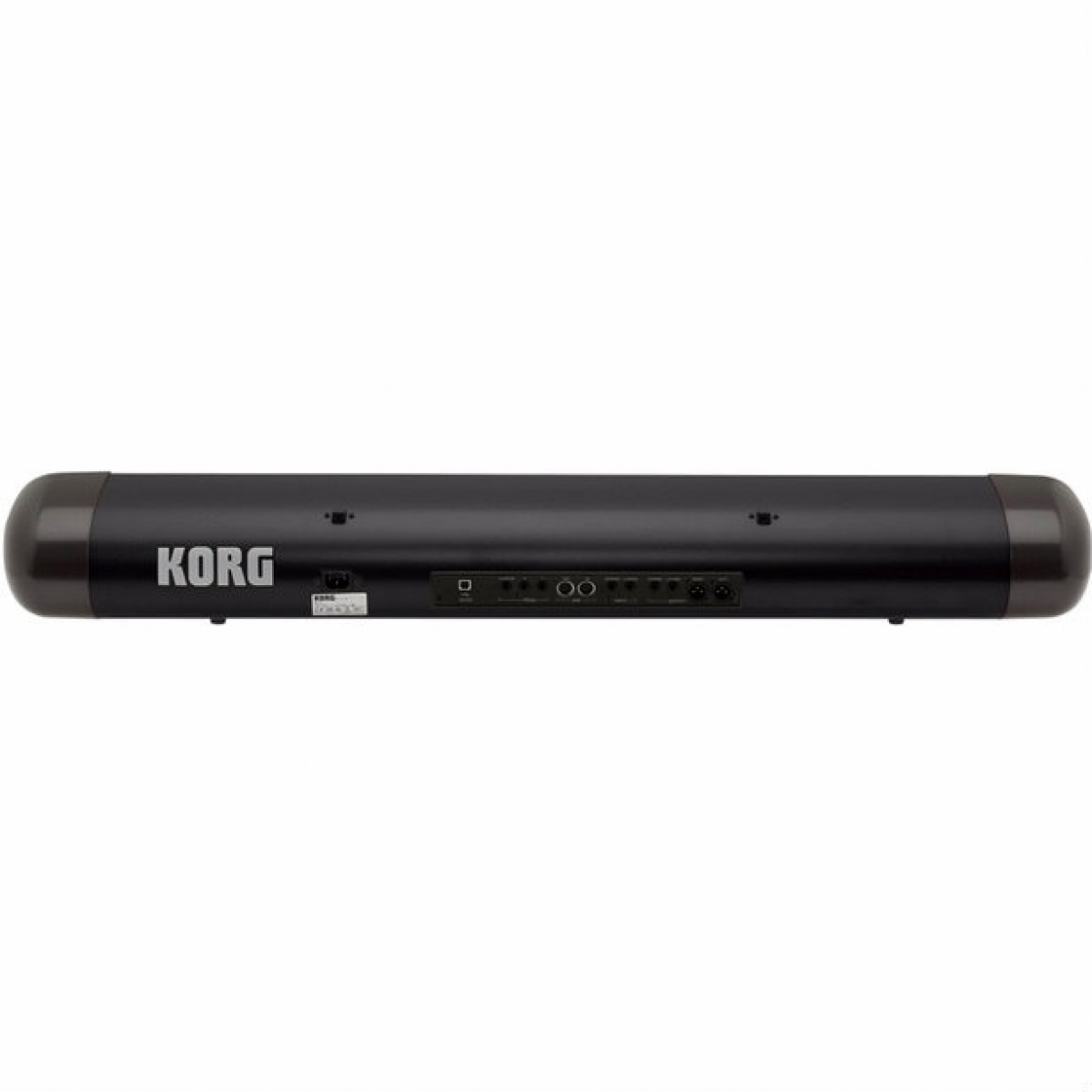

Modern Connections

The SV-2 is host to all the audio jacks, data connections, and pedal ports that today’s professional stage pianos require. In addition to the Left and Right 1/4" audio outputs, there are Left and Right XLR outputs for connecting directly to a studio console or onstage snake, without requiring any direct boxes or impedance matching transformers. The headphone output allows for onstage monitoring or for rehearsing in private. Din-style MIDI IN and MIDI Out jacks connect easily to other MIDI instruments and music equipment; the USB port provides a data link between the SV-2 and a computer.
There are 3 pedal connections: Damper, Pedal 1, and Pedal 2. The DS-2H Damper pedal is included and responds to half-pedaling for an authentic piano response. Pedal 1 is designed for a switch type of pedal and can operate as a piano Sostenuto pedal, or as a Fast/Slow switch when the Rotary Pro effect is on. Pedal 2 can accept either a sweep-type pedal – great for authentic Wah effects and accurate organ volume control – or an additional switch pedal, providing the piano purist with access to all three piano pedal functions by adding the Una Chorda (soft) function.



Specifications


Keyboard

SV-2 /SV-2S (73key)
    73 keys (E1 to E7), Velocity-sensitive KORG RH3 (Real Weighted Hammer Action 3)

SV-2 /SV-2S (88key)
    88 keys (A0 to C8), Velocity-sensitive KORG RH3 (Real Weighted Hammer Action 3)

Touch selection
    Eight curves

Tuning
    Master Transpose, Master Tune, Tuning curves

Sounds

Sound generation
    EDS-X (Enhanced Definition Synthesis – eXpanded)

Maximum Polyphony
    128 notes

Multi Sound
    Layer, Split

Factory Sounds
    72 (6 Basic sounds x 2 sets, 6 variations)

EP1 (Vintage)
    MK I Suitcase, MK I Stage, MK II Suitcase, MK II Stage, MK V Stage, MK V Bright, Dyno EP, Dyno EP Bright, Wurly, Wurly Classic, Wurly Dark, Wurly Bright

EP2 (Various)
    FM Piano 1, FM Piano 2, FM Piano 3, FM Piano & Pad, Pianet T, Pianet N, Hybrid Piano, Hybrid Tine, Wurly & Strings, FM & Strings, MK II & Pad, FM & Pad

Piano 1 (Acoustic)
    German Grand, German Classic, Italian Grand, Italian Bright, Japanese Grand, Japanese Bright, Austrian Grand, Austrian Classic, Japanese Upright, Upright Bright, German Upright, Rock Piano

Piano 2 (Various)
    Electric Grand, German Mono, KORG M1 Piano, KORG SG-1D, Digital Piano, Electra Piano, Tack Piano, Honky-Tonk, Piano & Strings, Piano & Pad, Piano & Synth, Piano & Brass

Clavier
    Clav AC, Clav AD, Clav BC, Clav BD, Harpsichord, Harpsichord Oct, Perc. Organ, Rock Organ, Jazz Organ, VOX Organ, Church Organ, Pipe Organ

Other
    Full Strings, Classic Strings, Tape Strings, Strings & Voices, Warm Pad, Bright Pad, Orchestra, Pizzicato & Glock, Brass, Synth Brass, Pad/Mini Lead, Pad/SynthLead

Favorite sounds
    64 (8 banks x 8 variations) for saving of customized settings

Effects

Structure
    6 effects (5 effects + 1 total effect)

Equalizer
    Bass, Mid, Treble

Pre FX
    Red Comp, Treble Boost, U-Vibe, Vibrato, Tremolo, VOX Wah (Auto or Pedal control)

Amplifier models
    Clean, Twin, Tweed, AC30, Boutique, Organ Amp + Cabinet Models, Valve Reactor Technology – 12AX7 (ECC83) valve

Modulation
    Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, MX Flanger, Rotary (Slow/Fast control)

Ambient
    Room, Plate, Hall, Spring, Tape Echo, Stereo Delay (Tap tempo)

Total FX (only editable with SV-2 Editor)
    Stereo Mastering Limiter, Stereo Limiter

Panel controls

Sound Select
    TYPE knob, VARIATION knob, FAVORITES 1–8 switches

Favorite Sound select
    1–8 switches, SOUND TYPE knob

Effect Control
    Equalizer: On/Off switch, BASS knob, MID knob, TREBLE knob

Pre FX
    On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, AUTO/PEDAL switch (available when the TYPE = Vox Wah)

Amplifier
    On/Off switch, TYPE knob, DRIVE knob

Modulation
    On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, Slow/Fast switch (available when the TYPE = Rotary.)

Ambient
    On/Off switch, TYPE knob, DEPTH knob, Tap (available when TYPE = Stereo Delay)

Volume
    Master Volume

Switches
    Transpose, Local Off, Touch, Function

Demo Songs
    72 songs (one song for each preset sound)

Input/Output connections

Audio Output
    L, R connector (XLR balanced), L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)

Headphone
    Headphone jack(6.3 mm [1/4”] stereo jack)

Audio Input
    L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)

MIDI
    IN, OUT

USB
    USB: 2.0 Type B connector (doubles the MIDI Interface)

Damper Pedal
    KORG DS-2H (included), DS-1H(sold separately)

Pedal 1
    PS-1 foot switch, PS-3 foot switch (sold separately)

Pedal 2
    Volume/Expression, XVP-20, EXP-2, PS-1 foot switch, or PS-3 foot switch (sold separately)

Amplification (SV-2S)

Speakers
    2 x 2.5" with 2 x 3" passive radiator

Amplification power
    2 x 15 W

Main specifications

Power Supply
    Internal switching adapter, AC 100~240 V, 50/60 Hz

Power Consumption

SV-2
    16 W

SV-2S
    25 W

Dimensions (W x D x H, excluding music stand):

SV-2/SV-2S (73key)
    45.0" x 13.66" x 6.18"

SV-2/2V-2S (88key)
    53.39" x 13.66" x 6.18"

Weight (excluding music stand)

SV-2 73key
    17.2 kg/37.92 lbs

SV-2 88key
    20.35 kg/44.86 lbs

SV-2S 73key
    18.3 kg/40.34 lbs

SV-2S 88key
    21.45 kg/47.29 lbs

Others

Included Items
    Power cable, Music stand, DS-2H damper pedal, Quick Guide.

Accessories (sold separately)

Stand
    ST-SV1 piano stand

Carrying bag
    CB-SV1 73
    CB-SV1 88

Damper pedal
    DS-1H

EXP/VOL pedal
    XVP-20

Foot controller
    XP-2

Pedal switch
    PS-3
    PS-1

*     All products names and specification names are trademarks or registered trademarks of their respective owners
*     Appearance and specifications of products are subject to change without notice.
