Yamaha MG10XUF Analog USB Mixer with Faders

£319.00
£368.00

10 Channel Mixing Console

The F stands for Faders

  • 10 Channels
  • 1 Stereo Bus
  • 1 AUX
  • 4 Mic/10 Line Inputs
Out of Stock - 01524 410202
Free UK shipping on applicable items
  • Found it cheaper elsewhere? Contact us to see if we can beat their price!
  • Call us for experienced and friendly advice
Safe Checkout

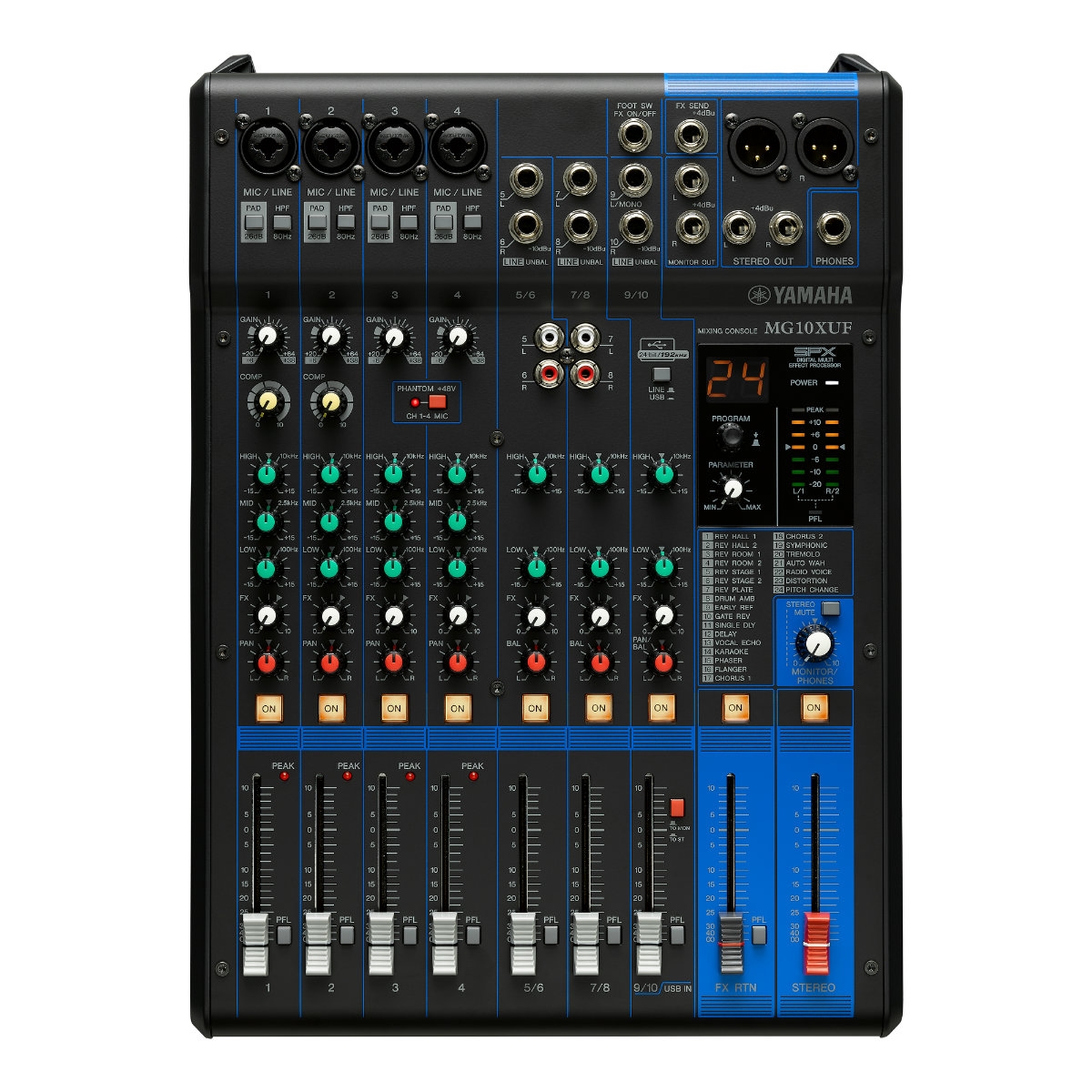

Yamaha MG10XUF

10-Channel Mixing Console: Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX)

Road Tough. Studio Ready.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.


MG10XUF

  •     10-Channel Mixing Console
  •     Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
  •     1 Stereo Bus
  •     1 AUX (incl. FX)
  •     “D-PRE” mic preamps with an inverted Darlington circuit
  •     1-Knob compressors
  •     High-grade effects: SPX with 24 programs
  •     24-bit / 192kHz 2in / 2out USB Audio functions
  •     Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  •     Includes Cubase AI DAW software download version *This is not bundled in some areas.
  •     Cubasis LE for iPad available at App Store
  •     PAD switch on mono inputs
  •     +48V phantom power
  •     XLR balanced outputs
  •     Metal chassis
  •     Dimensions(W×H×D): 275 mm x 110 mm x 390 mm (10.8″ x4.3″ x15.4″)
  •     Net Weight: 3.3kg (7.3 lbs.)



Specifications

Input Channels
Mono: 4 x Mic/Line
Stereo: 3 x Line
Output Channels
Stereo Out: 2
Monitor Out: 1
Headphone Output: 1
AUX Send: 1
Bus:
1 x Stereo
1 x Aux (FX)
On-Board Effects: 24 x SPX Algorithms Effects
Phantom Power: +48V
USB Interface: USB 2.0, 24-Bit/192kHz
PAD: 26dB (Mono)
HPF: 80Hz, 12dB/oct (Mono)
Compressor
Threshold: +22dBu to -8dBu
Ratio: 1:1 to 4:1
Output Level: 0dB to 7dB
Attack Time: Approx. 25msec
Release Time: Approx. 300msec
EQ:
High: 10kHz Shelving (+15dB/-15dB Gain)
Mid: 2.5kHz Peaking (+15dB/-15dB Gain)
Low: 100Hz Shelving (+15dB/-15dB Gain)
Peak LED: LED Turns On When Post EQ Signal Reaches 3dB Below Clipping
Level Metre: 2 x 7-Segment LED Metre (Peak, +10dB, +6dB, 0dB, -6dB, -10dB, -20dB)
Crosstalk: -83 dB
Power Requirements: PA-10 (AC 38 VCT, 0.62A, Cable Length = 3.6m)
Power Consumption: 22.9W
Dimensions
Height: 71mm
Width: 244mm
Depth: 294mm
Weight: 2.1kg

Additional information

Dimensions 0.00 × 0.00 × 0.00 cm
