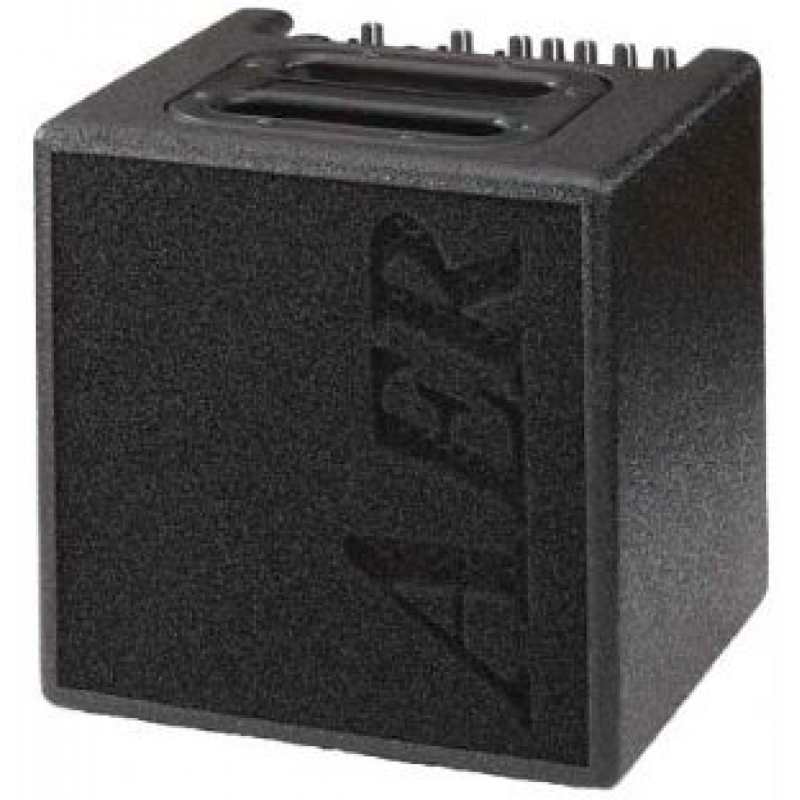

The AER Alpha defines the starting point of serious acoustic amplification at AER. Based on the success and the experience with the Compact 60 we developed an even smaller lightweight model that has no diffi culties living up tothe rigors of the road.
Open sounding and quick in response this amp masters
different ranges and is thus not afraid of bigger instruments.
• 40 watts, dynamic control
• 8” (200 mm) twin cone speaker
• Single-channel, two inputs
• digital reverb
• 6,2 kg (13.67 lbs)
Inputs
input one combined XLR/6.3 mm (1/4”) input jack
socket as high-quality line- or balanced
microphone input stage 24 V phantom
power, gain control.
input two 6.3 mm (1/4”) input jack socket as high
impedance line input stage with pad (high/
low attenuation) and gain control.
Tone Controls
equalizer three band tone controls
colour ‘mid-cut-treble-boost’-fi lter
effect digital reverb
Power
power amp 40W / 4 ohms, dynamic control
analog signal subsonic fi lter, low distortion
processing RMS limiter
Speaker System
8” (200 mm) twin cone speaker
Features
headphones, line out, DI-out, external
effect loop via send and return, footswitch
(internal/external effect on/off)
Accessories
padded gigbag
Specifications
cabinet 12 mm (0.47”) fi nnish birch plywood
fi nish waterbased acrylic, black spatter fi nish
dimensions 260 mm x 265 mm x 235 mm
(10.24“ x 10.43“ x 9.25“), HxWxD
weight 6,2 kg (13.67 lbs)
