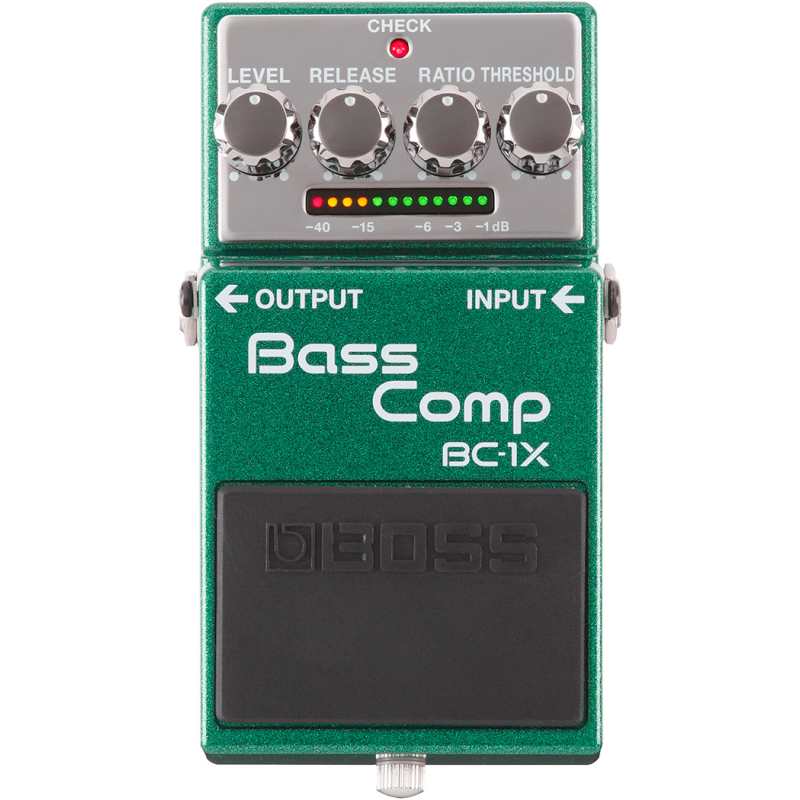

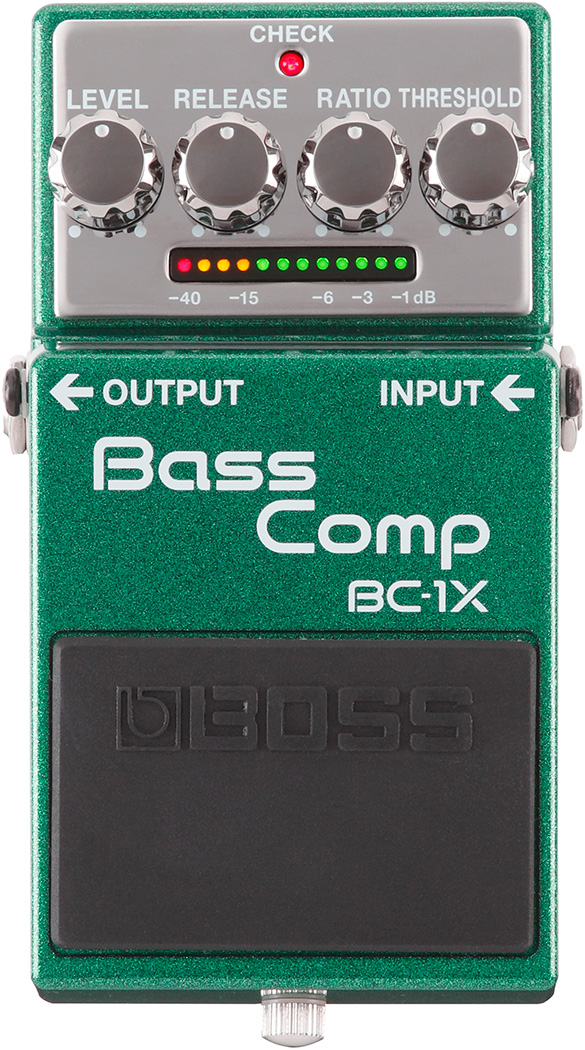

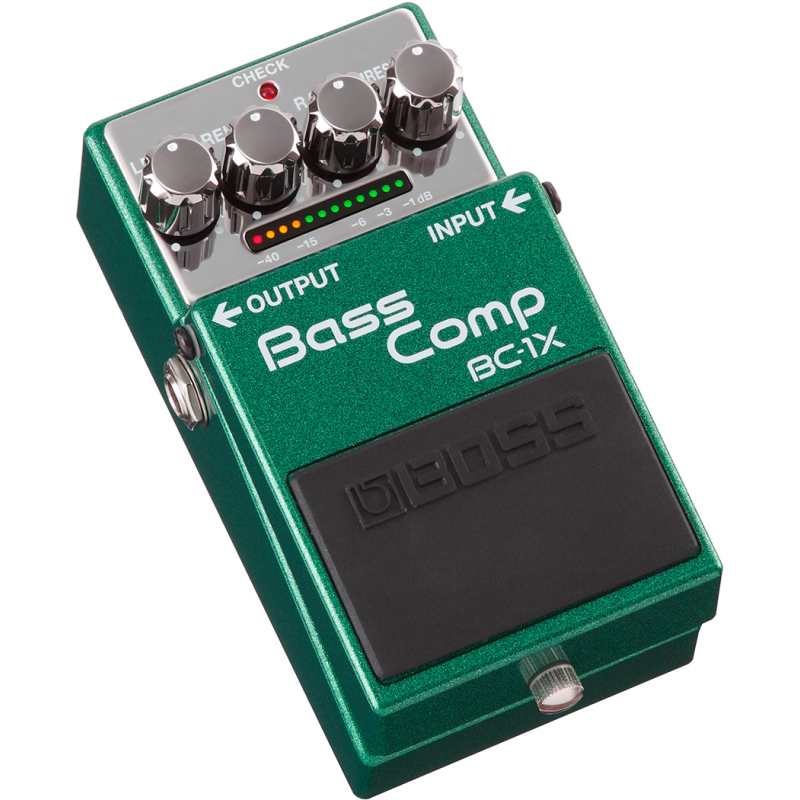

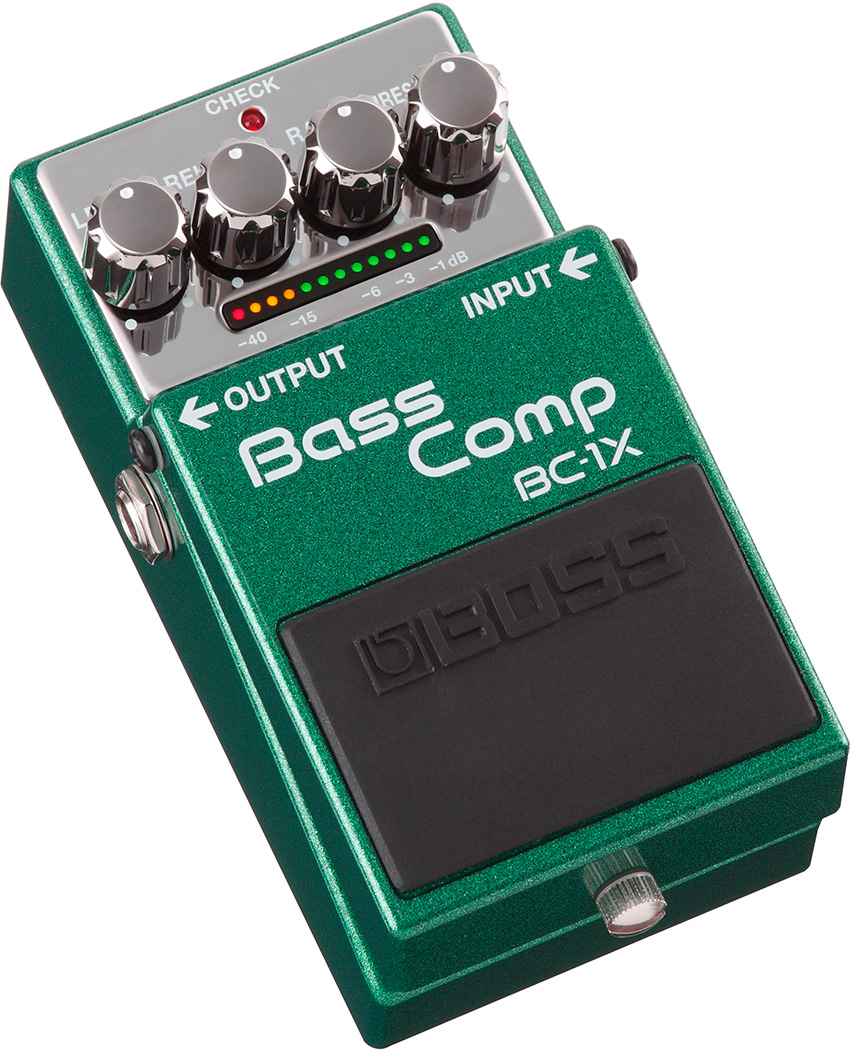

Boss BC-1X Bass Comp
Intelligent Multiband Compression for Dynamic Players
Equipped with cutting-edge BOSS technology, the BC-1X Bass Comp performs far beyond the capabilities of conventional bass compressor pedals. This premium stompbox features pro-level multiband compression controlled by intelligent circuitry, making it simple to dial in natural sounds for any playing style. The advanced design responds to different dynamics and registers to apply the perfect amount of compression in real time, ensuring that your tone never gets over-squeezed or muddy. Transparent, powerful, and easy to use, the BC-1X is a must-have tool that delivers studio-quality punch and precision for dynamic players.
Specifications
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
Pedal switch
THRESHOLD knob
RATIO knob
RELEASE knob
LEVEL knob
Indicator
CHECK indicator (Serves also as battery check indicator)
GAIN REDUCTION indicator
Connectors
INPUT jack
OUTPUT jack
DC IN jack
Power Supply
Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately)
Working Voltage
18 V
Current Draw
90 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 3 hours
Accessories
Owner’s Manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTE,” and “Information”)
Alkaline battery (9V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight(including battery)
450 g
1 lb
