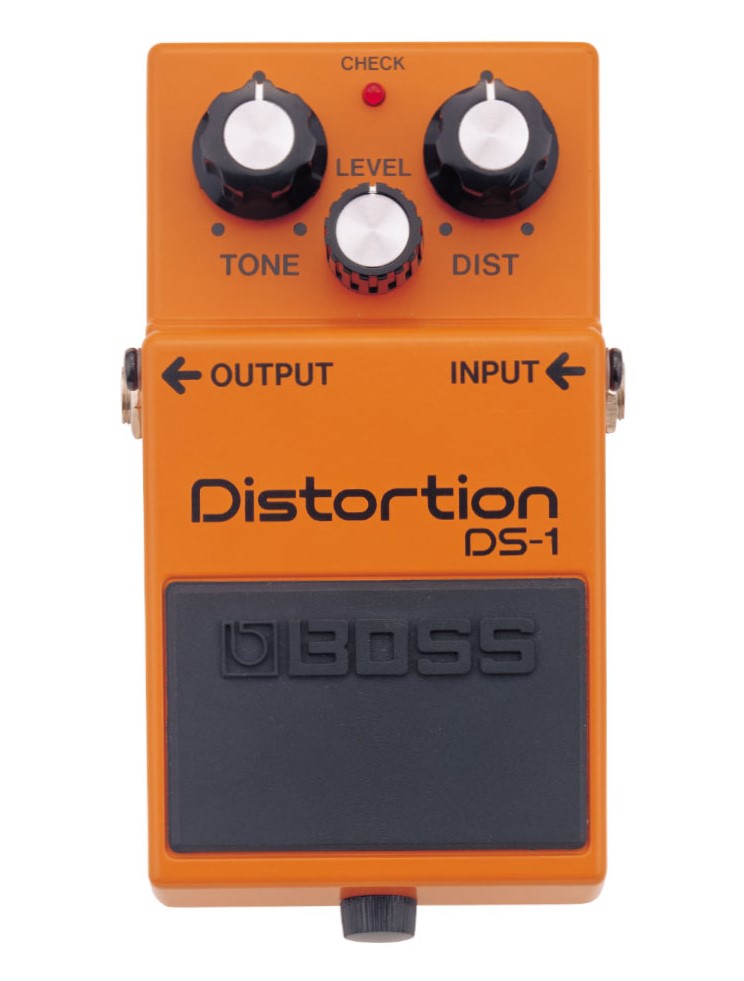

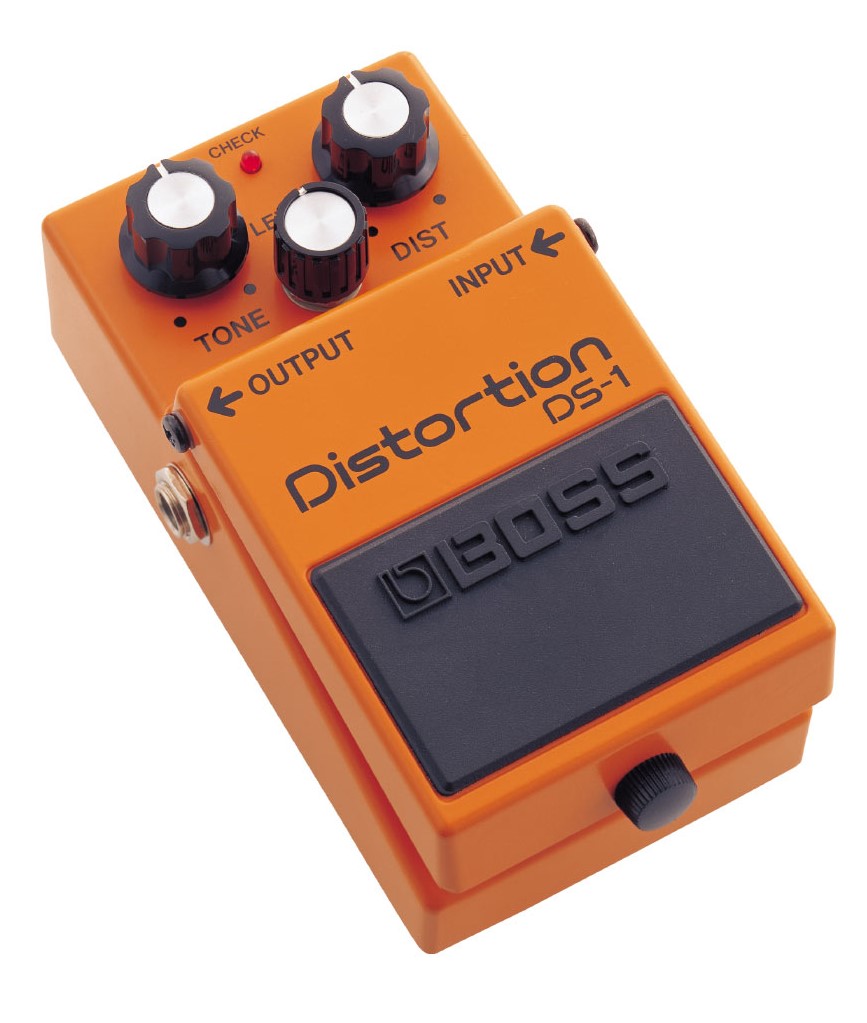

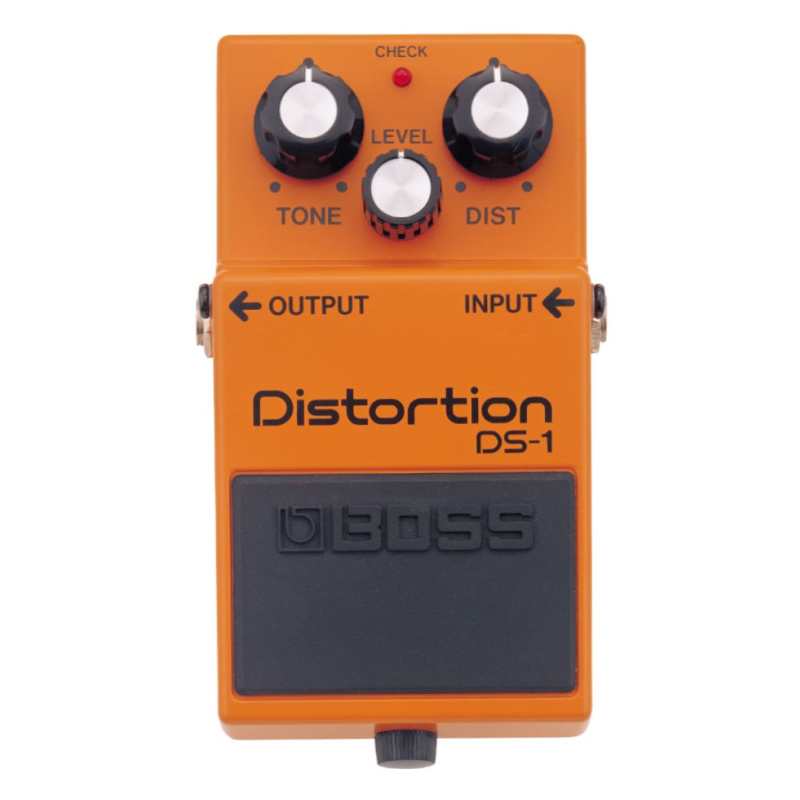

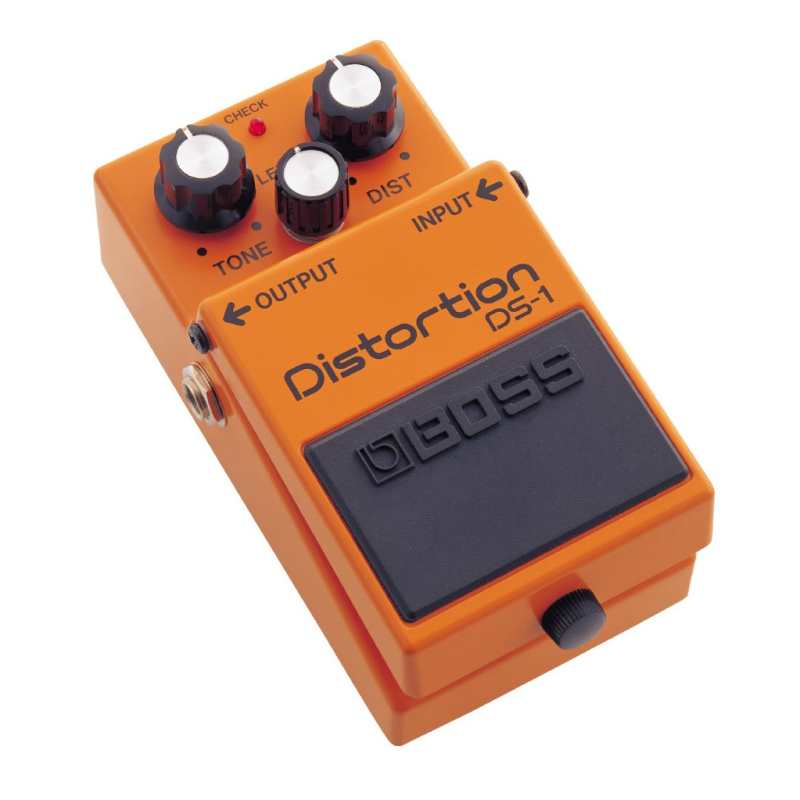

The classic DS-1 Distortion pedal provides a harder distortion effect for guitar and keyboard sounds. Instead of toneless, fuzzy distortion, the DS-1 faithfully reproduces all the subtle nuances of playing dynamics-at any volume.
Specs
- Nominal Input Level
- -20 dBu
- Input Impedance
- 470 ohms
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohms
- Equivalent Input Noise Level
- -122 dBu (IHF-A, Typ.)
- Connectors
- INPUT Jack, OUTPUT Jack, AC Adaptor Jack (9 V DC)
- Power Supply
- 9 V DC: Dry Battery 9 V type, AC Adaptor
- Current Draw
- 4 mA (9 V DC)
- Accessories
- Dry Battery 9 V type (6F22/9 V)
- Options
- AC Adaptor (PSA-Series)
- Size and Weight ( incl. battery )
- Width
- 73 mm
- 2-7/8 inches
- Depth
- 129 mm
- 5-1/8 inches
- Height
- 59 mm
- 2-3/8 inches
- Weight
- 0.4 kg
- 0 lbs. 15 oz.
