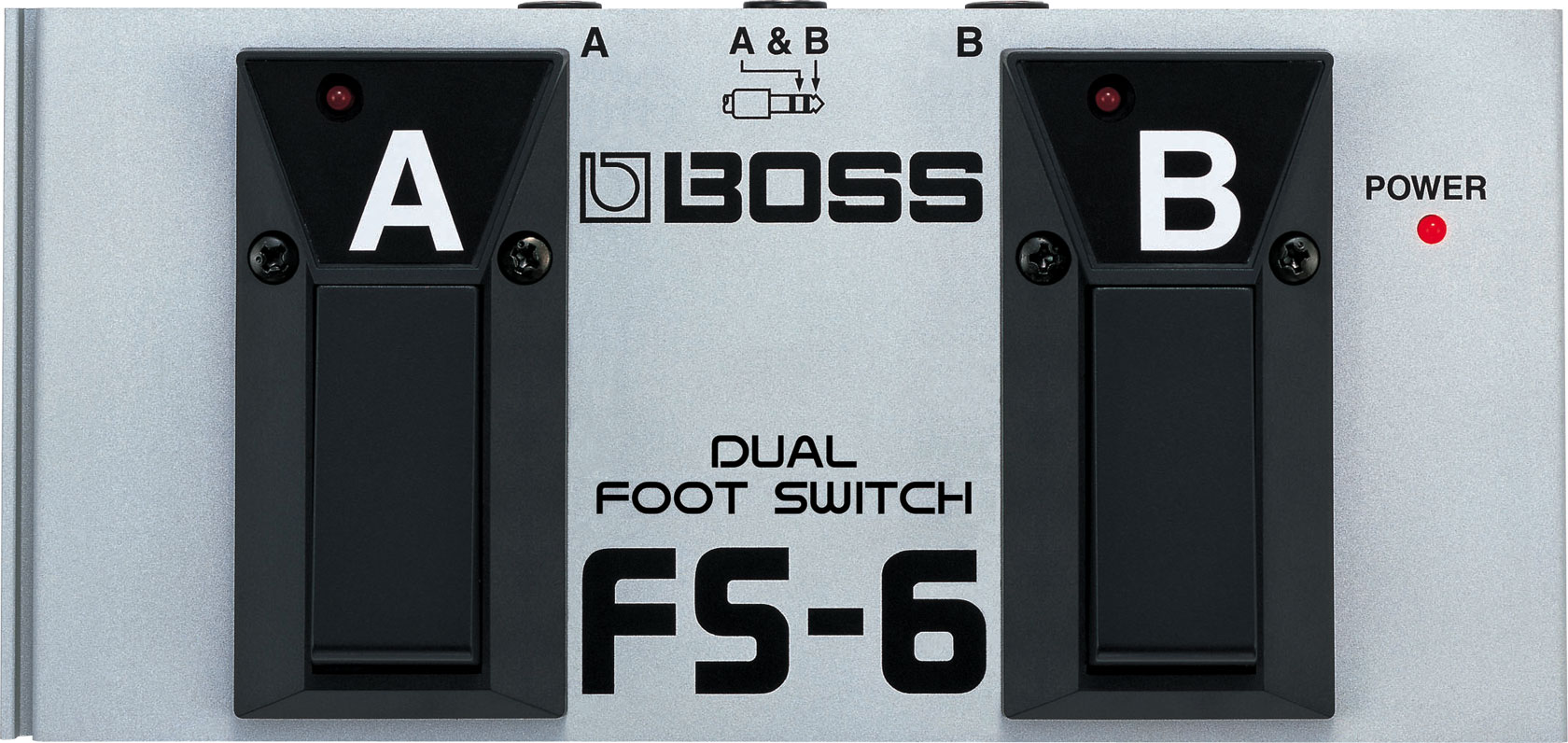

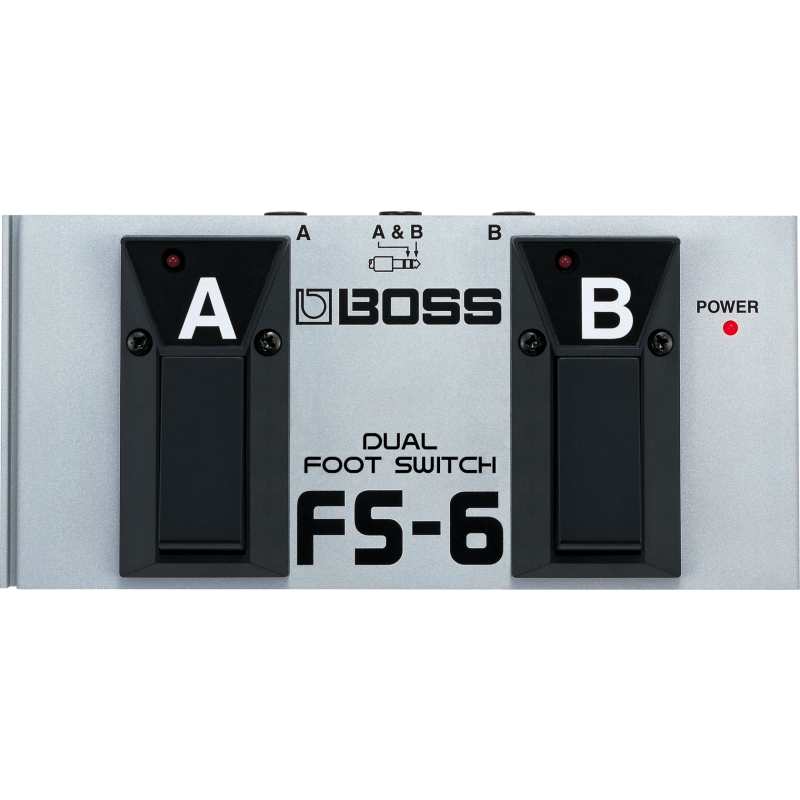

FS-6: Dual Footswitch
Two switches in one, Boss’ new FS-6 combines latch- and momentary-type switching into one unit. With two switches conveniently housed side-by-side, the FS-6 allows each switch to be set for latch or momentary operation. Pick the configuration that best suits your playing style and setup.
- Each footswitch can be assigned latch- or momentary-type
- Stereo input jack for single stereo cable connection
- Can be connected to other footswitches (FS-5L/FS-5U/FS-6/AB-2) for extension
- Can be used with a wide variety of instruments, rhythm machines, guitar amps, etc.
- Controls
- Pedal Switch A, B / POLARITY Switch A, B / Mode Switch A, B
- Connectors
-
Jack A, Jack B (1/4 inch phone type)
Jack A - Power Supply
- DC 9 V: Dry battery/9 V 6F22 (carbon), 6LR61 (alkaline)
- Current Draw
- 8 mA (max.)
- Accessories
- Dry battery/9 V (6F22), Owner's Manual
- Size and Weight ( incl. battery )
- Width
- 188 mm
- 7-7/16 inches
- Depth
- 91 mm
- 3-5/8 inches
- Height
- 43 mm
- 1-3/4 inches
- Weight
- 0.5 kg
- 1 lbs. 1 oz.
