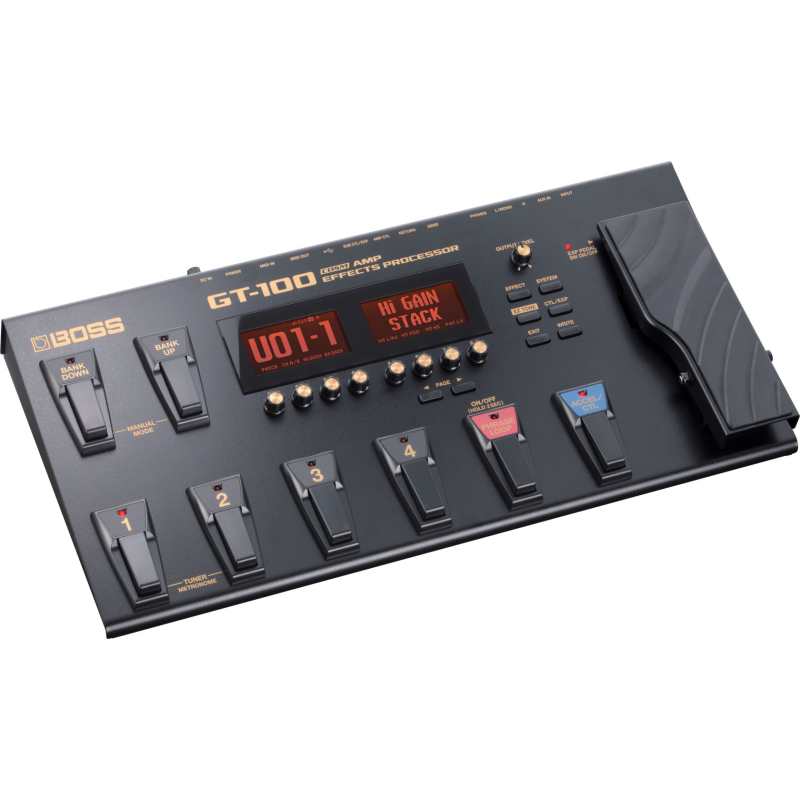

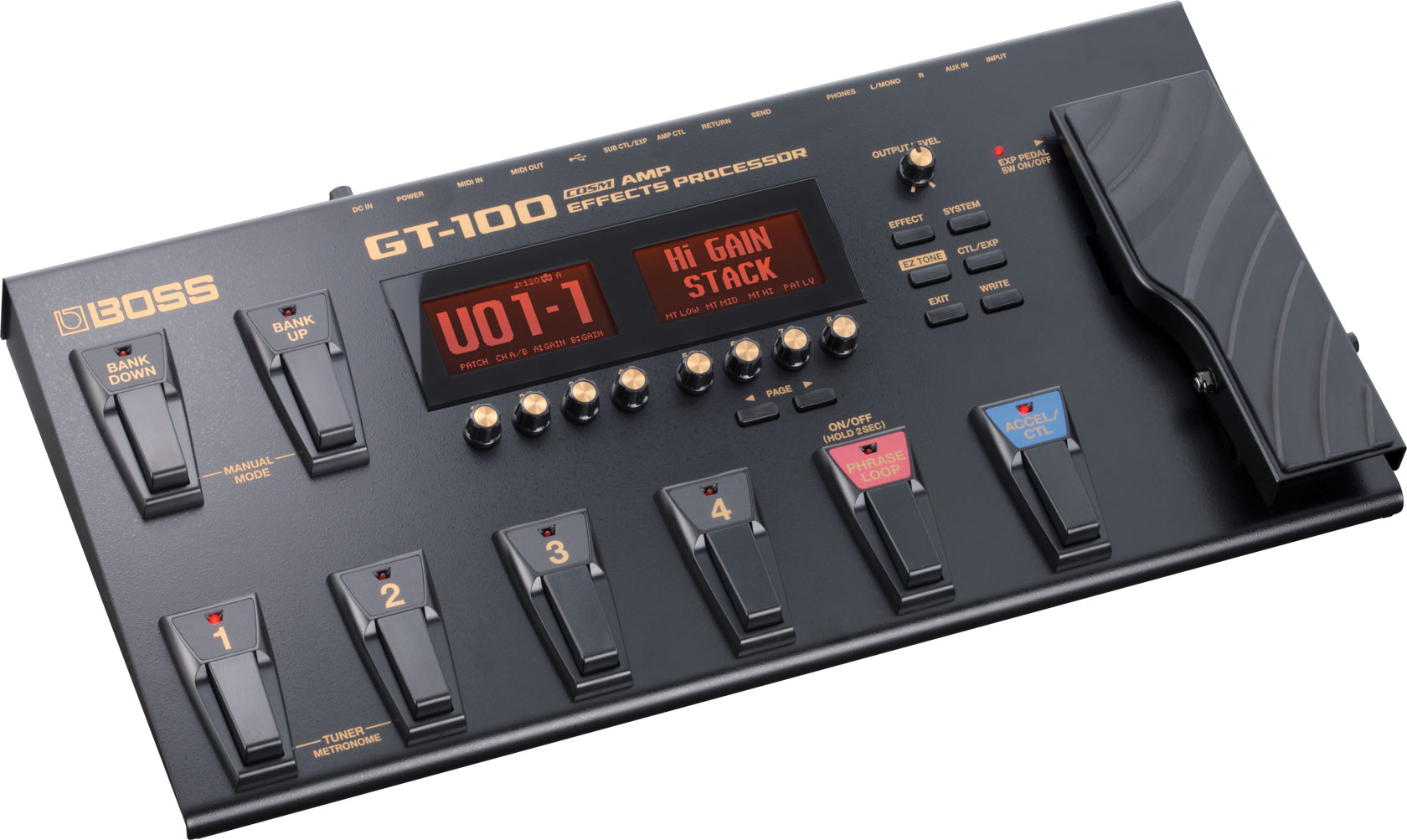

GT-100: Amp Effects Processor
The long-awaited follow up to the GT-10 has arrived. Meet the new BOSS effects flagship, the GT-100, boasting next-generation amp modelling that recreates vintage amps as well as providing new COSM tones that soar into the future. The user interface has been improved with a unique dual-LCD system, and EZ TONE has been enhanced with newly designed AMP CUSTOMISE and OD/DS CUSTOMISE features. The GT-100 is a powerhouse processor that spans from classic to futuristic in a friendly, rugged, road-worthy unit.
- Advanced COSM amps that model vintage amp tones and delivers never-before-heard tones
- Dual-LCD for simple and intuitive operation with direct access to every parameter
- Improved EZ Tone TONE feature with graphical TONE GRID for constructing new patches; AMP CUSTOMISE and OD/DS CUSTOMISE lets you easily create original amps and overdrive/distortion by customising their behaviour
- Newly developed ACCEL pedal for simultaneous control of multiple parameters
Advanced COSM Amp: Beyond Vintage
With its next-generation COSM processor, the GT-100 ushers in a new era of expression and sonic capabilities. Recreating the meticulous details of vintage amps and how they behave, the GT-100 excels in not only cloning classic amps, but provides a new world of unimagined tones as well. The AMP CUSTOMISE function lets you mutate classic amps beyond.
Simple and Intuitive User Interface

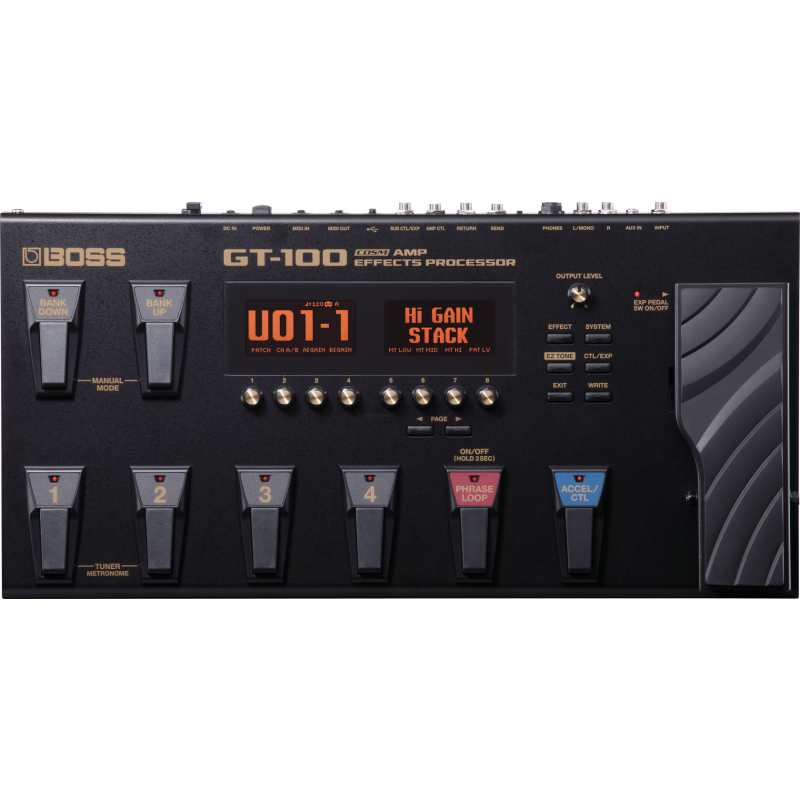

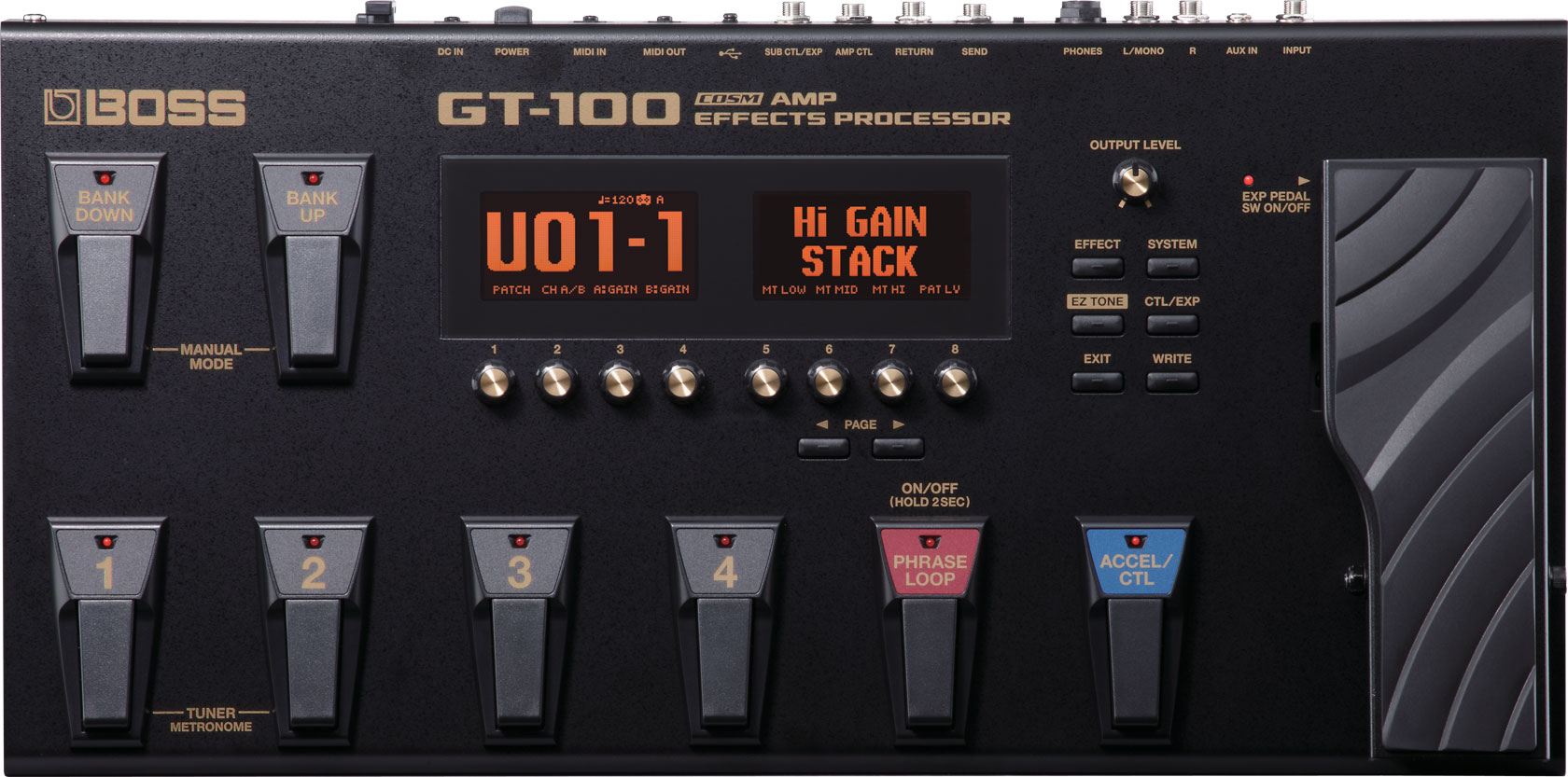

The GT-100’s unique dual-LCD and eight-knob user interface provides fast access and intuitive control. There are no menus to navigate; every function is instantly available. The tone-customising functionality has been improved as well. All patches, amps, and overdrive/distortions can be created from scratch and/or customised with the friendly graphical TONE GRID.
New Tonal Possibilities with the ACCEL Pedal
A new dimension of expression is available with the ACCEL pedal, which enables control of multiple parameters simultaneously, as well as time-variant effects such as FEEDBACKER, S-BEND, TWIST, etc. Experiment with creative combinations of parameters, interacting in real time with the pedal.
New A/B Channel Divide Function
Another notable new feature onboard the GT-100 is the versatile A/B Channel Divide. Assign different amps and effects to each channel, and divide the signal not only by dynamics, but by frequency as well, with each channel capable of driving its own effects and amps settings. The range of tonal possibilities gets wider, and wilder! Assign smooth, mild lead tones to the mid-to-high pitches, for example, and heavy, cutting tones to the lower notes.
AD Conversion
24 bits + AF method (*1)
DA Conversion
24 bits
Sampling Rate
44.1 kHz
Program Memories
400: 200 (User) + 200 (Preset)
Effect Type
COMP, OD/DS, PREAMP, EQ, FX1/FX2(*), DELAY, CHORUS, REVERB, PEDAL FX, NS1/NS2, ACCEL FX
* FX1/FX2 … T.WAH, AUTO WAH, SUB WAH, ADV. COMP, LIMITER, SUB OD/DS, GRAPHIC EQ, PARA EQ, TONE MODIFY, GUITAR SIM, SLOW GEAR, DEFRETTER, WAVE SYNTH, SITAR SIM., OCTAVE, PITCH SHIFTER, HARMONIST, SOUND HOLD, AC. PROCESSOR, PHASER, FLANGER, TREMOLO, ROTARY, UNI-V, PAN, SLICER, VIBRATO, RING MOD., HUMANIZER, 2X2 CHORUS, SUB DELAY
Nominal Input Level
INPUT: -10 dBu
RETURN: -10 dBu
AUX IN: -20 dBu
Input Impedance
INPUT: 1 M ohm
RETURN: 100 k ohms
AUX IN: 47 k ohms
Nominal Output Level
OUTPUT: -10 dBu/+4 dBu
SEND: -10 dBu
Output Impedance
OUTPUT: 2 k ohms
SEND: 2 k ohms
Dynamic Range
100 dB or greater (IHF-A)
Displays
Graphic LCD (132 x 64 dots, backlit LCD) x 2

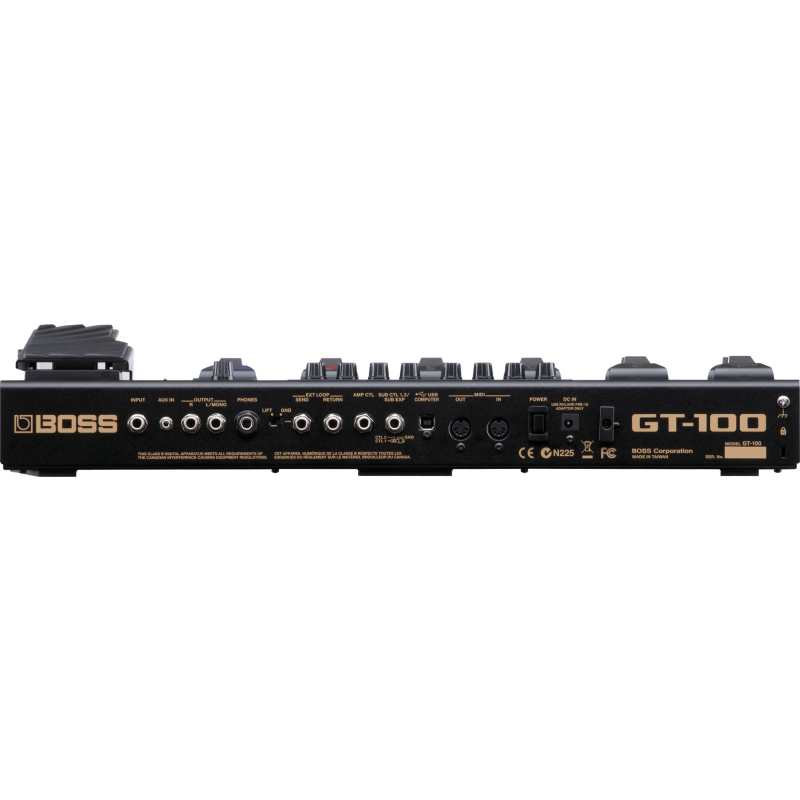

Connectors
INPUT jack (1/4-inch phone type)
AUX IN jack (Stereo miniature phone type)
OUTPUT L/MONO, R jacks (1/4-inch phone type)
PHONES jack (Stereo 1/4-inch phone type)
EXT LOOP jacks (SEND, RETURN; 1/4-inch phone type)
AMP CONTROL jack (1/4-inch phone type)
SUB CTL1, 2/SUB EXP jack (1/4-inch TRS phone type)
USB port
MIDI connectors (IN, OUT)
DC IN jack
Power Supply
DC 9 V
Current Draw
600 mA
Accessories
AC Adaptor
USB Cap
Owner’s Manual
Options (sold separately)
Footswitch: BOSS FS-5U
Dual Footswitch: BOSS FS-6
Expression Pedal: BOSS FV-500L/500H, Roland EV-5
Size and Weight
Width (W)
542 mm
21-3/8 inches
Depth (D)
271 mm
10-11/16 inches
Height (H)
80 mm
3-3/16 inches
Weight
4.8 kg
10 lbs. 10 oz.
Maximum height: 102 mm, 4-1/16 inches.
