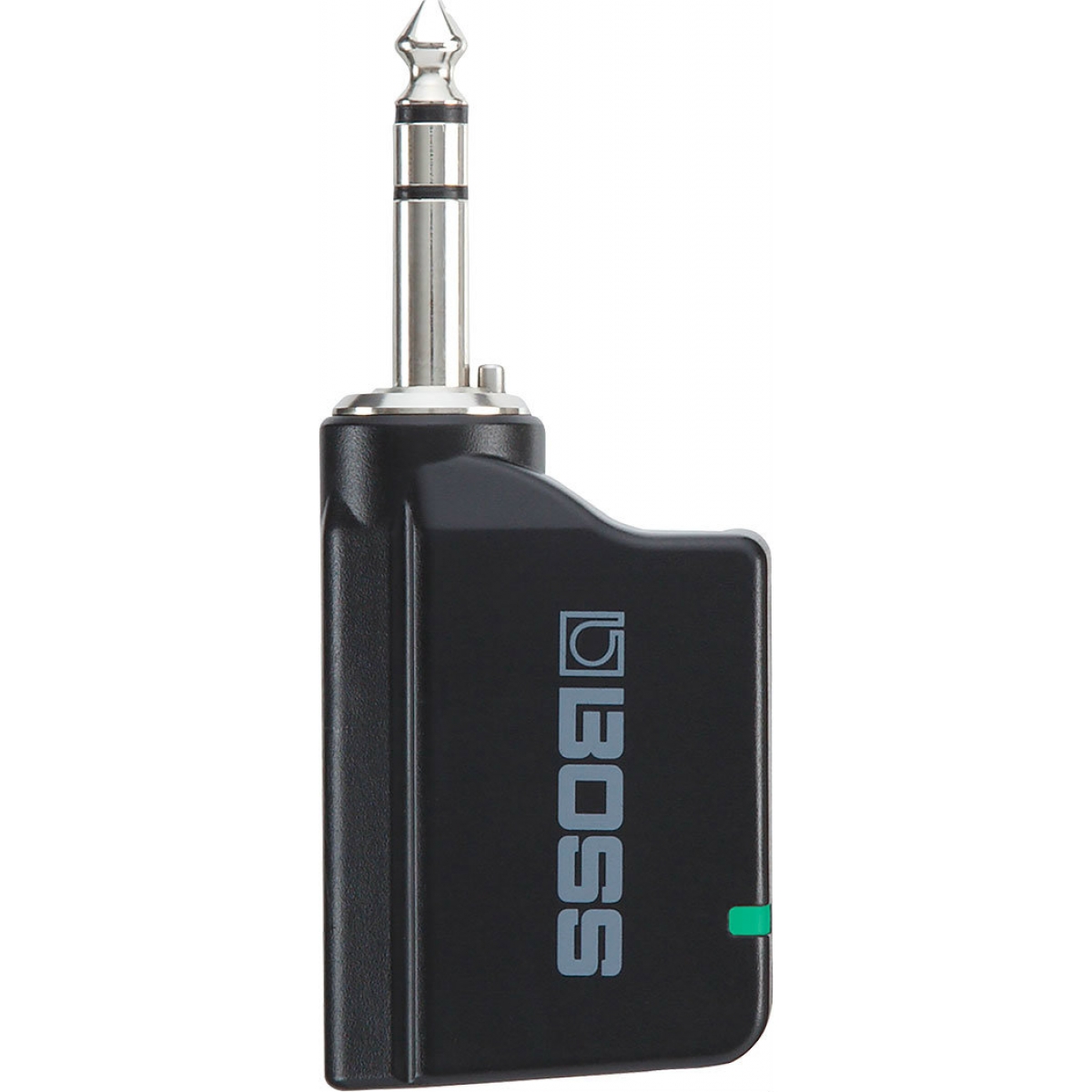

Boss WL-T Wireless Transmitter
Spare Transmitter for the WL Series and KATANA-AIR
The WL-T Wireless Transmitter is compatible with WL-series wireless systems and the Katana-Air wireless guitar amp, providing a spare to use if your original transmitter is lost or damaged.
When pre-charged, it also functions as a backup transmitter for live performances. To charge the WL-T’s built-in battery and establish a connection to your BOSS wireless receiver, simply follow the same procedures used with the original transmitter included with your system.
The WL-T works with the following BOSS wireless products:
WL-20, WL-20L, WL-50 and KATANA-AIR
Note: The WL-T has no audio functionality as a standalone device.
To transmit sound, it must be used in conjunction with the wireless receiver in one of the products listed above.
Specifications
Nominal Input Level
-10 dBu (1 Mohms)
Indicator
BATTERY
Connectors
Input plug: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B type
Power Supply
Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port
Current Draw
350 mA
Battery charging time
Approximately 3 hours
Expected battery life under continuous use
Approximately 12 hours
* These figures will vary depending on the actual conditions of use.
Accessories
Owner’s Manual
Applicable Models
KATANA-AIR
WL-20
WL-20L
WL-50
Size and Weight
Width
87 mm
3-7/16 inches
Depth
22 mm
7/8 inches
Height
36 mm
1-7/16 inches
Weight
43 g
2 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
