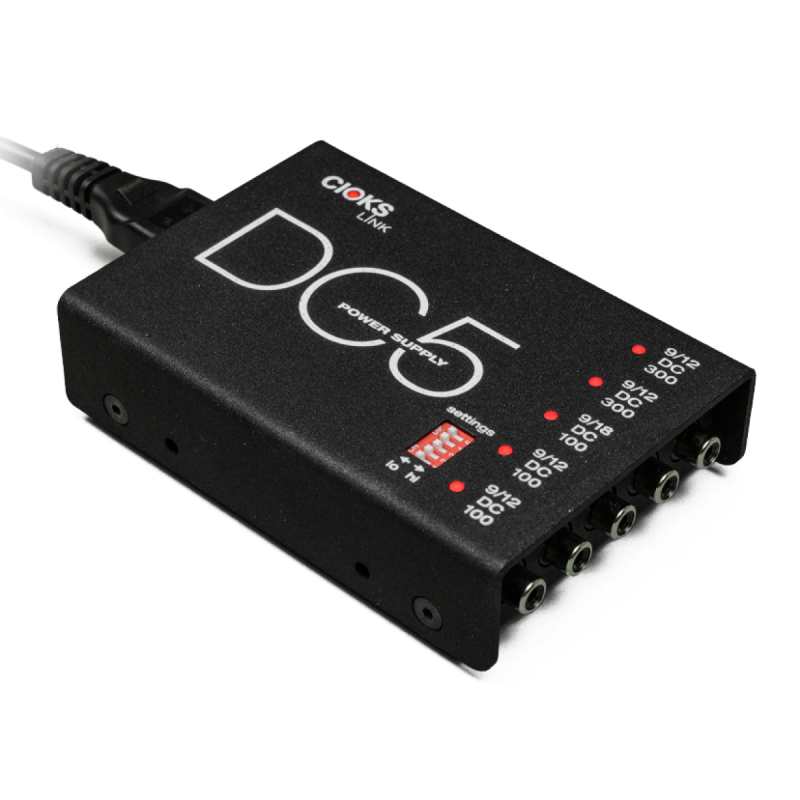

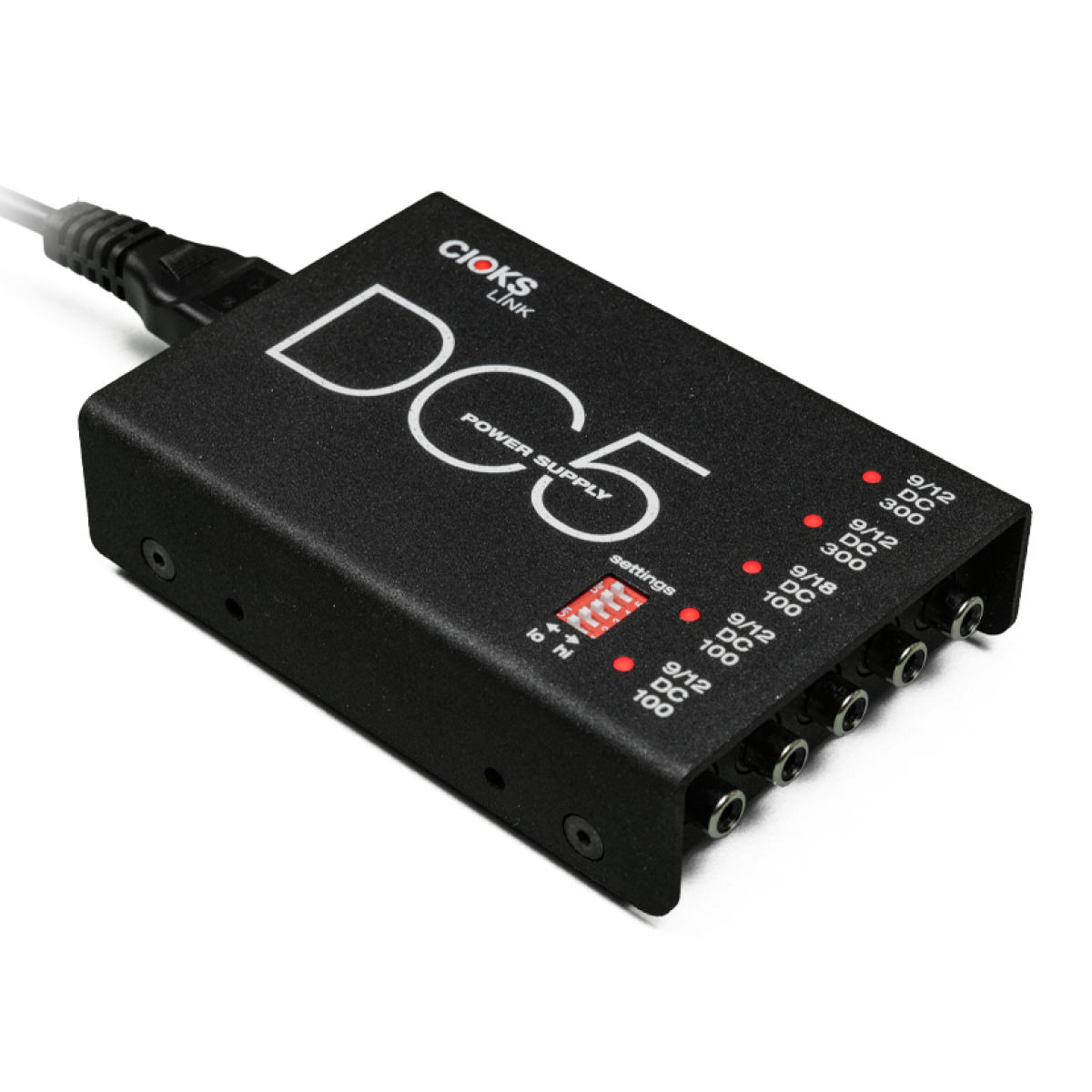

DC5 Link
DC5 link is a professional, small and very flat power supply for effect pedals with 5 isolated outlets. Being only 31mm high it fits under the flat Pedaltrain nano, mini, new nano+ and all metro boards. It offers voltages 9, 12 or 18V and has a total output current of 900mA. The top two switchable 9 or 12V outlets can power any two Strymon, Eventide or other two medium to high current pedals. The middle outlet in 18V setting can power one or two dirt pedals, Pigtronix, MXR or other 18V pedals. The bottom two outlets configurable to either 9 or 12V can power two or even more standard low current pedals when used with Split Flex or 3-way daisy chain Flex. In 12V setting using Stack Flex, they’ll power a 24V pedal. If needed, all 5 isolated outlets will give you 9V DC in the default position of the settings switch.
5 isolated outlets with 9, 12 or 18V
Total output current of 900mA
Two powerful outlets, 300mA each
One outlet configurable to 18V
High efficiency toroidal transformer
Short circuit protection of all outlets
Advanced LED monitoring of each outlet
120 or 230V mains voltage operation
Detachable mains power cord
DC5 easily adds 5 extra isolated outlets to another link power supply
Total of 10 Flex cables included
Split Flex for powering two pedals of one outlet included
Super flat, fits under Pedaltrain nano, mini, the new nano+ and all metro boards
Compatible with Temple Audio boards
All pedalboard mounting hardware included
What’s in the box?
- CIOKS DC5 Link power supply
- Mains power cord
- 10 Flex cables:
- Type 1 – black with 5,5/2,1mm centre negative DC plug x5
- Type 2 – red with 5,5/2,1mm centre positive DC plug x1
- Type 4 – green with 5,5/2,5mm centre positive DC plug x1
- Type 5 – black with 3,5mm tip positive Jack plug x1
- Type 6 – black with 9V battery clip x1
- Split Flex type 1 – black, powers two pedals of a single outlet x1
- Pedalboard mounting hardware: 2 screws a hex key
- Manual
- Product sheet (drill guide)
- Flex guide
Why choose a CIOKS power supply?
- CIOKS is of the first and only companies in the world which specializes in high-end power supplies for effects pedals. 27 years and still going strong!
- Handmade and designed in Europe
- 5-year warranty against manufacturing defects
- Failure rate is less than one in a thousand
- Short circuit protection of all outlets
- Super-rugged construction which can withstand the rigors of touring
- Isolated outputs and balanced power on all models
- Switchable between 120V and 230V
- Advanced LED monitoring on each outlet – CIOKS is the only company to offer this feature
- Ultra-flexible – CIOKS products can power different pedals with a multitude of different mA and voltage requirements as well as AC pedals (select models)
- The CIOKS range caters to everyone from beginners to seasoned touring professionals
- Link-feature (selected products) allows the users to expand their power supply solution in case they need more outlets
- Fits underneath a wide selection of PedalTrain and Temple Audio boards
- All models come with a selection of Flex cables included in different lengths to ensure the ultimate flexibility in pedal board layout.
- Wide selection of Flex cables, including voltage doublers and mA doublers
- RCA connections for the strongest mechanical connection between the power supply outlet and the Flex cable.
