Made in Southend-on-sea in Essex, England.

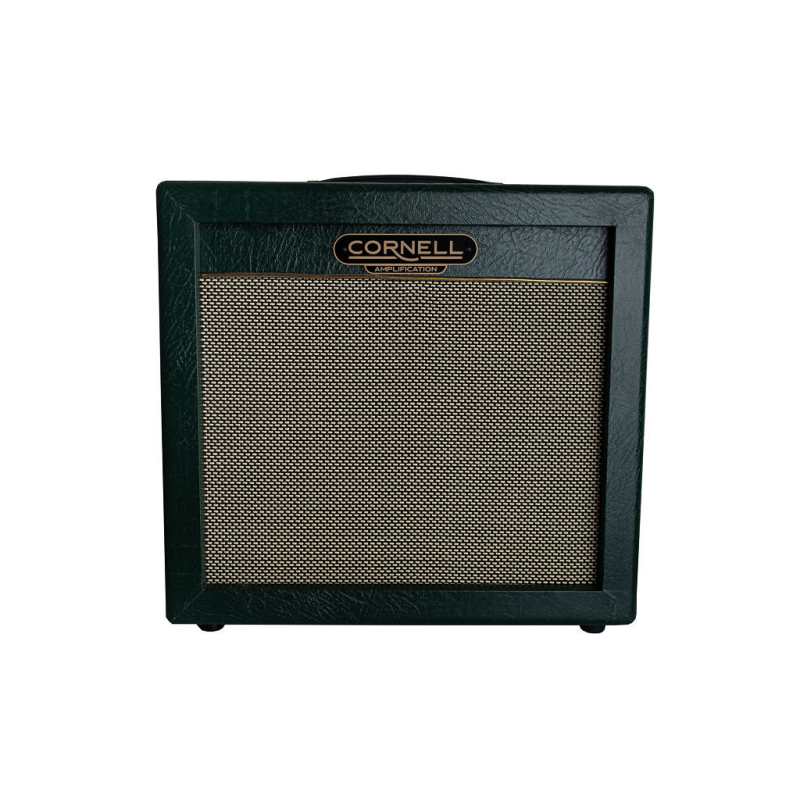

Cornell Plexi 7 mkII (1x 12 combo)
£1,075
The Cornell Plexi 7 Mk 2 is a fantastic all-valve seven-watt class ‘A’ (single ended) combo amp perfect for studio and home use, it is also suitable for playing small venues.
The EQ cut switch is a bypass for the tone controls, increasing the Gain and Middle response.
It has separate Treble and Bass controls (with Eq in) for tone shaping.
This amp is fitted with a Celestion 60 Watt speaker and is completely hand built in the UK.
The amp has a built in attenuator- with 4 different power settings from 0.025W all the way up to a loud 7 watts the attenuator has very little impact on tone so you can set to the perfect sound from the bedroom to the venue.
This amp produces a classic valve distortion tone making it perfect for any blues or rock player.
SPECIFICATION
PRODUCT
Plexi 7 Mk 2 Combo
DESCRIPTION
7 Watt Single ended Class “A” Guitar Amplifier
PANEL

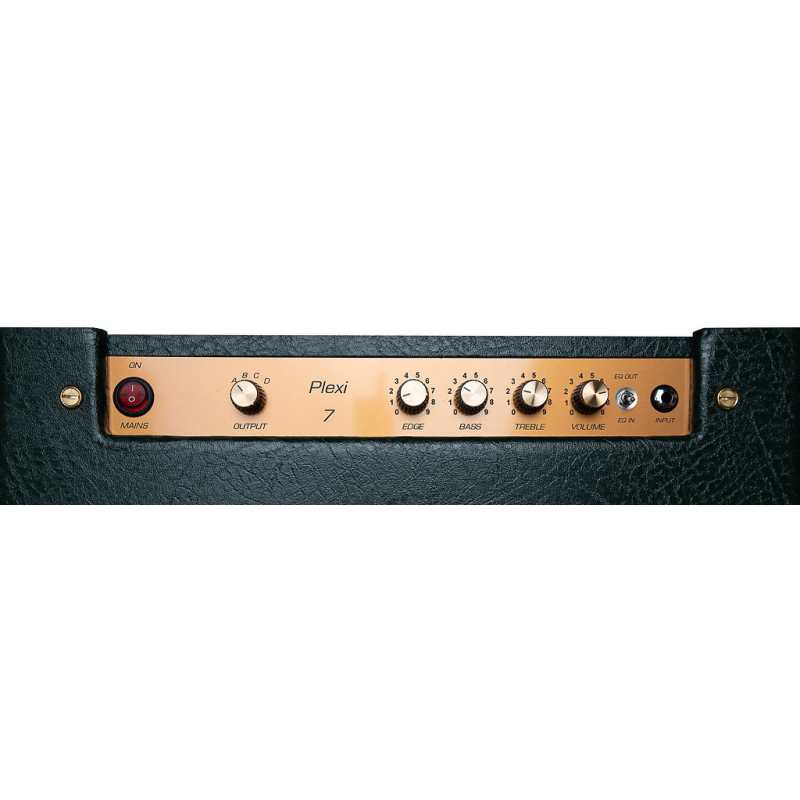

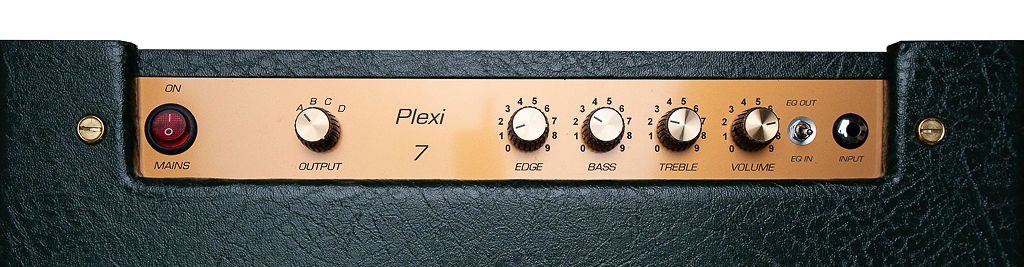

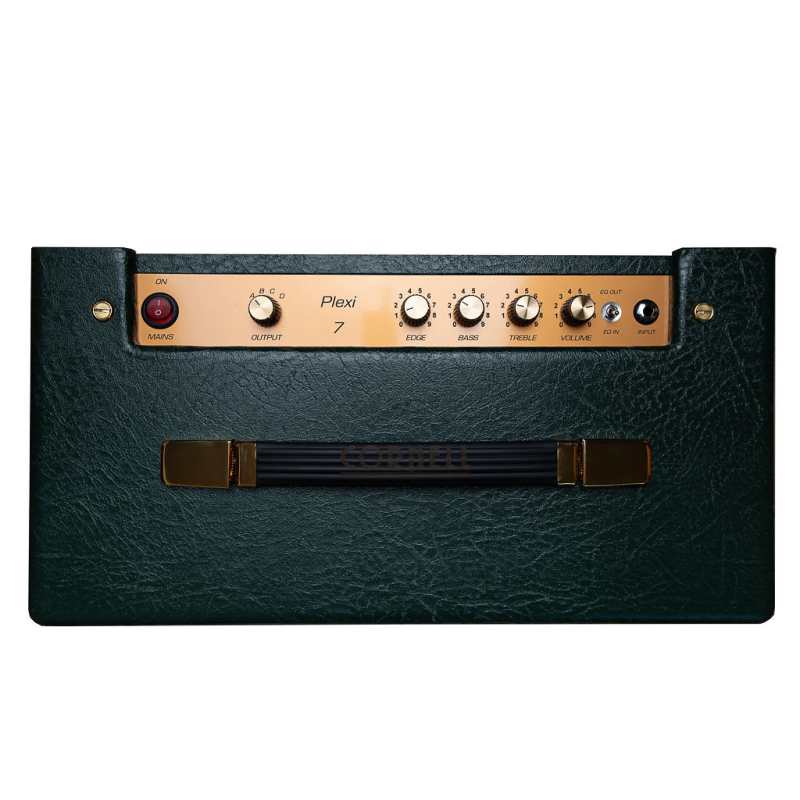

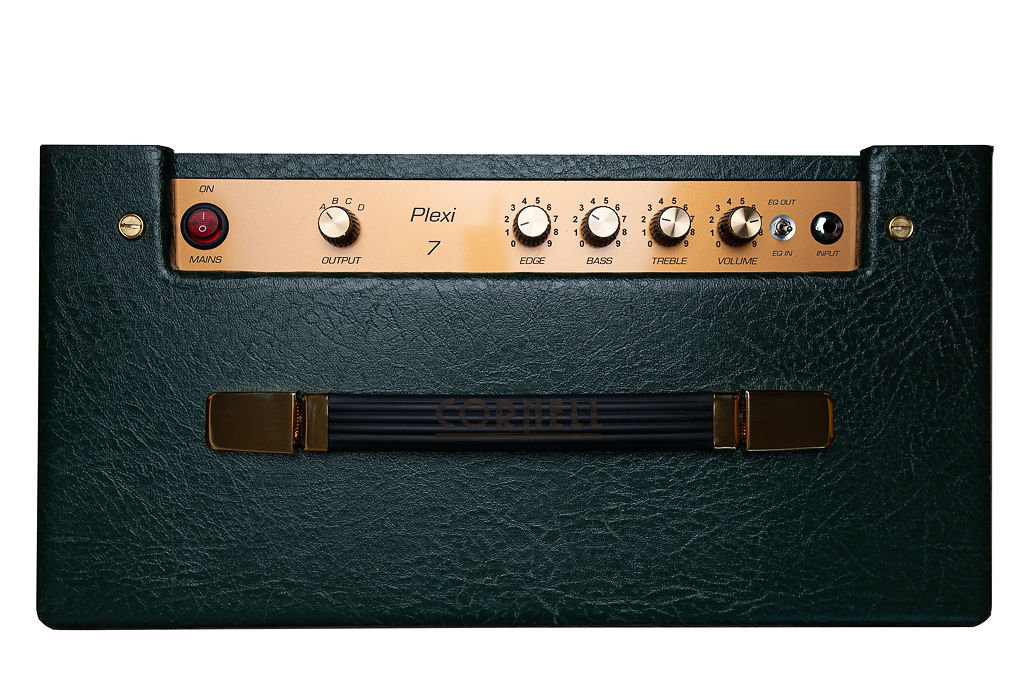

High Input. EQ Cut switch. Volume. Edge. Treble. Bass. Output. A-B-C-D. Mains On.
VALVES
ECC83 X 2. EL84 X 1
CHANNELS
One with EQ cut
OUTPUT
8 Ohms into Celestion 12 inch 8 ohm speaker
SIZE
H = 17 3/8“ 440mm W = 13 18 3/4“ 475mm D = 9″ 230mm
WEIGHT
26.4 Lbs 12 Kg
CONSTRUCTION

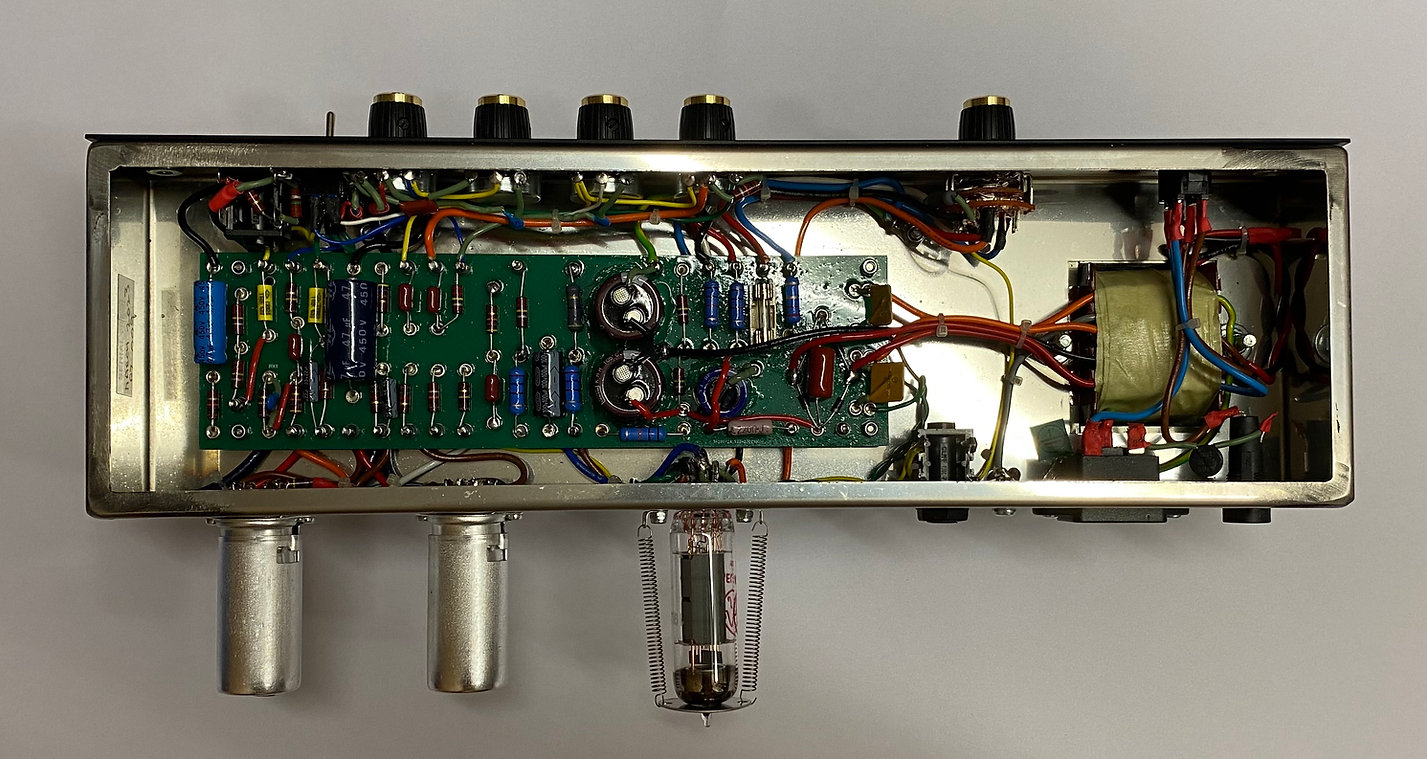

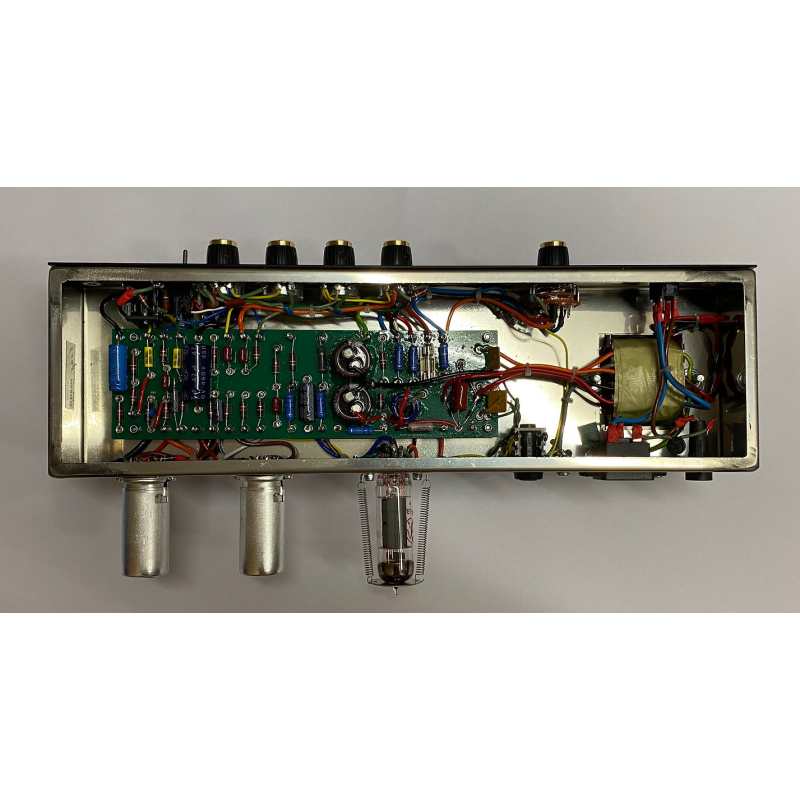

Components hand solders onto a Board using Target Tags and Eyelets
POTS
24 mm Potentiometers
RESISTORS
Carbon Composite, Metal Oxide, Virtuous
CAPACITORS
Orange Drop, Unicorn, Samwha, Suntan
CHASSIS
Stainless Steel
CABINET
Black Tolex with salt and pepper grill. Plywood.
