The Boldest, Most Expressive Whammy Ever

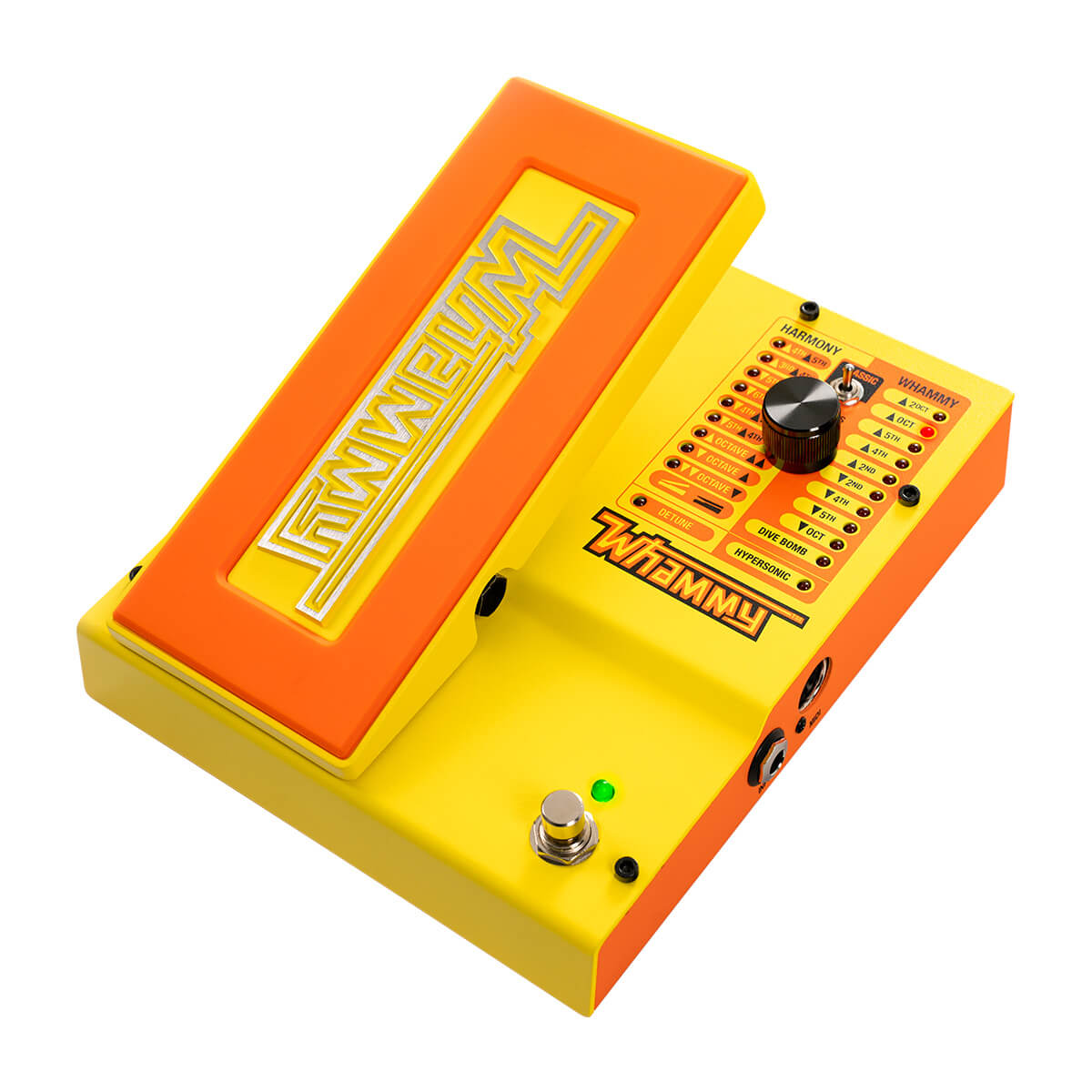

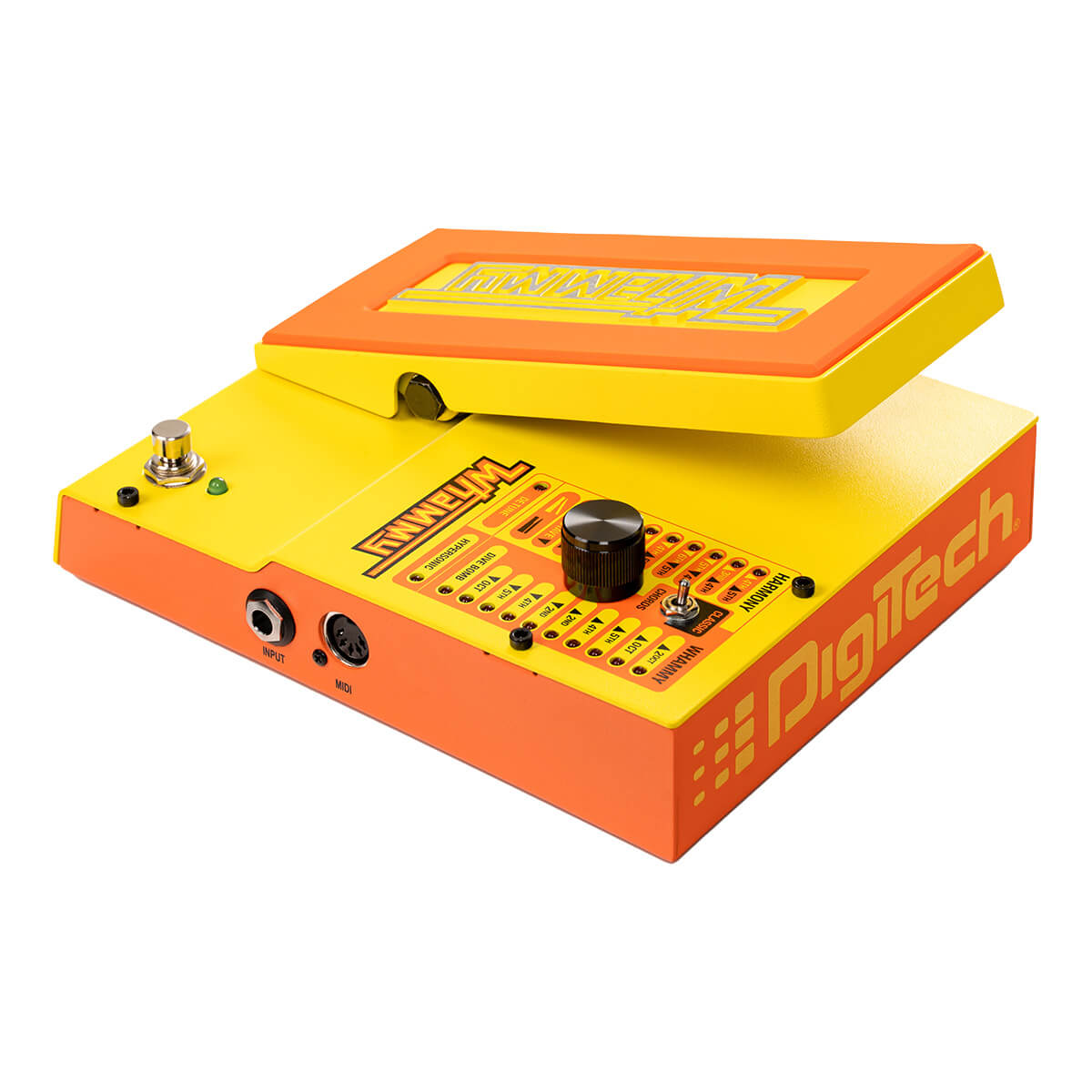

MonoNeon Whammy
Artist Signature Whammy
SKU: WHAMMYMNV-04

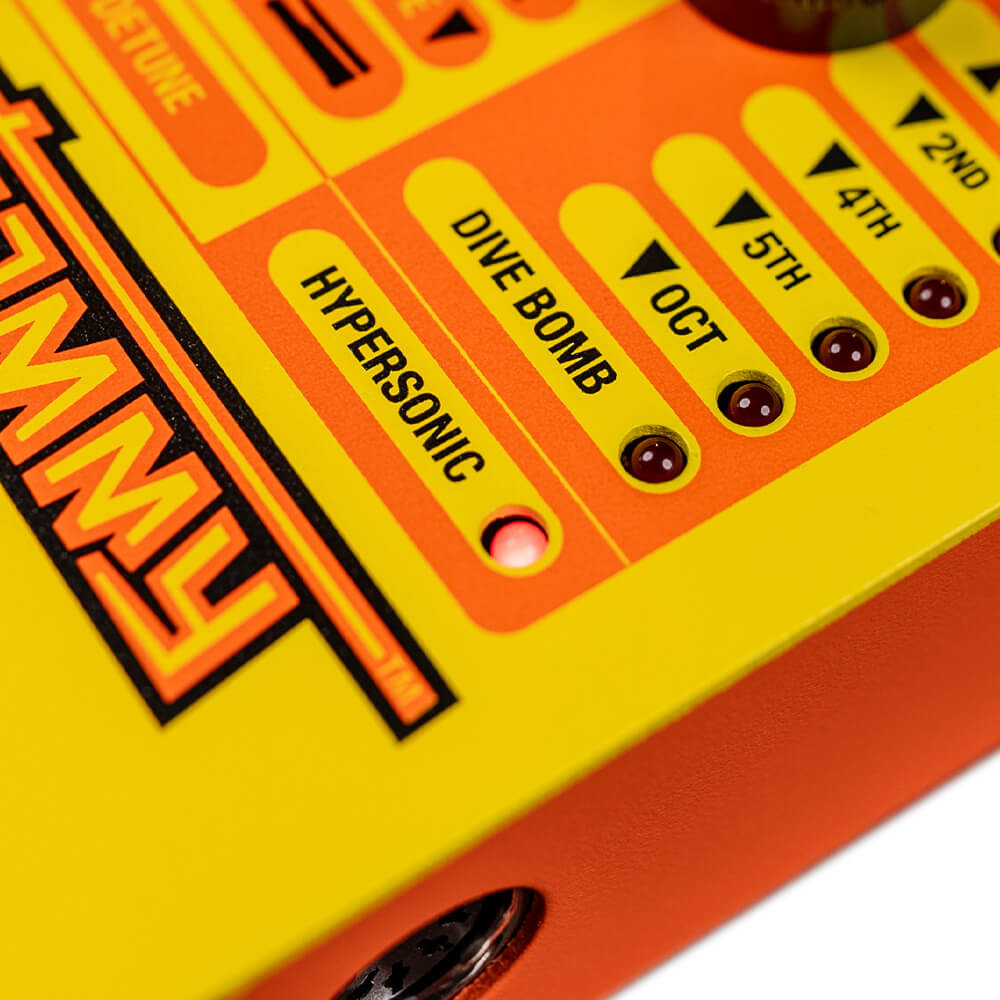

Make your music Hypersonic
Send your tone soaring with the HyperSonic 3-octave pitch rise.

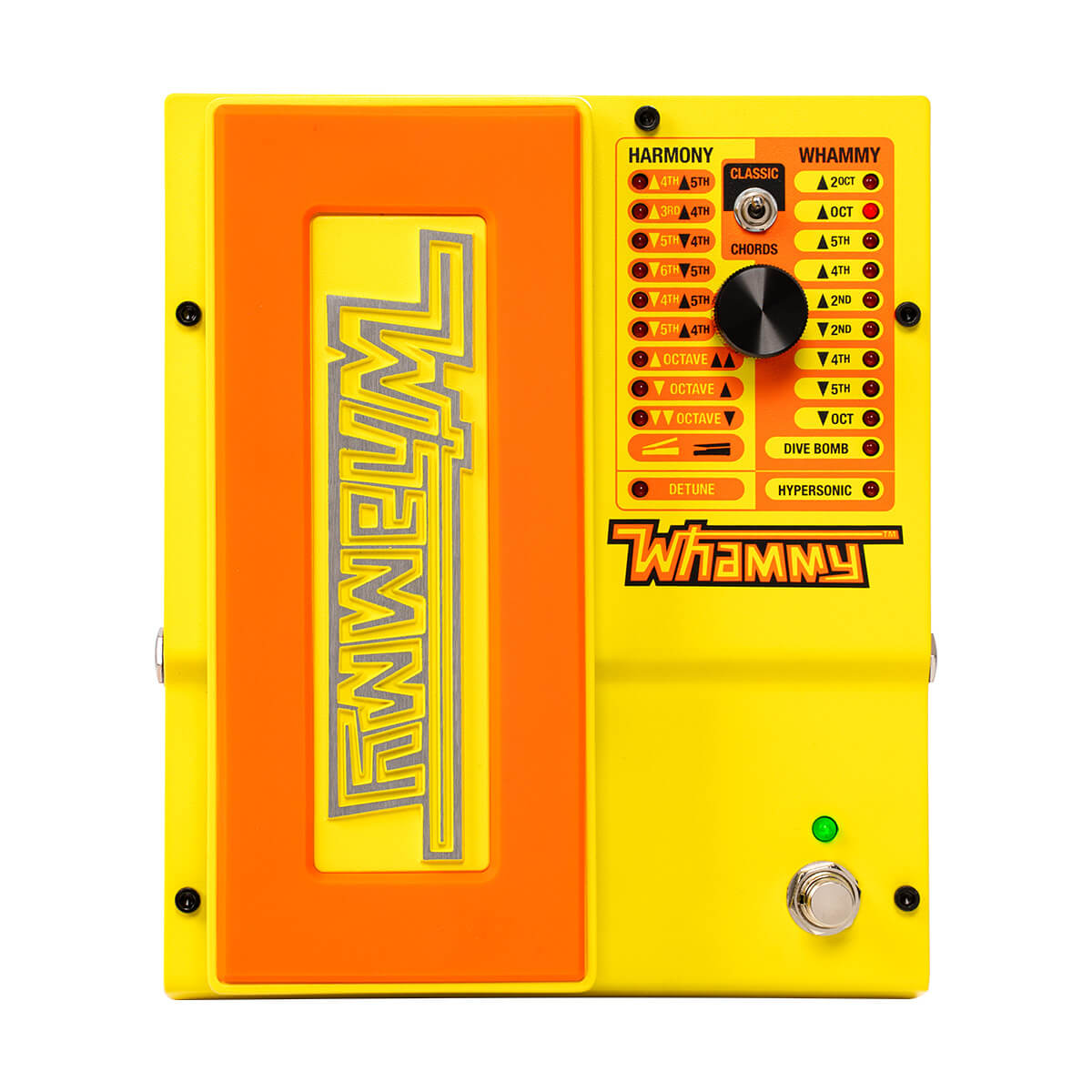

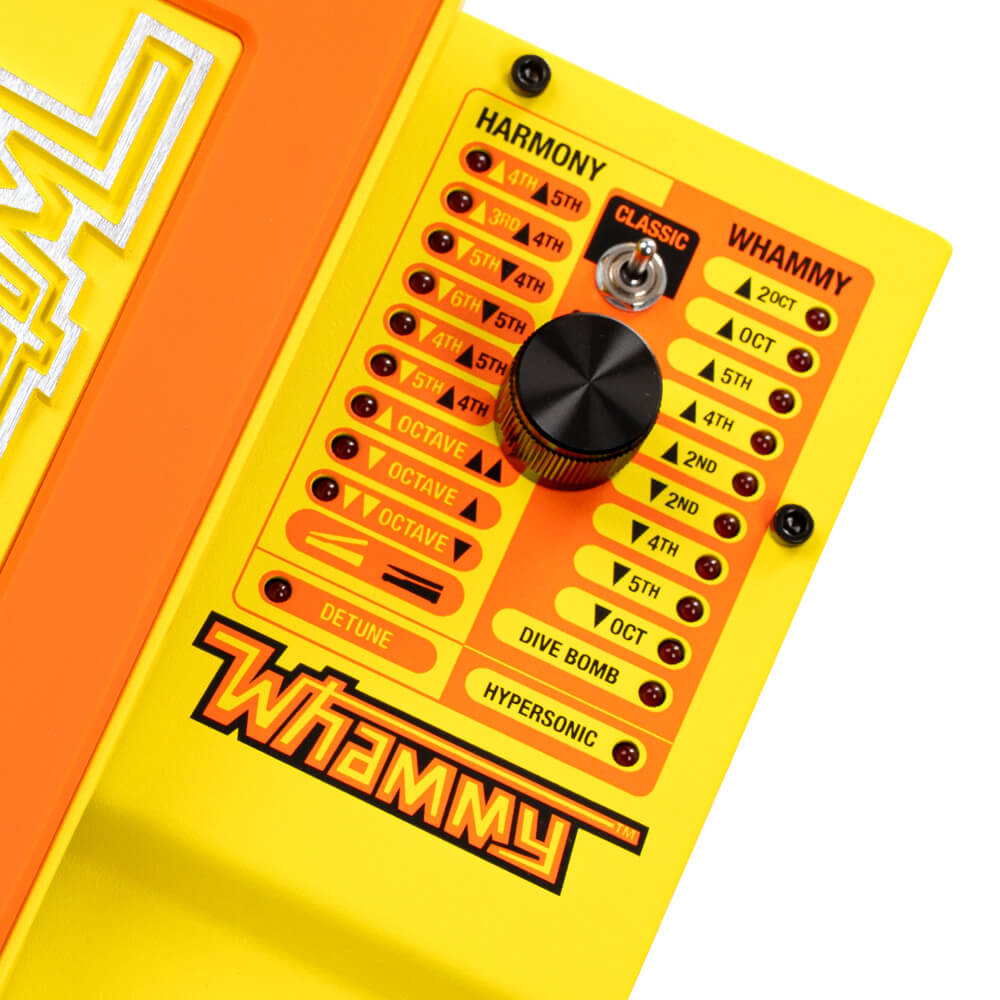

New octaver blend modes
Create never-before-heard sonic textures with new octaver blend modes.

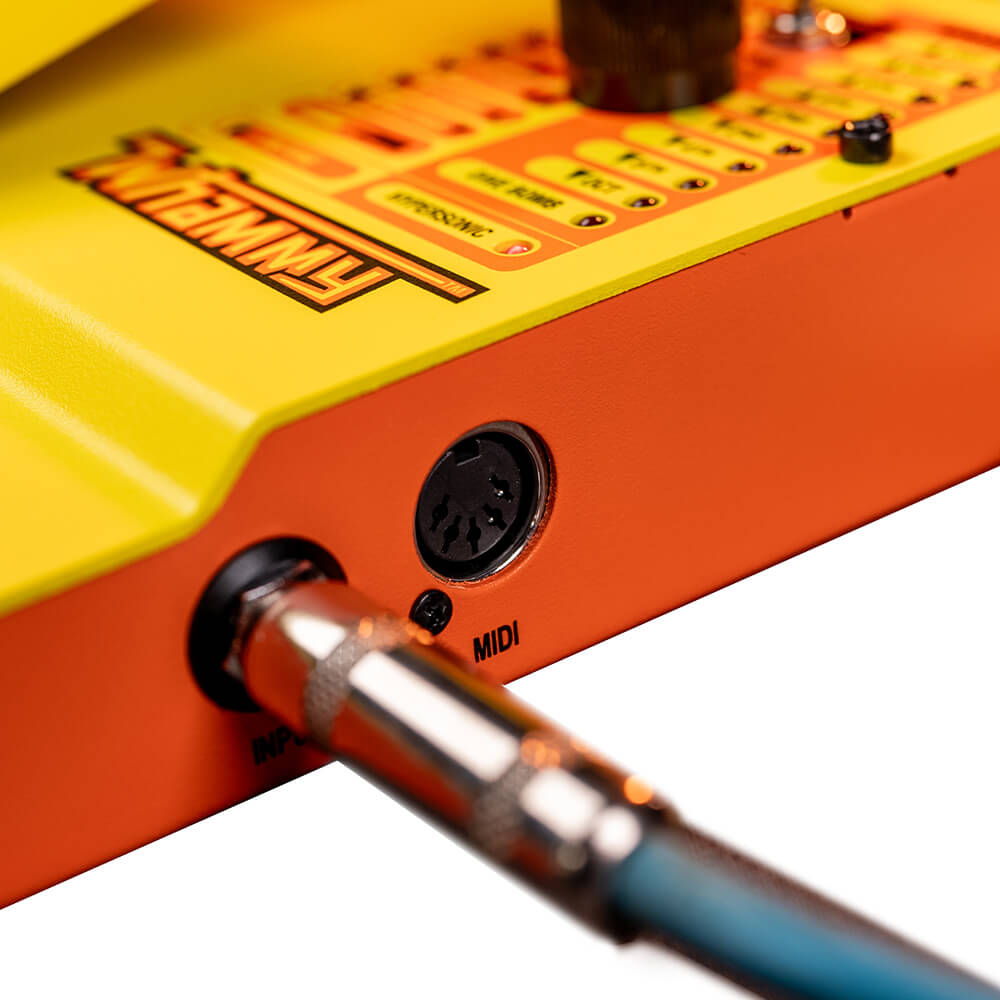

MIDI-capable
Ready to integrate with advanced performance rigs with support for 5-pin MIDI control.
Artist-inspired design
Unique artwork and signature style make the MonoNeon Signature Whammy a bold addition to your pedalboard.
MonoNeon Whammy
SPECIFICATIONS
| Input / Output | |
|---|---|
| Instrument Input Type | Unbalanced ¼” TS phone jack |
| Max Input Level | +5 dBu |
| Input Impedance | 1 MΩ |

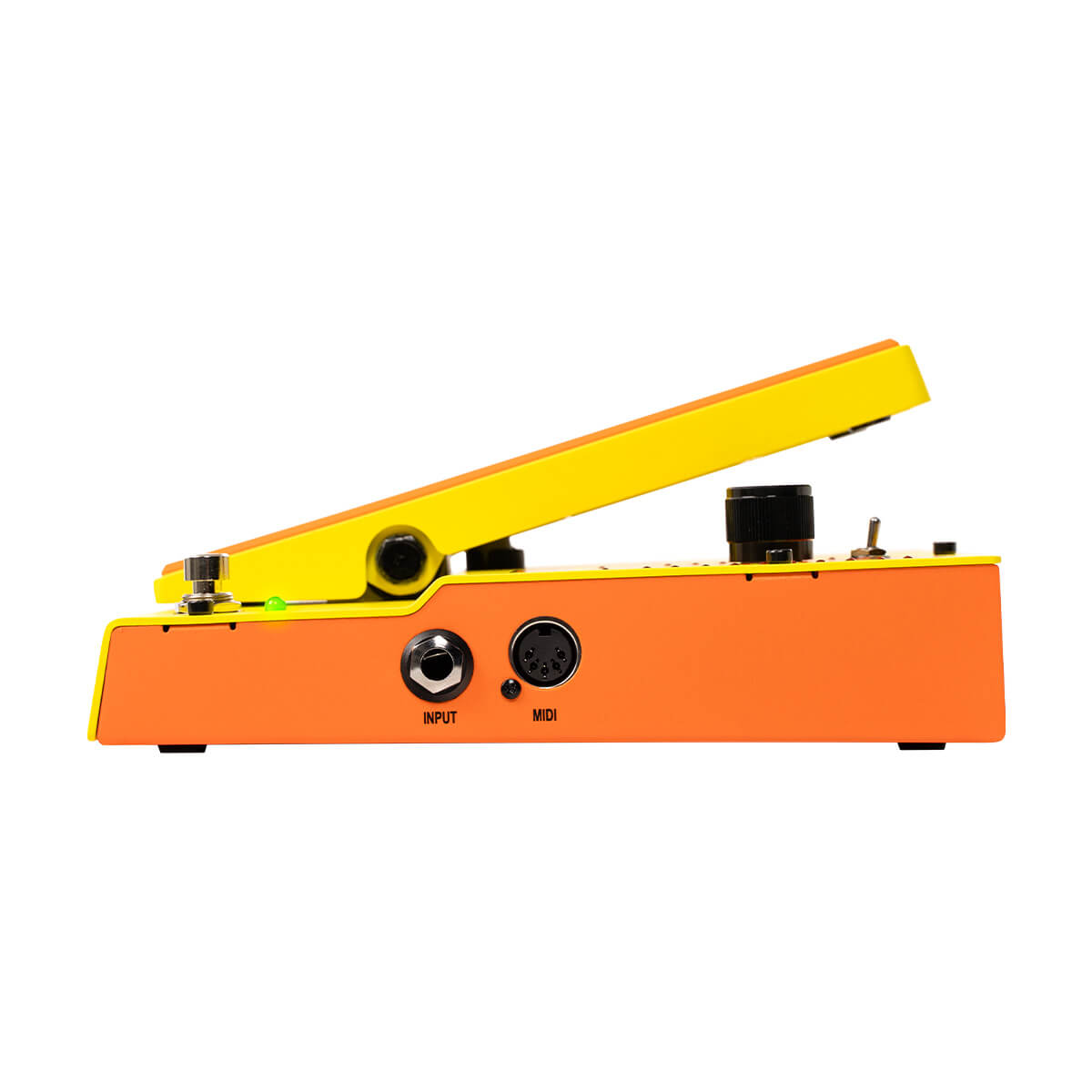

| MIDI Input | 5-Pin DIN |
| Output Type | Unbalanced ¼” TS phone jack |
| Max Output Level | +10 dBu |
| Output Impedance | 1 kΩ |
| Electronics | |
|---|---|
| Frequency Response | 20 Hz to 20 kHz |
| Signal to Noise Ratio | >105 dB (A-weighted): ref = max level, 22 kHz bandwidth |
| THD | 0.004% @ 1 kHz; ref =1 dBu w/ unity gain |
| Sample Rate | 44.1 kHz |
| A/D Conversion | 24-bit |
| D/A Conversion | 24-bit |
| Physical | |
|---|---|
| Dimensions | 6.5” (16.51cm) x 7.75” (19.68cm) x 2.5” (6.35cm) (WxDxH) |
| Shipping Weight | 3.8 lbs. (1720g) |
| Power | |
|---|---|
| Power Consumption | 2.4 W (265 mA @ 9VDC) |
| Power Requirements | 9 VDC External Adapter (center negative) |
| Included Power Adapter | PS0913DC (9V DC @ 1.3 A) center negative |
