Fender Engine Room™ LVL12 Power Supply, 230V UK
MODEL #: 0230104012

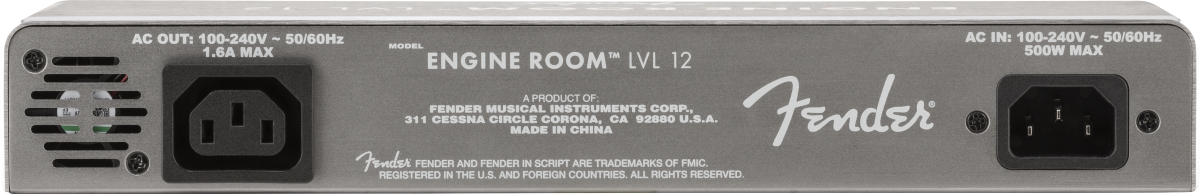

Designed to accommodate all your pedalboard needs, the Engine Room® LVL 12 is ready to deliver. Featuring twelve ground isolated power outlets, (10) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. A courtesy IEC outlet on the back allows you to add an additional Engine Room® LVL5, LVL8, or even LVL12 for the biggest rigs.
The Engine Room® Power Supply was designed by our in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Road-tested and ready for live or studio use, Fender’s Engine Room® Power Supply is built to power your performance.
FEATURES
12 ground isolated outputs – 10 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v)
Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world
Standard IEC mains voltage connector
Dimensions: Width: 11.1″ (282mm), Height: 1.65″ (42mm), Depth: 3.66″ (93mm)
5V USB-A and USBC output for charging smart devices
Cable kit included
6 x 2.1mm barrel connector 24″ (60cm) length
4 x 2.1mm barrel connector 18″ (45cm) length
2 x 2.1mm barrel connector 12″ (30cm) length
1 x 2.5mm to 2.1mm barrel
1 x 2.5mm to 2.1mm barrel reverse polarity
1 x 3.5mm TS to 2.1mm barrel
1 x 9V Battery clip to 2.1mm barrel
1x IEC daisy-chain cable (male to female)
