Pro recording and performing, in the palm of your hand
OVERVIEW

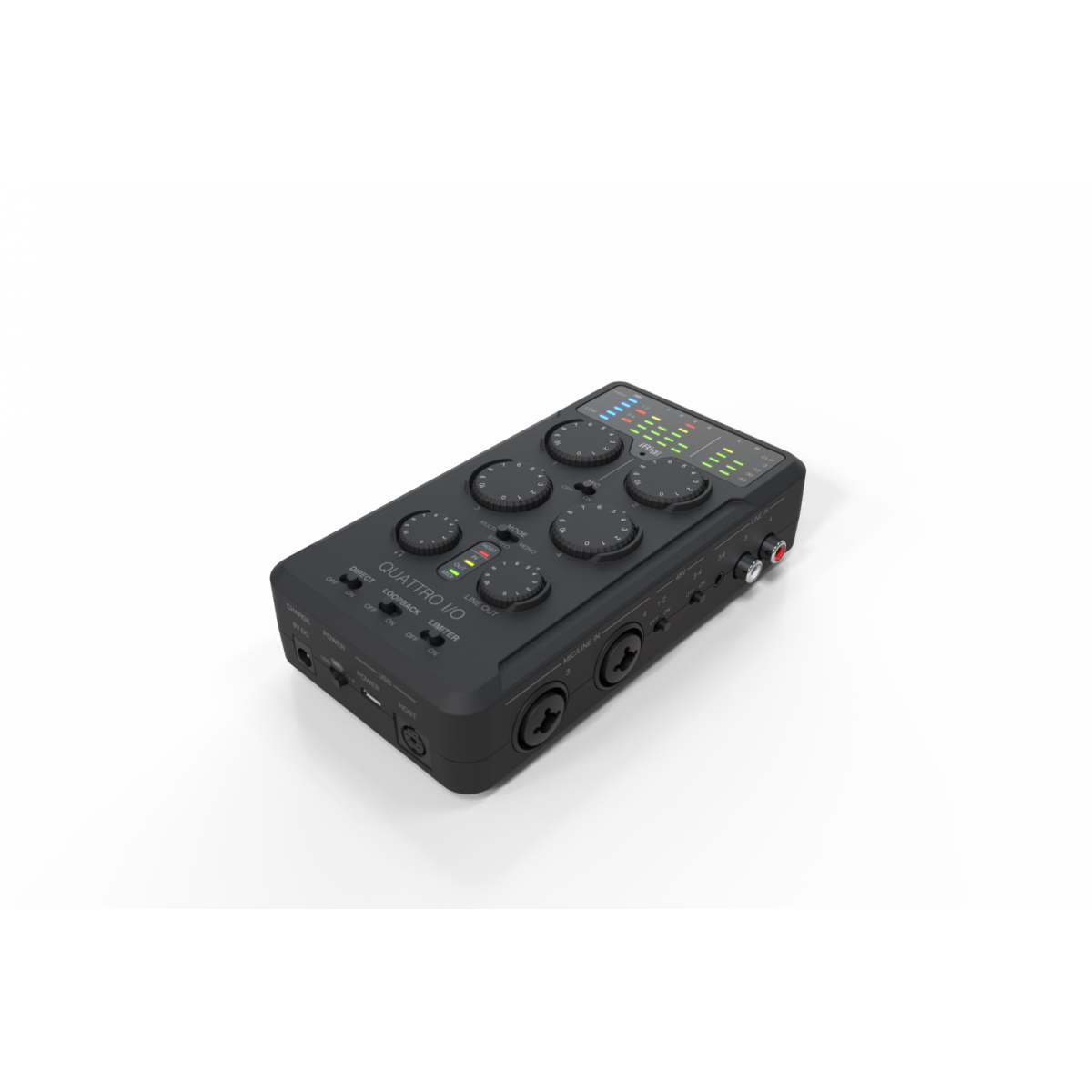

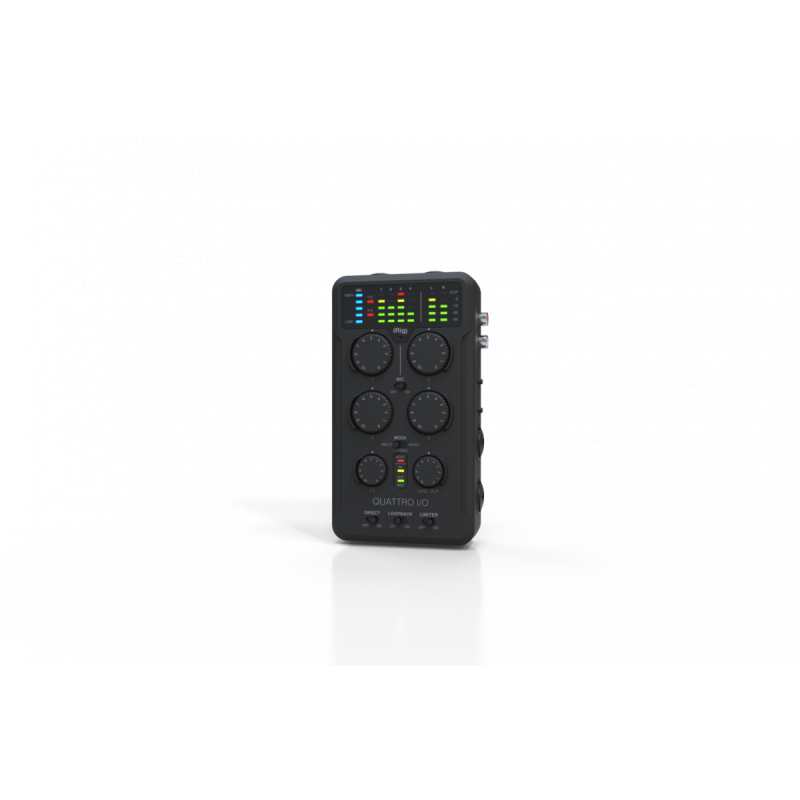

iRig Pro Quattro I/O is a professional-quality 4 in / 2 out portable audio and MIDI interface packed with everything needed for field recording and content creation, for serious sound and flexibility – anywhere.
Small enough to fit in the palm of your hand, the iRig Pro Quattro I/O still packs in four high-quality, low-noise mic preamps; instrument, RCA and TRS inputs; plus XLR balanced, 3.5mm stereo and headphone outputs – and full MIDI I/O!
iRig Pro Quattro I/O works right out of the box with iPhone, iPad, Android, Mac and PC, but can also serve as a stand-alone mic preamp or line mixer, with a built-in limiter and direct monitoring so you’re always guaranteed the perfect take.
Packed with a swiss-army-knife’s worth of tools, iRig Pro Quattro I/O ensures you’re ready for anything, anywhere
DIMENSIONS
• Size: 160mm/6.29” x 90mm/3.54” x 40mm/1.57”
• Weight: 340g/11.99oz (without batteries)
• Cable length: 60cm/23.62”
A full array of possibilities
As a mobile interface
Connected to a computer or mobile device, the iRig Pro Quattro I/O will work as a high-quality, multi-channel audio and MIDI interface with a full array of inputs and outputs so you’ll always be prepared for any recording or need. Fully MFi-certified, no adaptors are required for iPhone or iPad for reliable field performance on any device.
As a broadcast / podcast interface
Enable STEREO mode and iRig Pro Quattro I/O mixes all sources down to stereo for streaming or recording. Monitoring is easy thanks to a dedicated headphone output with independent volume control and direct monitoring. Or use MONO mode for streaming to social media; Loopback lets you duet your favorite videos easily
As a field recording interface
With an onboard microphone and optional stereo mic capsules, iRig Pro Quattro I/O turns your iPhone, iPad, Android device into a full-featured, professional field recorder.

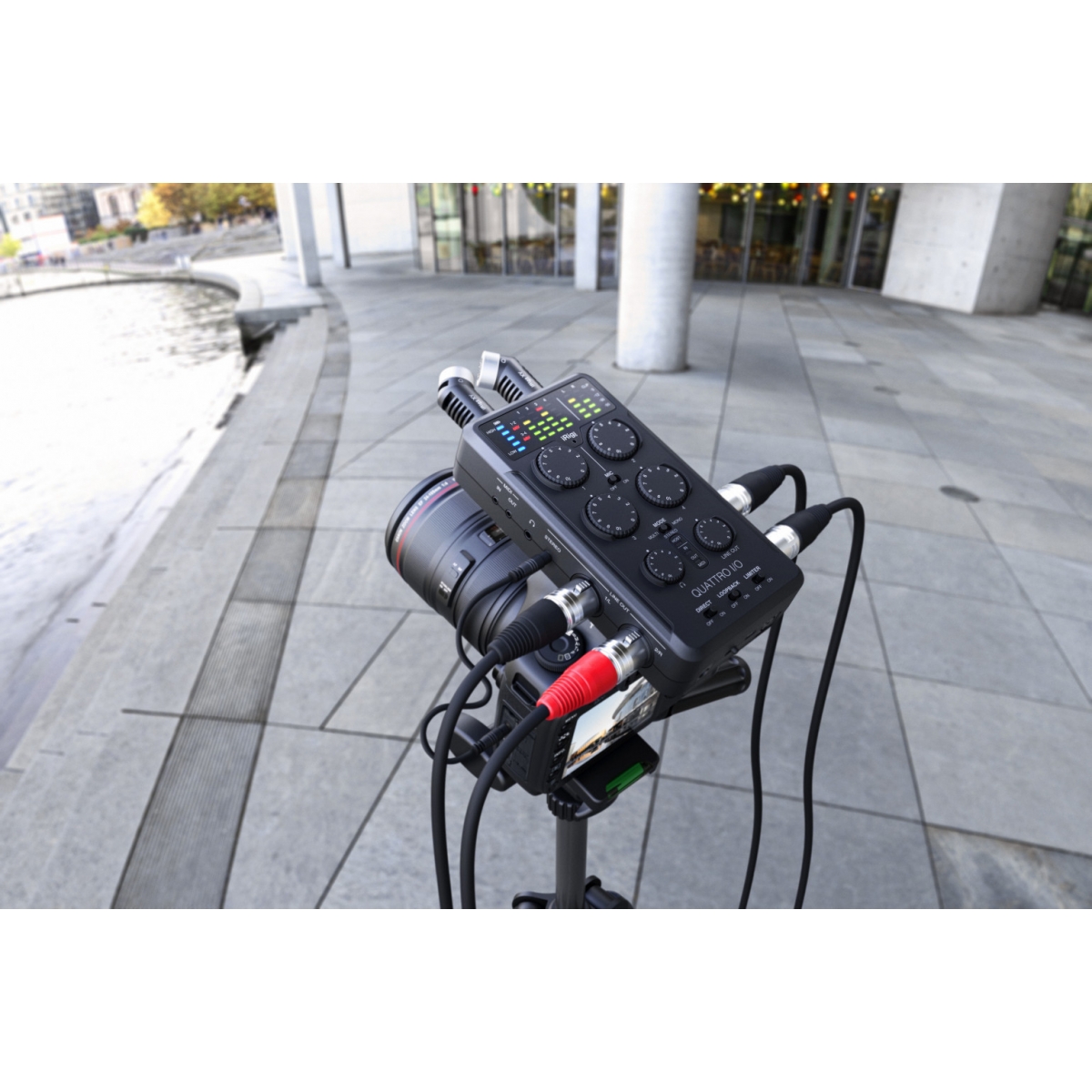

As a stand-alone mixer

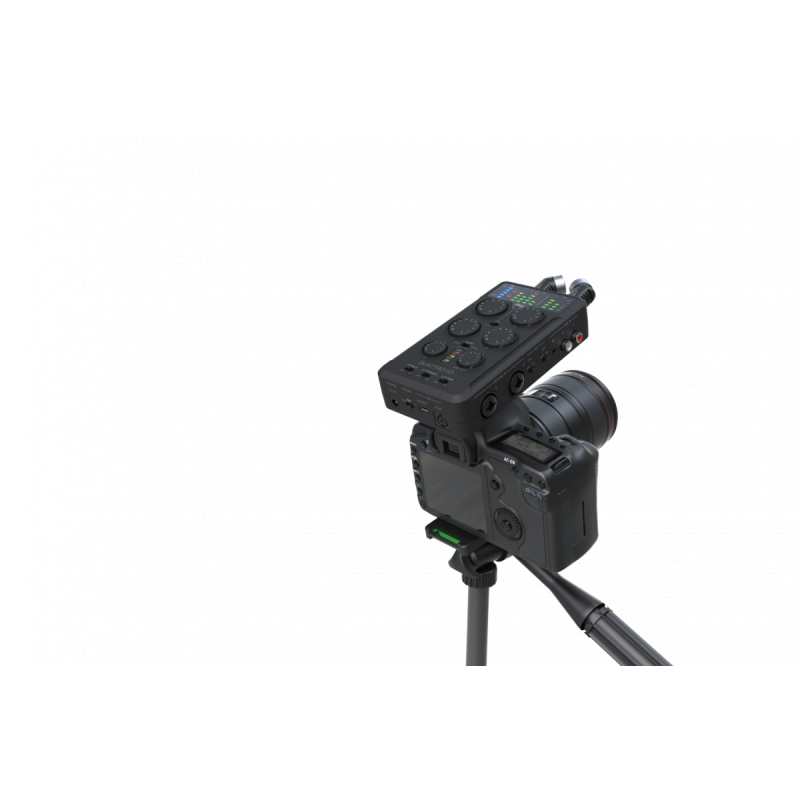

iRig Pro Quattro I/O also works as a preamp and mixer: just power it via battery, USB or DC IN and use the full set of inputs/outputs to capture and mix multiple sources to your DSLR camera with professional quality.
Always perfect recordings with the safety backup channels
In STEREO and MONO mode, inputs 3 and 4 can be used as safety channels: recording the same signal as input 1 and 2 but reduced by 12dB as a backup in case the sound source unexpectedly overloads the main channels.
Audio quality without compromise… wherever you are
• Up to 24-bit, 96 kHz sample rate
• Ultra-low-noise mic preamps with full +48v phantom power
• Professional-quality, transparent A/D and D/A conversion
• Built-in limiter, for input 1-2, to protect against clipping
• Multitrack, stereo or mono internal mixdown
Unlimited connectivity Unlimited creativity
• 2 combo microphone / Hi-Z instrument inputs
• 2 combo mic preamp / balanced line inputs
• Stereo RCA and 3.5mm line inputs

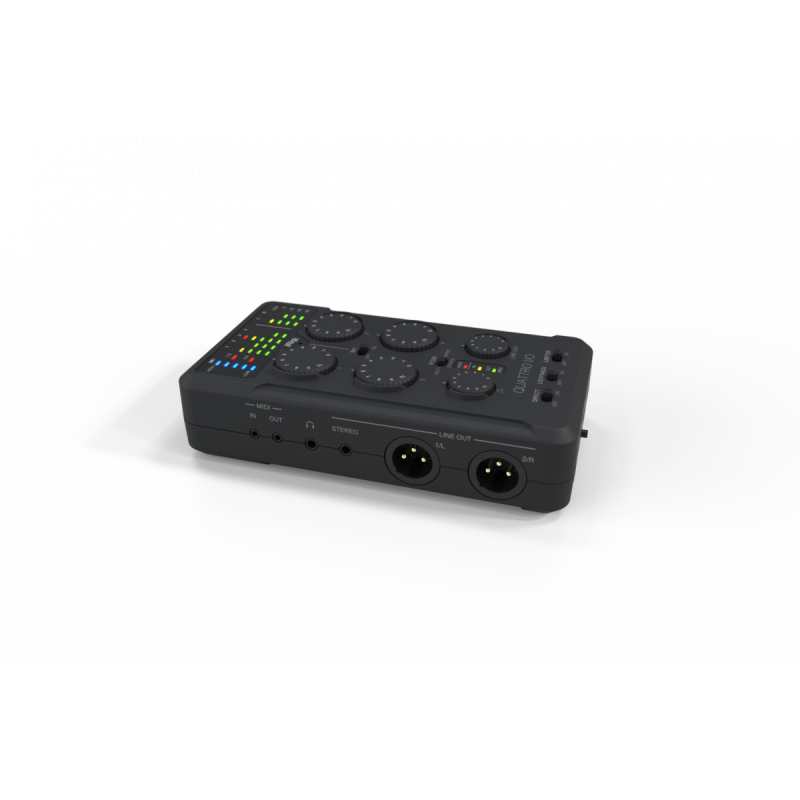

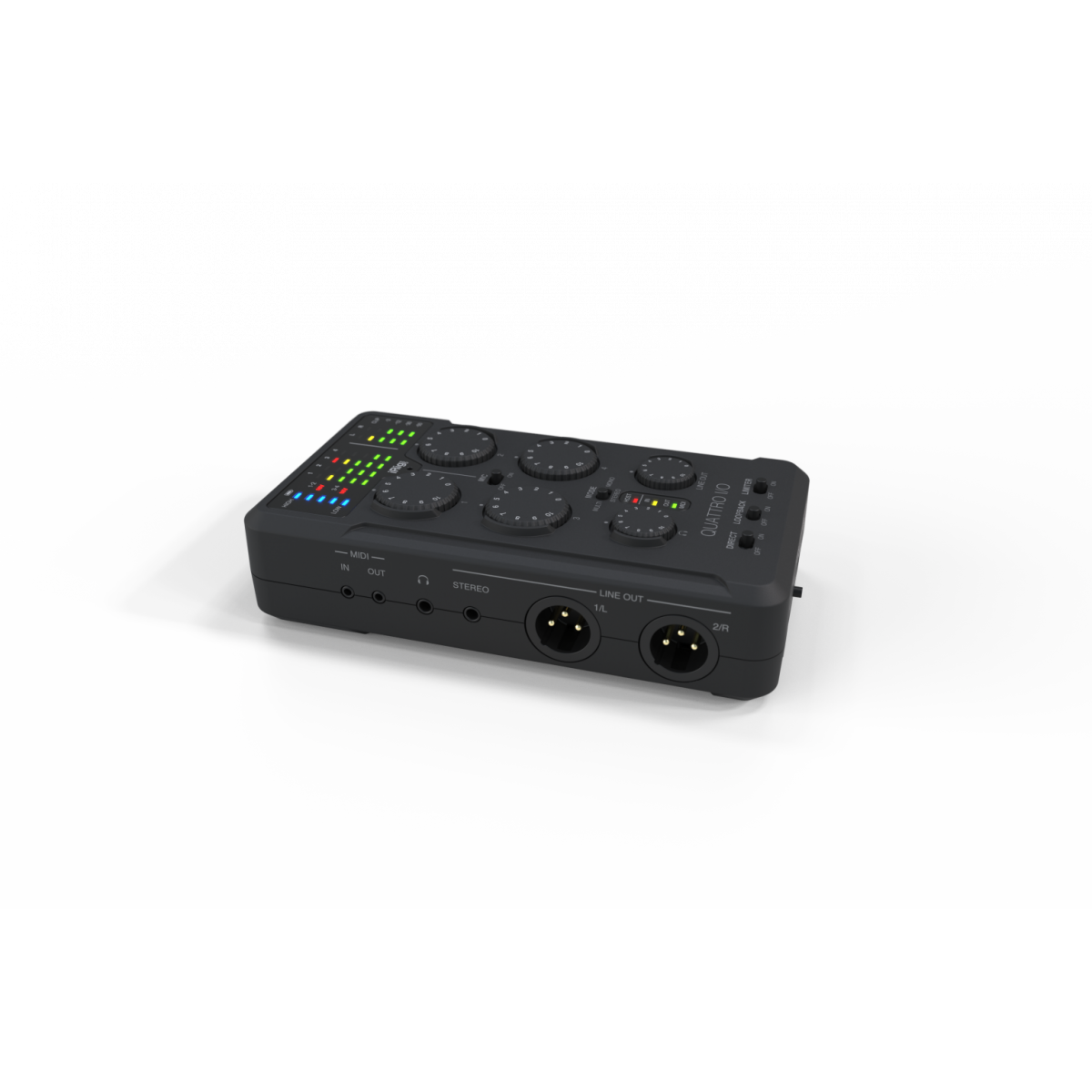

• XLR and 3.5mm line output
• Built-in high-quality MEMS microphone
• Full MIDI input and output
• Runs off USB, batteries or optional PSU (also charges your iOS device)
Your audio Swiss Army knife: the interface you’ll want to take everywhere
• Multiple routing options for perfect integration in any workflow from professional field recording to social media streaming
- > 4 discrete channels
- > Stereo mixdown
- > Mono mixdown
• -12dB safety channels when in mono or stereo
• Also works as a stand-alone mixer or preamp
• Powers up to 4 condenser mics at once
• Optional dual microphones for use as a field recorder

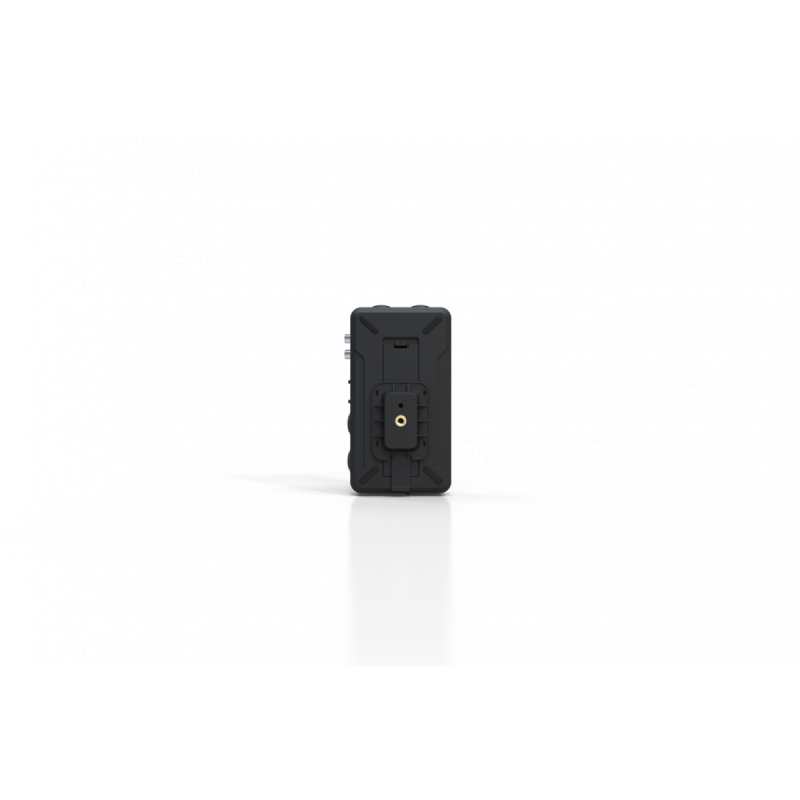

• Mounts to a standard UNC camera thread
BOX CONTENT
• iRig Pro Quattro I/O
• 1/4” thread adapter
• 4x AA Batteries (alkaline)
• iOS Lightning to mini-DIN cable
• USB-A to mini-DIN cable
• 2.5mm jack to MIDI female adapter iRig Pro Quattro I/O B
