The eagle-eyed among you will have noticed that there are 3 kinds of Korg MicroKorg’s available at the moment.
All of the microkorgs share a common thread – they are relatively affordable, portable, lightweight, can use batteries or a power supply, have a built-in vocoder, are hugely versatile over a number of styles and are very user-friendly. All of them are digital, but use high-quality analog-modelling to recreate analogue-type sounds.
The most common question is “what’s the difference?”
Well, the original, standard Microkorg was released 15 years ago and still going strong! It’s got very good quality analog-modelling sounds, and appeals to fans of a vast array of electronic music from a wide variety of genres. Whilst great for electronic music – all kinds of house, techno, EDM etc, it’s also been used in rock bands of all hues.
Next came the Microkorg XL. This was soon replaced by the current Microkorg XL+ (more or less the same, but with some tweaks). These models looks quite different, and have several new sounds (including piano) that the original doesn’t have. The overall layout was designed to appeal to players that weren’t necessarily from a synth-playing background, but wanted to use those kinds of sounds in a convenient, hands-on way. Another big difference is that the microphone input for the vocoder is and XLR input (much better quality than the mini-jack on the original version). And the gooseneck mic is also much better quality.
Finally, the Microkorg S is essentially the same kind of beast as the original Microkorg, but the main difference being that the ‘S’ stands for SPEAKERS. The other microkorgs require headphones or an external amp/speaker/PA etc. The new S version means that you can play at home, in your bedroom, in the tour van, back of the car etc – wherever inspiration takes you.
All of the microkorgs share a common thread – they are portable, lightweight, can use batteries or a power supply, have a built-in vocoder, are hugely versatile over a number of styles and are very user-friendly. All of them are digital, but use high-quality analog-modelling to recreate analogue-type sounds.

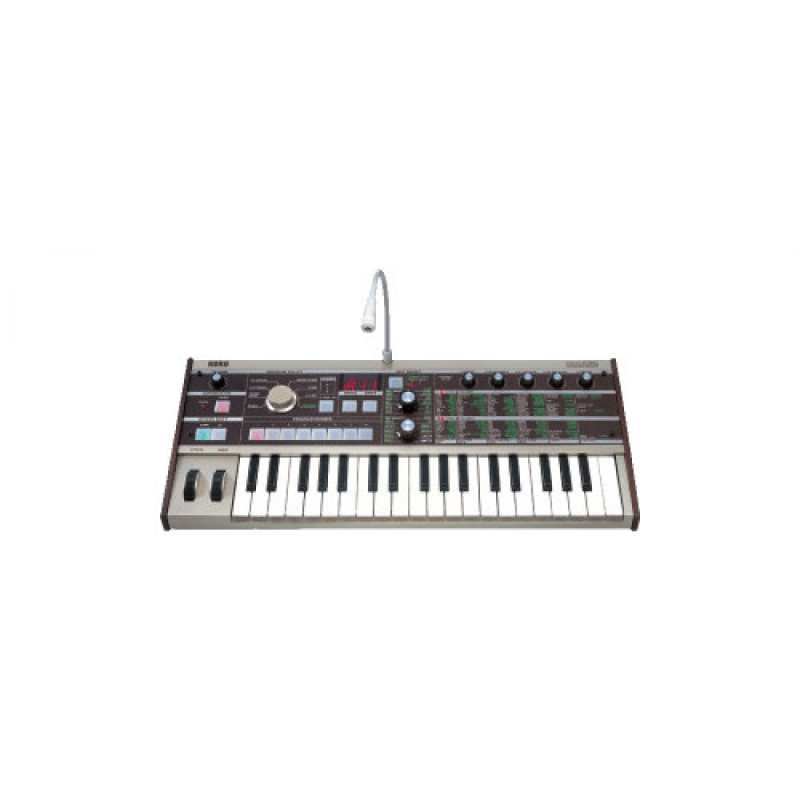

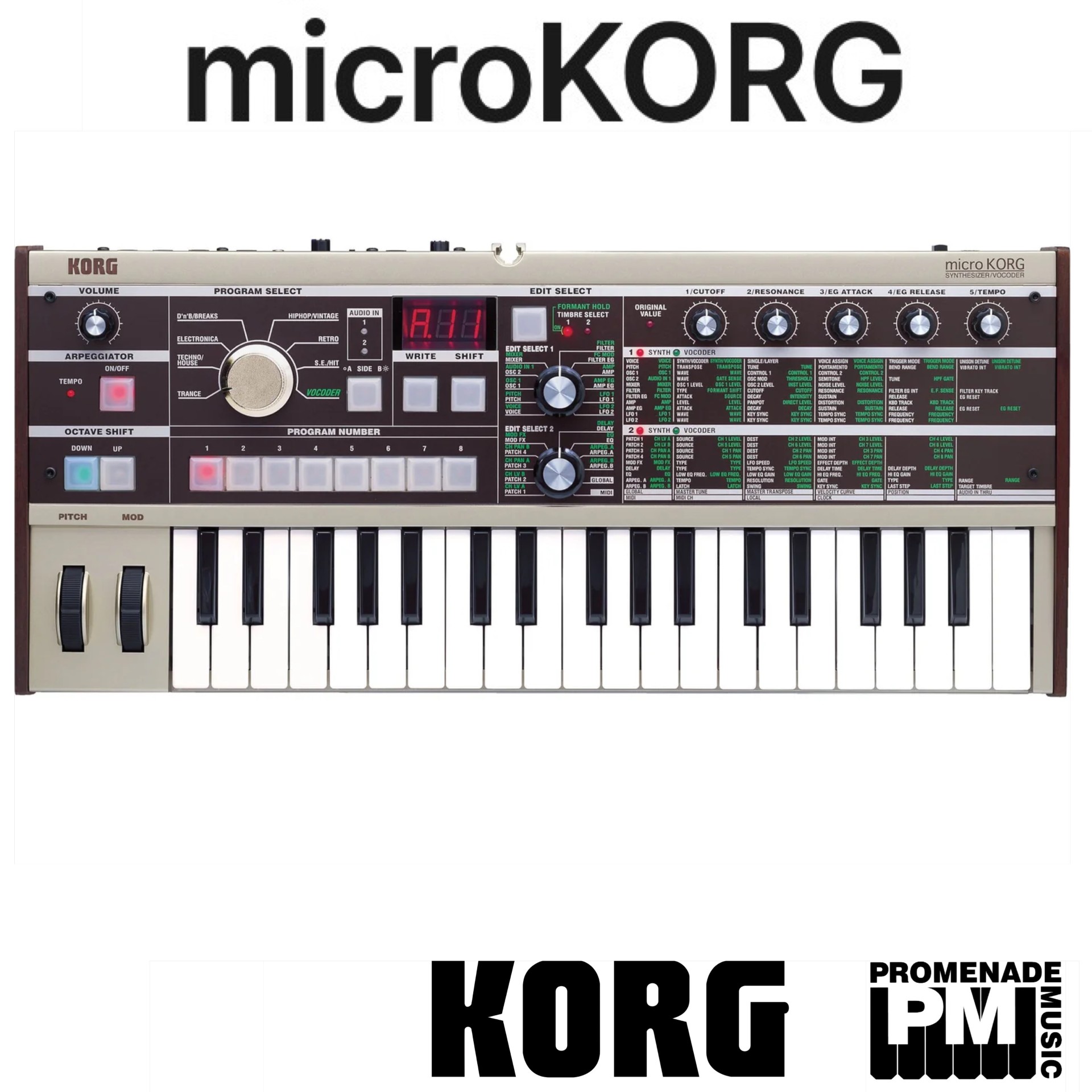

microKORG SYNTHESIZER/VOCODER
Amazingly, the microkorg has been out since the summer of 2002, and has proved to be one of the most popular synths ever! It's relatively affordable, yet packed with tons of great sounds spanning a diverse set of genres. It also has a vocoder.
State-of-the-art analog modeling and multi-band vocoding are finally available in a compact, portable instrument. With 37 keys and 128 user-rewritable programs, the microKORG Synthesizer/Vocoder is perfect for the performer, producer, computer musician or beginner looking for an affordable synthesizer. The new microKORG delivers the quality sounds and features you expect from Korg at a price that will astound you.
Powerful Synthesis
The microKORG boasts the same dual-oscillator DSP synthesis engine found in Korg’s critically acclaimed MS2000 and offers a wider selection of waveforms than any other modeled synth. Oscillator 1 features a total of 71 waveforms . These include traditional analog waves like saw, pulse, sine and noise, plus more unique choices like Vox wave and cross wave. Together they provide a cool selection that can be modulated to produce an extensive range of timbres. In addition, 64 exclusive DWGS waveforms from Korg’s classic DW-8000 enable the microKORG to reproduce a broad collection of imitative sounds. Sounds like bells, electric pianos, guitars, basses and more that would be difficult reproduce on an analog synthesizer. You can also apply Ring and Sync modulation from Oscillator 2 to create the kind of complex timbres that are the true sign of an advanced synthesizer.
Four filter modes are available, offering -12 dB (2-pole) low pass, high pass and band pass configurations plus an extra steep -24 dB (4-pole) low pass setting. All include resonance. Two classic ADSR envelope generators and two MIDI-syncable LFOs provide the power to shape your sounds. Add a Virtual Patch matrix that lets you create advanced modulation settings – routing the Mod Wheel to control filter cutoff or pulse width, using an LFO to control panning or amp level, etc. – and you have performance that is unheard of from a synthesizer in this price range!
Classic Vocoding
The microKORG includes an 8-band vocoder with many advanced features. You can capture and “freeze” the formants of your voice, and then play it across the keyboard, or shift the formant frequency to make your voice sound male, female, like a child or just plain wacky! Best of all, the microKORG comes with its own microphone so you can start having fun right away.
A Full Range of Effects
Three types of modulation effects (chorus/flanger, phaser, ensemble), three types of delay effects (stereo, cross, L/R), and a two-band equalizer add the finishing touch to the microKORG. The delays can be synchronized with the arpeggiator or to an external MIDI clock – a great feature for live performances or for laying down tracks. All effects can be edited to create your own, unique sounds.
Great Sound and Expression
Korg has used all of the microKorg’s synthesis power in the creation of 128 great-sounding presets. They cover a wide range of the latest musical styles plus many vintage favorites. Sixteen vocoder Programs are also included. The Pitch Bend wheel, Modulation wheel and five other knobs provide flexible realtime control over filter cutoff, attack, release and other important parameters. The Edit Mode allows you to fully edit the existing sounds, or to create your own new ones.
Flexible Arpeggiator
Six types of arpeggio patterns (UP, DOWN, ALT1/2, Random, Trigger) are built in, with control over tempo, gate time, swing, and up to a 4-octave range. You can turn individual steps on or off within a pattern, providing the feel and functionality of a step sequencer.
Audio In
Two external audio input jacks are provided, so you can run other instruments, CDs and more through the microKORG’s filter and effects, allowing you to process sounds in truly creative ways.
A Compact MIDI Controller
The microKORG’s compact size is perfect for the musician or DJ looking to add a synth to his or her setup when space is tight. It’s also a great choice for use in a computer-based music setup. The five realtime knobs on the front panel can transmit MIDI messages (control changes), so they can be used as controllers for software synthesizers. Use the 37-note velocity-sensitive mini-keyboard for controlling other gear or for recording and editing with your sequencer. And thanks to battery-power, the microKORG is the ultimate portable controller when used with a laptop computer!
Clear Control and Classic Looks
There’s no complex menu structure – all parameters are located on the panel for easy access to any function. A large dial and LED illuminated buttons provide easy program selection even on a dark stage. With its beige-gold body, wooden side panels and retro-influenced design, the microKORG has a look that’s both vintage and funky.
Programs/Combinations:
Sound Generation Method:
Analog Modeling Synthesis System
Synthesizer Program:
Multi Timbral:
2 (max, Normal/Dual Mode)
Voices:
4 voices
Sound Source:
2 Oscillator + Noise Generator,
Multi Mode Filter (-24dB/oct LPF, -12dB/oct LPF/BPF/HPF),
EG x2,
LFO x2,
Virtual Patch x4
Vocoder Program:
Voices:
4 voices
Sound Source:
1 Oscillator + Noise Generator,
EG x1,
LFO x2,
8 Channels vocoder,
Level and pan of each channel can be edited,
Formant Shift function
General Specifications:
Programs:
128 programs
Effects:
Modulation effects (3 types),
Delay (3 types),
Equalizer
Arpeggiator:
6 types
Keyboard:
37 Keys (mini-keyboard, velocity sensitive)
Inputs:
AUDIO IN 1, and 2
Level switch:
LINE/MIC,
[AUDIO IN 1, 2 (LINE)],
[AUDIO IN 2 (MIC)]
Outputs:
L/MONO, R and
Headphones
MIDI:
IN, OUT and THRU
Display:
3 characters x1 line with 8 segment LED
Power Supply:
DC 9 V (AC adapter), or
six AA alkaline batteries (sold separately)
Power Consumption:
6.4 Watt maximum
Dimensions:
20.63"(W) x 9.13"(D) x 2.76"(H)
524mm(W) x 232mm(D) x 70mm(H)
Weight:
4.85 lbs.
2.2 kg
Accessories:
AC adapter (DC 9 V, 600 mA),
Condenser Microphone
Appearance and specifications are subject to change without notice for product improvement.
