Maestro Invader Distortion
Invade and Dominate a World of Distortion

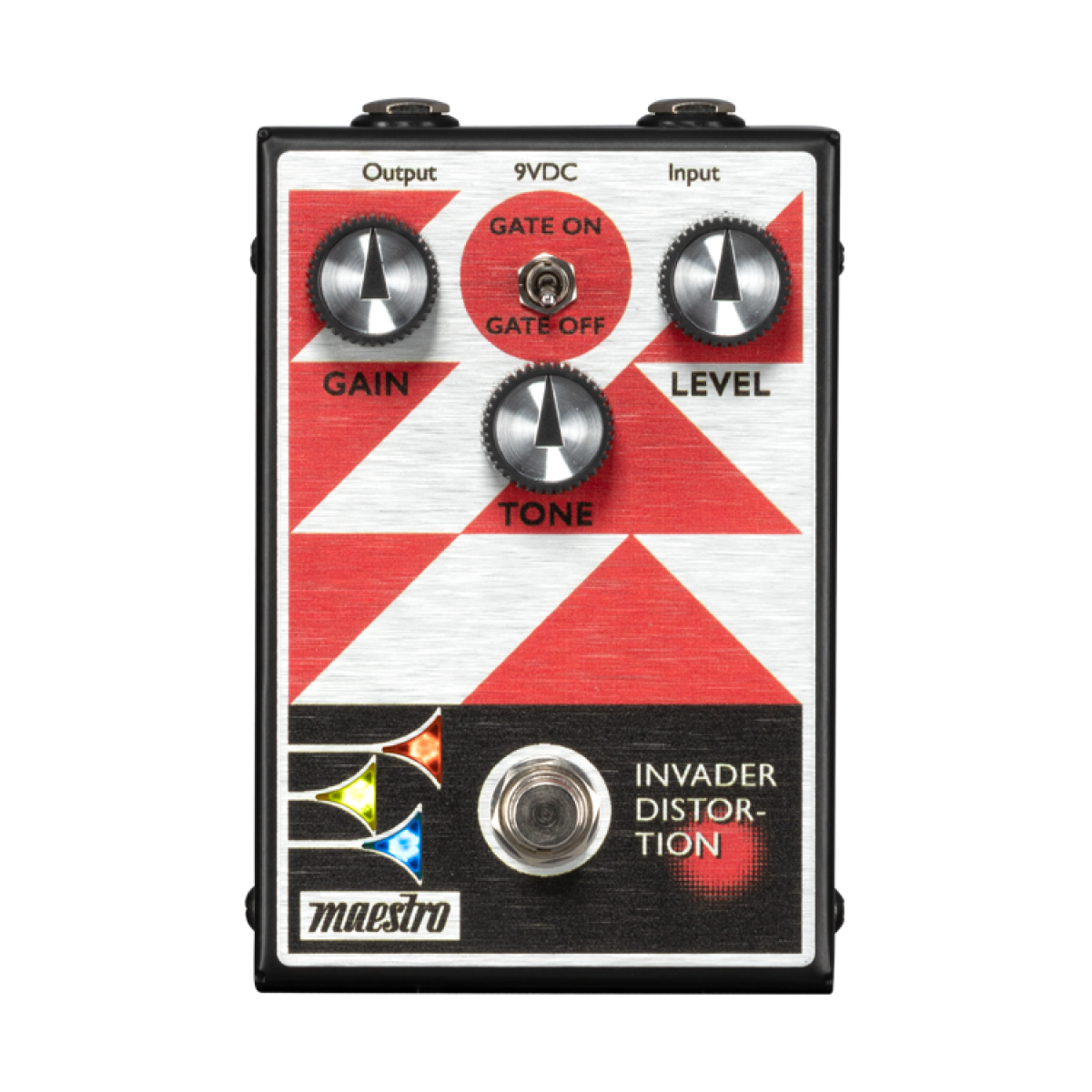

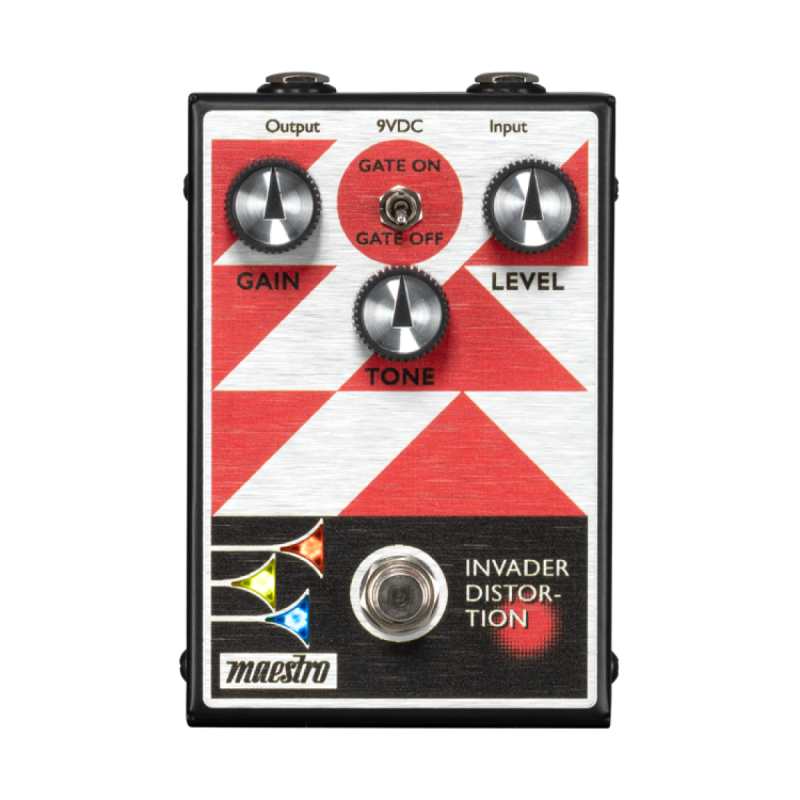

The Maestro Invader Distortion is a high-gain, all-analog modern distortion pedal with a heavy, aggressive, dominant sonic character and loads of rich harmonics. With the Maestro Invader Distortion, users can generate a wide range of distorted sounds. The 3-knob control layout gives users intuitive control over Gain (distortion amount), Tone, and output Level, with more than enough volume on tap to easily exceed unity gain when you want to. Users can also engage a built-in noise gate with the top panel toggle switch. An internal trim pot mounted on the circuit board inside the pedal allows the user to adjust the level of the noise gate’s Threshold. The true bypass footswitch triggers the LED lights in the bugles in the Maestro logo when it’s on, so you’ll always know when the effect is active.
ELECTRONICS PEDAL
Switches
True Bypass footswitch, Gate On/Gate Off toggle switch
Led Indicators
Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
Signal Processing
All-Analog
Power Requirements
9V battery or regulated 9VDC power supply (5.5 X 2.1 mm plug, wired center-negative)
Current Draw
56.7 mA
Power On Switch
Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.
Input Impedance
100 kOhms
Output Impedance
100 Ohms
Switching Type
True Bypass
Dimensions
5.04″ x 3.45″ x 2.5″ (128.0 mm x 87.6 mm x 63.5 mm)
Weight
Net: 1.24 lb. (562.5 gm.) Gross: 1.62 lb. (734.8 gm.)
