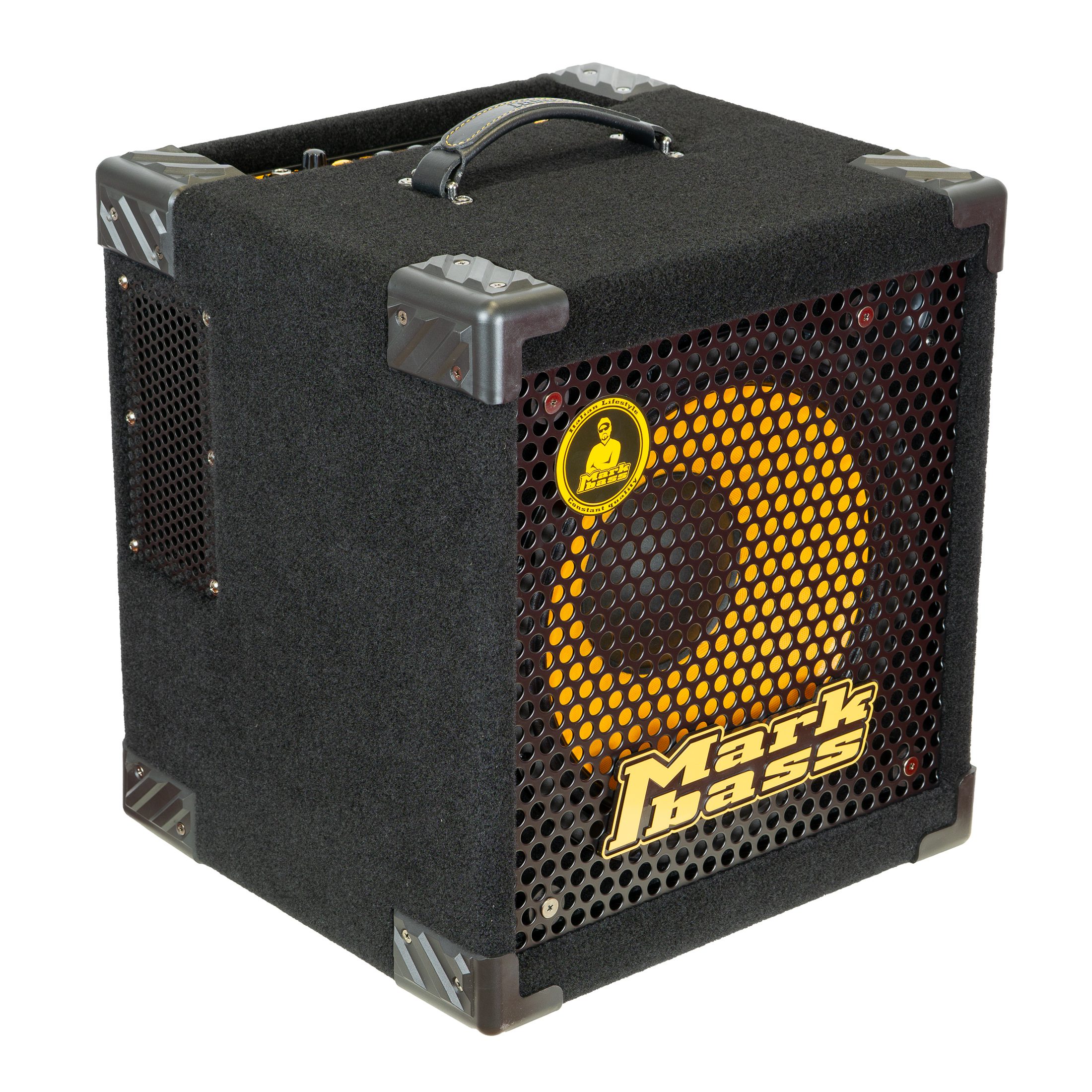

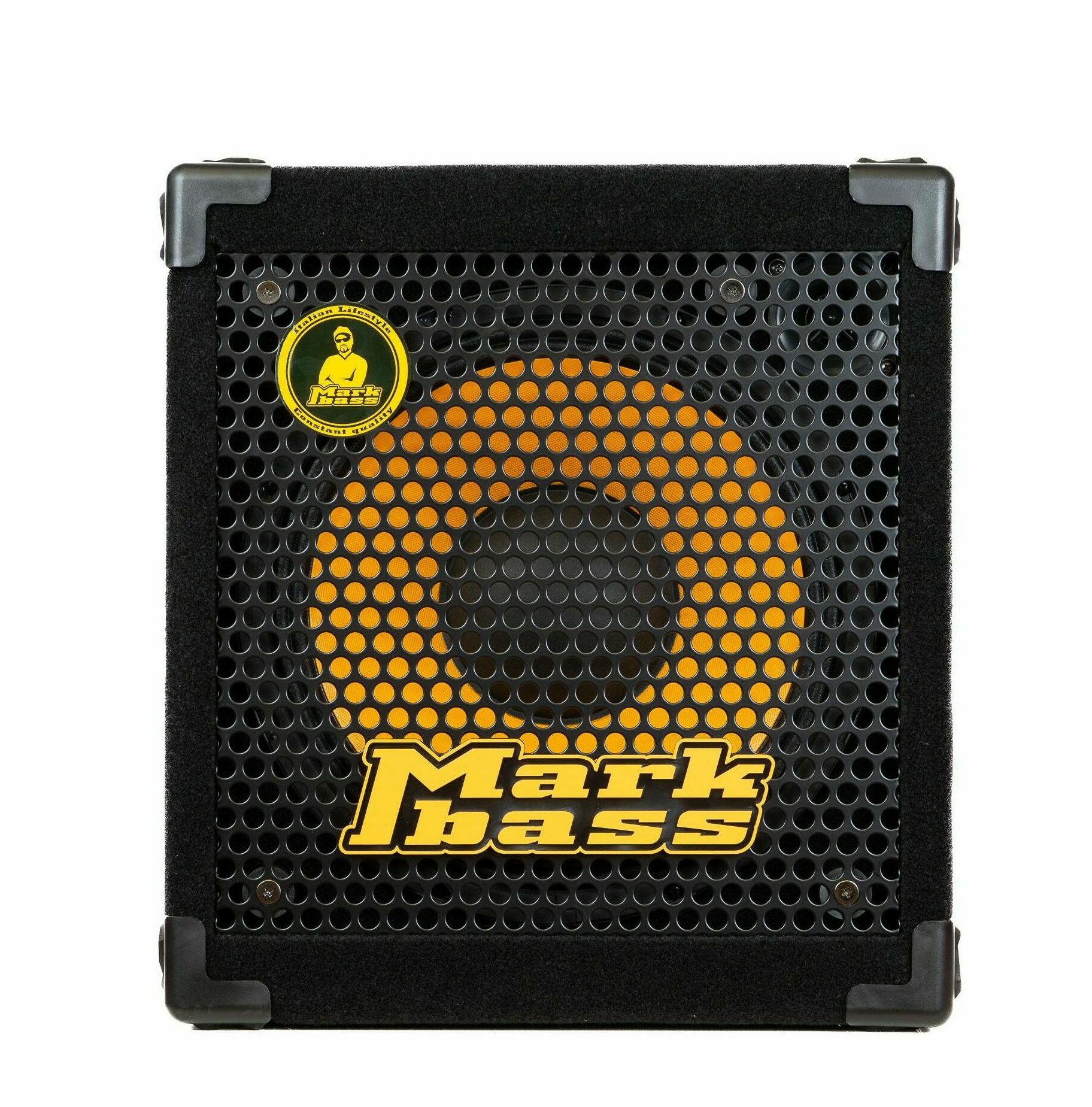

MINI CMD 121 P V
Product code: MBC105102Z
This new version of our flagship combo Mini CMD 121P features the new Little Mark 58R Combo Head. All the connections and controls are on the front panel leaving on the rear panel only the speaker outs and AC power socket, offering optimal ergonomics and making everything more practical. As for previous version it has the new bi-band limiter, a MUTE switch and the 3-way switch that includes the options of Flat, Scooped or FSW.
KEY POINTS
> NEW COMBO HEAD ERGONOMIC AND PRACTICAL DESIGN
The new LITTLE MARK 58R combo head amp new design features all the connections and controls on the front panel leaving on the rear panel only the speaker outs and AC power socket, offering optimal ergonomics and making everything more practical.
> UNPARALLED POWER/WEIGHT RATIO
After years from its initial release in the 2005, this combo continues to lead the pack when it comes to big sound from a small package. The sound that comes from this amp simply does not match what you see when you look at such a small cube.
> 4-BAND EQ NEW SETTING, OLD SCHOOL FILTER, 3-WAY SWITCH, MUTE
The 4-band EQ section features very effective controls, allowing you to easily find the sound you want, boosting or cutting 16 db of each of the band to cover all the tonal nuances needed in any genre of music. Additionally the Old School filter cuts out your highs and gives you a round and smooth tone, and the 3-way switch allows to choose between a super-balanced FLAT tone, a SCOOPED preset that drops the mids while boosting the lows and highs giving a great slap sound or to selects FSW to control MUTE and SCOOPED EQ connecting an optional dual footswitch. MUTE function is also available via handy MUTE switch on the front panel.
> BI-BAND LIMITER
Our new bi-band limiter responds faster and more dynamically to your playing than traditional limiters do, and lets your high end “breathe” more, for a more natural sound. It makes our amp heads the best choice for anyone who enjoys a quick, punchy attack at high volumes.
> POWERFUL STACK WITH NEW YORK 121 EXTENSION CABINET
If you add the New York 121 to the Mini CMD 121P combo, you’ll have a 500W 2×12” stack able to fill a large venue with headroom to spare.
> TAKES UP VERY LITTLE ROOM ON STAGE
Even when stacked on a New York 121 cabinet (which has the same dimensions), this combo creates a footprint on stage of only 15” x 14”. You’ll never have a problem fitting this rig on even the smallest of stages!
TECHNICAL FEATURES
SPEAKER
1 x 12”
TWEETER
Piezo
SPEAKER POWER HANDLING
400W RMS (AES Standard)

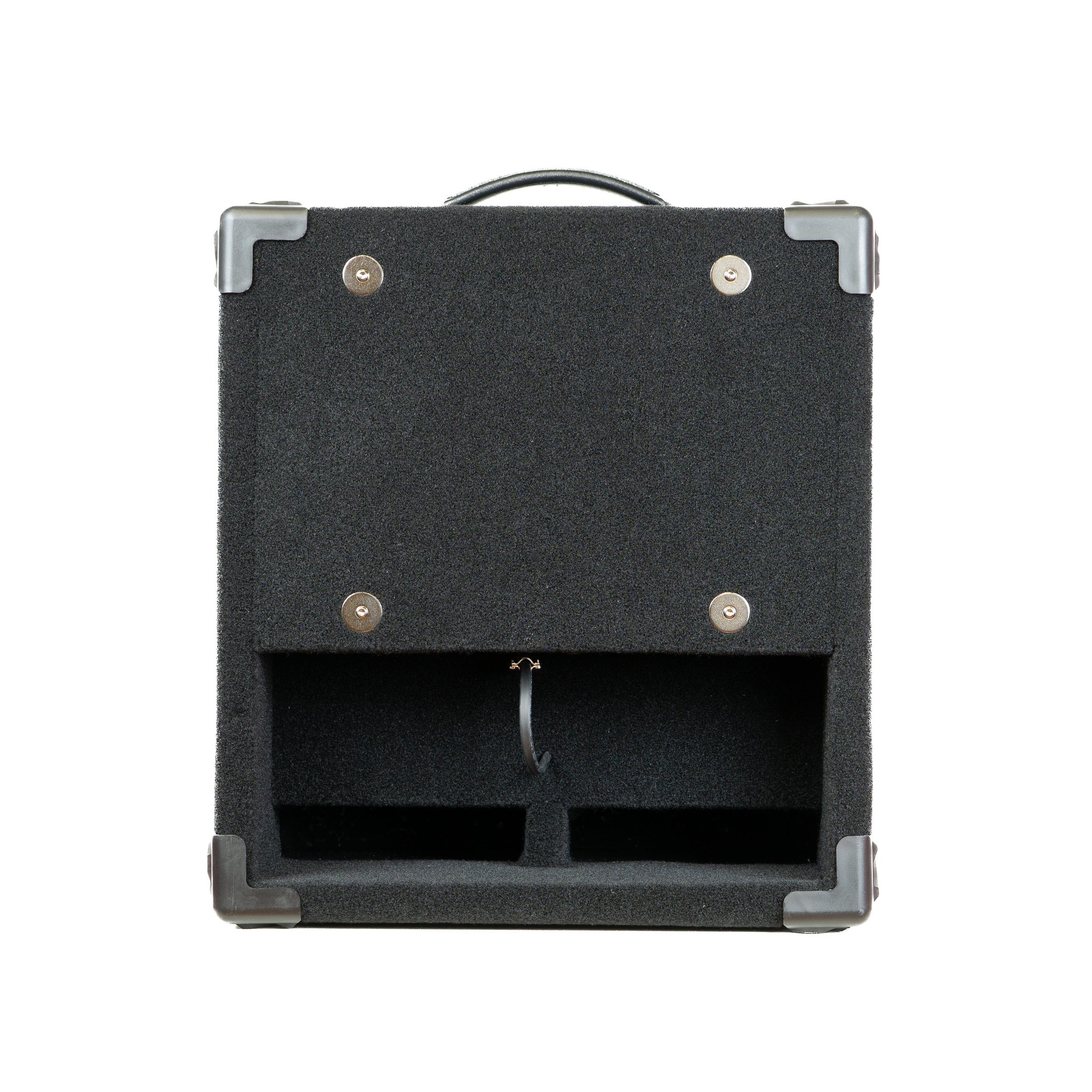

REFLEX
Rear
IMPEDANCE
8 ohms
CROSSOVER FREQUENCY
3.5 kHz
FREQUENCY RESPONCE
45Hz to 18KHz
SENSITIVITY DB SPL
99
CONTROLS
GAIN | 4-BAND EQ | OLD SCHOOL FILTER
MUTE SWITCH | MASTER VOLUME
LINE OUT level control | PRE/POST EQ e GND switches
3 WAY SWITCH: flat/scooped-mid/FSW
OUTPUT POWER
500W RMS @ 4 ohm, 300W RMS @ 8 ohm
OTHERS
BI-BAND LIMITER | FSW (OPTIONAL) mute/scooped
DIMENSIONS
14.96”/ 38 cm (w); 16.73” / 42.5 cm (h); 14.17” / 36 cm (d)
WEIGHT
26.6 lbs / 12.1 kg
