The AudioBox 96 USB two-channel audio interface
M7 condenser microphone
HD7 headphones
Studio One Artist
Studio Magic software suite
Everything you need to record and produce

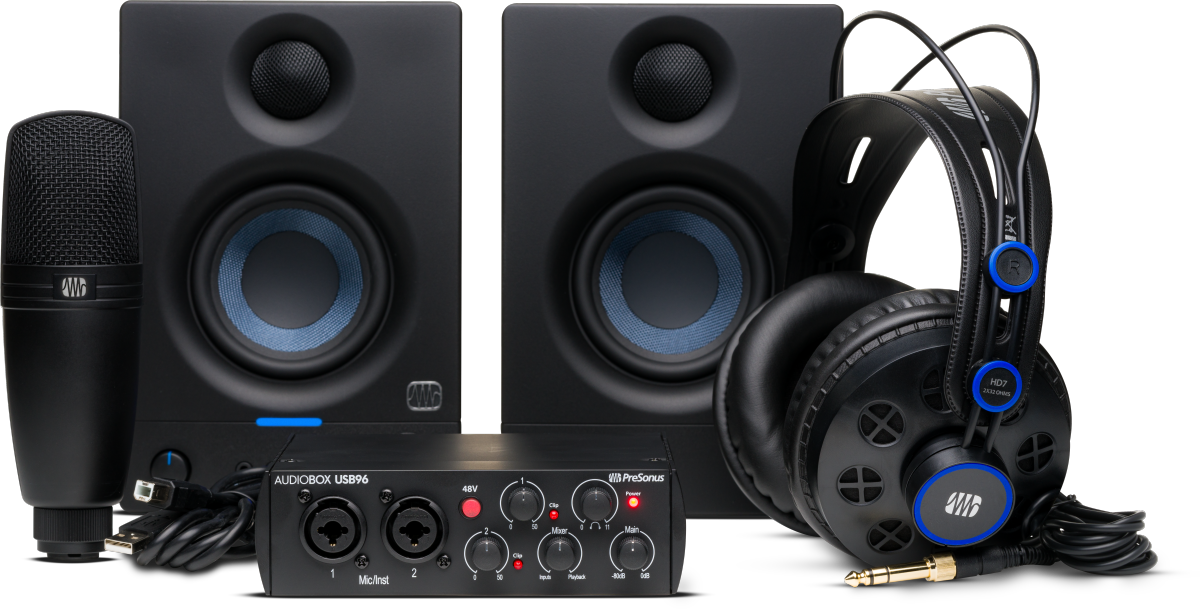

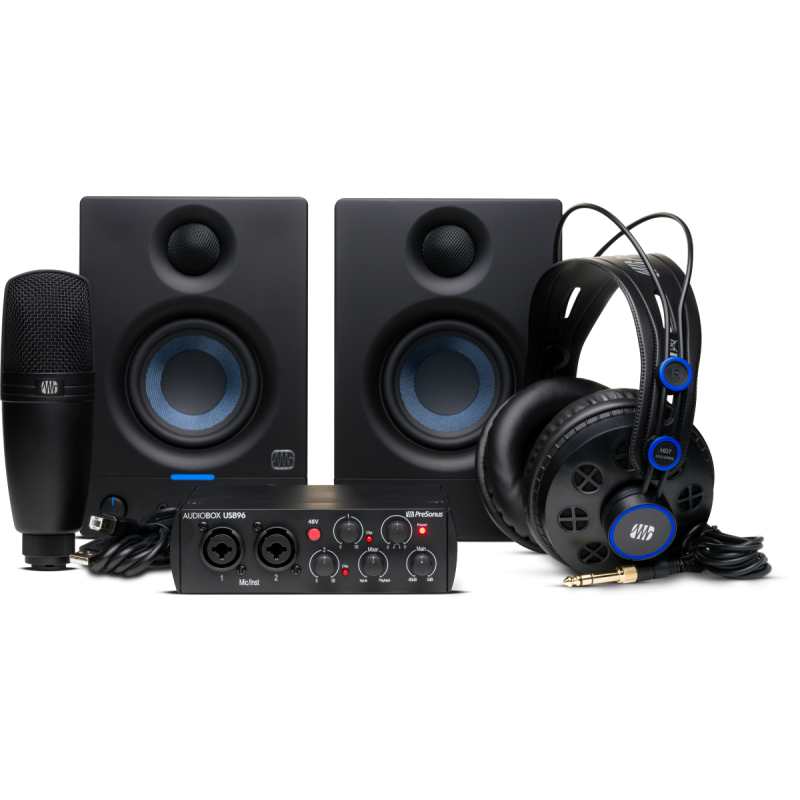

Start recording today with this complete, all-PreSonus® package! Based on the AudioBox USB® 96 audio/MIDI interface and award-winning Studio One recording and production software, PreSonus AudioBox 96 Studio is great for creating multitrack recordings, demos, live recordings, podcasts, field recordings for video and sound effects, and much more.
Preview image for AudioBox 96 Studio overview video

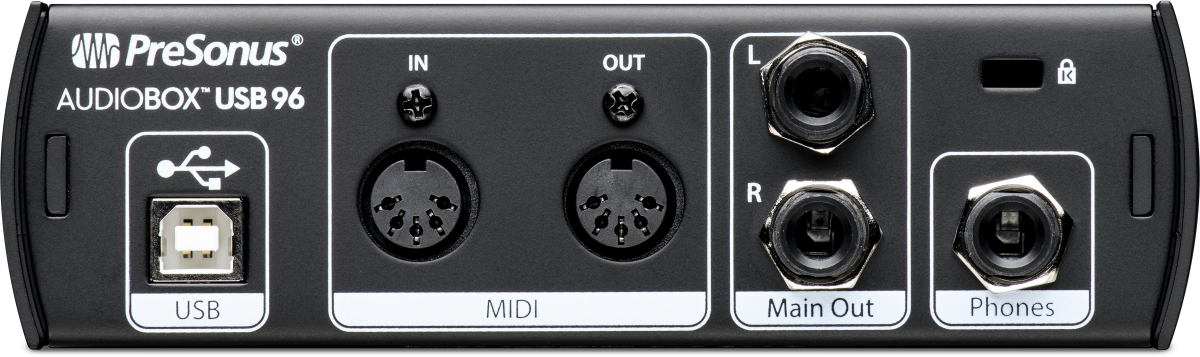

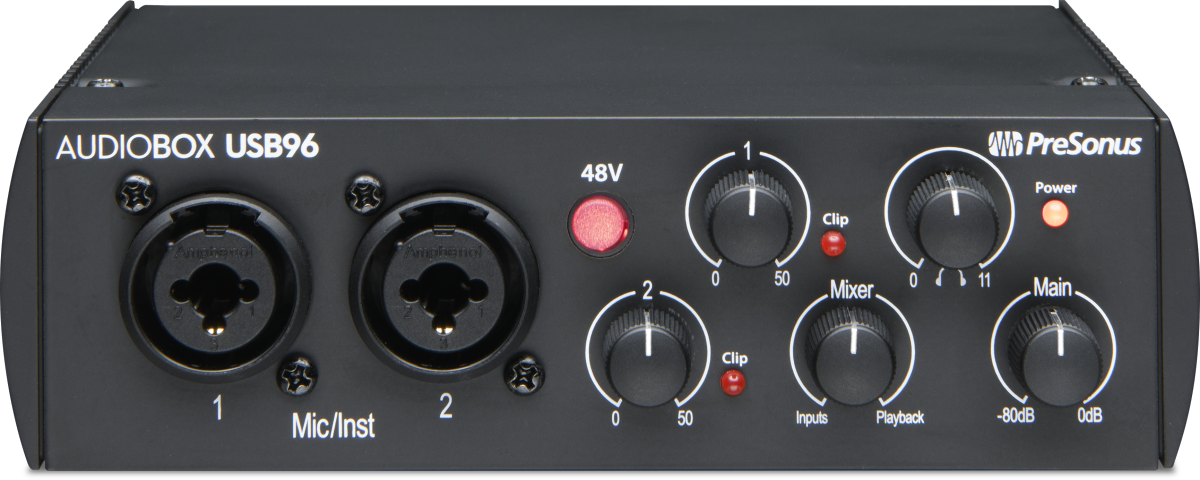

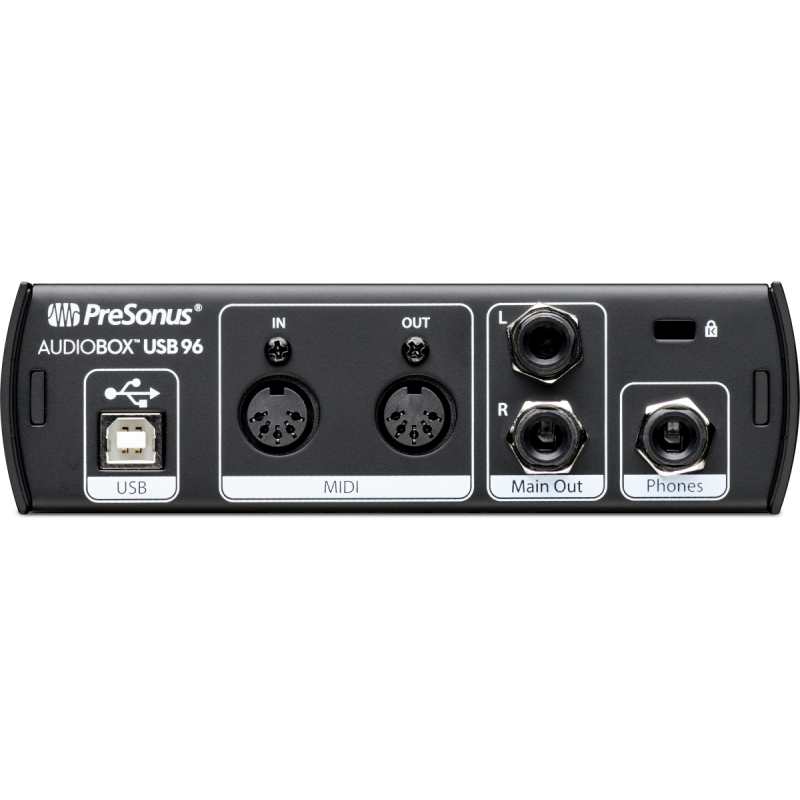

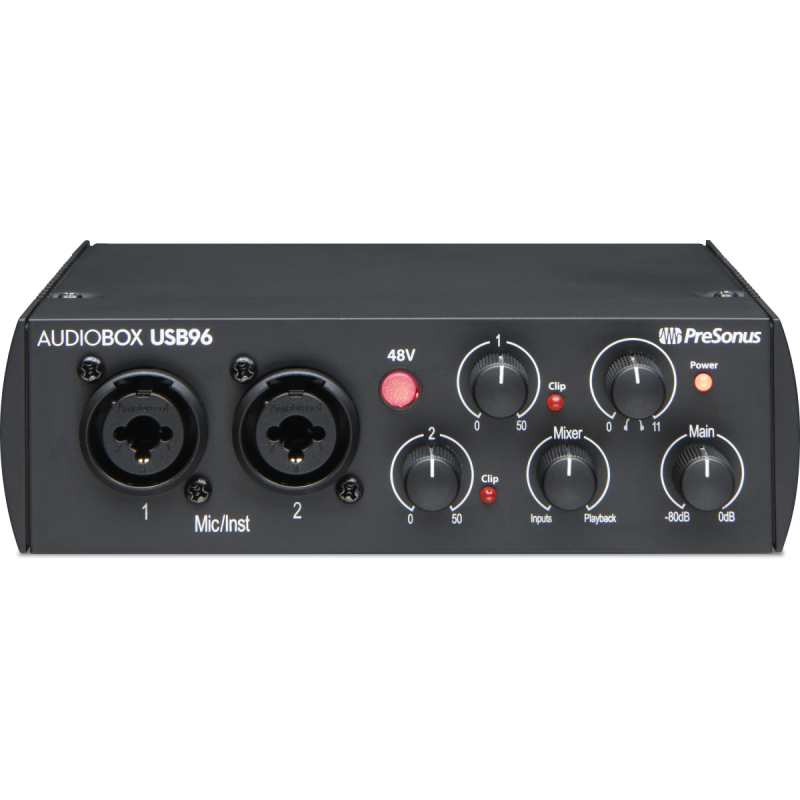

AudioBox USB 96: Simple, reliable, and portable.
The AudioBox USB 96 is the heart of the AudioBox 96 Studio. This simple, handy little audio/MIDI interface has just the right features for basic recording needs, including two combo mic/instrument inputs and zero-latency monitoring, so you can simply plug in and start recording right away. Bus-powered, built to travel, compatible with most recording software for Mac and Windows, and equipped with high-performance microphone preamplifiers and professional-quality, 24-bit, 96 kHz converters, the AudioBox USB 96 makes high-definition recording easy. Read more about the AudioBox USB 96.
Studio One Artist makes recording a breeze.
No other entry-level recording and production software is this easy to learn and use, yet is capable of creating studio-quality output. Studio One® Artist lets you work quickly and stay focused on your inspiration, offers unlimited tracks and plug-ins, and delivers features not normally found in entry-level DAWs. Access powerful editing tools without wading through menus. Load and save audio clips, MIDI files, and effects by drag-and-drop. Studio One makes it easy! Read more about Studio One Artist.

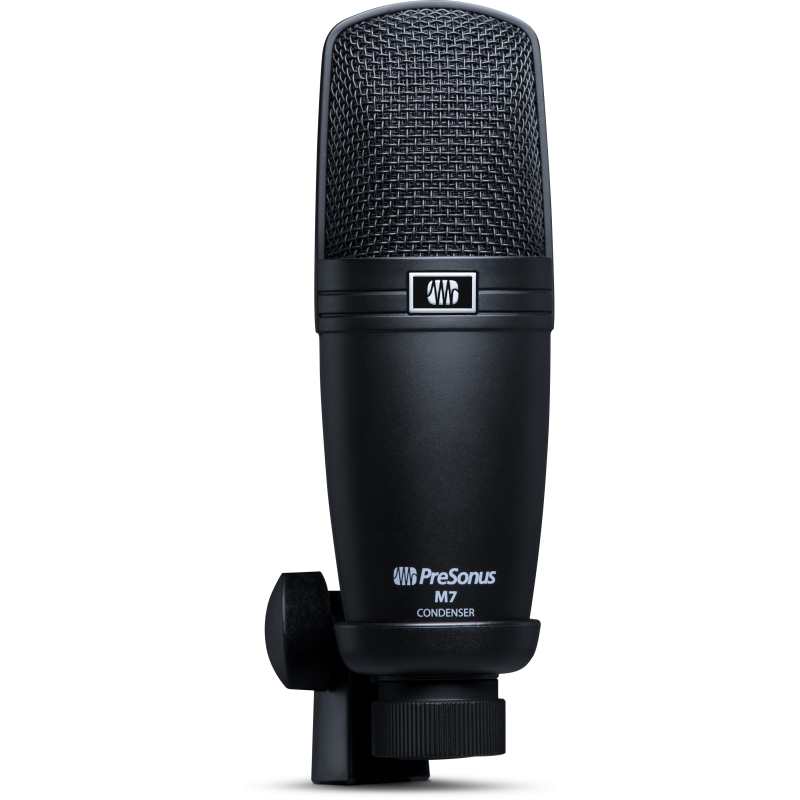

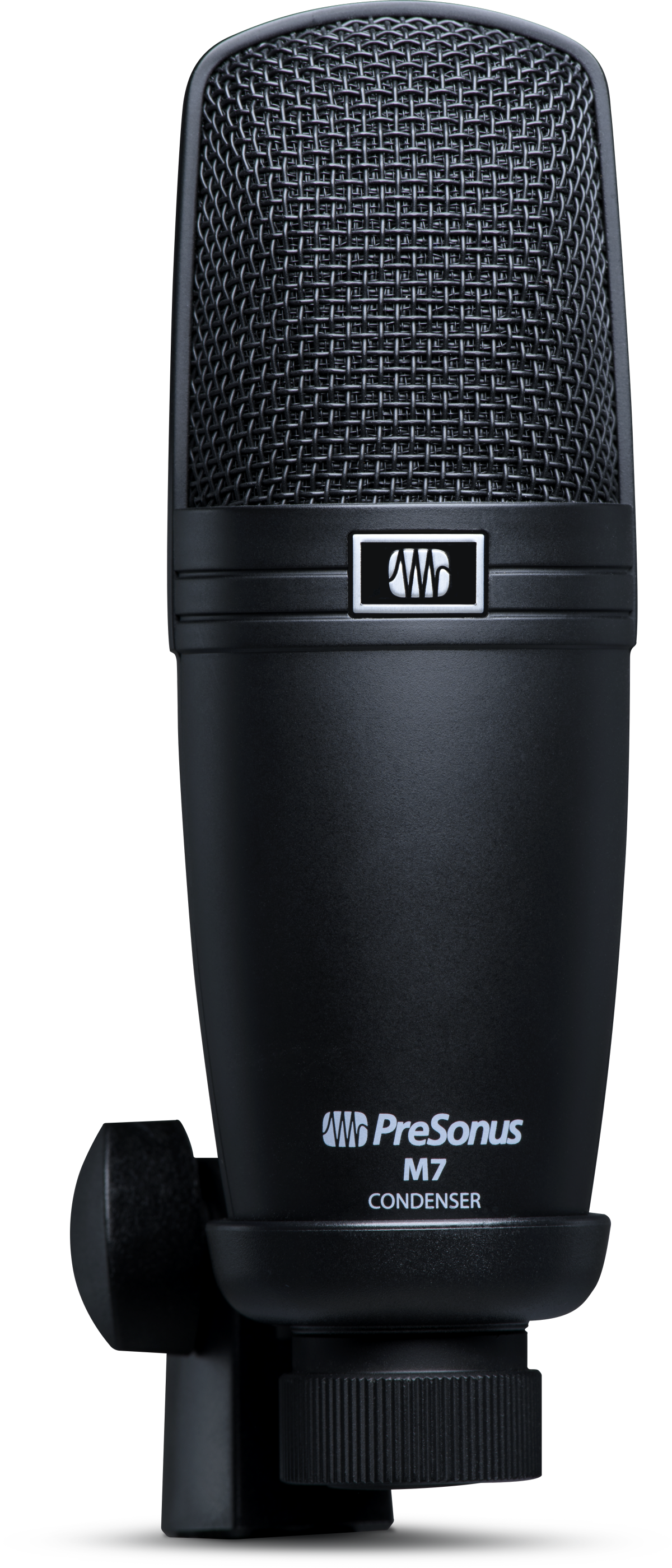

Capture every nuance with the M7 condenser microphone.
Get your mic collection off to a good start with the M7 large-diaphragm condenser microphone. Condenser mics are the overwhelming choice of recording studio professionals, enabling you to capture musical details, harmonics, and subtle nuances that would get lost with dynamic mics. Large-diaphragm condenser microphones, like the M7, tend to “warm up” a sound, making them the go-to microphone for recording vocals and a wide range of instruments.

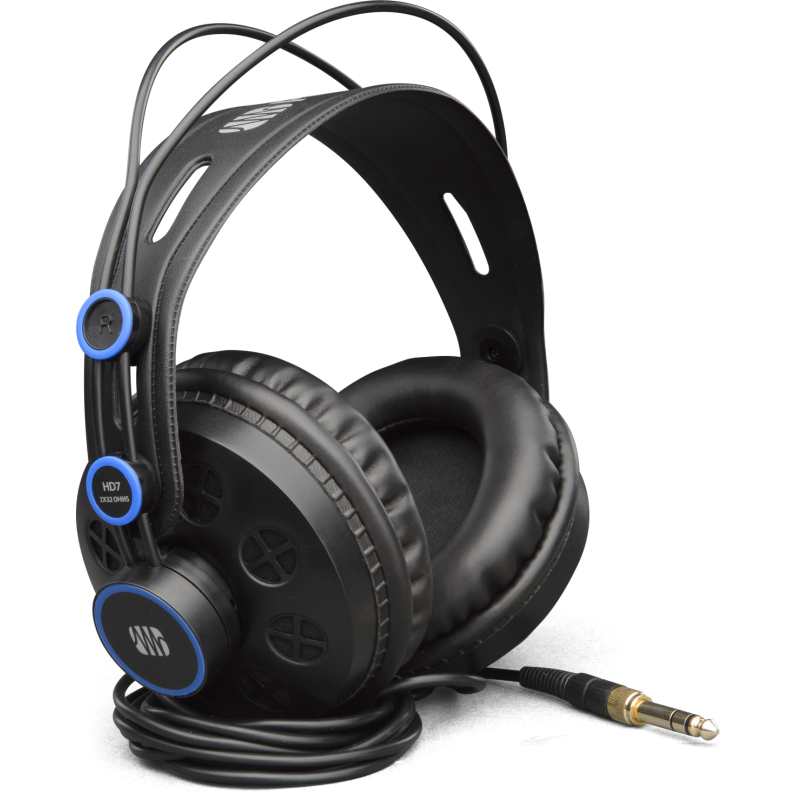

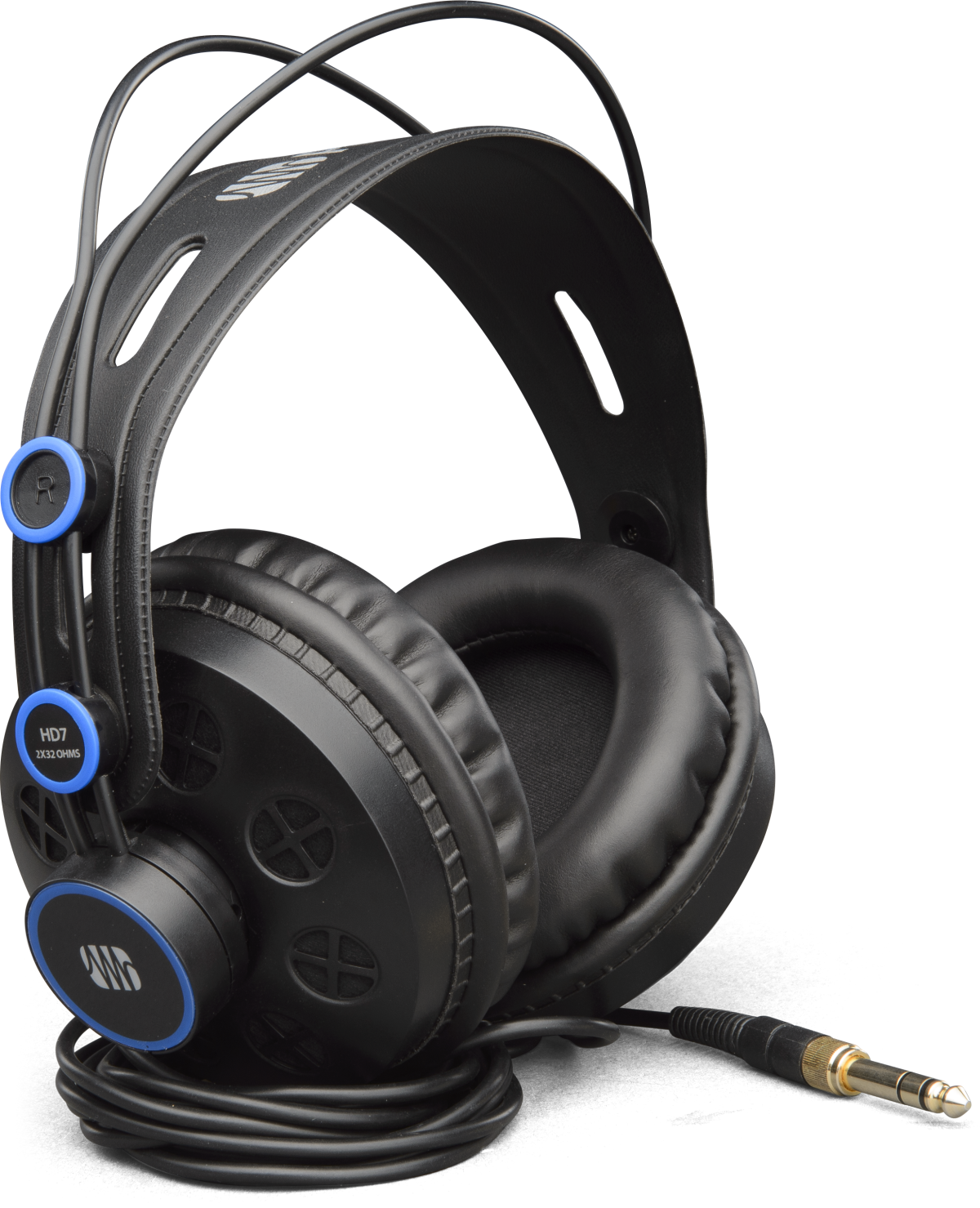

Hear every detail with HD7 professional headphones.
PreSonus’ high-definition HD7 headphones take advantage of a patented, semi-open sound chamber to deliver exceptionally deep low frequencies with a balanced and yet powerful bass punch. Accurate midrange and extended treble response let you pick out the fine details of a mix or track. The lightweight, ergonomic design adjusts to any head size, offering a comfortable listening experience during long recording sessions. Read more about HD7 headphones.
Make your own magic.
At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means “a little something extra,” and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.
The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats… all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).
Studio Magic Plug-in Suite Video.
Features
AudioBox USB® 96
Bus-powered USB audio and MIDI interface
Perfect match with Studio One® Artist software for Mac® and Windows®
24-bit resolution, 44.1, 48, 88.1, and 96 kHz sampling rate
2 combo mic/instrument inputs with Class A mic preamplifiers
48V phantom power (for included M7 microphone or other condenser microphones)
Zero-latency monitoring via internal analog mixer
Headphone jack with level control (for included HD7 headphones or other headphones)
1/3U rack-mountable
Computer-to-interface connection cable included
Studio One Artist software
Elegant single-window work environment
Powerful drag-and-drop functionality
Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
Content browser with convenient sort options and preview player
Most intuitive MIDI-mapping system available
Real-time audio time-stretching and resampling
Multitrack comping and MIDI editing
Transient detection and editing and groove extraction
Automatic delay compensation
Advanced automation
Integrates tightly with Celemony Melodyne
Instantly configures to PreSonus® interfaces
Compatible with ASIO-, Windows Audio-, and Core Audio-compliant interfaces
26 Native Effects 32-bit effects and virtual instrument plug-ins
10+ GB of third-party software, loops, and instruments
Mac- and Windows-compatible
M7 Microphone
Large-diaphragm design
Captures far more detail than a dynamic mic
Mic stand adaptor
Phantom-powered via AudioBox USB
9′ / 3 m cable included
Cloth carry bag included
HD7 Headphones
High neodymium resolution drivers
Precision-tuned acoustic chamber
Extended bass response
Built tough to withstand abuse
Auto-fit head pads
Comfortable and long-lasting ear pads
98″ / 2.5m single-side cable
Optimized pressure
Lightweight
Computer system requirements:
Studio One® is a modern, cross-platform DAW that is capable of operating as a 32-bit or 64-bit application. While we make every effort to ensure Studio One will run well on the widest variety of computers possible, please read these specifications carefully to determine compatibility with your system.
Below are the minimum computer-system requirements for Studio One.
Mac
macOS® 10.11 or higher (64-bit only) or later
Intel® Core Duo processor (Intel Core™ 2 Duo or Intel Core i3 or better recommended)
2 GB RAM (4 GB or more recommended)
Windows
Windows® 7x 64/x86 SP1 or Windows 8/8.1 x64/x86 or Windows 10 x64/x86
Intel Core 2 processor (Intel Core i3 processor or better recommended)
4 GB RAM (8 GB or more recommended)
Windows and Mac Systems
USB 2.0 Port
Internet connection (for activation)
Monitor with at least 1024×768 resolution
20 GB hard-disk space
Internal or external 7200 RPM storage drive highly recommended
The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio or MIDI signals. Monitor resolution for both PC and Macintosh should be no lower than 1024×768 pixels.
AudioBox USB® 96 Specifications
Microphone Preamp
Type – XLR Female Balanced
Frequency Response (±3.0 dB) – 20 Hz to 20 kHz
Input Impedance (Balanced) – 1200Ω
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) – < 0.008%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) – > 95 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) – > 45 dB
Gain Control Range (± 1 dB) 0 dB to 35 dB
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Phantom Power (±2 VDC) – +48 VDC
Instrument Input
Type ¼”
TRS Female Unbalanced Input Impedance – 0.5 MΩ
Line Outputs
Type – ¼”
Balanced Output Impedance – 51Ω
Headphone Output
Type – ¼” TRS Active Stereo
Maximum Output – 60 mW/Ch @ 60Ω Load
Frequency Response (±1.0 dB) – 20 Hz – 30 kHz
MIDI I/O
Type – Dual 5-pin Female DIN
Digital Audio
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) – 105 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) – 105 dB
Bit Depth – 24
Reference Level for 0 dBFS – +4 dBu
Internal Sample Frequency Selections (kHz) – 44.1, 48, 88.2, 96
Power – USB 2.0 Bus-powered
Physical
Dimensions – 1/3U (steel chassis)
Height – 5.5” (139.7 mm)
Depth – 1.75″ (44.45 mm)
Width – 5.5” (139.7 mm)
Weight – 1.4 lbs (0.64 kg)
M7 Microphone Specifications
General
Type – Large-diaphragm condenser microphone
Element – Electret
Polar Pattern – Cardioid
Frequency Response – 40 Hz – 18 kHz
Sensitivity – -39 dBV/pa (12.2 mV/pa)
Rated Impedance – 200Ω
Equivalent Input Noise (EIN) – 20 dB
Maximum SPL – 136 dB SPL
Phantom Power Required – +12 to +52 VDC, 3 mA
S/N Ratio – 74 dB
Dynamic Range – 11 dB
Current Consumption – 3.5 mA
Physical
Diameter – 2.13″ (54 mm), maximum
Length – 6.69″ (170 mm)
Weight – 11.3 oz. (320g)
