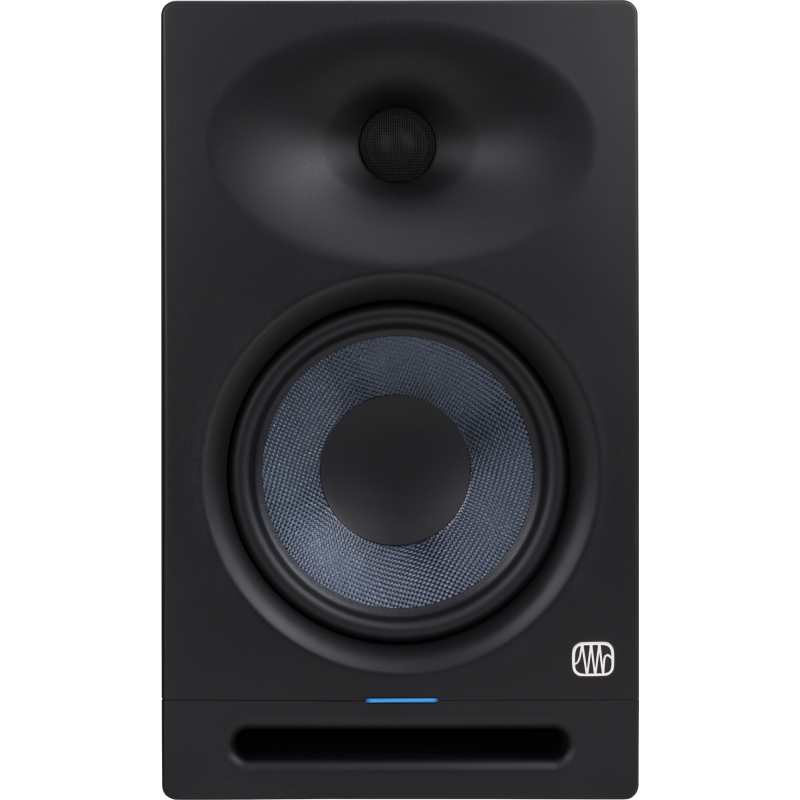

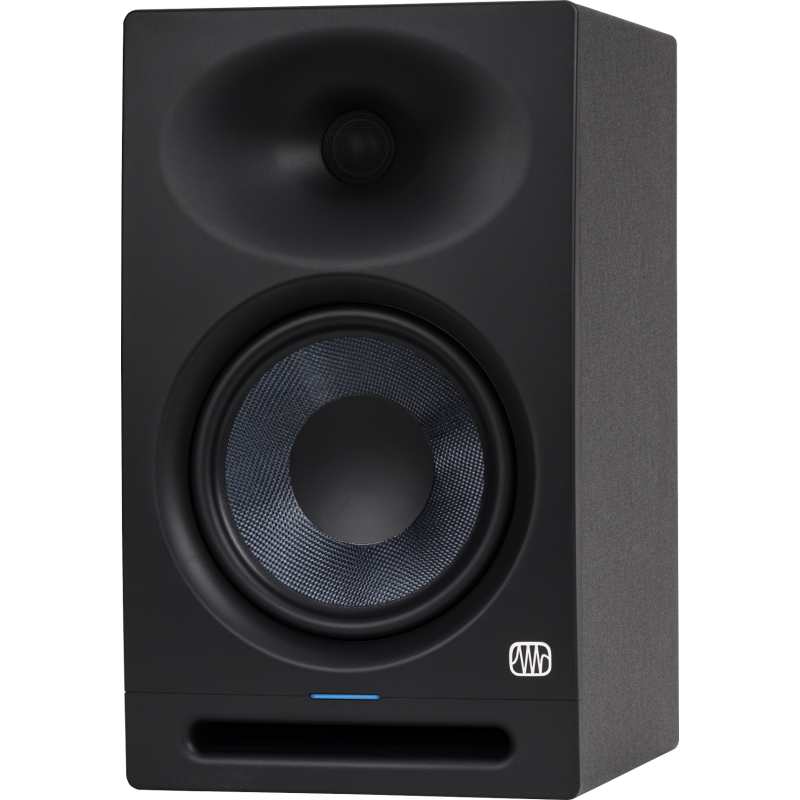

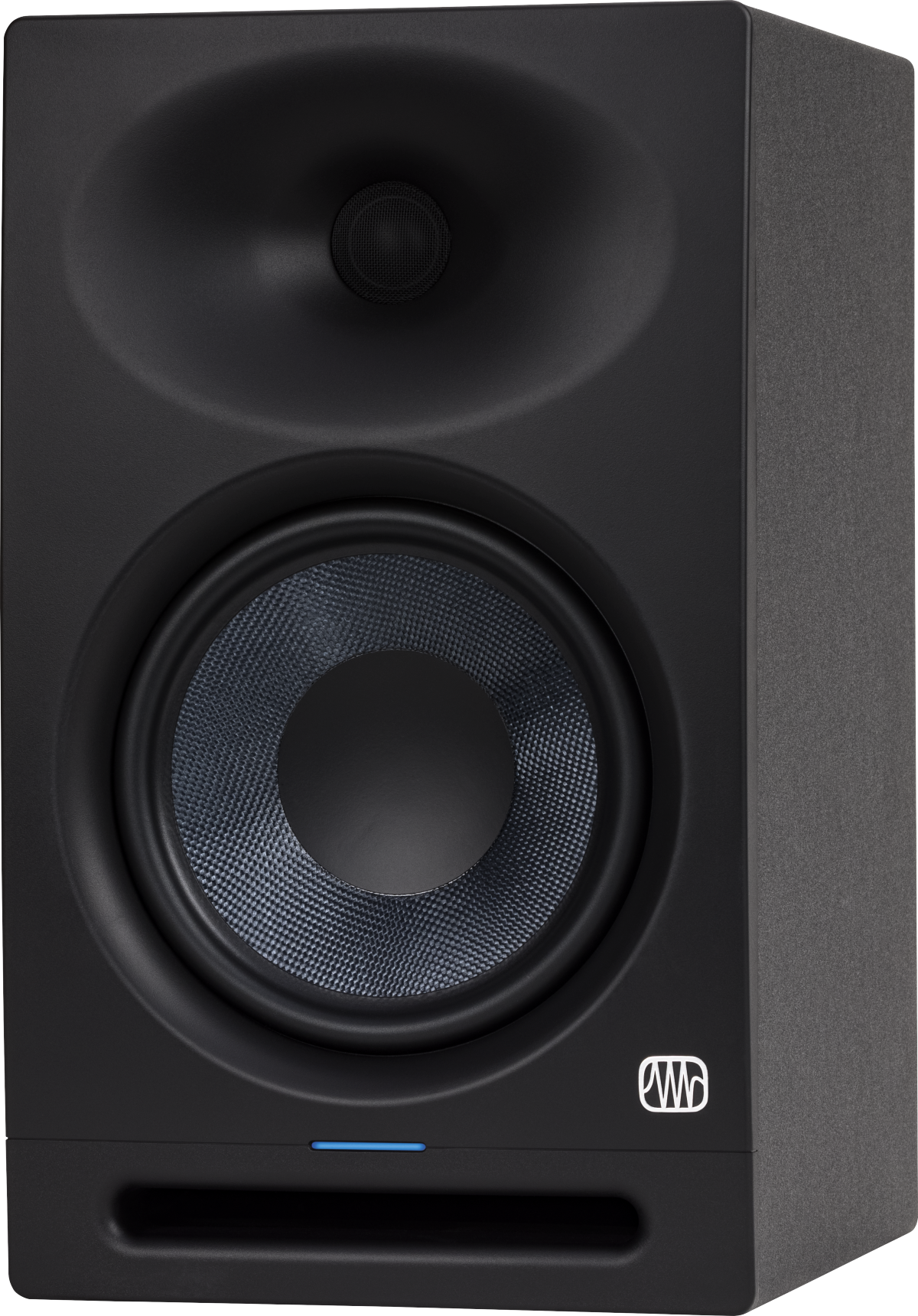

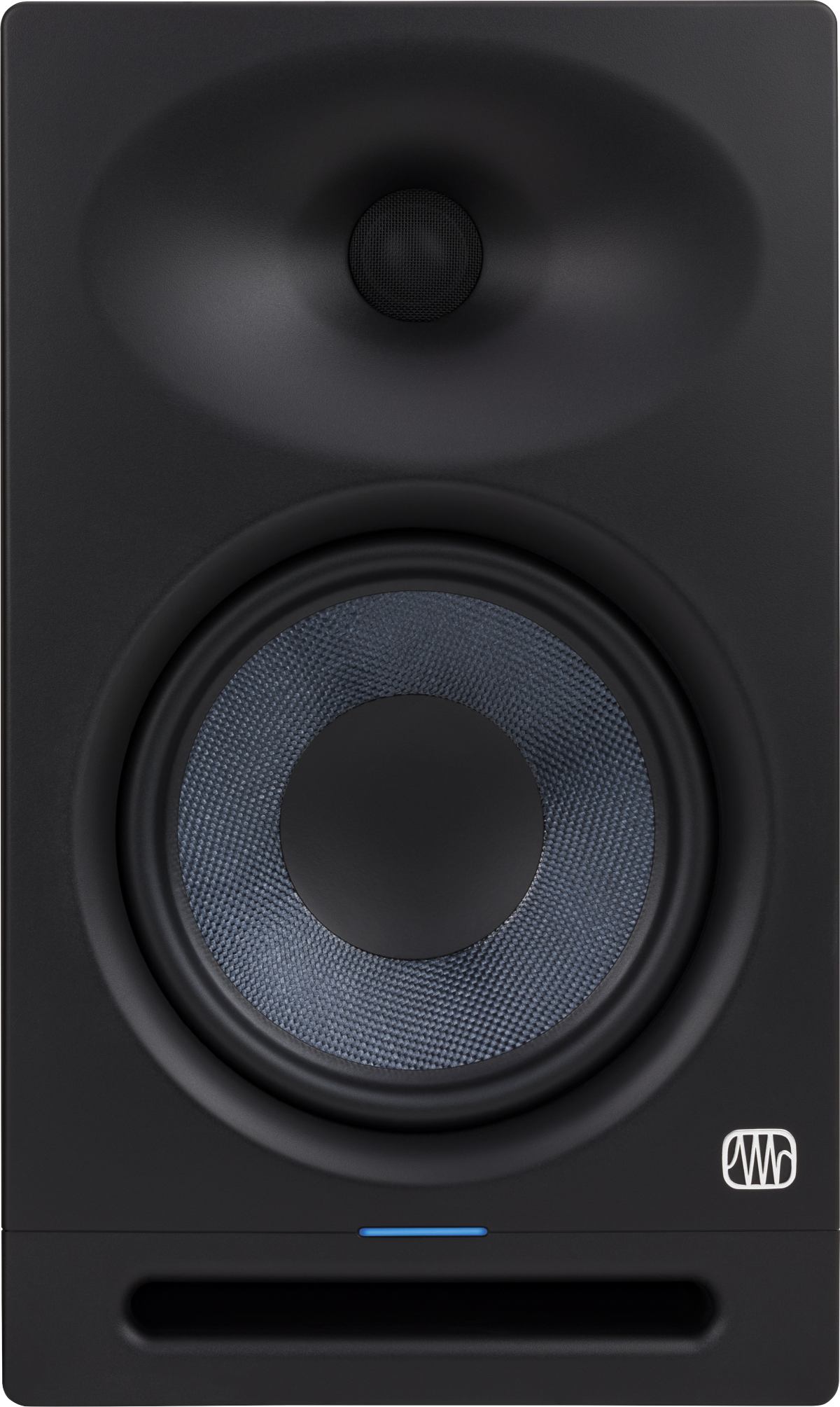

PreSonus® Eris® Studio 8 (Single)
8-Inch 2-Way Active Studio Monitors With EBM Waveguide
With a smooth, accurate frequency response; powerful amplification with tons of headroom; and Acoustic Tuning functions that ensure you get the best sound, it’s no wonder that Eris®-series studio monitors have been a runaway hit since their introduction. Building on the reputation of its award-winning predecessors, the Eris Studio 8 is a substantial update that delivers richer low-end and more controlled high-frequency response, reproducing every detail in your recordings with a natural sound unparalleled in its class.
Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 8 features a custom-designed EBM (Elliptical Boundary Modeled) waveguide that provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a 1.25-inch, silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you’ll hear the finest details in your mix.
The woven-composite, 8-inch, low-frequency driver offers Eris’ signature tight, clear bass with plenty of punch. Its 140W of biamped power make the Eris Studio 8 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 8 to reach down to an astonishing 35 Hz – with no subwoofer!
Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You’ll have no problem hooking your Eris speakers up to virtually anything.
Features
8-inch woven composite, low-frequency transducer
1.25-inch (31.75 mm), ultra-low-mass, silk-dome, high-frequency transducer
120˚(H) x 60˚(V) EBM waveguide for a wide sweet spot
Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
140W, Class AB biamplification
35 Hz to 20 kHz frequency response
106 dB SPL (Peak, @ 1 meter)
Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
RF interference, output-current limiting, over-temperature, transient, subsonic protection, and amplifier “soft start” feature (eliminates popping on power-up)
Internal power supply with IEC connector and power switch with on/off LED

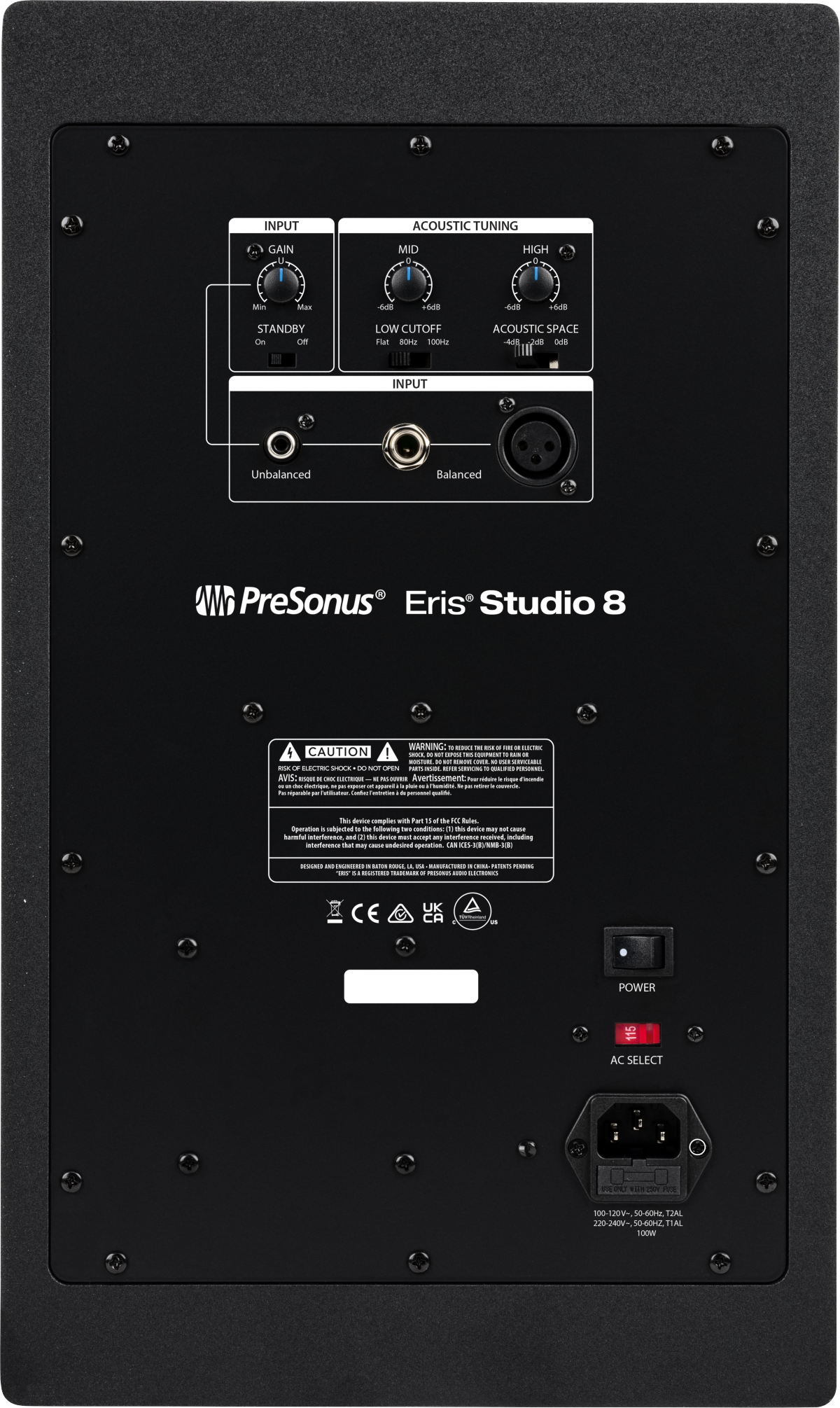

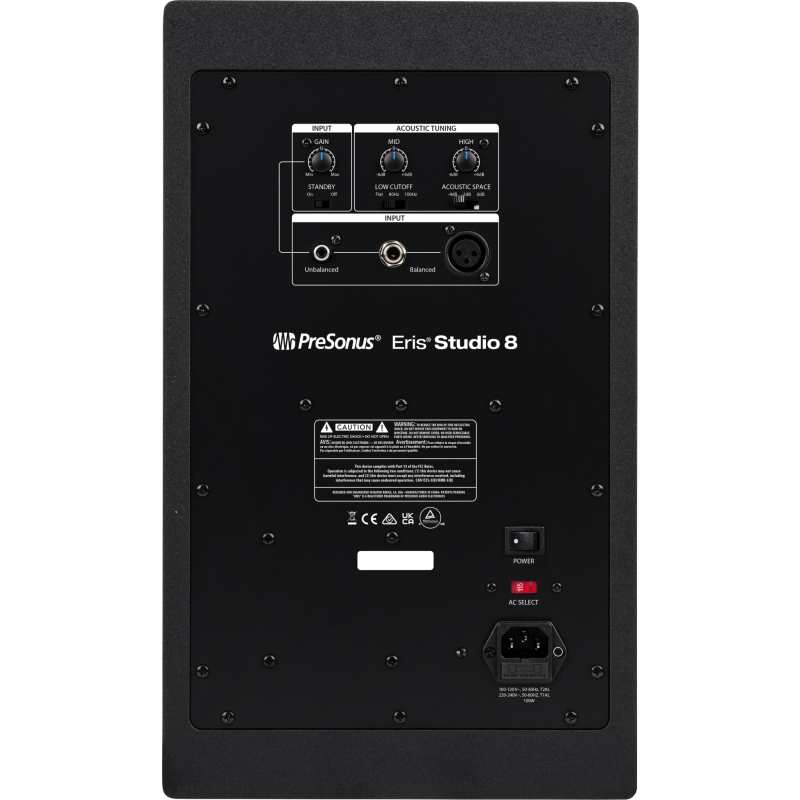

Balanced XLR and ¼-inch inputs and unbalanced RCA inputs
Set Up Your Studio Monitors For Your Room.
Eris® Studio 8 active monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low Cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.
Honest. Expressive. Powerful.
Like all PreSonus® studio monitors, the Eris® Studio 8 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space, and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.
Measurements
Width
9.84″ (25 cm)
Height
16.5″ (41.91 cm)
Depth
11.73″ (29.8 cm)
Weight
22.2 lbs. (10.07 kg)
Electronics
Voltage Requirements
100-240 VAC, 50-60 Hz
Connection Type
IEC
Hardware
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
Monitors
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Audio Switches
Acoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
Audio Controls
VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable)Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Peak SPL
106 dB (at 1 Meter)
Crossover Frequency
3.5 kHz
Monitor Inputs
1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA
HF Transducers
1.25” Ultra Low Mass, Silk Dome Tweeter
LF Transducers
8″ Woven Glass Fiber Composite
Frequency Response
35 Hz – 20 kHz
Input Impedance
10 kΩ
Coverage Pattern
120 degree (H) x 60 degree (V)
Monitor Amplifier Power
140W Bi-Amped
