Take a look at these videos for the Presonus FaderPort 8 … Video 1 … Video 2 … Video 3. There are some more videos on the PreSonus FaderPort 8 on their website.
Don’t kill that mouse—give it a companion.

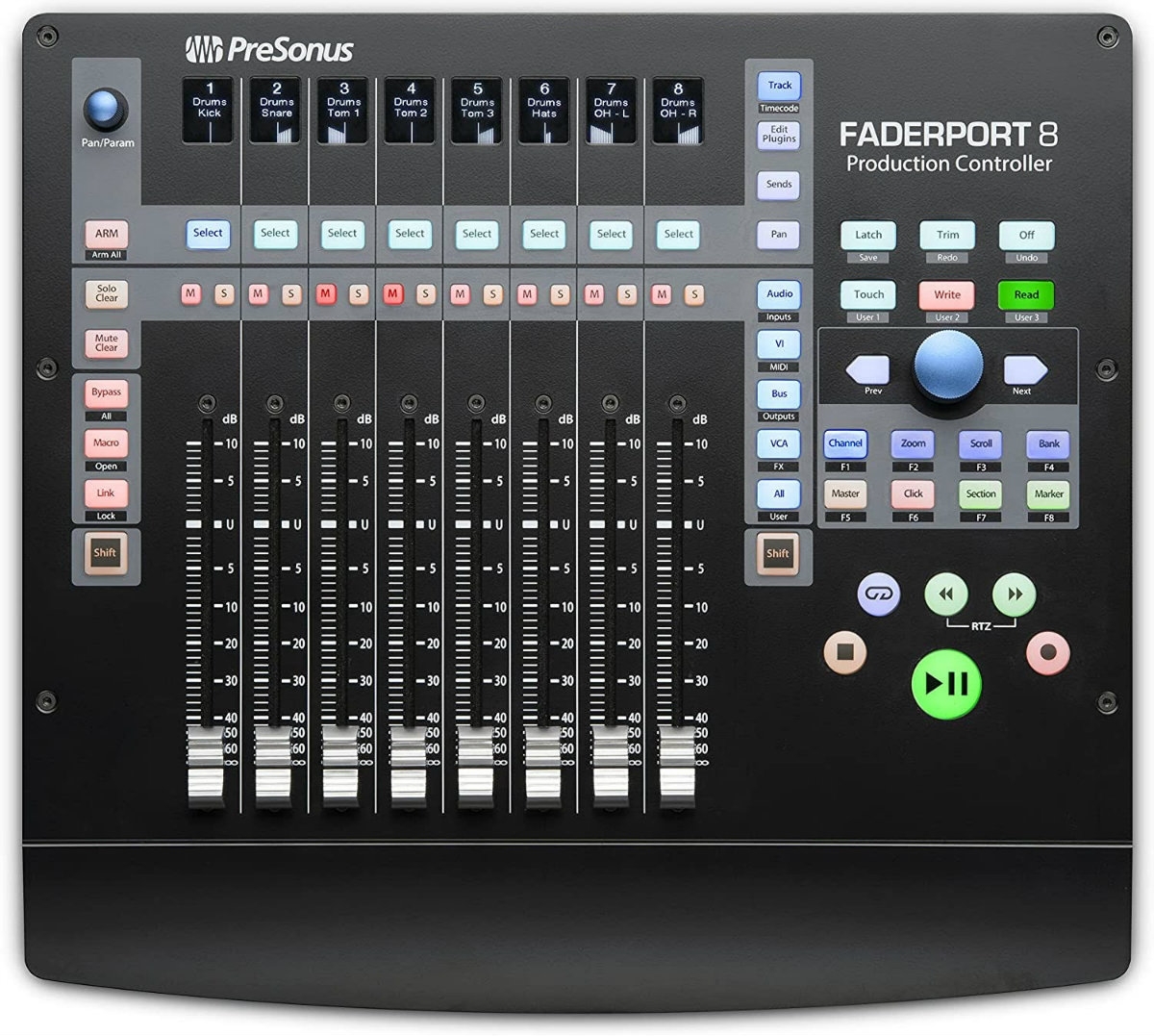

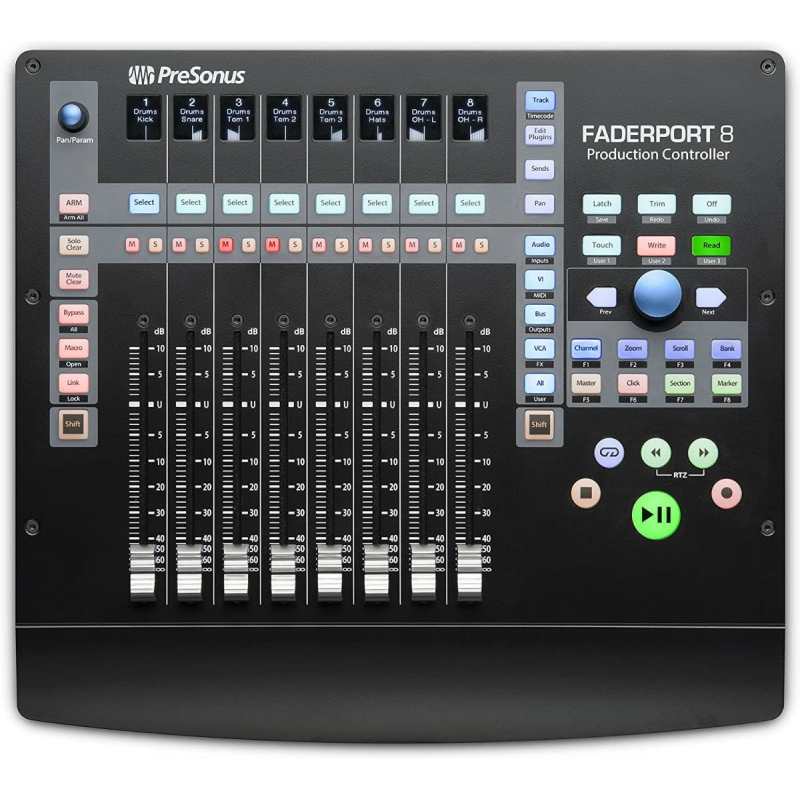

Although a keyboard and mouse are tried-and-true DAW-control devices, they’re far more effective when used in tandem with the FaderPort™ 8’s precise tactile control over mix and automation functions. With 8 touch-sensitive, motorized, 100 mm faders and 65 buttons covering 78 different functions, you can quickly zoom in on audio files for editing, adjust your click-track tempo with a simple tap, modify plug-in parameters, manage aux mixes—and, of course, control track levels with the touch of a finger. With the FaderPort 8, you’ll enjoy the fastest, most efficient workflow you’ve ever experienced.
Work faster and smarter.
Rather than forcing you to revise your mixing method, the FaderPort 8 augments the way you currently mix. You still use your faithful keyboard and mouse for things they do well, and the FaderPort 8 handles the features you want to get your fingers on, allowing you to customize your workflow. Large, illuminated buttons make finding the function you need quick and easy. Eight digital scribble strips provide visual feedback. And if you select a track with your mouse, the FaderPort 8 will follow your selection, giving you yet another way to get to the function you need, right when you need it. This is DAW control the way you always hoped it could be!
One-button access to key functions.*
The FaderPort 8's unique Session Navigator provides easy access to eight mission-critical functions for maximum flexibility. Use the large encoder button and companion buttons to edit and mix with greater efficiency and speed. Scroll through your timeline, using the encoder, or work measure by measure with the arrow buttons; zoom in and out on the timeline with the encoder and make your tracks larger or smaller with the arrow buttons; navigate and drop markers; and maintain constant control of your main level. Once you start using the Session Navigator, you’ll wonder how you mixed without it.
* Features may vary depending on your software.
Universal compatibility. Integrated with Ableton Live.
While compatible with most third-party software, FaderPort 8 offers deeper integration with Ableton Live (version 10.1.5 and later). Navigate clips and scenes, change track volume and panning, and switch between Session and Arranger views, the FaderPort 8 will help you work faster than ever. Even better: any FaderPort 8 purchased after January 18, 2020 gets a free copy of Ableton Live Lite dropped in your My.PreSonus account.
FaderPort 8’s streamlined workflow and support for the Mackie Control and HUI protocols also make it fast and easy to control Logic Pro X, Cubase, Pro Tools, and more. No driver installation is necessary; just plug the control surface into a USB port and take command of your mix.
Built for Studio One®.
The optimized mode for PreSonus Studio One will revolutionize your workflow in PreSonus' award-winning DAW (Studio One Artist included). Use the Session Navigator to quickly move and nudge events in the Arranger window. The unique Link function allows you to instantly control any parameter beneath your mouse with the large encoder. Control link lets you customize your function buttons and much more. You’ll be amazed at how much faster you can work..
An amazingly fast, efficient studio workflow awaits you!
With the compact, easy-to-use FaderPort 8, you’ll enjoy the fastest, most efficient workflow you’ve ever experienced. But don’t just take our word for it; visit your favorite PreSonus dealer and try the FaderPort 8 for yourself!
Features
8 touch-sensitive, 100 mm long-throw, motorized faders
8 Scribble Strip displays
Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
Drop Marker Next / Prev Marker Next / Prev Event
General session controls: Undo / Redo, All Arm, Solo / Mute Clear, Track Management, Click On / Off with tap tempo
Session Navigator provides quick control over track scrolling, channel banking, timeline scrolling, and much more
Channel Controls: Level, Pan, Solo, Mute, Rec Arm
Automation Controls: Touch, Latch, Trim, Write, Read, Off
Optional Fader functionality: plug-in edit, bus sends, pan
macOS® / Windows® compatible with native Studio One® support and HUI and Mackie Control Universal emulation *
Footswitch input for hands-free start / stop
USB 2.0 connectivity
* Please check the Tech Specs for full OS compatibility details..
Computer system requirements:
Mac®
macOS® 10.11 or higher (64-bit only)
Intel® Core™ 2 Duo processor (Intel Core i3 or better recommended)
Windows®
Windows 10 x64, Windows 8.1 x64, Windows 7 x64 SP1 + platform update
Intel Core 2 Duo or AMD® Athlon™ X2 processor (Intel Core i3 or better recommended)
Windows and Mac Systems
FaderPort 8 firmware 1.0.1 or later (requires Universal Control v.1.8.3 or later)
USB 2.0 port
Internet connection required for driver and bundled software installation
Universal Control v.1.8.3 (for firmware updates)
PreSonus FaderPort 8 has been tested and approved to work with the following software:
Native Mode
PreSonus® Studio One® 3.3.2 or later
HUI Emulation
Supported by Pro Tools
Mackie Universal Control Emulation*
Supported by Logic, Cubase, Nuendo, Sonar, and Ableton
*Users of third-party DAWs not listed that support the Mackie Control protocol, such as Reason, Bitwig Studio, and Reaper, should contact their DAW vendor for support.
As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
Technical Specifications

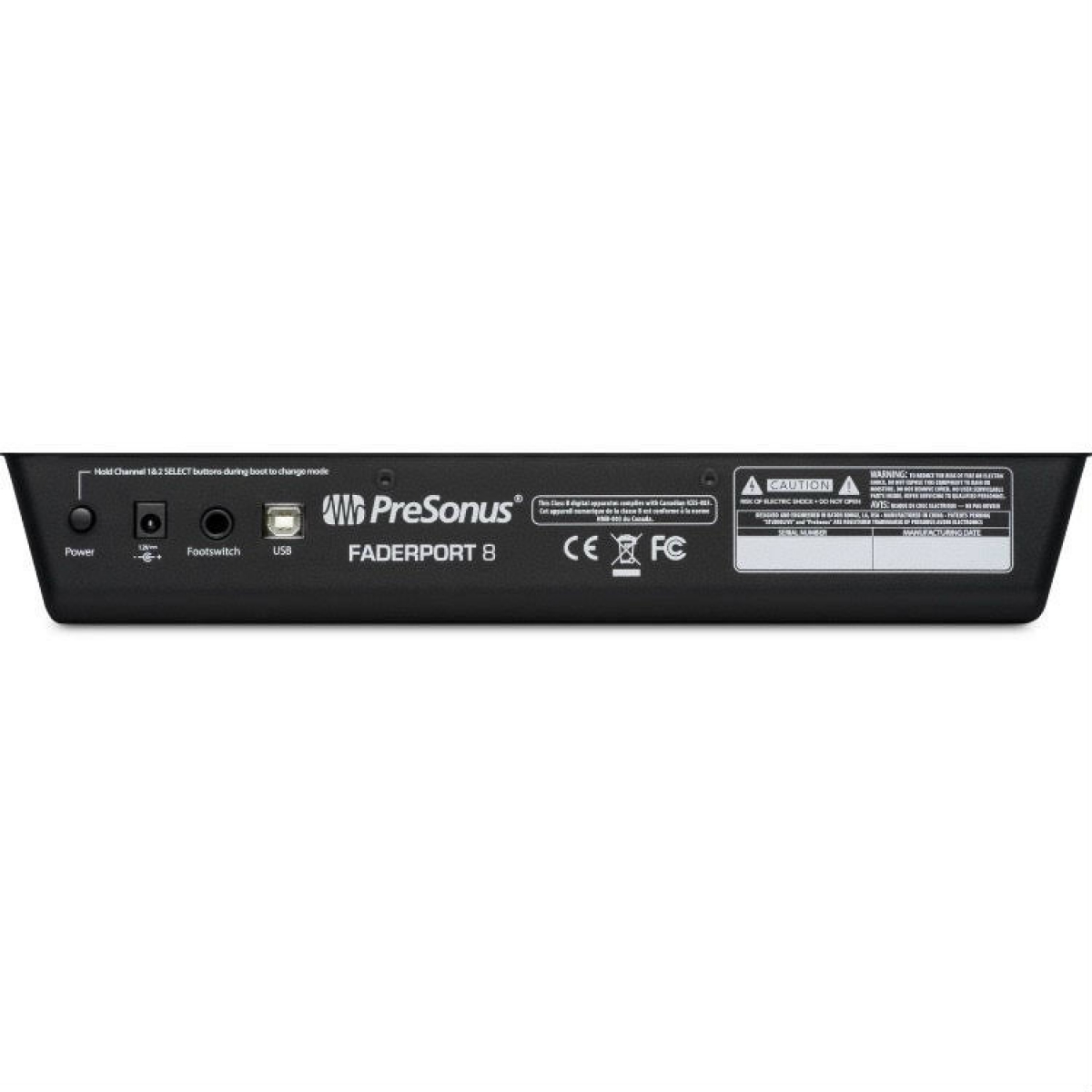

Input / Output
1 USB 2.0 port
1 Footswitch jack for hands-free stop/start
Faders
8 100 mm long-throw, touch-sensitive, motorized faders
Dual-servo motorized drive belt system for fast and quiet operation
Ultra-smooth feel and lightning fast
Heavy-duty construction
Resolution: 10-bit, 1,024 steps
Buttons and Knobs
General Controls Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins
Channel Controls Level, Pan, Solo, Mute, Select, Rec Arm
Automation Controls Touch, Latch, Trim, Write, Read, Off
Optional Fader Functionality Plug-in Edit, Bus Sends, Pan
Window View Mix, Project, Transport, Undo
Transport Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly depending on the DAW.)
Navigation Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Nudge
Console Management Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All
Displays 8 digital scribble strip displays, timecode display, channel meters
Power
12 VDC, 2A external power supply
Physical
Dimensions
Height 2.25" (57.2 mm)
Depth 11.85" (301 mm)
Width 13.15" (334 mm)
Weight 5 lbs. (2.3 kg)
