Your partner from studio to stream.
Flexible and versatile, Revelator io24 is the only audio interface designed for both recording and streaming. Get polished, professional results thanks to PreSonus XMAX-L microphone preamps and onboard processing that will make your stream, podcast, or recording stand out. Revelator io24’s intuitive loopback mixer makes adding backing tracks, sound effects, or Skype interviews quick and easy. Produce a great mix for your stream fast with Stream Mix mode. Whether you’re producing your latest YouTube video or streaming your music live on Facebook, Revelator io24 is your partner from studio to stream.
No-fuss loopback audio when you need it.
Revelator io24’s simple loopback mixer makes it easy to add backing tracks to your live stream performance or conference in a Zoom caller to your podcast. With two dedicated stereo channels just for loopback audio on both macOS ®and Windows®, you’ll mix and record the audio from two different applications, along with both channels of your Revelator io24—all at the same time. Stream and record to Studio One® (or your application of choice) simultaneously!
Stream Mix Mode
Only Revelator io24 is both an audio interface and a streaming mixer. Out of the box, Revelator io24 is a great-sounding audio interface with powerful onboard DSP (digital signal processing). When you’re ready to stream, engage Stream Mix mode—and with the click of a button, your complete mix of your analog inputs, loopback channels, reverb, and effects is routed directly to USB, where you can easily send it to your streaming software. No complex routing or extra hardware required.
Great sound made easy.
Polish your sound with dedicated onboard processing featuring the same State-Space Modeled sonic enhancements as our award-winning StudioLive® Series III mixers. Professionally crafted presets make your voice or guitar stand out with a single click. Additional effects let you emulate concert halls, AM radio, or Venusian armadas to completely transform your sound.
Proven, professional preamps.
More than 25 years of studio-grade design experience is inside Revelator io24. Two XMAX-L mic preamps capture even the most complex musical harmonics smoothly and naturally, with no audible distortion, so your microphones will sound their best. Instrument and line inputs let you connect all of your gear. A Stereo Link option provides even more flexibility.
Wherever sound takes you.
Want to take your sound with you on a gig or go mobile with an SD recorder or just your camera? No problem. Just save your favorite presets onboard your Revelator, and you can use its preamps and your customized settings just like you would on your computer. Because the processing is built into the Revelator io24, you’ll have your presets wherever sound takes you.
Remote control.
Wireless remote control via UC Surface for iPadOS®, Windows®, and Android™ devices means you get touchscreen control over all of your Revelator io24’s features. Your processing and loopback mixes are at your fingertips. Just connect your favorite tablet to the same network as your computer, and you’re good to go!
Main Features
• Professional bus-powered USB-C® compatible audio interface for podcasting, streaming, vlogging, recording, and more
• Stand-alone functionality lets you take your sound with you
• Onboard loopback mixer with two independent streams to record Skype calls, add sound effects, backing tracks, and more.
• Stream Mix lets you create a complete stereo mix with Revelator io24 inputs, effects, two channels of loopback audio, and reverb and send it to your streaming software.
• 96 kHz / 24-bit operation for pristine audio recording
Inputs and Outputs

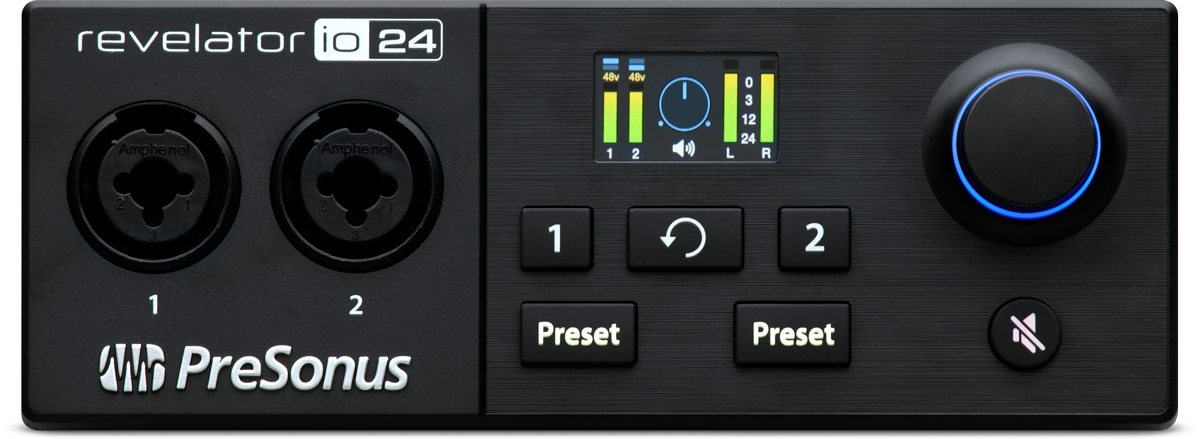

• 2 digitally controlled, high-headroom, low noise XMAX-L mic preamps for professional results
• Built-in Fat Channel with EQ, Compression, Gate, and Limiter plus Voice Effects and Reverb with 8 easy-to-use factory presets and 6 user presets
o Access up to 2 presets from Revelator io24 for each input via the front-panel button, additional presets are available in Universal Control
o Custom presets for vocals, broadcast, guitar, and more
o Share presets with your team
• Balanced Main Left / Right with independent level control and mute
• Headphone Output with independent volume control and zero-latency monitoring
Digital
• 6-in/8-out audio interface
o 2 dedicated input streams for the Revelator io24 hardware inputs
o 2 dedicated stereo output streams for monitoring let you route separate mixes to your headphones and your main outputs
o Two stereo I/O virtual streams for application-to-application recording and playback with loopback options for macOS and Windows

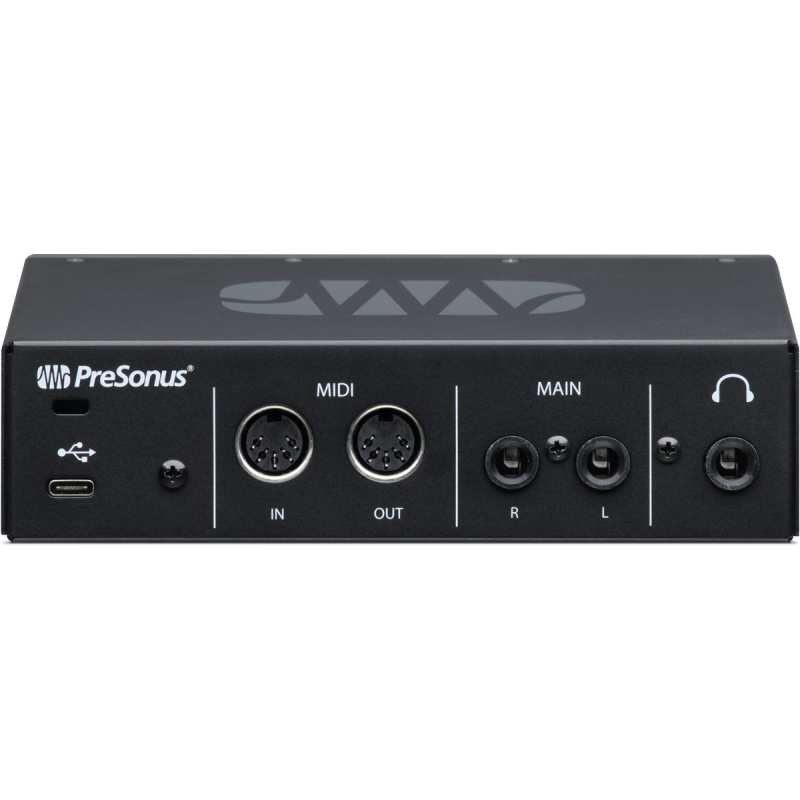

• 5-pin MIDI Input and Output
• macOS, Windows, iOS, and Android compatible
Integrated Software
• Universal Control software mixer, effects editing and hardware control
• Studio One Artist included
• Studio Magic software bundle included
