Professional quality for home recording studios.

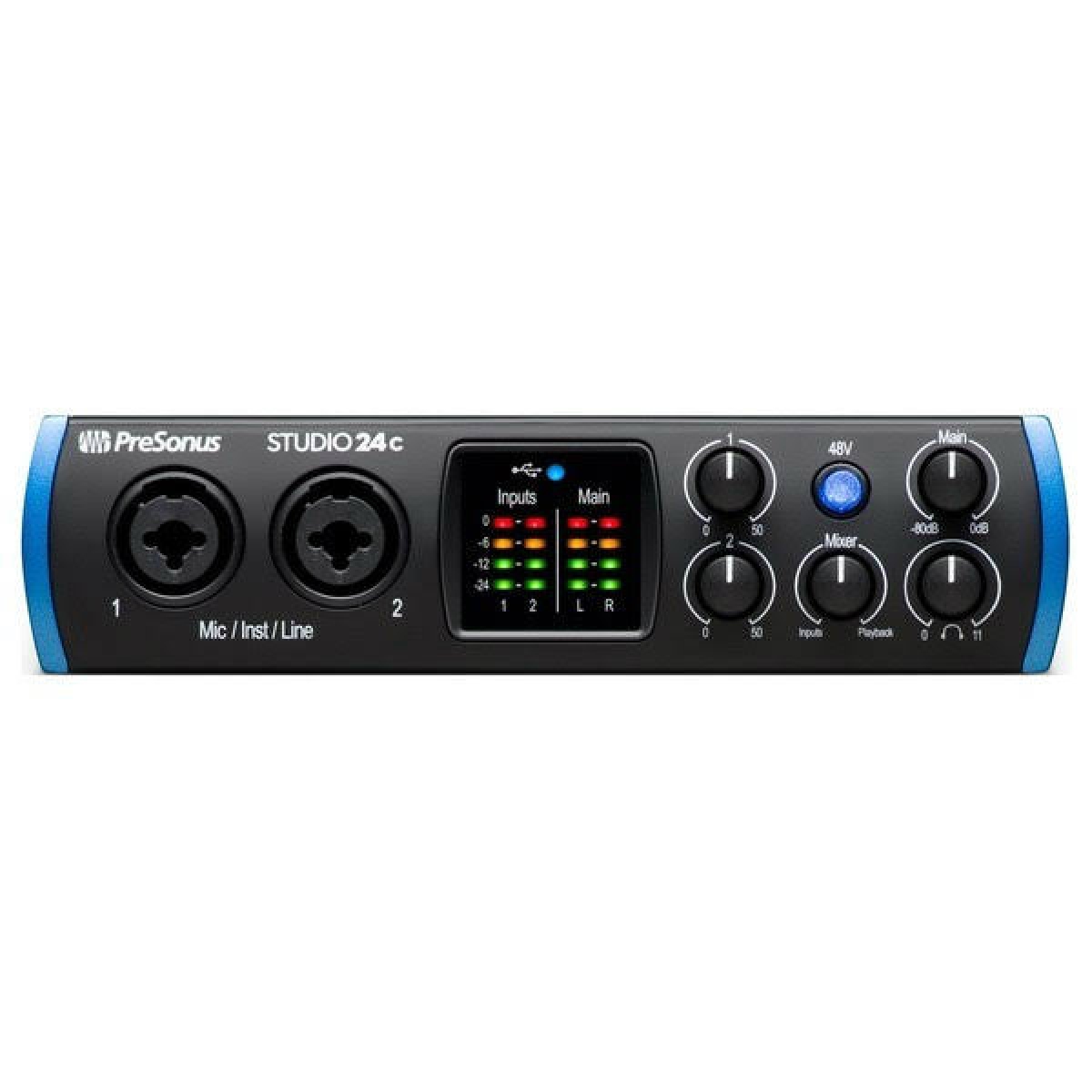

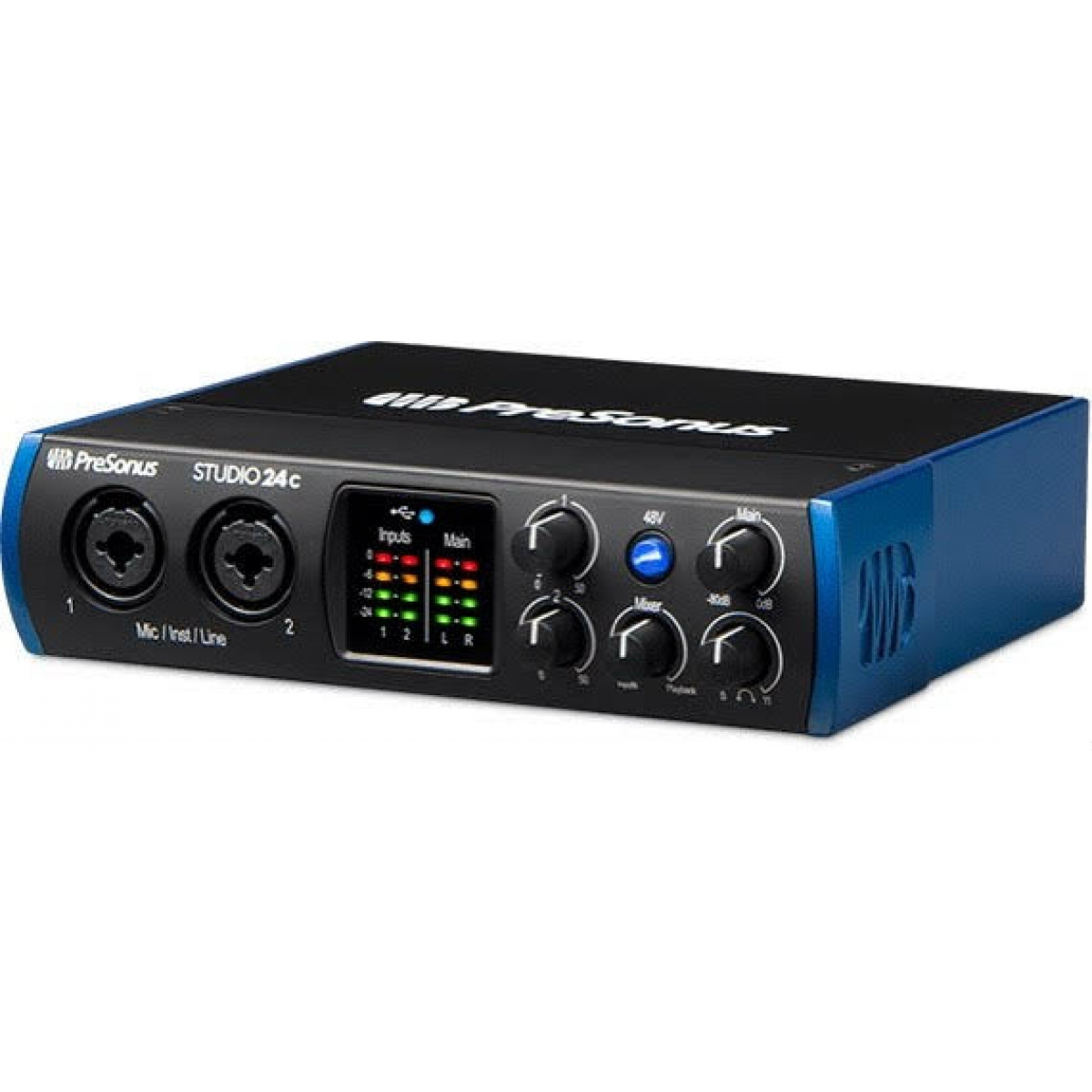

Whether you’re recording your first album or your hit podcast’s latest episode, the Studio 24c will help you sound your best. With two of PreSonus’ pristine XMAX-L mic preamps for recording vocals; plus high headroom instrument preamps so you can connect your guitar or bass right to your interface; and professional input metering so you can keep track of your recording levels, the Studio 24c delivers amazing sound quality in a rugged, compact form factor. A complete home recording studio right out of the box, the Studio 24c audio interface comes with a complimentary license of PreSonus’ award-winning Studio One® Artist music production software, so you can get recording right away.
World-class recording software included.
Seamlessly integrated with the included PreSonus Studio One Artist music production software, the Studio 24c interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools or hemmed in with track limitations. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content and upgrades without even opening your browser—you’ll build the version of Studio One that’s right for you. By combining a flexible single-window user interface with modern, beat-based production workflow, Studio One’s drag-and-drop approach doesn’t dictate how you work or what you work on.
Superior sound.
The Studio 24c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus’ professional-grade XMAX-L mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX-L mic preamps are designed to perform optimally on bus-powered audio interfaces, allowing you to take great sound with you wherever you record.
Stress-free recording.
When you have the right tools, any job is easier and faster to finish. That’s why we included professional input and output metering on the Studio 24c, allowing you to keep an eye on your input and mix levels when you’re recording by yourself. An easy to use Mix control lets you blend your analog inputs with playback from your computer, making creating a great monitor mix fast and simple.
Wherever the sound takes you.
Whether you're just getting into recording or are a veteran producer who wants to go mobile, the Studio 24c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. While it’s a perfect companion for any recording software, the Studio 24c and included Studio One Artist provide you with a complete, affordable recording solution that will make you sound great.
Make your own magic.
At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.
The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats… all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).
Features

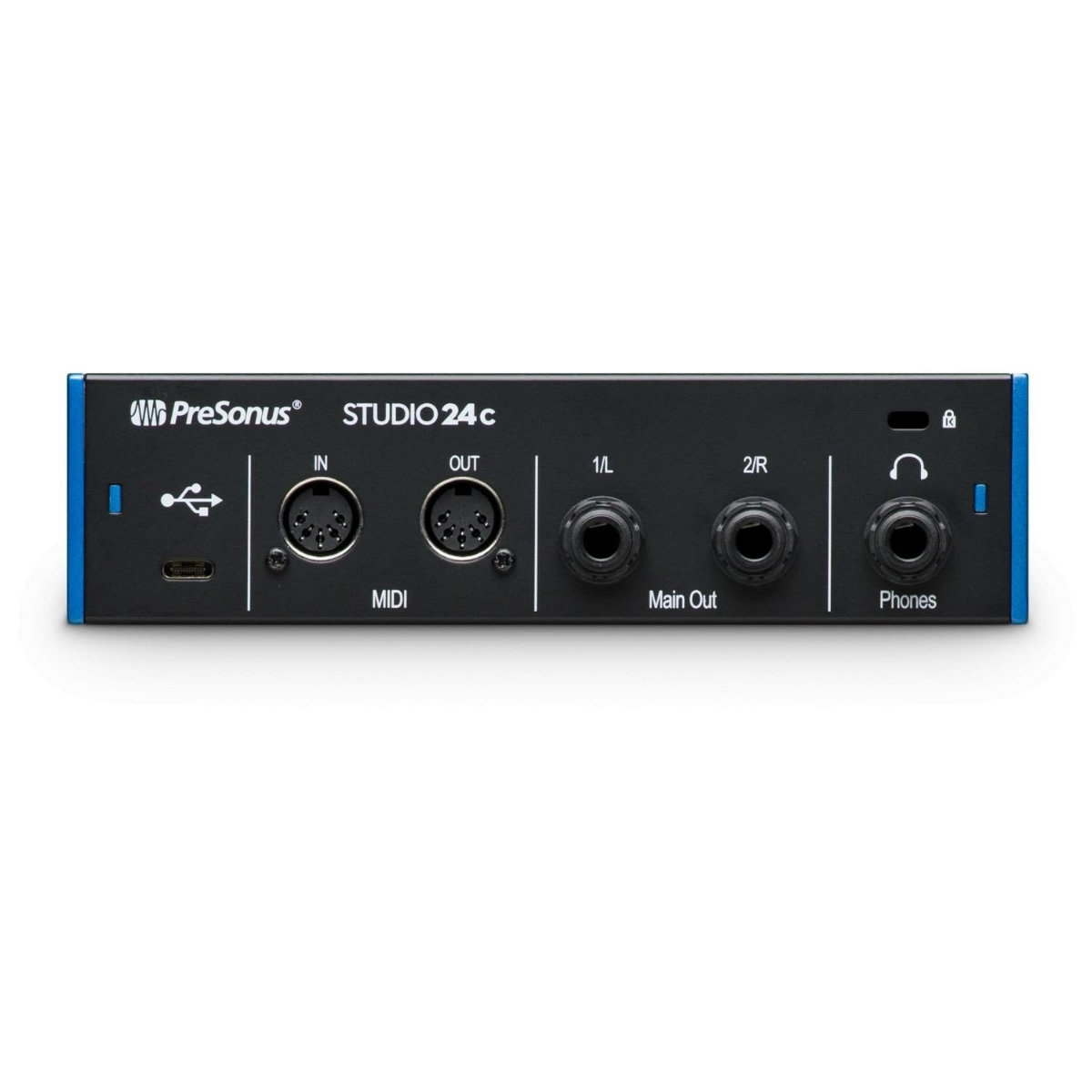

Input/Output
Simultaneous I/O up to 2 inputs/2 outputs
2 mic/instrument/line inputs with XMAX-L mic preamps
2 balanced ¼” TRS main outputs
1 stereo headphone output
MIDI In/Out
1 USB-C™ compatible 2.0 port
USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers
Meters, Controls, and Features
Mixer knob for low-latency direct input monitoring
Front-panel level controls for main outputs
+48V phantom power for condenser microphones (global)
4 ladder-style LED level meters (2 input, 2 main output)
Integrated Software
Studio One Artist®
Studio Magic Plug-in Suite
Digital
USB-C™ compatible port (USB 2.0)
24-bit resolution
44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
Physical
Road-rugged construction with all-metal chassis and metal knobs
USB bus-powered
Computer system requirements:
Mac
macOS® 10.11 or higher (64-bit only)
Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
4 GB RAM (8 GB or more recommended)
Windows
Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
USB-C™ or USB-A 2.0 port compatiblity
32 GB hard disk space
PreSonus Universal Control 2.0 or higher
Monitor with 1366×768 resolution (high-dpi monitor recommended)
Multitouch-enabled monitor required for touch operation
Technical Specifications
General
Sample Rates 44.1, 48, 88.2, 96, 176.4, or 192 kHz
Converter Resolution 24 bit
ADC Converter Dynamic Range 108 dB
DAC Converter Dynamic Range 108 dB
Microphone Inputs
Maximum Level +10 dBu (±0.5 dBu, min gain)
Gain Range 50 dB
Frequency Response 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd)
Dynamic Range 106 dB (A-wtd, min gain)
THD + N 0.004% (1 kHz, -1 dBFS, min gain)
EIN -126 dBu (A-weighted, 150Ω, max gain)
Input Impedance 1.4 kΩ
Phantom Power +48 VDC (10 mA total)
Instrument Inputs
Maximum Level +19 dBu (min gain)
Gain Range 50 dB
Frequency Response 20 Hz – 20 kHz (±0.1 dBu, unity gain, unwtd)
Dynamic Range 105 dB (A-wtd, unity gain)
THD + N 0.002% (1 kHz, min gain)
Input Impedance 750 kΩ
Main Outputs
Type
¼" TRS, Female
Maximum Level +10 dBu (1 kHz, unity gain, balanced)
Frequency Response 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd)
Dynamic Range 104 dB (unity gain, unwtd)
THD + N 0.001% ( 1 kHz, -1 dBFS, unity gain)
Headphone Outputs
Maximum Power 47 mW / channel @ 56Ω
Frequency Response 20 Hz – 20 kHz (±0.5 dBu, unity gain, unwtd)
Dynamic Range 83 dB (A-wtd, 56Ω load)
THD + N 0.01% (1 kHz, 0 dBFS, loaded)
Impedance Working Range 32Ω to 300Ω
Physical
Height 1.75" (44 mm)
Width 7" (180 mm)
Depth 5.5" (144 mm)
Weight 2 lbs. (0.9 kg)
