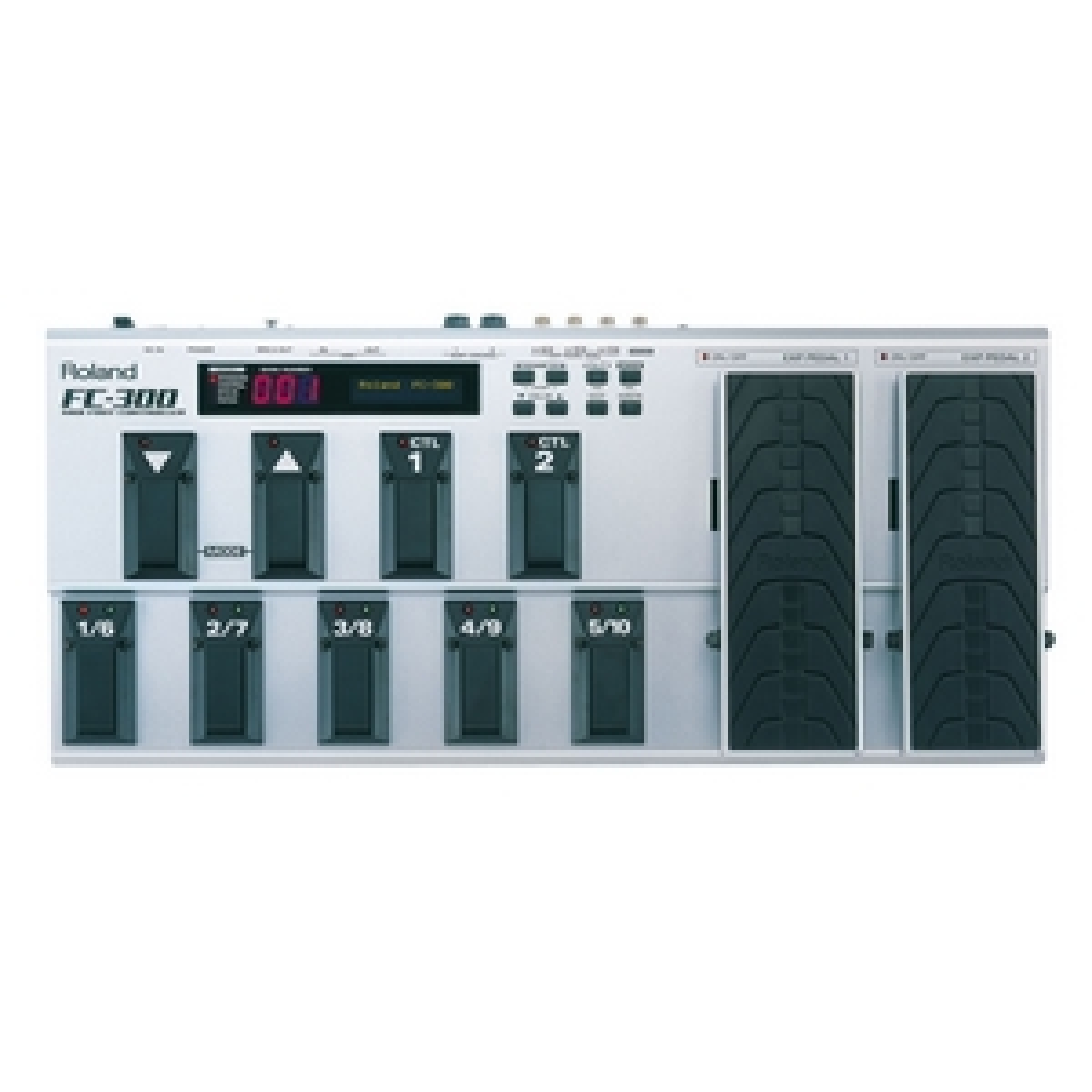

Roland FC300 Control Station

£365.00
£415.00

Versatile Foot Controller

Sets a new standard of power, versatility for MIDI foot control

  • MIDI Foot Controller
  • Two Expression Pedals
  • Nine Footswitches
  • Stores UpTo 100 MIDI Setups
Out of Stock - 01524 410202
Free UK shipping on applicable items
  • Found it cheaper elsewhere? Contact us to see if we can beat their price!
  • Call us for experienced and friendly advice
Safe Checkout

The Next-Generation Control Station

The FC-300 sets a new standard of power, versatility and innovation for MIDI foot control. With features such as bi-directional MIDI data flow to the Roland VG-99 via newly adopted RRC2, patch memory recall, twin expression and control pedals and more, this advanced control station is a perfect companion for Roland’s new VG-99 V-Guitar System or any other performance-based MIDI instrument or device.

  • Advanced MIDI foot controller with two assignable expression pedals, two control pedals, nine footswitches and expandability
  • New Patch Mode stores up to 100 MIDI setups
  • In addition to standard MIDI connection, newly developed RRC2 protocol adapted for bidirectional data flow between FC-300 and Roland RRC2-equipped products
  • 3-way power supply and rock-solid metal construction for stage use
  • Two Amp Control switches for controlling amp channels or effects
  • Perfect companion for the new VG-99

    Features

    Control & Expression
    The FC-300 is outfitted with nine industrial-grade footswitches and two programmable expression pedals for fast, easy control and expanded performance capabilities. The backlit LCD offers a high contrast view of patch names (when used with VG-99) and other important data, even in the darkest stage environments.

    Power Patches
    Up to 100 sets of MIDI messages/parameters can be stored simultaneously in the FC-300 as patches. Complex MIDI transmission is made simple thanks to the FC-300’s ability to package chunks of data together in a single patch, and then transmit each data-burst via footswitch.

    Advanced Connectivity
    Using commercially available LAN (Ethernet, CAT5) cable and the newly-adapted RRC2 protocol, the FC-300 provides both bidirectional MIDI transmission and electrical power supply with one simple connection between VG-99 and FC-300.

    Programmable Switching
    Two multipurpose switch-jacks are built into the FC-300. These programmable outputs are an ideal feature for guitarists, as they allow amp channels to be switched from clean to lead, for example, in sync with patch changes on the FC-300.

    Specs

    Controls
    Number Pedal x 5 (1/6, 2/7, 3/8, 4/9, 5/10)
    DOWN/UP Pedals
    Control Pedal x 2 (1, 2)
    Expression Pedal x 2 (1, 2)
    PARAMTER Button x 2
    VALUE Button x 2
    UTILITY Button
    MODE Button
    EXIT Button
    WRITE Button
    POWER Switch
    Display
    7 segments, 3 characters (LED)
    16 characters, 2 lines (backlit LCD)
    Indicators
    MODE Indicator (STANDARD/CONTROL/SYS EX/PATCH)
    UTILITY Indicator
    WRITE Indicator
    Number Indicator x 10 (1–10)
    DOWN/UP Indicators
    Control Indicator x 2 (1, 2)
    Expression Pedal ON/OFF Indicator x 2 (1, 2)
    Connectors/Jacks
    DC IN Jack
    MIDI Connectors (IN, OUT)
    RRC2 OUT Connector
    AMP CONTROL 1 Jack
    AMP CONTROL 2 Jack
    EXP PEDAL 3 / CTL 3, 4 Jack
    EXP PEDAL 4 / CTL 5, 6 Jack
    EXP PEDAL 5 / CTL 7, 8 Jack
    MODE Jack
    Number of PATCH (PATCH Mode)
    100
    Power Supply
    DC 9 V: AC Adaptor
    Dry Batteries AA type x 6
    RRC2
    Current Draw
    94 mA (ECONOMY MODE OFF)
    61 mA (ECONOMY MODE ON)
    Expected batery life under continuous use
    Carbon:
    6.5 hours or longer (ECONOMY MODE OFF)
    12 hours or longer (ECONOMY MODE ON)
    * These figures will vary depending on the actual conditions of use.
    Accessories
    Owner's Manual
    Dry Batteries R6 (AA) type (carbon) x 6
    Roland Service
    Options
    AC Adaptor PSA serise (BOSS)
    Foot Switch: FS-5U (BOSS) , FS-6 (BOSS)
    Expression Pedal: EV-5, FV-500H/500L (BOSS)
    Size and Weight ( Dimensions )
    Width
    550 mm
    21-11/16 inches
    Depth
    250 mm
    9-7/8 inches
    Height
    76 mm
    3 inches
    Weight
    5.3 kg
    11 lbs. 11 oz.

Additional information

Dimensions 0.00 × 0.00 × 0.00 cm
Manufacturer
