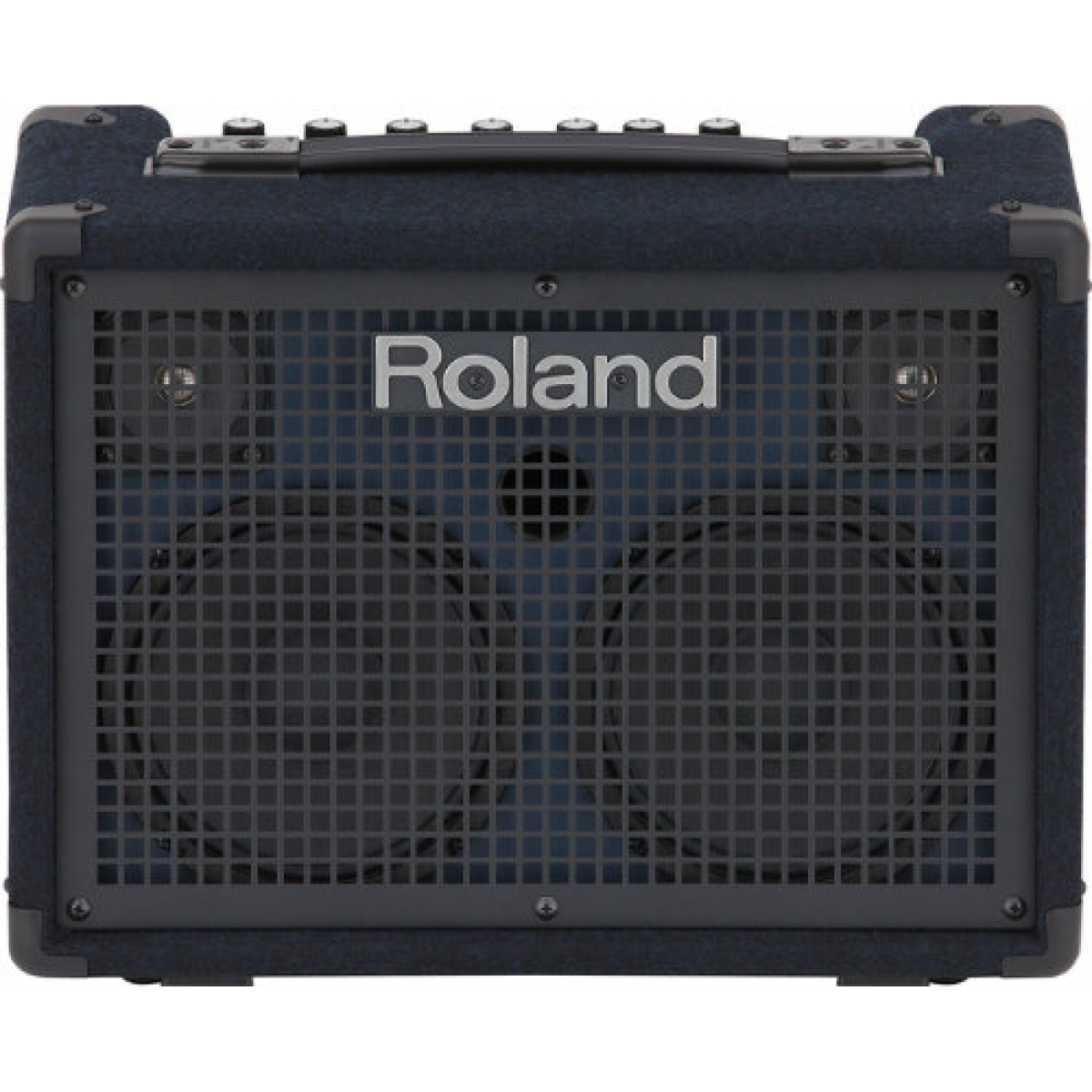

Roland KC-220 Battery Powered Stereo Keyboard Amplifier
Worth It Every Time
For over two decades, keyboard players everywhere have relied on Roland’s KC amps for their powerful high-fidelity sound, onboard mixing features, versatile connectivity, and lasting durability. The latest generation carries on the time-honored KC benchmark of quality while offering new enhancements tuned for the needs of today’s working musicians. With a KC amp by your side, you’re in complete control of your stage rig, so you’ll always sound great and play your best. And that’s worth it every time.
Offering full-range stereo sound and battery-powered operation, the three-channel KC-220 is the ultimate mobile keyboard amp. It also excels as a mini PA, thanks to its built-in DSP effects, dedicated auxiliary input, and support for an XLR vocal mic. Delivering big sound in a super-portable package, the KC-220 is a must-have amp for rehearsals, street performances, and gigging on the go.
- Battery-powered stereo keyboard amplifier
- Highly efficient power section with 30 watts of power (15 watts x 2)
- Two newly developed custom 6.5-inch woofers and two custom tweeters
- Onboard mixing with three 1/4-inch input channels, dedicated auxiliary input with 1/8-inch and RCA jacks, and master EQ
- Built-in DSP effects: reverb and two chorus types
- XLR mic input, mono/stereo line output, and headphones output
- Metal jacks for increased durability
- Runs on eight AA batteries or included AC adapter; removable cartridge for easy battery replacement
- Built-in tilt-back stand and integrated mount for optional ST-A95 speaker stand
Full-Range Sound for Keyboards and Electronic Musical Instruments
The KC-220 delivers full-range stereo sound with 30 watts of power (15 watts x 2), two newly designed 6.5-inch speakers, and two custom tweeters. Paired with an advanced power section optimized for efficient battery operation, the KC-220 smoothly reproduces the wide frequency range of 88-note stage pianos, organs, and synthesizers, as well as rhythm machines and other electronic instruments.
Onboard 3+1 Mixing
Compact and convenient, the KC-220 is a complete stereo mixing system that travels everywhere you need to play. Three 1/4-inch line input channels support keyboards, drum machines, and various electronic instruments, and Channel 1 also includes an XLR input for using a vocal mic. There’s a dedicated aux channel as well, with 1/8-inch and RCA inputs for connecting smartphones, music players, and other devices.
Stereo Effects and EQ
It’s easy to enhance your sound with the KC-220’s high-quality DSP effects. Normal and wide stereo chorus effects are provided, plus a lush stereo reverb for vocals and instruments. And for hands-free operation on stage, effects on/off can be controlled with an optional footswitch. The KC-220 also includes high and low EQ for shaping the overall sound to suit the venue.
Versatile Connectivity
The KC-220 is equipped with mono/stereo line outputs, allowing you to interface with PA systems, stage monitors, or recording devices. Plugging into the Phones jack mutes the onboard speakers, perfect for private practice sessions and checking sounds on stage with headphones.
Specifications
Rated Power Output
30 W (15 W + 15 W) (when using the AC adaptor)
20 W (10 W + 10 W) (when using the Alkaline batteries)
Nominal Input Level (1 kHz)
CH1 (BALANCED, MIC/LINE): -50- -20 dBu
CH2 (LINE): -20 dBu
CH3 (LINE): -20 dBu
AUX IN (L, R, STEREO): -10 dBu
Nominal Output Level (1 kHz)
LINE OUT: +4 dBu
Speakers
16 cm (6.5 inches) Woofer x 2
Tweeter x 2

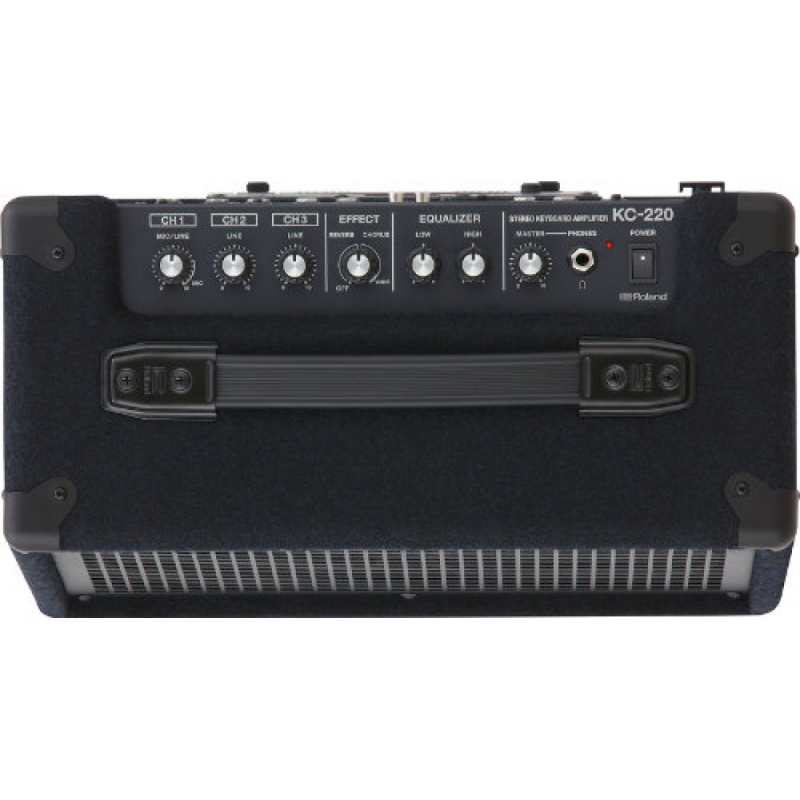

Controls
POWER switch
[CH1]
MIC/LINE knob
[CH2]
LINE knob
[CH3]
LINE knob
[EFFECT]
EFFECT knob
[EQUALIZER]
LOW knob
HIGH knob
MASTER knob
[AUX IN]
LEVEL knob
Indicator
Power

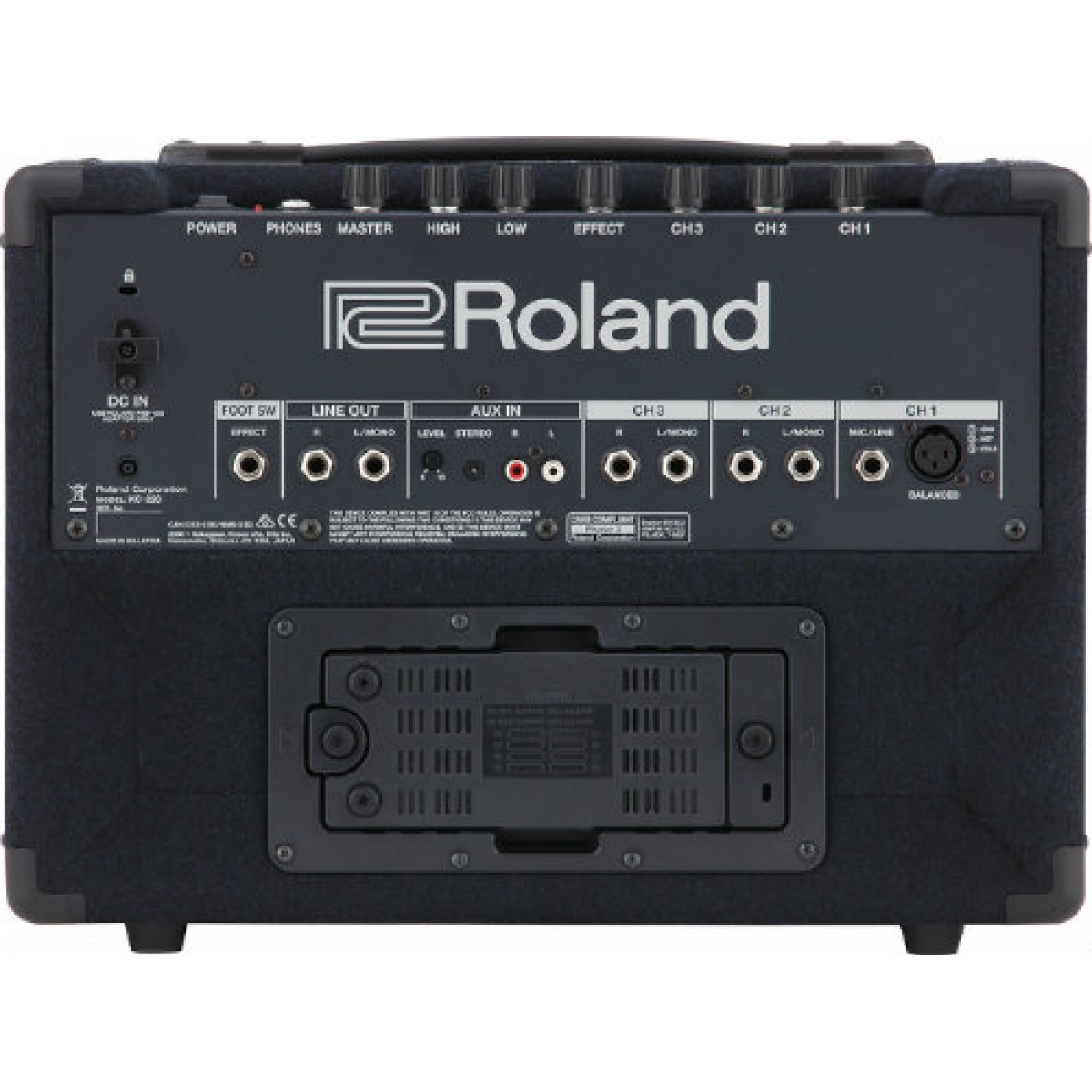

Connectors
CH1 (BALANCED) jack: XLR type
CH1 (MIC/LINE) jack: 1/4-inch phone type
CH2 (L/MONO, R) jack: 1/4-inch phone type
CH3 (L/MONO, R) jack: 1/4-inch phone type
AUX IN (L, R) jacks: RCA phono type
AUX IN (STEREO) jack: Stereo miniature phone type
LINE OUT (L/MONO, R) jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
FOOT SW jack: 1/4-inch phone type
DC IN jack
Current Draw
550 mA
Expected battery life under continuous use
Alkaline battery: Approximately 7 hours
Rechargeable Ni-MH battery: Approximately 8 hours
* This can vary depending on the capacity of the batteries and the conditions of use.
Accessories
Owner's Manual
AC Adaptor
AC Cord
Options (sold separately)
Speaker Stand (ST-A95)
Footswitch (BOSS FS-5U)
Size and Weight
Width
420 mm
16-9/16 inches
Depth
244 mm
9-5/8 inches
Height
320 mm
12-5/8 inches
Weight
7.3 kg
16 lbs 2 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
