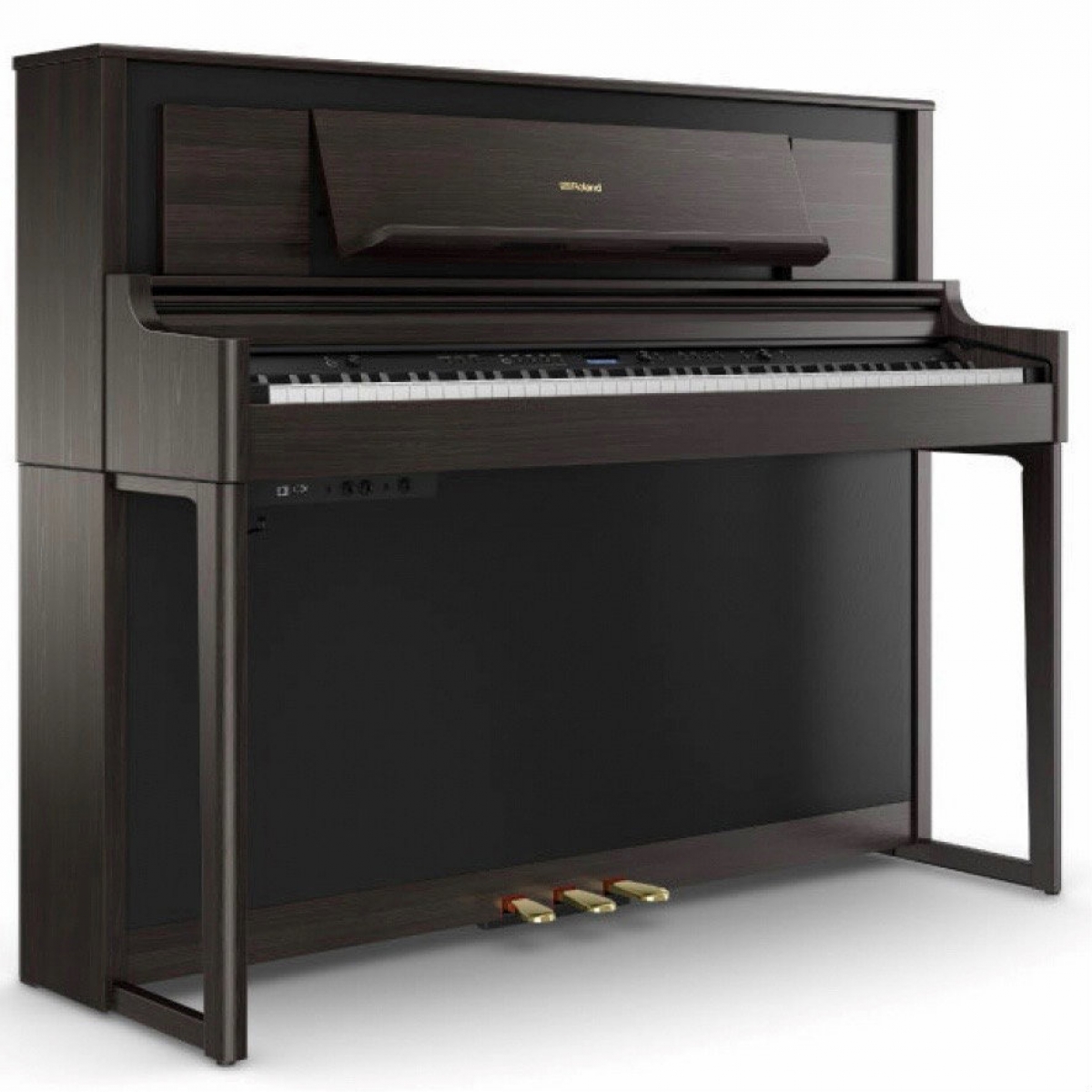

LX706
The high-end home piano with six-speaker system, grand tone and ambience effects
For players investigating the Roland LX700 series and looking for the right balance between features and price, the LX706 demands a closer look. Designed for discerning pianists, the LX706 sits at the mid-point of the LX700 range, recreating the classic performance of an acoustic grand in a home-friendly format. Just like the flagship LX708 model, you’ll find a choice of authentic piano tones and onboard ambience technology, plus a dynamic Hybrid Grand Keyboard to spark your creativity. But with a more compact cabinet, closed-lid design and six-speaker system, the LX706 matches its pro-level performance with a budget-conscious price.
Standard Features
- Express yourself with Hybrid Grand Keyboard and Progressive Damper Action Pedals
- Authentic acoustic tone from Roland’s PureAcoustic Piano Modeling technology
- Choice of two world-class piano models – European grand and American grand
- Capture the atmosphere of the world’s greatest stages and studios
- ‘My Stage’ allows you to select the best combination of piano sound and ambience to emulate specific playing venues
- Acoustic Projection System, with 3-way/6-speaker that work together to recreate the deep, rich sound field of an acoustic piano
- Headphones Acoustic Projection for immersive and realistic playing experience when practicing on headphones
- Includes a large and versatile collection of non-piano sounds such as electric piano, strings, organ, and many others
- Simple and modern luxury cabinet design featuring elegant front legs and sophisticated curves, invites you to play everyday
- Connect your smartphone or tablet via Bluetooth® and practice piano with audio from apps routed through the piano’s speaker system
- Compatible with Piano Every Day app which encourages you to play the piano more often
Compact cabinet design that invites you to play
With its shorter cabinet height and closed-lid format, this sleek model is ideal for players who can’t spare the space for the taller LX708. The clean lines and lustrous finish instantly catch the eye, while closer inspection reveals the signature build features that make the LX series so enticing. Traditional and timeless – but with a twist – the LX706 is an instrument that complements your living space without dominating it. Available in polished ebony, dark rosewood and charcoal.
Supports your technique with Hybrid Grand Keyboard & Progressive Damper Action pedals
From dramatic left-hand rhythms to delicate top-note trills, the LX706 will keep you inspired with its new Hybrid Grand Keyboard and Progressive Damper Action pedals. Every key on the LX706’s Grand Hybrid keyboard is longer than on typical digital pianos; the extra length means the pivot point sits further back, so less pressure is needed to depress each key – and your hands won’t grow tired when playing over longer periods. The white keys combine sleek wooden sides with a durable inner frame for maintenance-free reliability. And when playing, you’ll feel the ideal balance of pressure, momentum and return movement, along with smooth vertical travel, while the addition of pedals that enable a variety of advanced techniques makes this an authentic and thrilling piano experience.
Three-way, six-speaker system for room-filling sound
With a more streamlined take on the LX708’s Acoustic Projection System, the LX706 is still powerful and flexible enough for any musical scenario, with a three-way, six-speaker layout. Each of the three pairs of speakers are optimised to deliver superior sound reproduction across the piano’s dynamic range – even down to the noise as the hammers strike the strings, or the resonance of the cabinet as the sound reverberates through the piano’s body. Whether playing or streaming, you’ll hear your music with crystal-clear clarity.
Cutting-edge technology across the range
Each model in the LX700 series offers a different combination of cabinet design, keyboard, pedals and the number of onboard speakers. But regardless of which LX700 model you choose, many of the headline features are standard across the range. For example, Roland’s PureAcoustic Piano Modeling and PureAcoustic Ambience technology is available on all three instruments, along with the European and American piano models and the additional sounds including electric pianos, organs and orchestral. You also get convenient features like Bluetooth audio, Twin Piano mode, metronome and the option to use headphones to play in private, along with the unique C-shape aperture on the front panel that enables natural sound projection.
Specs
Sound Generator
Piano Sound
Piano Sound: PureAcoustic Piano Modeling
Max. Polyphony
Piano: Limitless (solo playing using 'Piano' category tones)
Other: 256
Tones
Total 324 Tones
Ambience
Ambience
PureAcoustic Ambience
Type: Studio, Lounge, Concert Hall, Wooden Hall, Stone Hall, Cathedral
Depth: 11 types
My Stage
My Stage
12 types
Keyboard
Keyboard
Hybrid Grand Keyboard: Wood and Plastic Hybrid Structure, with Escapement and Ebony/Ivory Feel (88 keys)
Pedal
Pedal
Progressive Damper Action Pedal (Damper pedal: capable of continuous detection, Soft pedal: capable of continuous detection/function assignable, Sostenuto pedal: function assignable)
Speaker System
Speaker System
Acoustic Projection
Speakers
Cabinet Speakers: 25 cm (9-7/8 inches) x 2 (with Speaker Box)
Near-field Speakers: (12 cm (4-3/4 inches) x 8 cm (3-3/16 inches)) x 2 (with Speaker Box)
Spatial Speakers: 2.5 cm (1 inches) x 2 (Dome type)
Rated Power Output
25 W x 2
7 W x 2
5 W x 2
Headphones
Headphones
Headphones Acoustic Projection
Tuning, Voicing
Touch Sensitivity
Key Touch: 100 types, fixed touch
Hammer Response: 10 types
Master Tuning
415.3 – 466.2 Hz (adjustable in increments of 0.1 Hz)
Temperament
10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key
Effects
Brilliance
Piano Designer
Lid
Key Off Noise
Hammer Noise
Duplex Scale
Full Scale String Resonance
Key Off Resonance
Cabinet Resonance
Soundboard Type
Damper Noise
Soft Pedal Type
Single Note Tuning
Single Note Volume
Single Note Character
Internal Songs
Internal Songs
US: Total 399 songs
Other: Total 389 songs
Listening: 22 songs
Ensemble: 30 songs
Entertainment: 20 songs
Easy Piano: 10 songs (US only)
Let's Sing with DO RE MI: 30 songs
Lesson: 287 songs (Scale, Hanon, Beyer, Burgmuller, Czerny 100)
Data Playback
Playable Software
Standard MIDI Files (Format 0, 1)
Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps – 320 kbps, requires USB Flash Memory)
Recorder
Recordable Software
Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory)
Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB Flash Memory)
Bluetooth
Bluetooth
Audio: Bluetooth Ver 3.0 (Supports SCMS-T content protection)
MIDI: Bluetooth Ver 4.0
Compatible Android / iOS Apps (Roland)
Compatible Android / iOS Apps (Roland)
Piano Every Day
Piano Designer
Convenient Functions
Convenient Functions
Metronome (adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)
Registration
Dual
Split
TwinPiano (with Individual Mode)
Transpose (in semitones)
Speaker volume and Headphones volume automatically select function
Volume limit function
Panel Lock
Auto Off
Cabinet
Cabinet
Music rest: with Music holders
Key cover: Slide type, with Keyboard Lid Switch and Classic Position
Other
Display
Graphic OLED 128 x 32 dots
Connectors
DC In jack
Input jacks: Stereo miniature phone type
Output (L/Mono, R) jacks: 1/4-inch phone type
USB Computer port: USB B type
USB Memory port: USB A type
Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type
Power Supply
AC adaptor
Power Consumption
17 W (16 W – 55 W)
Accessories
Owner's Manual
Leaflet “USING THE UNIT SAFELY”
"Roland Piano Masterpieces"
AC adaptor
Power cord
Headphone hook
Option (sold separately)
Headphones
Size (including piano stand)
Width
1,383 mm
54-1/2 inches
Depth
493 mm
19-7/16 inches
Height
1,118 mm
44-1/16 inches
Weight (including piano stand)
LX706-PE
98.0 kg
216 lbs 1 oz
LX706-CH, LX706-CHL, LX706-DR
96.5 kg
212 lbs 12 oz
