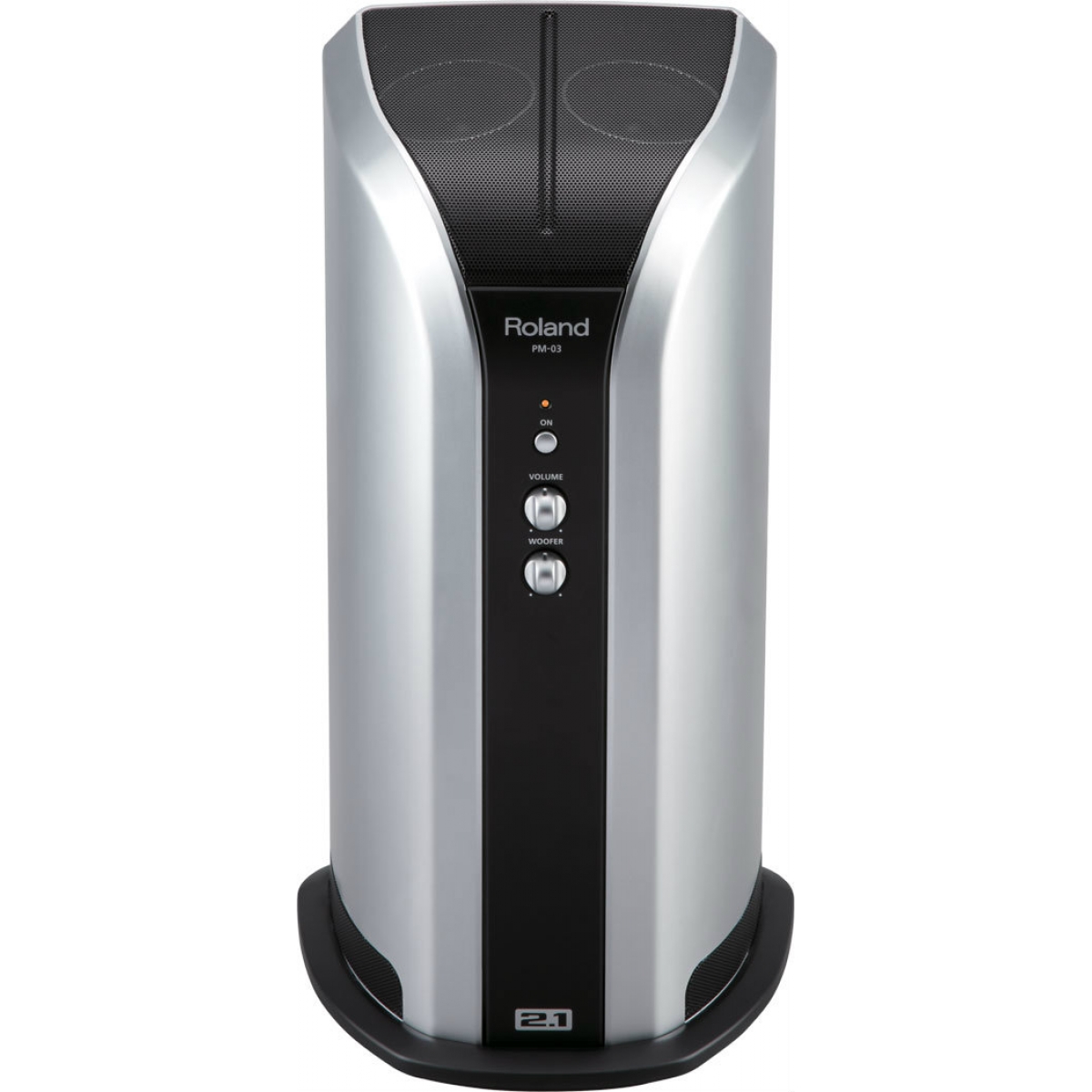

Roland PM-03: Personal Drum Monitor
Compact V-Drums® Monitor with 2.1-Channel Speaker
The newest addition to the V-Drums personal-monitor family is the PM-03. Slim and stylish, this space-saving monitor adds a new dimension of sound for V-Drummers — it’s the first 2.1-channel monitor in the PM series, providing a clean, clear stereo mage, plus low-frequency coverage. From thunderous lows to sparkling highs, the PM-03 will enhance your personal V-Drums sessions with full-frequency impact. It’s the perfect match, aesthetically and aurally, for Roland’s HD-series V-Drums, but all electronic drummers can plug into the PM-03 as well.
- Easy setup, small footprint
- A perfect match for V-Drums Lite users or any other V-Drums and electronic drum/percussion systems
- Auto-standby; if no input signal is received in a 30-minute period, the PM-03 will go into the standby mode and reduce energy consumption
- PM-03: Personal Drum Monitor
- Compact V-Drums® Monitor with 2.1-Channel Speaker
Rated Power Output
2.1ch total 30 W (STEREO 7.5 W + 7.5 W, WOOFER 15 W)
Nominal Input Level
INPUT jacks Stereo miniature phone type: 0 dBu 1/4″ phone type (L/MONO, R): -10 dBu
Speakers
7.5 cm (3″) Full-range x2 12 cm (5″） Woofer
Enclosure
Bass-reflex type
Controls
ON switch, VOLUME knob, WOOFER knob
Indicator
ON/STANDBY

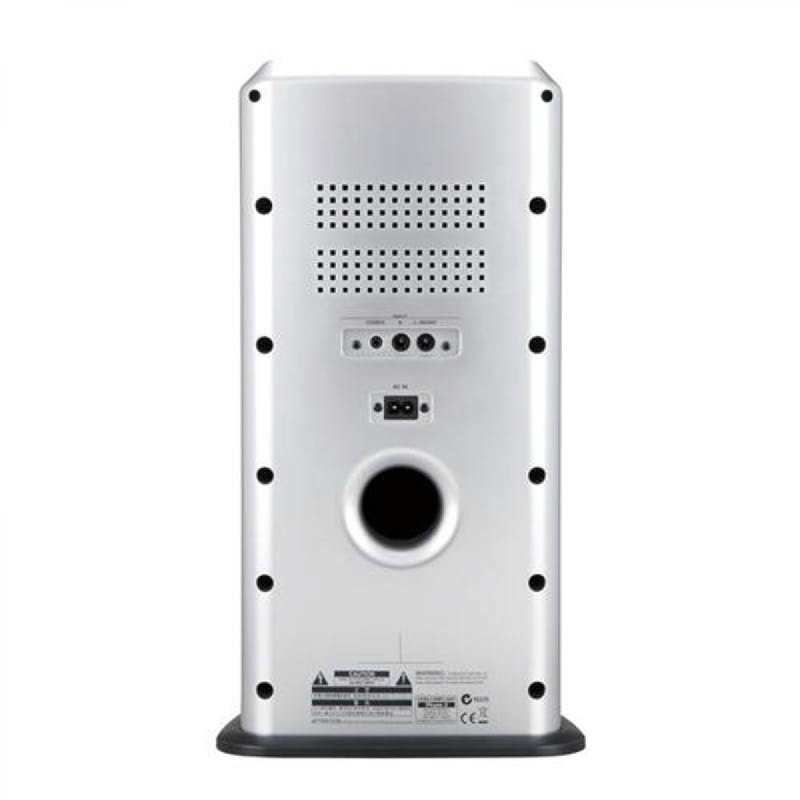

Connectors
INPUT jacks Stereo miniature phone type, 1/4″ phone type (L/MONO, R)
Power Consumption
25 W
Accessories
Owner’s Manual, Power Cord
Size and Weight
Width
243 mm
9-10/16 inches
Depth
236 mm
9-5/16 inches
Height
452 mm
17-13/16 inches
Weight
6.0 kg
13 lbs. 4 oz.
* 0 dBu = 0.775 Vrms
