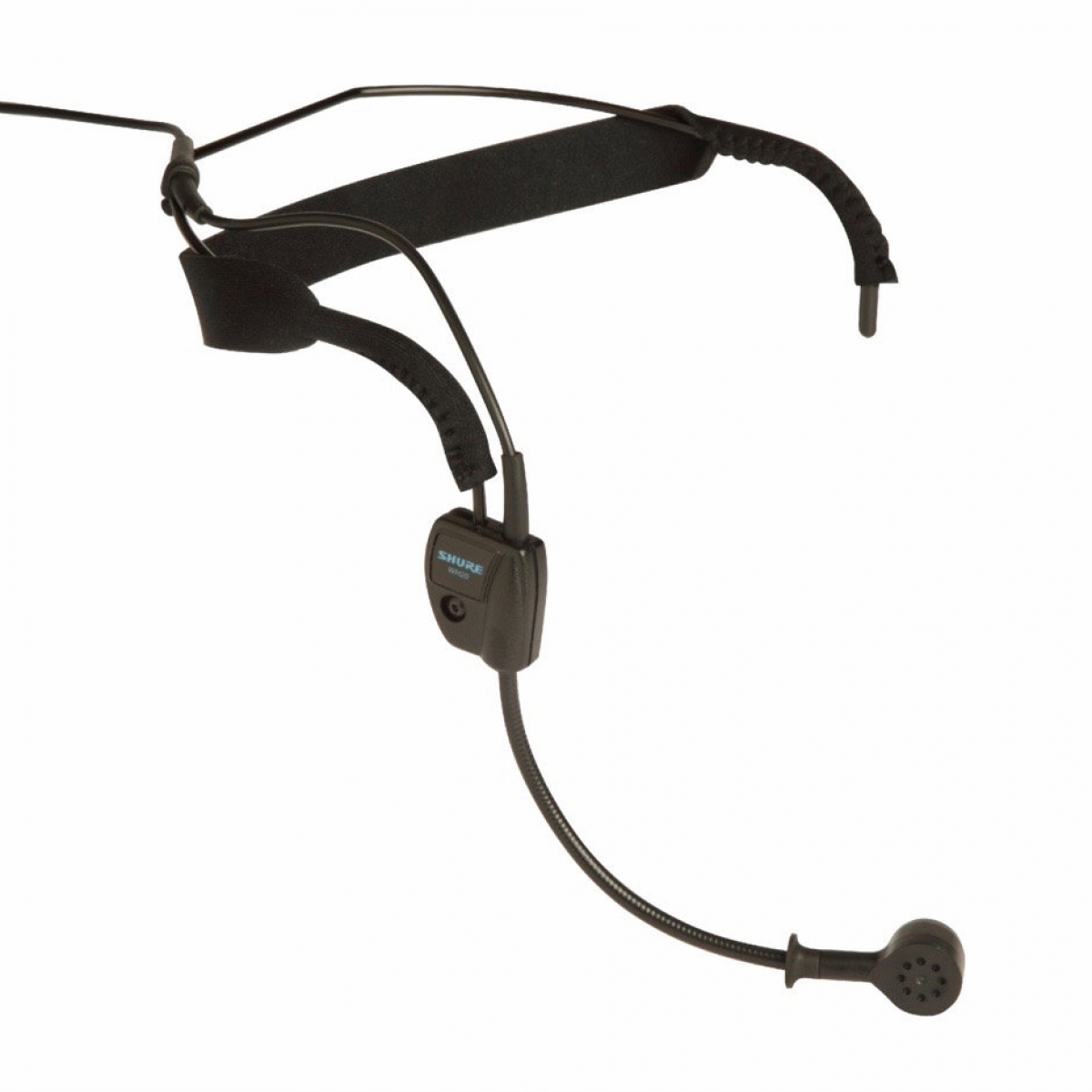

Shure WH20/XLR Headset Microphone


Ideal for active mic users such as aerobics instructors

The Shure WH20XLR is a rugged, lightweight, dynamic headset microphone that provides high-quality voice pickup.

  • Lightweight Wire Frame
  • Cable Length: 122cm
  • Natural Frequency Response
  • High Input Clipping Level
In Stock
Free UK shipping on applicable items
  • Found it cheaper elsewhere? Contact us to see if we can beat their price!
  • Call us for experienced and friendly advice
Safe Checkout

The Shure WH20XLR is a rugged, lightweight, dynamic headset microphone that provides high-quality voice pickup.

What is the WH20XLR best suited to?

The WH20XLR headworn microphone is ideal for active microphone users such as aerobics instructors and musicians, with low visibility for stage appearances. Suitable for any voice communications application where comfort and reliability are required.

What characteristics can I expect from the WH20XLR?

The WH20XLR has a cardioid pickup pattern. This provides greater gain-before-feedback and isolation from ambient noise and other unwanted sound sources, such as air-conditioning, musical instruments and loudspeakers. A carefully shaped frequency response includes a voice-frequency presence peak and a low-frequency rolloff to compensate for the proximity effect inherent in cardioid microphones during close-talk operation.

The WH20XLR is available with an XLR cable. It is also available with a ½” Jack cable (WH20QTR). There is also the WH20-TQG version for use with any of the wireless bodypack systems from Shure.


  • Lightweight wireframe and headband adjust for a secure, comfortable fit
  • Cable length: 122cm
  • Extra-strong, small-diameter attached microphone cable resists breakage
  • Collapsible microphone boom for easy storage and transportation
  • Smooth, natural frequency response comparable to high-quality dynamic hand-held vocal microphones
  • High input clipping level eliminates overload distortion
  • Reliable at temperature and humidity extremes
  • Supplied foam windscreen and clothing clip
  • Transducer Type : Dynamic
  • Polar Pattern: Cardioid
  • Frequency Response: 50 Hz – 15 kHz
  • Sensitivity (1 kHz): -67 dBV/Pa / 0,45 mV/Pa
  • Weight: 98 g
  • Frequency Response Curve:


  • Black Windscreens (2x) and Clothing Clip (Part No: RK318WS)
  • Only with the XLR-version: Connector Belt Clip (Part No: RK200BC)
