A necessity of all songwriters, a perfect music sketch pad with built-in microphones for multi-track recording anytime, anywhere
Song ideas can happen anywhere. With the TASCAM DP-008EX, you’ll be ready. Jot down ideas for your songs using this professional sounding multi-track recorders. For extra battery life, you can add TASCAM’s BP-6AA external battery pack.
A user interface that enables intuitive operation similar to cassette recorder.

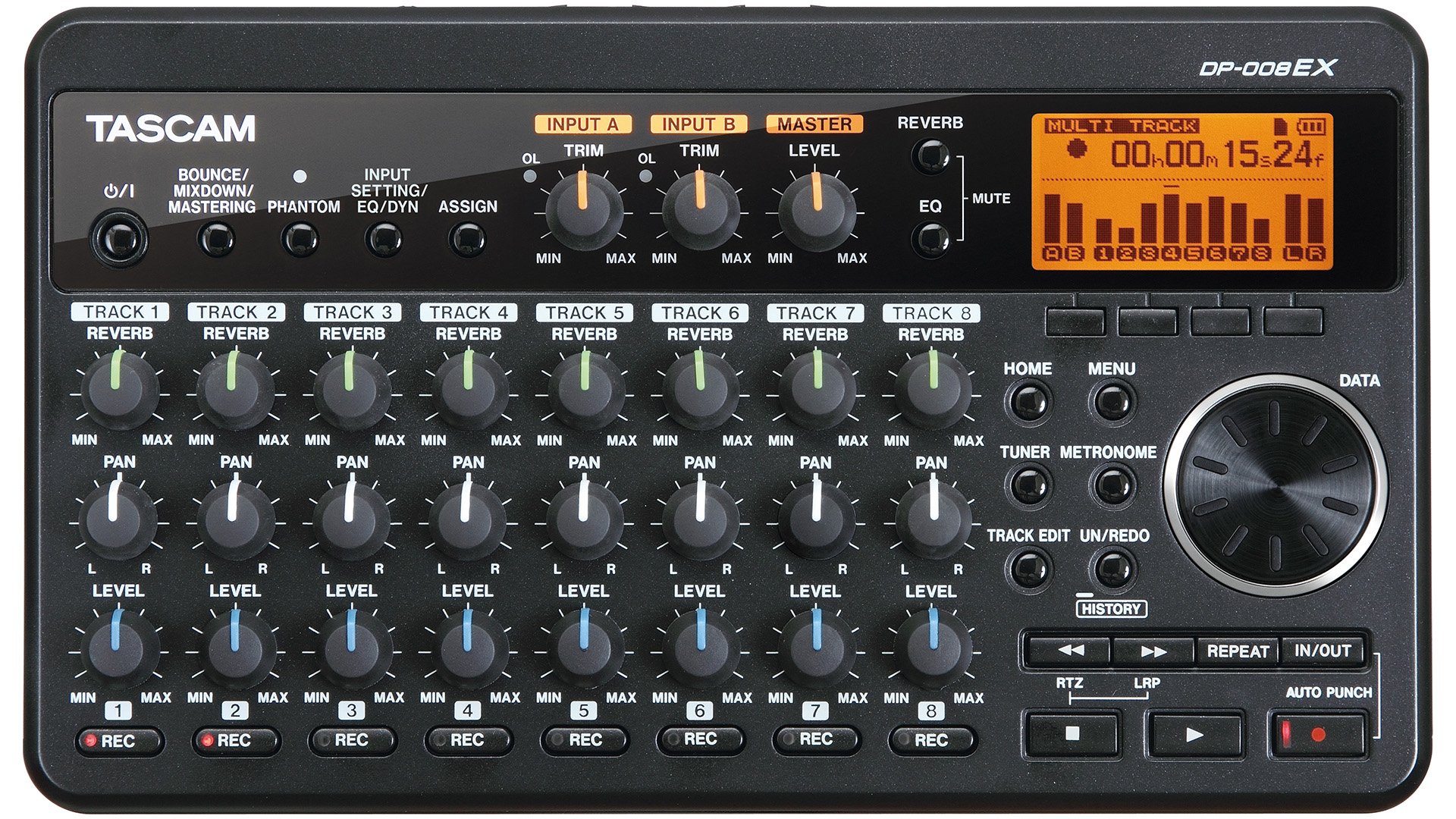

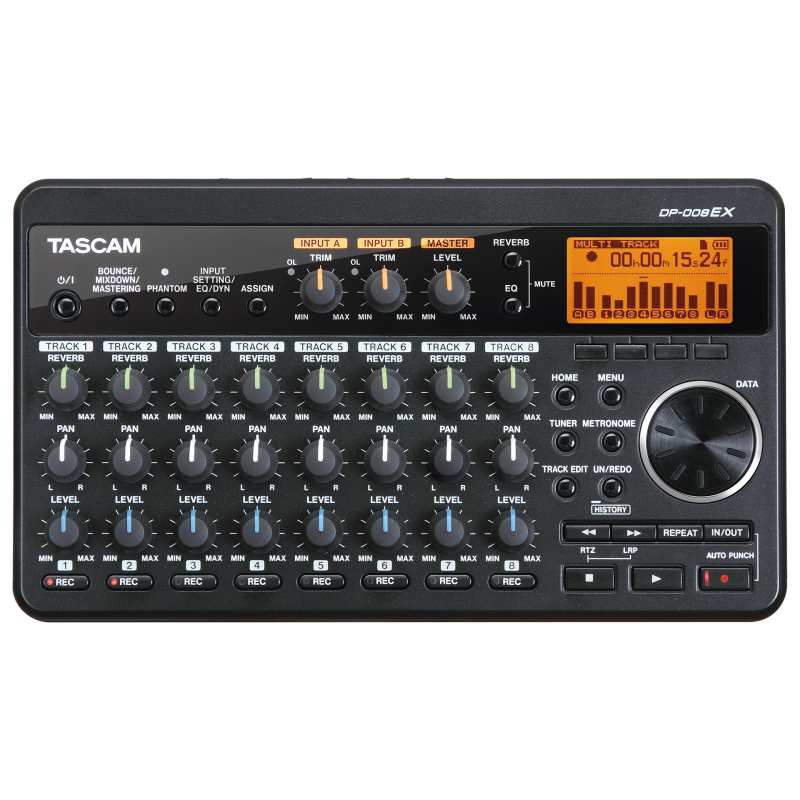

Easy to operate, just like a cassette recorder, with recording preparation achievable in just two steps after turning the device on. A high-quality microphone is already built-in, so there is no need for an external mic. Each track has a designated knob so that users can intuitively operate each track without having to rely on the screen. SD/SDHC cards are used for recording media, allowing data to be transferred to the computer via USB.

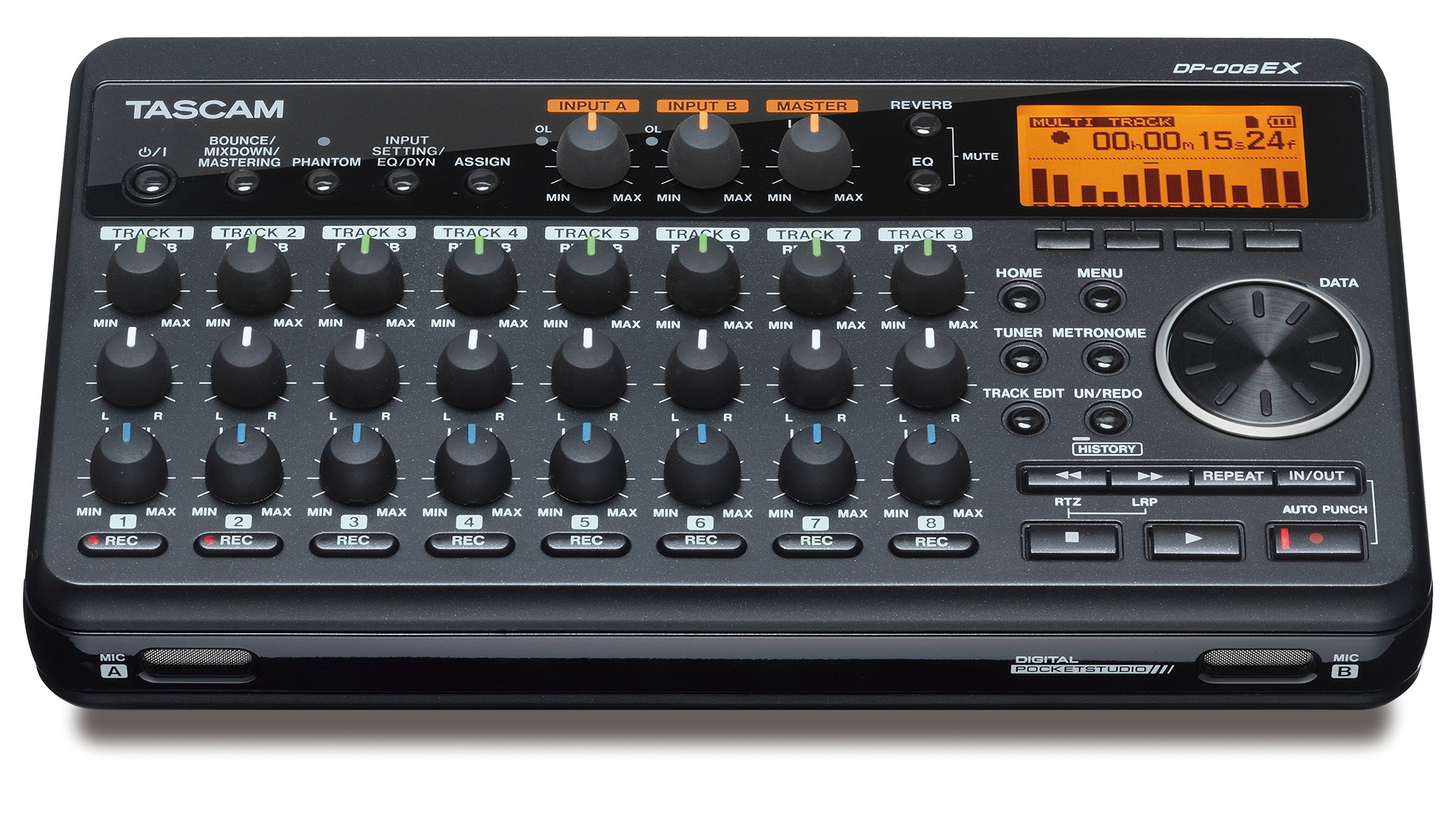

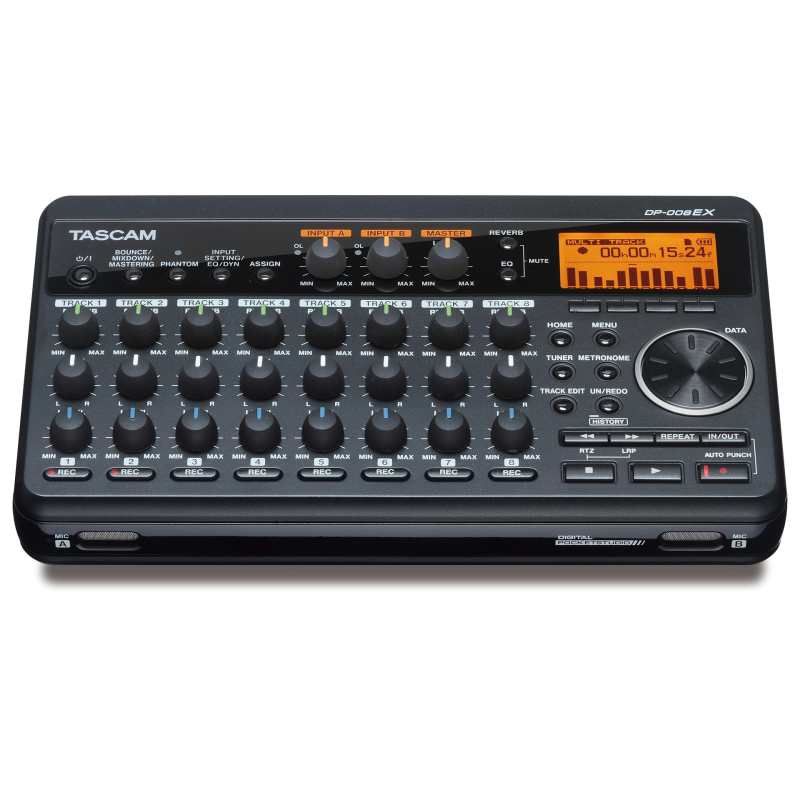

DP-008EX
Choose DP-008EX for more sophisticated music production
If you wish to obtain a higher-quality music sketchpad, the DP-008EX comes recommended. In addition to the XLR inputs that enable condenser microphones to be plugged in, the DP-008EX comes equipped with an input equalizer and reverb, enabling simple sound production. The mastering function can increase sound bass. With these functions in place, you can wow your band members with high-quality demo files from the DP-008EX.
A multi-recorder that anyone can use to easily record song ideas
Adding the DP-008EX into your production system will increase the scope of your music production infinitely. The music sketchpad that can easily accumulate ideas will capture that melody as it pops into your head, with a high audio quality, further enhancing your music production.
Spec description
Recording media SD card (512MB to 2GB), SDHC card (4GB to 32GB)
File system TASCAM original (MTR partition) / FAT32 (FAT partition)

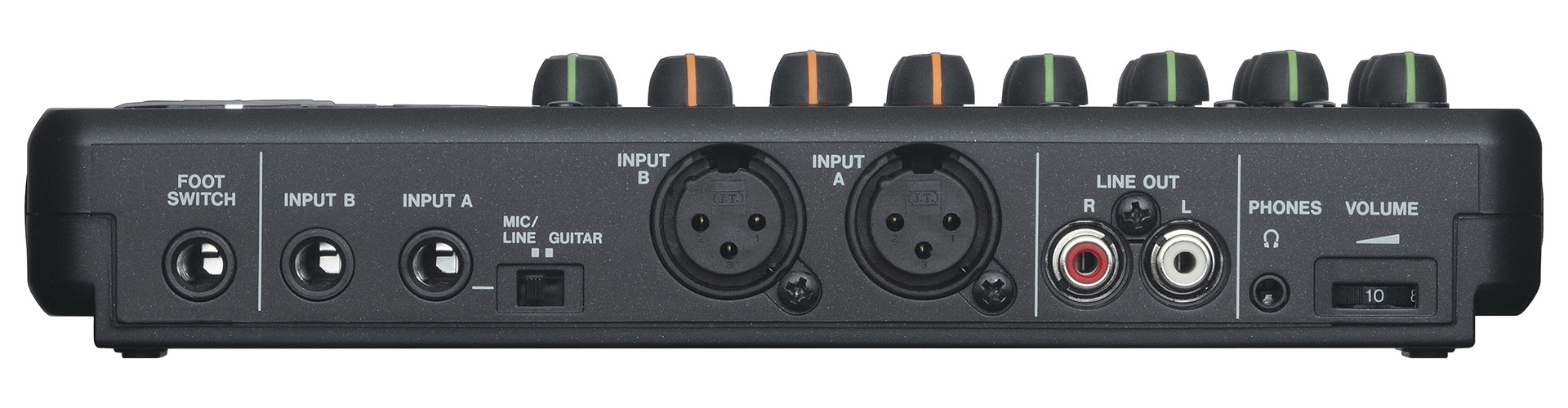

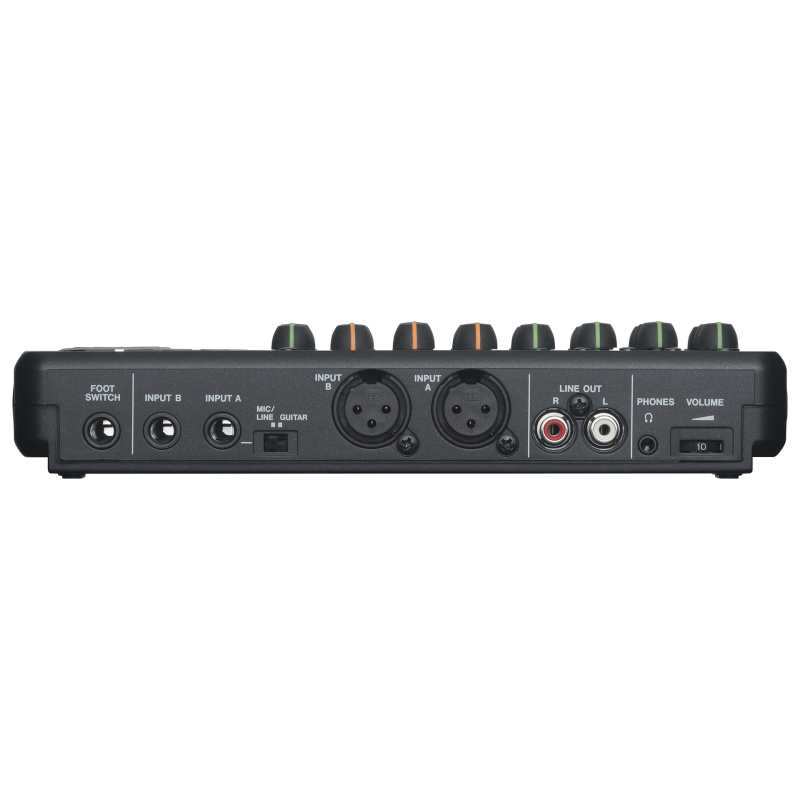

INPUT A/B
XLR
Connectors XLR-3-31(1：GND, 2：HOT, 3：COLD), BALANCED
Input impedance 2.4kΩ
Nominal input level –8dBu
Maximum input level +8dBu
1/4″ TS-jack
Connectors 1/4″ (6.3mm) TS-jack, UNBALANCED
Input impedance 10kΩ or more (INPUT A: MIC/LINE), 1MΩ (INPUT A: GUITAR)
Nominal input level –10dBV
Maximum input level +6dBV
Headroom 16dB
Built-in microphones Omni-directional condenser microphone × 2
LINE OUT
Connectors RCA pin-jack
Nominal output level –10dBV
Maximum output level +6dBV
PHONES
Connectors 1/8″ (3.5mm) stereo mini jack
Maximum output level 20mW + 20mW or more (THD+N less than 0.1%, 32Ω loaded)

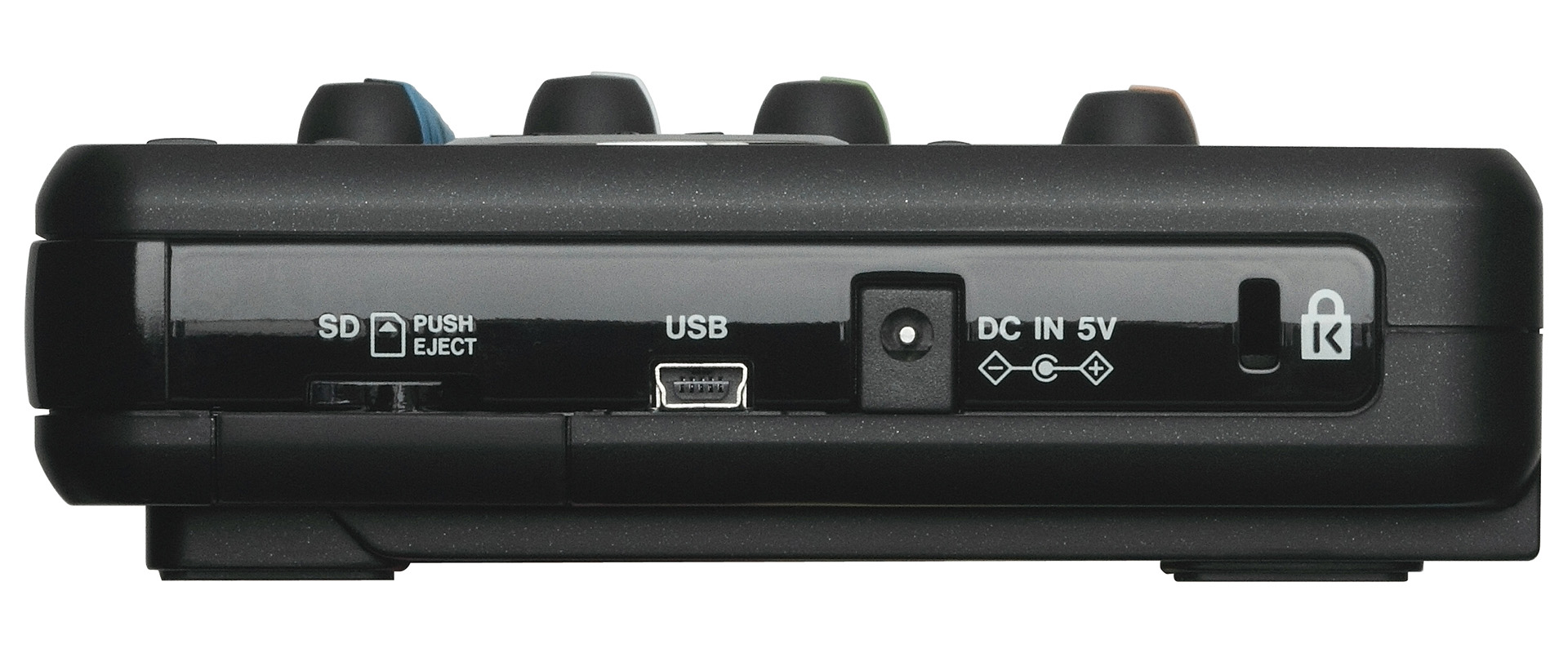

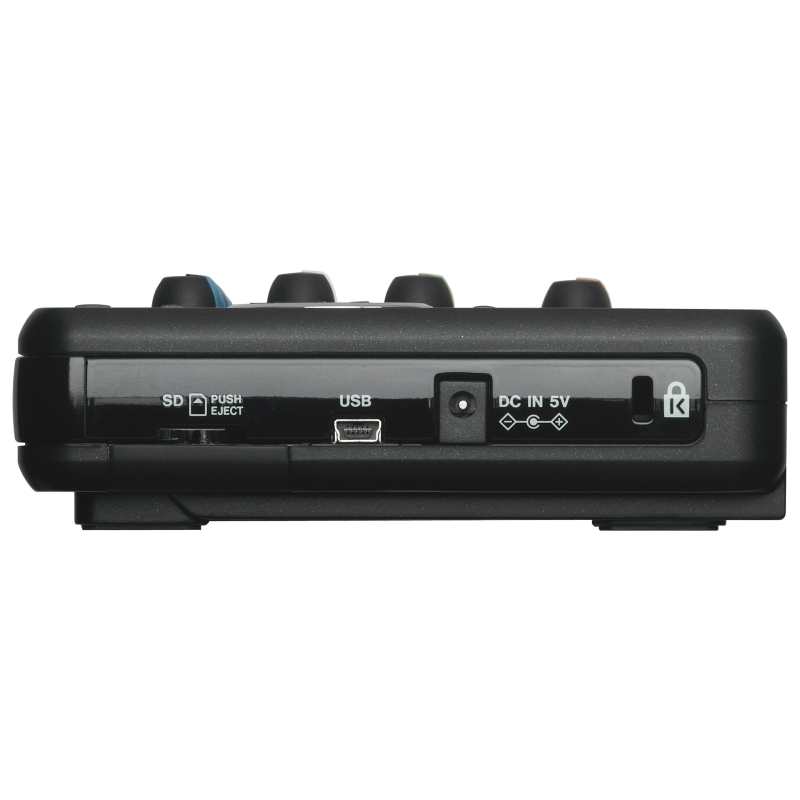

USB
Connectors USB Mini-B type
Format USB2.0 HIGH SPEED mass storage class
Continuous battery operation time *All times are approximate.
Alkaline battery (EVOLTA) 5.5 hours (using line input/recording)
6 hours (using headphone/playback)
Nickel-metal battery (eneloop) 6.5 hours (using line input/recording)
7 hours (using headphone/playback)
Power Four AA batteries (Alkaline or nickel-metal battery)
AC adapter (TASCAM PS-P520, sold separately)
Power consumption 2.4W (Maximum)
Dimensions (W×H×D) 8.7″ × 1.74″ × 4.99″ / 221 × 44.3 × 126.5 mm
Weight 1.35 lbs. / 610 g (excluding batteries)
Operating temperature 41˚F to 95˚F / 5˚C to 35˚C
Backup memory In the PREFERENCES, contents of “Repeat Int”, “Auto Power Save”, “Contrast”, “Back Light” and “FootSW Polarity”. Contents of INPUT SETTING (without EQ)
Accessories 4GB SD card, AA battery × 4, USB cable (31.5″ / 80cm), Warranty card, Owner’s manual
Audio performance
Frequency response 20Hz to 20kHz (+1/–3dB, INPUT (MIC/LINE) to LINE OUT)
Distortion Less than 0.05% (INPUT (LINE) to LINE OUT)
S/N ratio More than 81dB (INPUT (MIC/LINE) to LINE OUT)
