SET UPS
The 3 Traditional Set-ups of concert toms are….
– 6", 8", 10", 12" (2 x WS865A stands required)
– 10", 12", 13", 14" (2 x WS865A stands required)
– 13", 14", 15", 16" (2 x WS865A stands required)
New Size Structure
After exhaustive study to determine the best size for this model specifically designed for concert use, Yamaha adopted a size structure based on the proportional relation between diameter and depth, which is “For every 1 inch increase in diameter, increase the depth by 1/2 inch”. As a result, Yamaha designers successfully achieved the classical tone and lingering depth which is fundamentally different from that of existing concert toms. Solving a conventional problem that tonal color and length of sustain differ between toms, the 900 Series offers a perfect unity in tone and sustain as a whole set, which gives you a higher level of expressivity. This series also has a wide tuning range from high to low register to allow you to produce various types of sound that is required in orchestral music.
YESS II Mounting System
How a tom and a stand are connected is a very important factor to determine the resonance and tonal color of the instrument. As the best mount system for CT-900 series, Yamaha adopted the YESS II Mount System. This reflects the design concept of ultra high-end drum set PHX series. By putting the tom in a state close to “hanging in the air” as much as possible without holding it, this mount system minimizes the potential loss where the stand absorbs the instrument’s vibration and succeeds to bring out tom tom’s original fat tone with longer sustain. A shorten time lag between a point of attack and sound generation allows you to concentrate on your play more easily.
Air-Seal System Shells
The oak shells are produced utilizing the Air-Seal System. This process ensures that shells start round and stay round; an in-round shell tunes clearer and provides a pure fundamental tone.

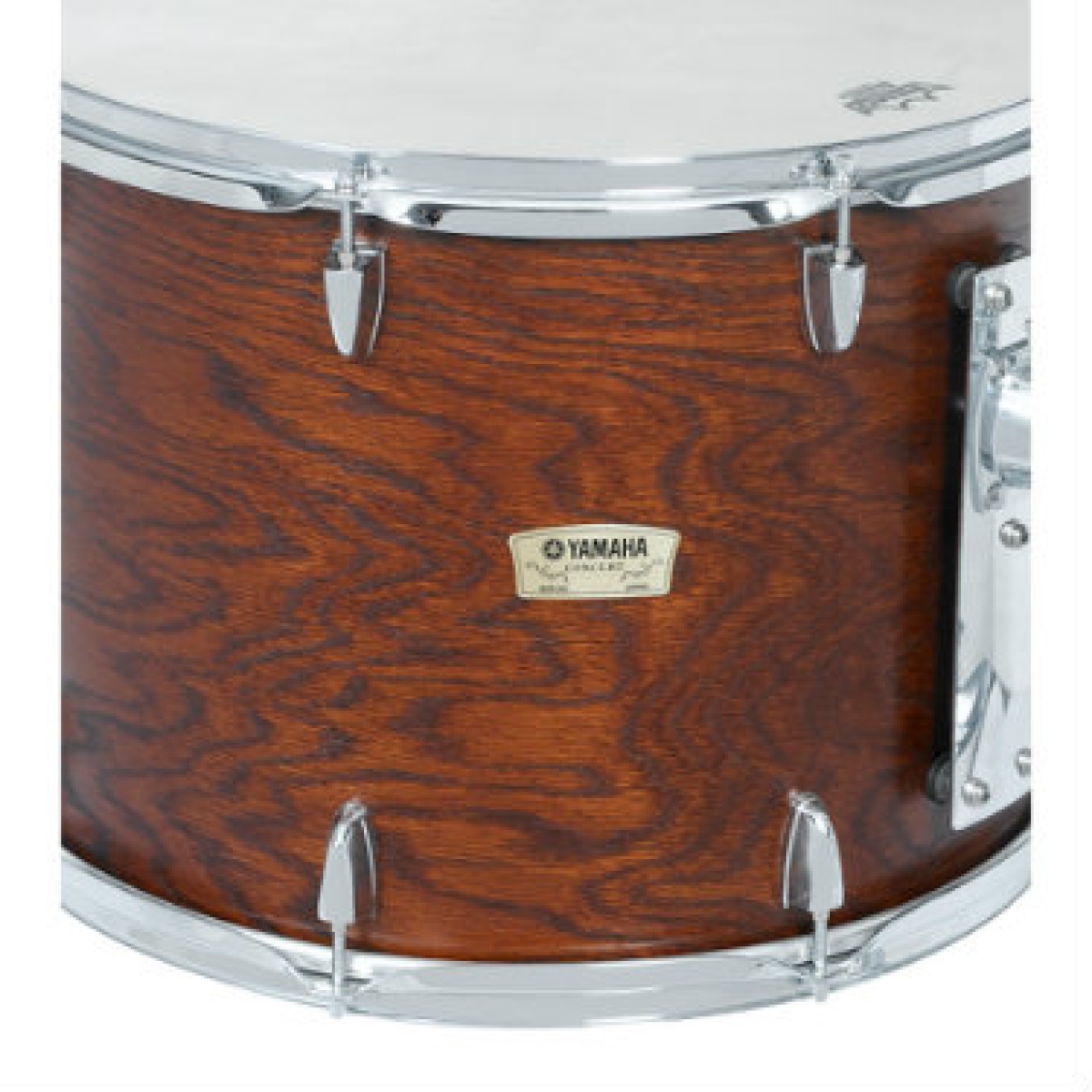

Oak Shells
Oak shell offers a fat, dense tone and sharp, open resonance. In addition to these characteristics, longer sustain and quick response is provide by YESS II-m Mount System, achieving a perfect balance between tone clarity and abundant sustain. Even when playing a high-speed passage or roll, you can deliver the slightest nuance to your audience.
Darkwood Stain
Perfect for all symphonic situations.
Specifications
| Models | CT-906; CT-910; CT-912; CT-913; CT-914; CT-915; CT-916 | |
|---|---|---|
| Shells | 6-ply oak shells produced with the Air-Seal System | |
| Rims | Dynahoop | |
| Finish | Darkwood stain | |
| WS-860A Stand | Each set of four concert tom comes with two WS-865A stands, that feature double braced legs, and ball and socket mount design. | |
| Mount | YESS II Mounting System accepts Yamaha hex rod clamp arm. | |
| Lugs | Zing alloy; 6" = 4 lugs; 8" and 10" = 5 lugs; 12", 13" and 14" = 6 lugs; 15" and 16" = 8 lugs | |
