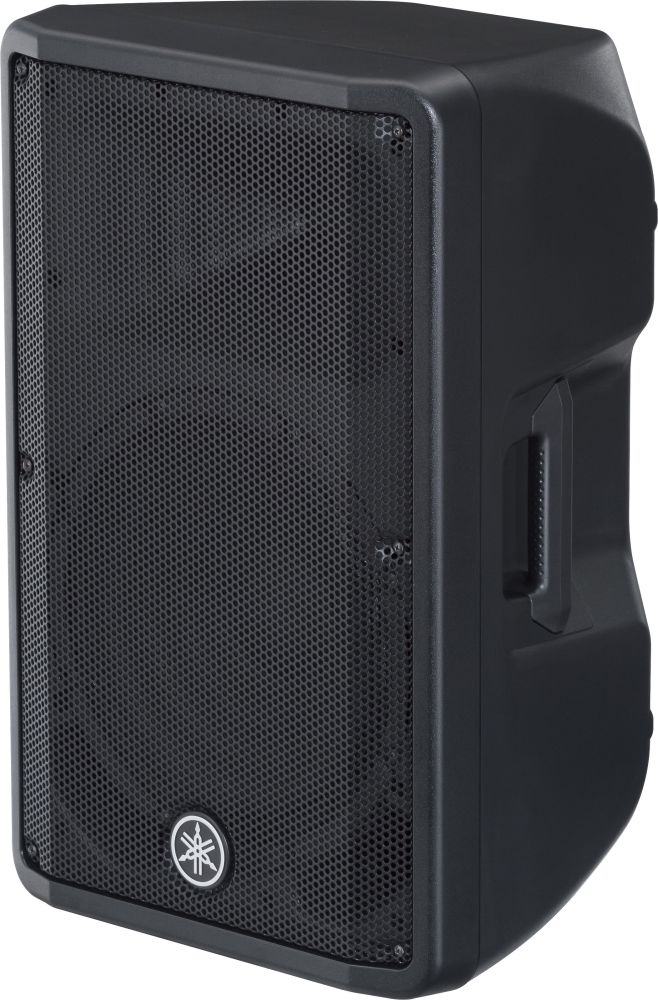

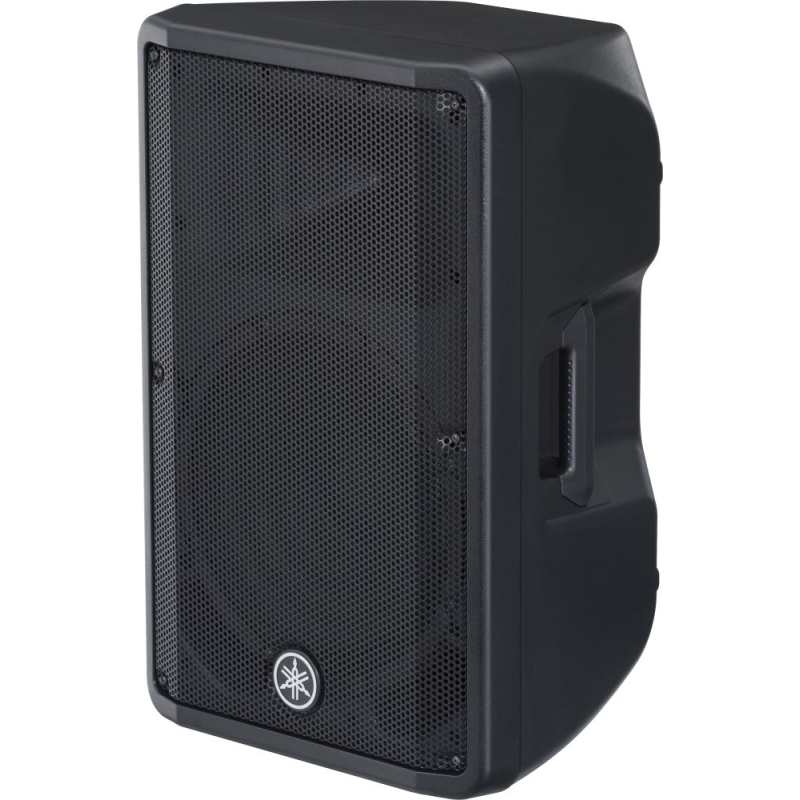

Yamaha DBR12 Active PA Speaker
12″ 1000w max output
The DBR has the following features:
- Custom designed transducers and wide-dispersion constant directivity horn
- DSP Features of DSR-Series
- FIR-X tuning simultaneously optimises frequency and phase response
- Multiband dynamic processor for consistent clarity at any output Level
- Extensive DSP protection functions for maximum output level
- 2-channel mixer with XLR, TRS Phone and RCA inputs
- 50°degree wedge angle & symmetrical mirror-mode floor monitoring
- 3x M8 Rigging Points for standard eye-bolts (Brackets available as an option)
The DBR12 Active PA speaker features the same Yamaha state-of-the-art DSP technology inherited from its predecessors, ensuring superior performance and versatility, and safe, consistent operation.
The DBR12 can project deep bass, clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area and can boast 1000W of power.
The design incorporates an optimised 50° wedge angle for floor monitoring use and is also, for its size, the most portable powered speaker currently offered by Yamaha.
DBR12 Specification
Speaker type
2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB)
52Hz – 20kHz
Nominal coverage
Horizontal
90°
Vertical
60°
Components
Low Frequencies
Diameter:12″ cone, Voice Coil:2″, Magnet:Ferrite
High Frequencies
Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite
Crossover
2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power
Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis)
131dB SPL

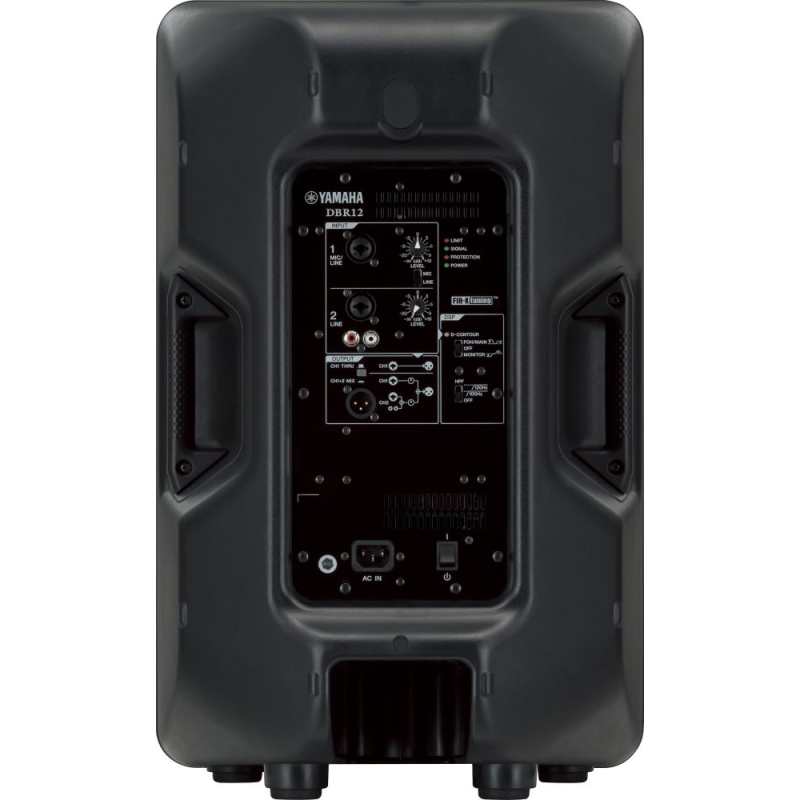

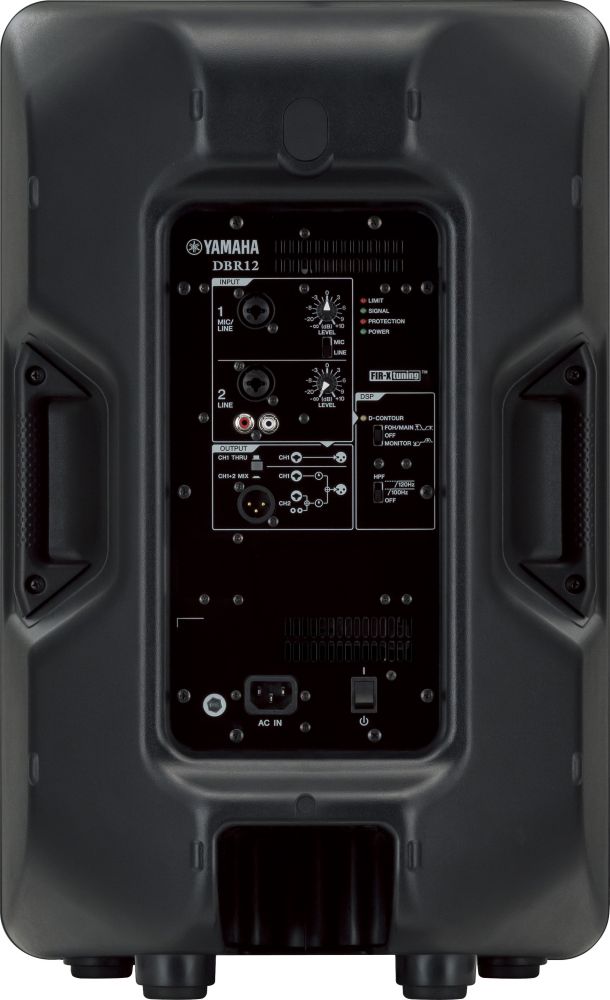

I/O connectors
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation
Fan cooling, 4 speeds
Power requirements
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption
74W(1/8 Power Consumption), 18W(Idle)
Cabinet material
Plastic
Handle
Side x 2
Flying and mounting hardware
Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket
35mm (Bottom x 1)
Dimensions
Width
376mm (14.8″)
Height
601mm (23.7″)
Depth
348mm (13.7″)
Net weight
15.8 kg (34.8 lbs)
Optional Accessories
BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
