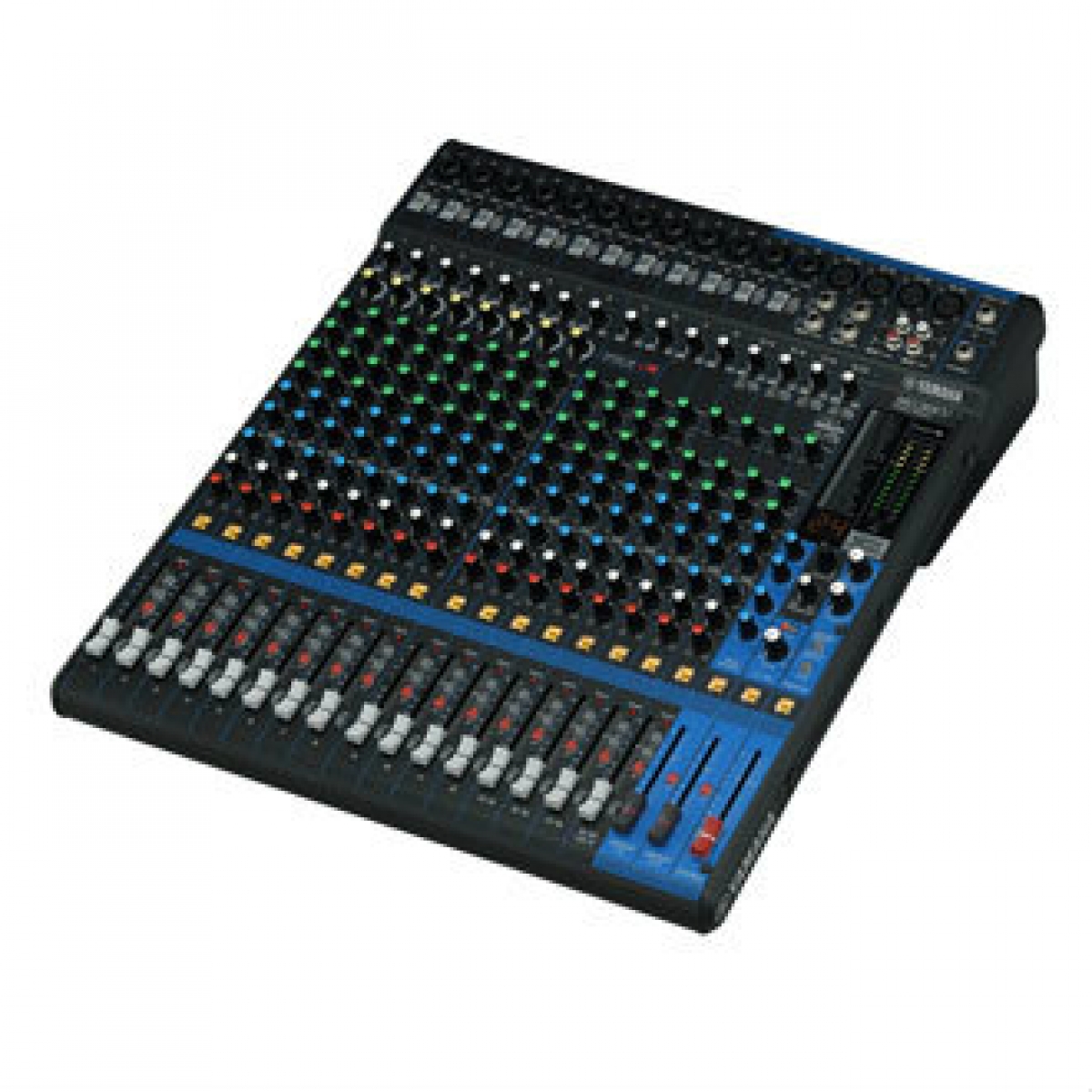

- 20-Channel Mixing Console
- Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
- 4 GROUP Buses + 1 Stereo Bus
- 4 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit/192kHz 2in/2out USB Audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase AI DAW software download version
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Rack Mount Kit Included
- Metal chassis
- Dimensions(W×H×D): 444 mm x 130 mm x 500 m (17.5″ x 5.1″ x 19.7″)
- Net Weight: 7.1kg (15.7 lbs.)
Outline
Mixing capability | On-board processors | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
---|---|---|
I/O | Phantom power | +48 V |
Digital I/O | USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | |
Input Channels | Mono[MIC/LINE] | 12 |
Mono/Stereo[MIC/LINE] | 4 | |
Output Channels | STEREO OUT | 2 |
MONITOR OUT | 1 | |
PHONES | 1 | |
AUX SEND | 4 | |
GROUP OUT | 4 | |
Bus | Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) | |
Input Channel Function | PAD | 26 dB (Mono) |
HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | |
COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | |
EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | |
EQ MID | Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking | |
EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | |
PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | |
Level Meter | 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General specifications
Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | |
---|---|---|
Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) | |
Crosstalk | -78 dB | |
Power requirements | AC 100 – 240 V, 50 / 60 Hz | |
Power consumption | 36 W | |
Dimensions | W | 444 mm (17.5″) |
H | 130 mm (5.1″) | |
D | 500mm (19.7″) | |
Net weight | 7.1kg (15.7 lbs.) | |
Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 | |
Others | Operating Temperature: 0 to +40˚C |
