Features
Sound
・Combo Organ Sound Engine with five vintage organ Waves
The five organ Waves are:
H, American tonewheel organ
V, British transistor organ
F, Italian transistor organ
A, Japanese transistor organ
Y, Yamaha YC-45D
・All the controls needed to play organ: Footage sliders, Percussion, Vibrato and Rotary speaker control
・Add character with two retro organ effects: Distortion and Reverb
・128-note polyphony ensures dropout-free performance
Control
・Based on the FS action found on the flagship MotifXF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing
・Expression pedal input for foot volume control (organ expression)
Mobility & Connectivity
・2W 3cm stereo speaker system lets you play any place, any time
Specially designed bass reflex port technology enhances bass response for full, rich sound
・Battery powered – uses six “AA” batteries with five hours of life
・USB “TO HOST” allows MIDI connectivity to your USB-equipped computer or iOS device
・Dual 1/4″unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more
・A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument
Create your Soundmondo. Inspire and be inspired.
[Coming on September 1st 2015]
Soundmondo is a free sound sharing community that lets you discover, create and share reface Voices and Set Lists using Google Chrome any place, any time you’re online.
Powered by Web MIDI, Soundmondo is simple to use – just connect reface to Chrome and you’re ready to create or start browsing.
Specs
Amplifiers and Speakers
Amplifiers 2 W x 2
Speakers 3 cm x 2
Power Supply
Power Consumption 6 W (When using PA-130 power adaptor)
Battery Life Approximately 5 hours
Auto Power Off Yes
Power Supply Adaptors PA-130 or an equivalent recommended by Yamaha
Batteries Six “AA” size batteries or Ni-MH rechargeable batteries
Accessories
Included AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale
Voices
Number of types 5 Organ types
Effects Rotary Speaker, Distortion, Reverb
Size/Weight
Dimensions Width 530 mm (20 7/8″)
Height 60 mm (2 3/8″)
Depth 175 mm (6 7/8″)
Weight 1.9 kg (4 lbs, 3 oz) (not including batteries)
Keyboard
Number of Keys 37 keys
Type HQ mini (High-Quality mini)
Initial Touch Yes
Tone generation
Maximum Polyphony 128
Engine AWM (Organ Flutes)

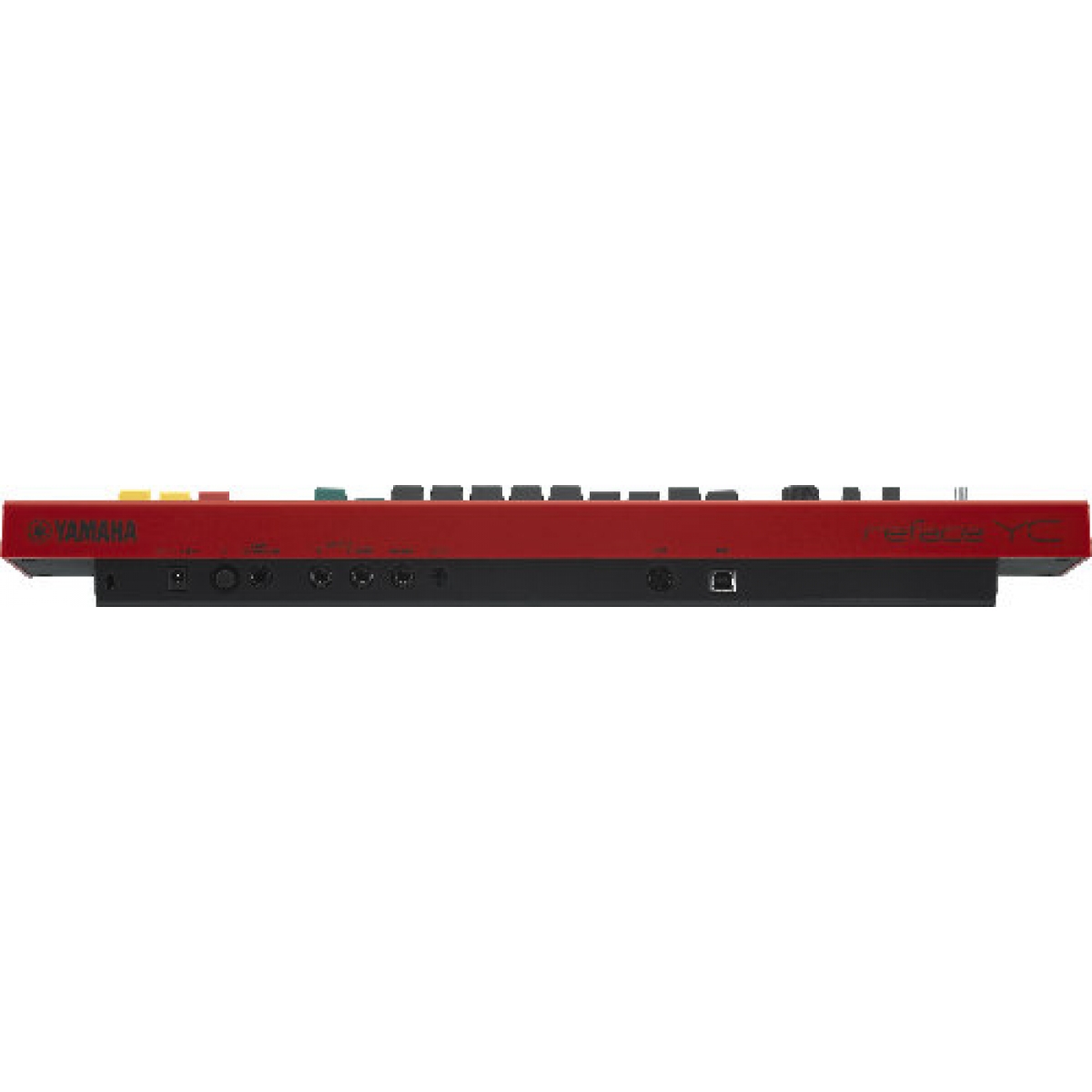

Connectivity
DC IN DC IN (12 V) jack
Headphones PHONES (6.3 mm, stereo phone jack)
MIDI MIDI (mini-DIN IN/OUT)
AUX IN AUX IN (3.5 mm, mini stereo phone jack)
OUT PUT L/MONO, R (6.3 mm, TS phone jack, unbalanced)
USB TO HOST USB (TO HOST)
Pedal Type FOOT CONTROLLER: FC7 (optional) (to adjust the volume)
