Bowl Design
To bring out the very best qualities of the aluminum material used, bowl size, bearing edge shape (the edge that contacts the timpani head), the diameter of the aperture in the bottom of the bowl, and other details have been meticulously examined and refined to deliver the deepest, richest tone possible in combination with outstanding playability.
Height Adjustment
The height of all casters can be adjusted over a 25mm range, allowing precise adjustments to the instrument height as well as head angle. The instruments can be ideally positioned for standing or seated playing, on any stage. Adjustment is carried out using the supplied tuning key or an appropriate allen wrench, and can be easily accomplished by one person.
*The picture shows TP-7300R Series.
Caster Lock
The main casters include a one-touch lock mechanism that contributes to fast, sure setup. In addition to the main caster lock mechanism an auxiliary brake has been added to the pedal caster. The player can engage the auxiliary brake to securely lock the caster and prevent movement of the instrument.
Left: Main caster lock, Right: Pedal caster auxiliary brake

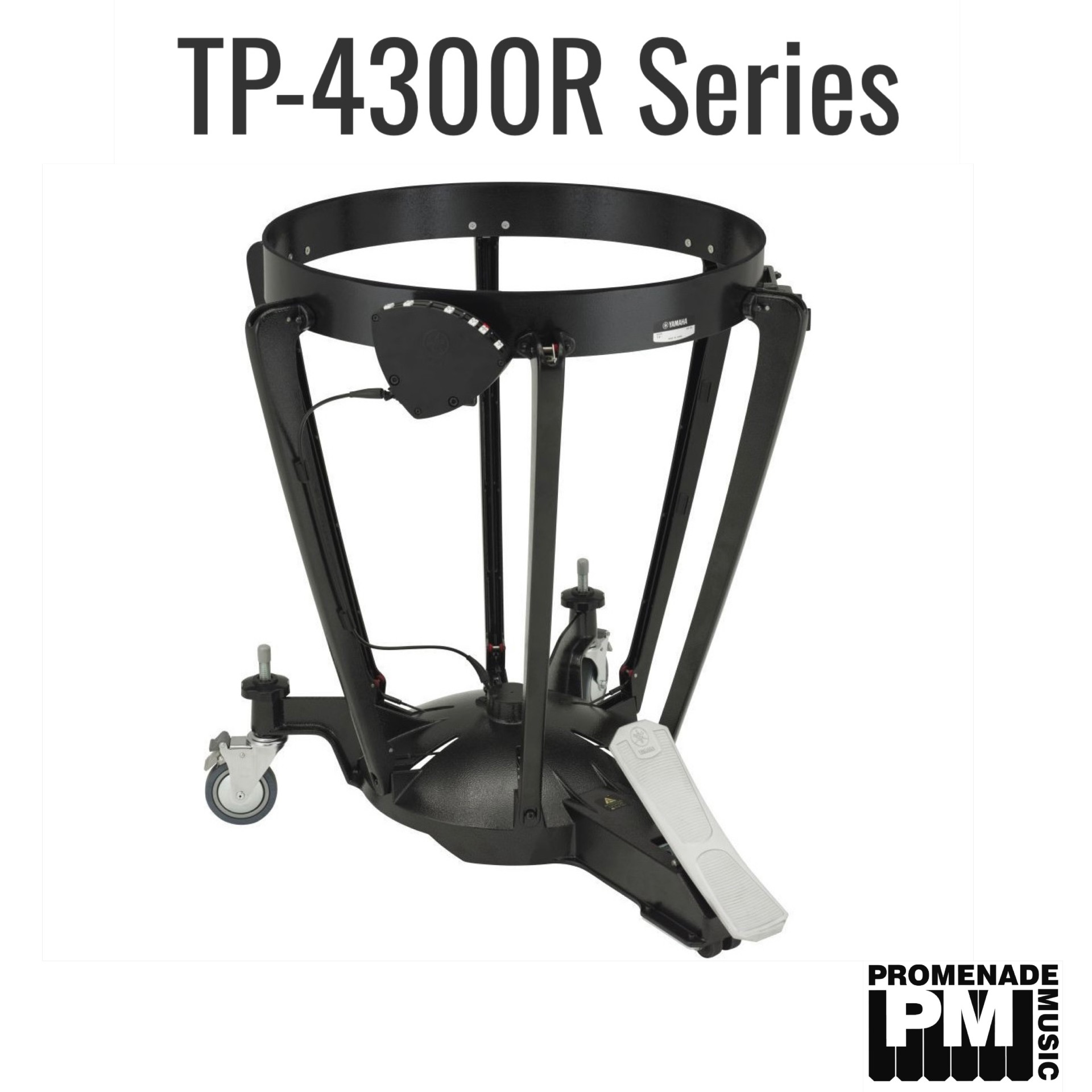

Floating Mount
The bowl is seated in a “Floating Mount” suspension ring and does not contact any other part of the instrument. This prevents distortion of the bowl and allows unrestricted head oscillation for superior tone, resonance, and pitch clarity. This frame design brings out the full musical potential of the bowl.

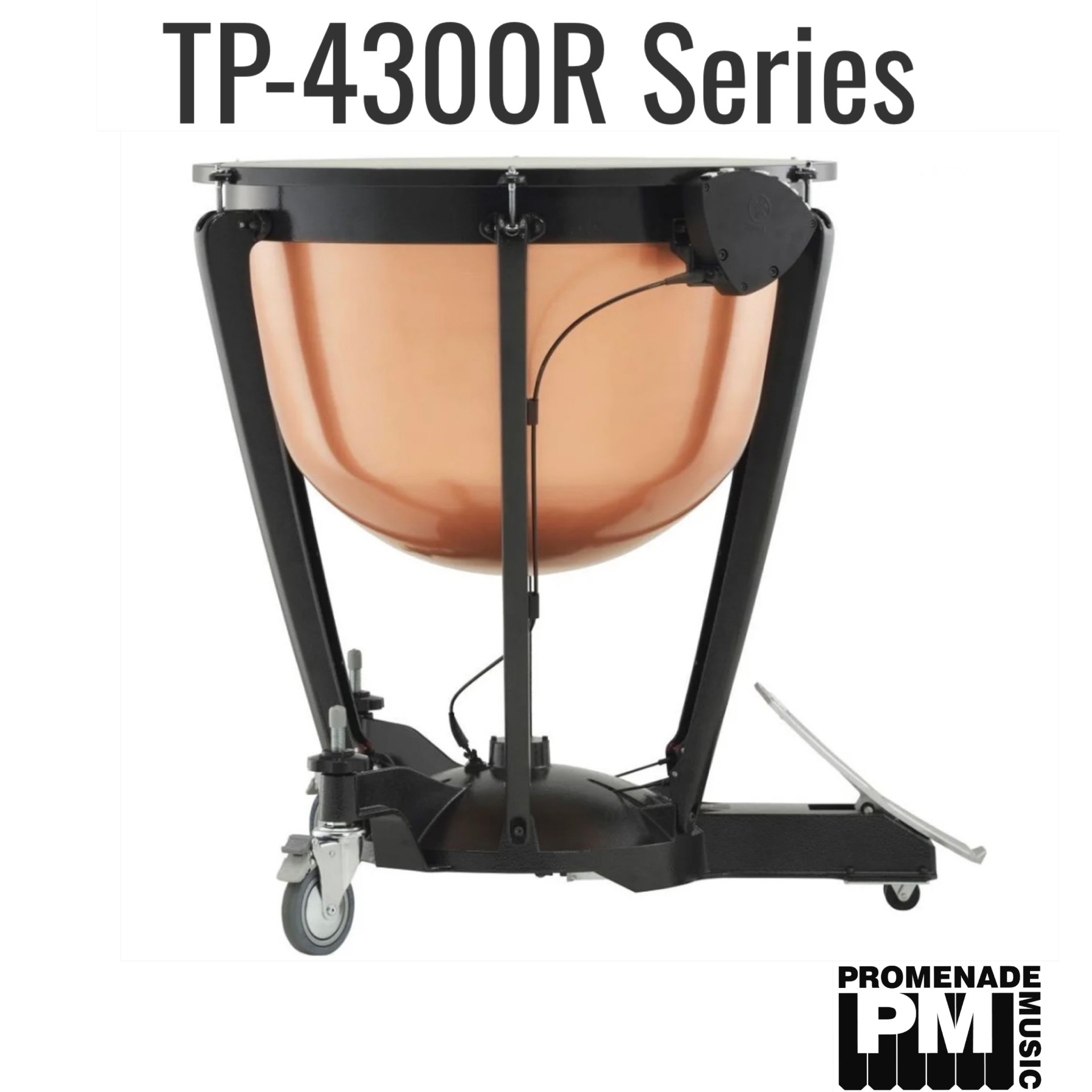

*The picture shows TP-4300R Series.
