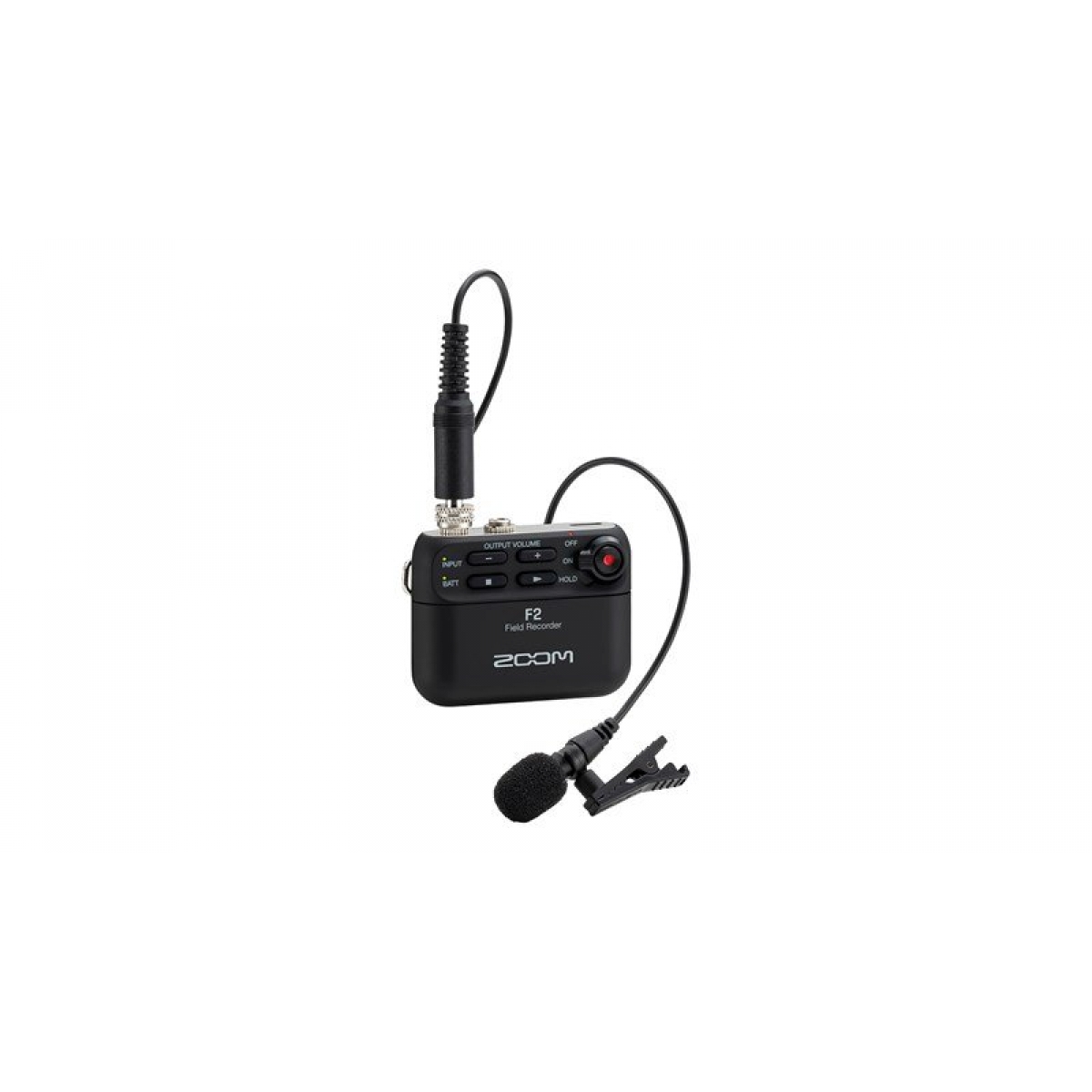

Zoom F2 Field Recorder and Lavalier Mic
The Zoom F2 is a high-quality, one-stop portable recording solution. Thanks to the included LMF-2 omnidirectional lavalier microphone and powerful WaveLab editing software, you’ll be able to accurately capture your field recordings, voice-overs, podcasts and more with ease.
FEATURES:
- Light and compact audio recorder
- 32-Bit Float recording for full dynamic range and clip free recording
- No gain adjustment necessary
- Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files
- Rec Hold function to avoid accidental operation of buttons
- Stereo ⅛" Mic/Line In mini phone jack with Plug-in power (2.5V)
- Stereo ⅛" Phone/Line Output jack with dedicated volume control
- 80 Hz low cut filter
- High precision internal clock (±0.5ppm) to avoid audio and video syncing issues
- Records directly to micro SD and SDHC cards up to 512 GB
- USB-C for connection to F2 Editor for settings
- Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
- Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries
SPECIFICATIONS:

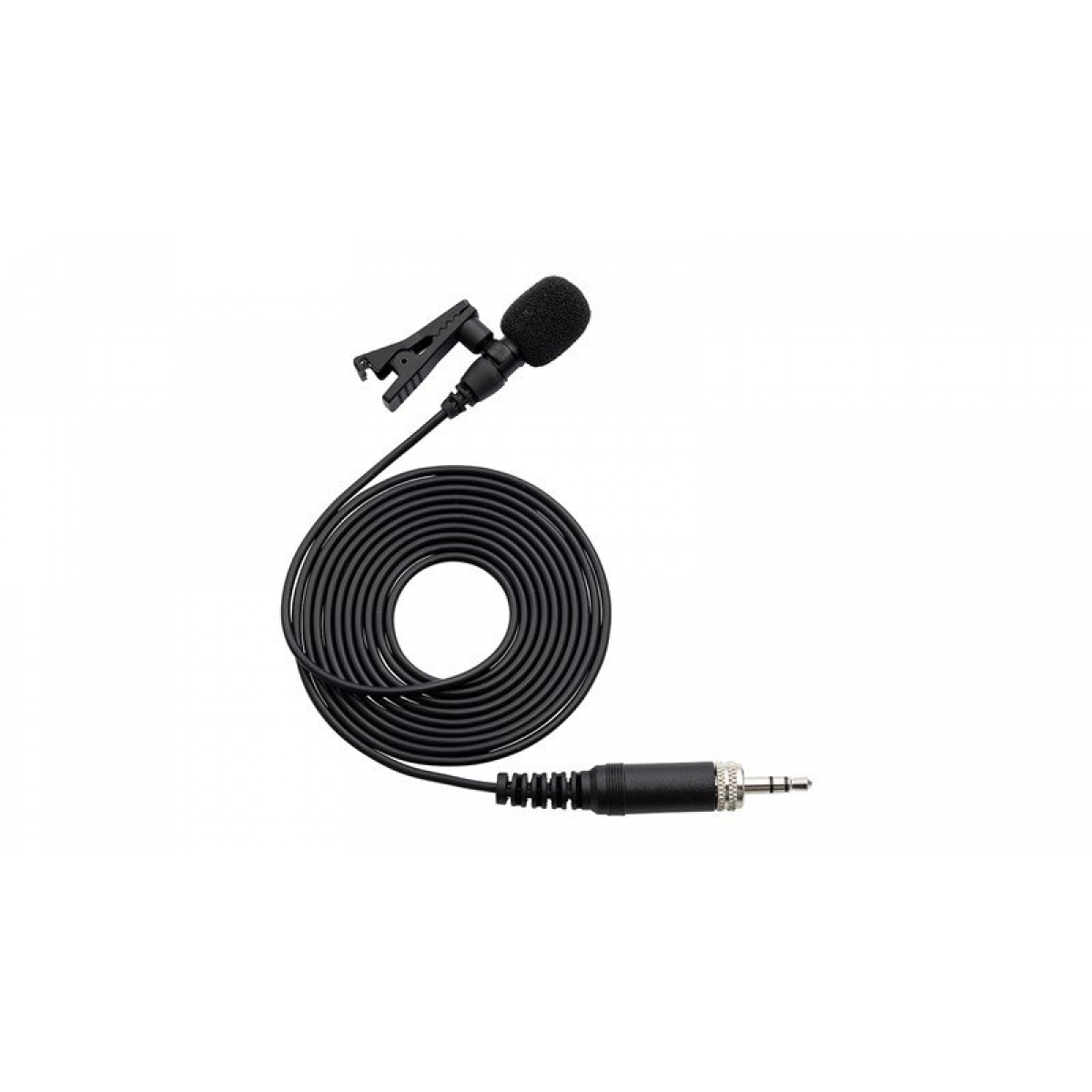

LMF-2
- Lavalier mic
- Connector: 3,5 mm stereo mini (with screw lock)
- Directionality: Omnidirectional
- Sensitivity: –32 dB/Pa at 1 kHz
- Maximum sound pressure input: 115 dB SPL
- Cable length: 160 cm
F2:
- Input
- Connector: 3,5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)
- Input impedance: 2 kΩ or more
- Maximum input level: -5,5 dBu
- Output:
- Connector: 3,5 mm stereo mini (with screw lock)
- Maximum output level: 20 mW + 20 mW (into 32 Ω load)
- Recording media:
- Cards compatible with microSD/microSDHC/microSDXC specifications (Class 4 or higher, 512 GB maximum)
- Recording formats:
- WAV, 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported WAV
USB:
- USB Typ-C
- Note: Use a USB cable that supports data transfer. USB bus power is supported.
- Mass storage operation: USB 2.0 High Speed
- PC app operation: USB 2.0 High Speed
Power:
- 2 AAA batteries (alkaline, lithium or rechargeable NiMH batteries)
- AC adaptor
- Continuous recording time
- F2:
- when LMF-2 lavalier mic connected (48 kHz/32-bit float)
- Alkaline batteries: about 15 hours
- NiMH batteries (750 mAh): about 11 hours
- Lithium batteries: about 21 hours
- The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
- External dimensions: 57,5 mm (w) x 46,4 mm (D) x 22,4 mm (H)
- Weight (main unit only): 32 g
