Wireless Freedom for Pedalboards

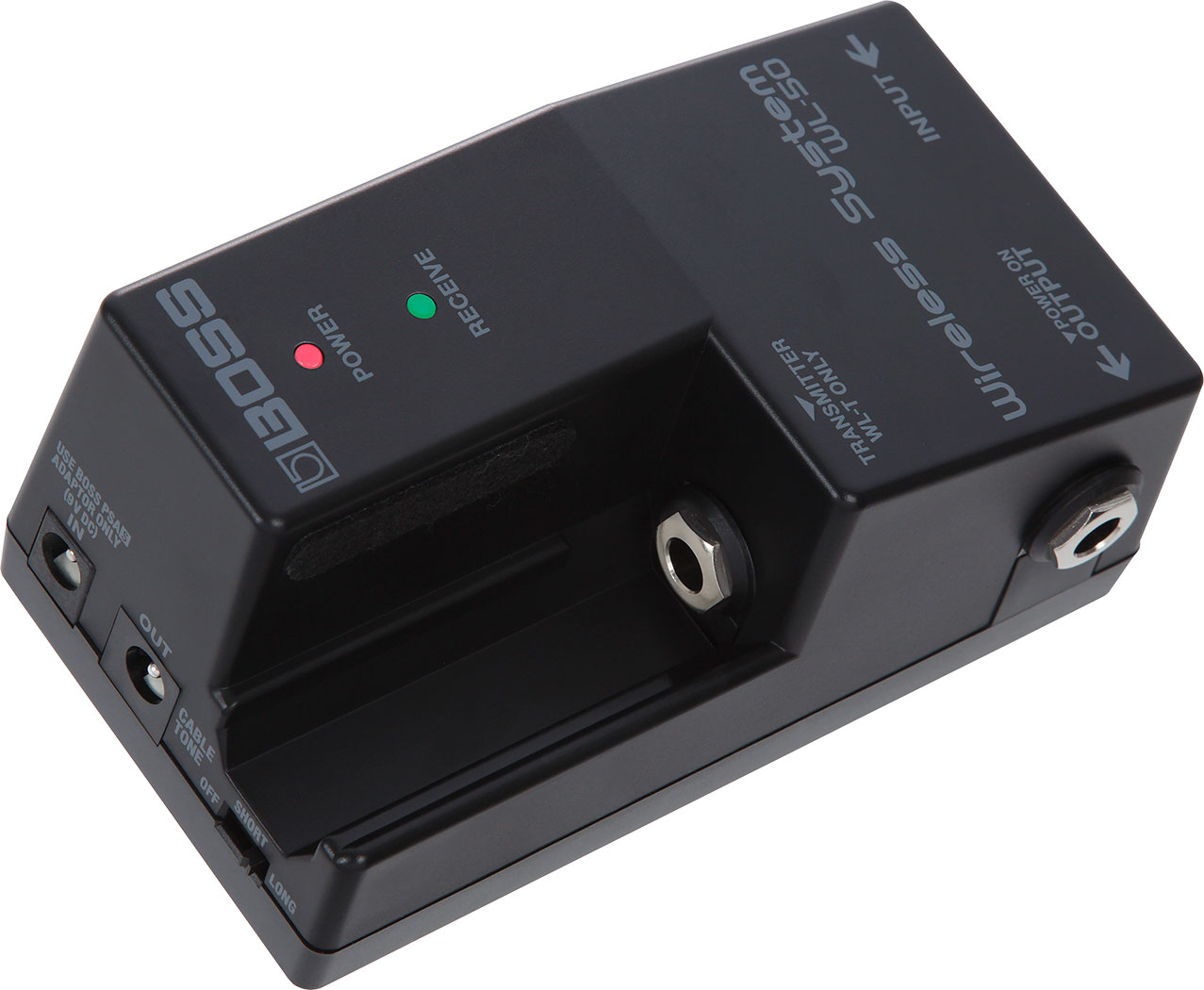

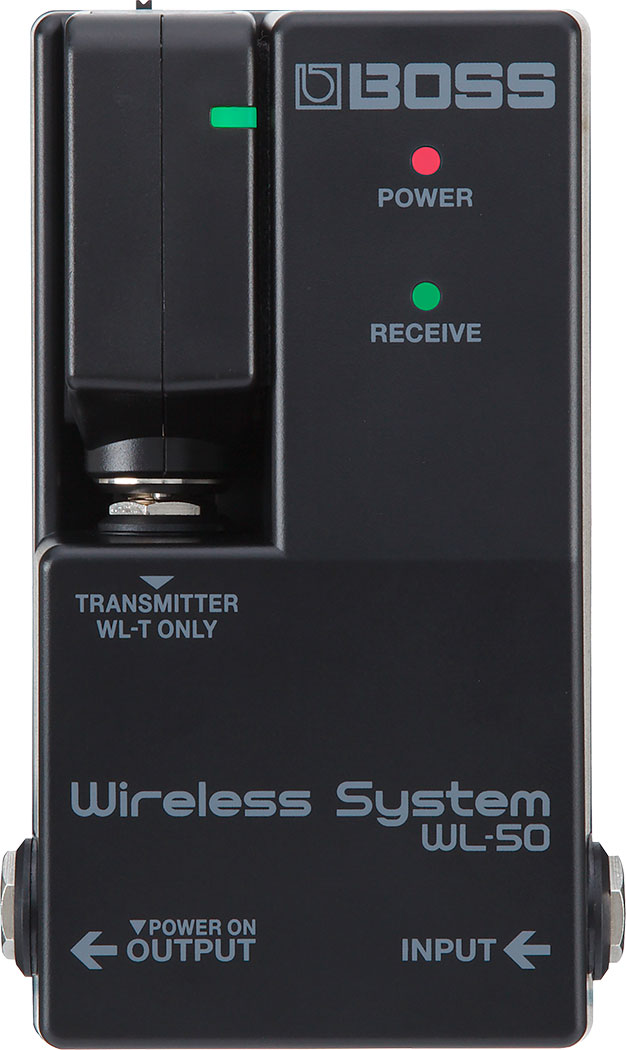

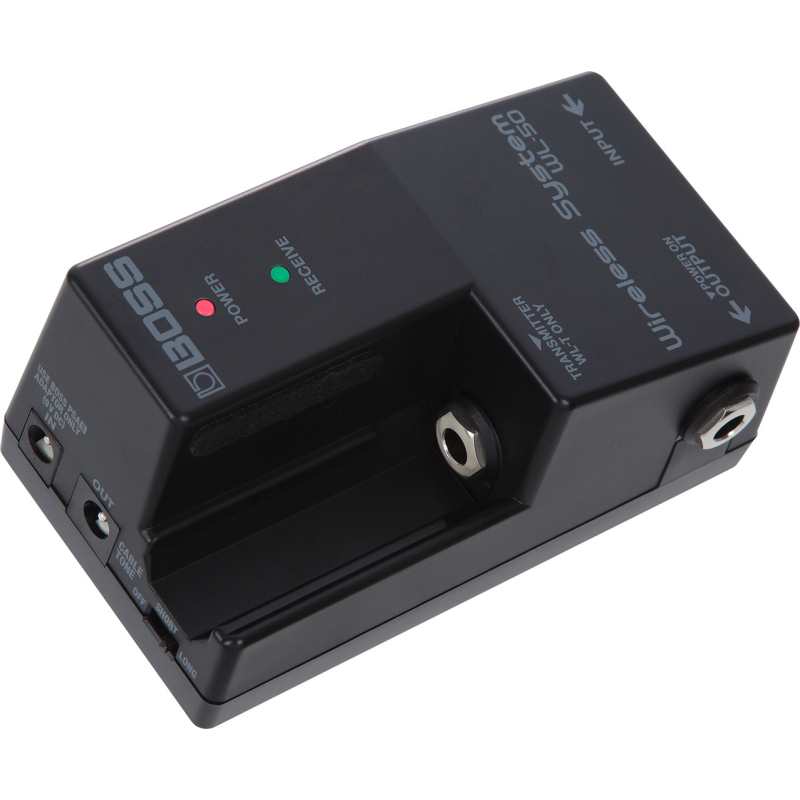

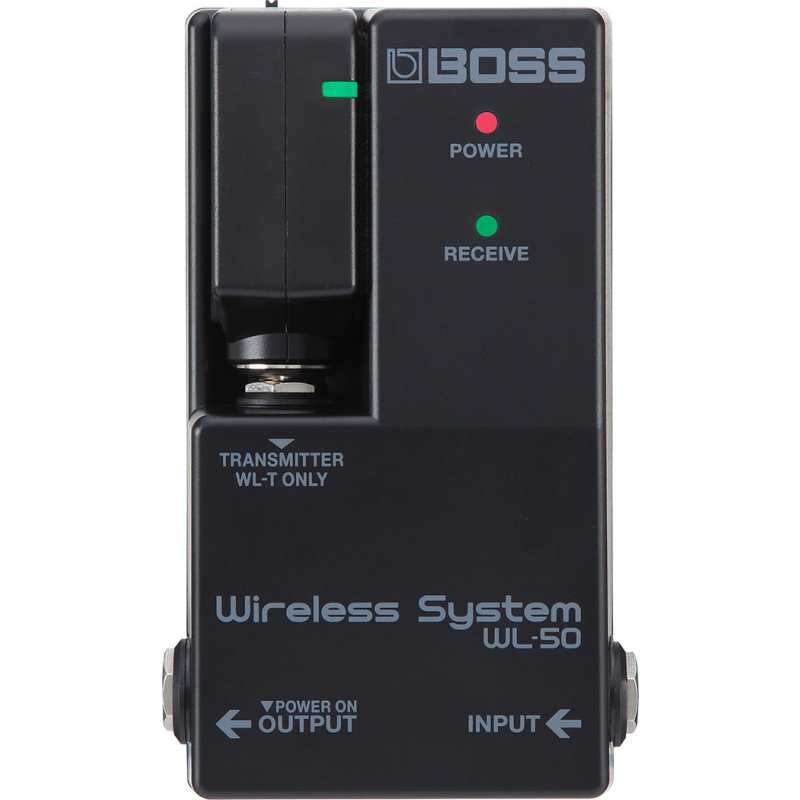

With the WL-50, it’s never been easier to bring wireless freedom to your pedalboard. Driven by new BOSS technology, the WL-50 delivers premium sound and a plug-and-play experience that eliminates all the hassles normally associated with wireless systems. The stompbox-sized receiver fits right alongside your other pedals, and includes a docking port for charging the transmitter and automatically setting the best wireless connection. There’s even a handy DC output, allowing you to distribute power to multiple pedals on your board.
Once you experience the wireless independence provided by the WL-50, you’ll never go back to using a standard cable again! Setup is quick and simple, and you’re able to move about freely while playing at home, jamming with friends, and performing on stage. During sound check at a gig, you can listen to your tone out front and dial in the best sound for your audience. And with the ability to roam and interact with other musicians, your live shows will be more dynamic and entertaining than ever.
Specifications (RECEIVER)
Wireless Format
BOSS proprietary digital audio format
Wireless carrier frequency
2.4 GHz
Compatible Channels
14
(May vary due to local conditions)
Transmission Range
65 feet line-of-sight
(May vary due to local conditions)
Latency
2.3 ms
Dynamic Range
110 dB or greater
Frequency Response
20 Hz–20 kHz
Nominal Input Level
-10 dBu
Input Impedance
1 M ohm
Nominal Output Level
-10 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Controls
CABLE TONE switch (OFF/SHORT/LONG)
Indicators
POWER
RECEIVE
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
TRANSMITTER jack: 1/4-inch TRS phone type
DC IN jack
DC OUT jack
Power Supply
Alkaline battery (AA, LR6) x 2
AC adaptor (sold separately)
Current Draw
During wireless operation: 60 mA
While charging transmitter: 320 mA
Expected battery life under continuous use
Alkaline battery (AA, LR6): Approximately 10 hours
* These figures will vary depending on the actual conditions of use.
Accessories
Owner’s Manual
Leaflet USING THE UNIT SAFELY
Transmitter
Rubber foot x 4
Alkaline battery (AA, LR6) x 2
An AC adaptor (PSA-S series) is required to charge the transmitter (WL-T).
Options (sold separately)
AC adaptor: PSA-S series
Parallel DC cord: PCS-20A (DC Plug x8)
Size and Weight (RECEIVER)
Width
72 mm
2-7/8 inches
Depth
121 mm
4-13/16 inches
Height
56 mm
2-1/4 inches
Weight (including battery)
220 g
8 oz
Specifications (TRANSMITTER (WL-T))
Nominal Input Level
-10 dBu (1 M ohm)
Indicator
BATTERY
Connectors
Input plug: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B type
Power Supply
Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port
Current Draw
350mA
Battery charging time
Approximately 3 hours
Expected battery life under continuous use
Approximately 12 hours
* These figures will vary depending on the actual conditions of use.
Size and Weight (TRANSMITTER (WL-T))
Width
87 mm
3-7/16 inches
Depth
22 mm
7/8 inches
Height
36 mm
1-7/16 inches
Weight
43 g
2 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
