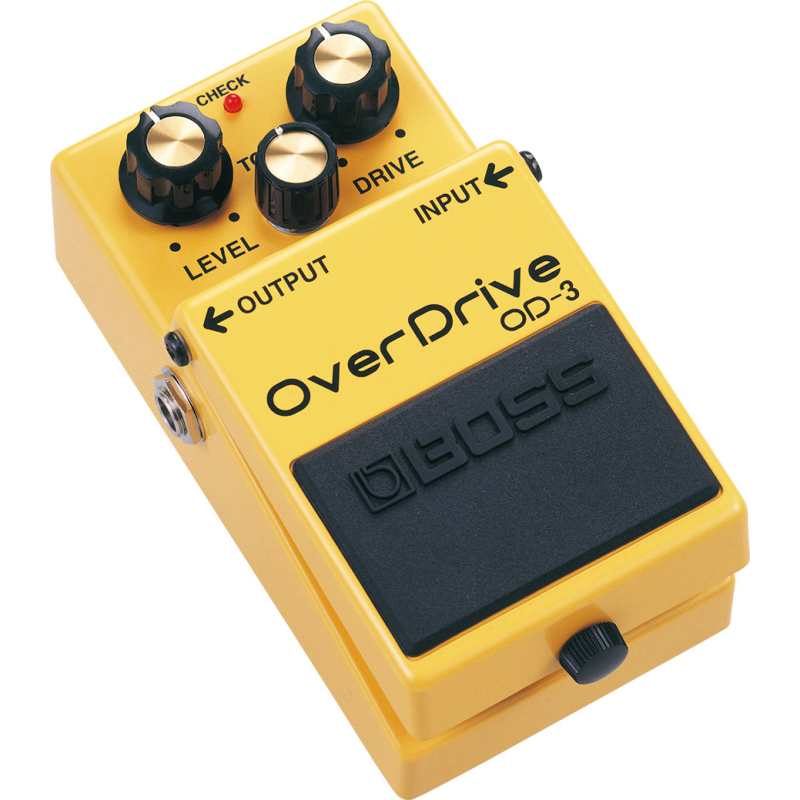

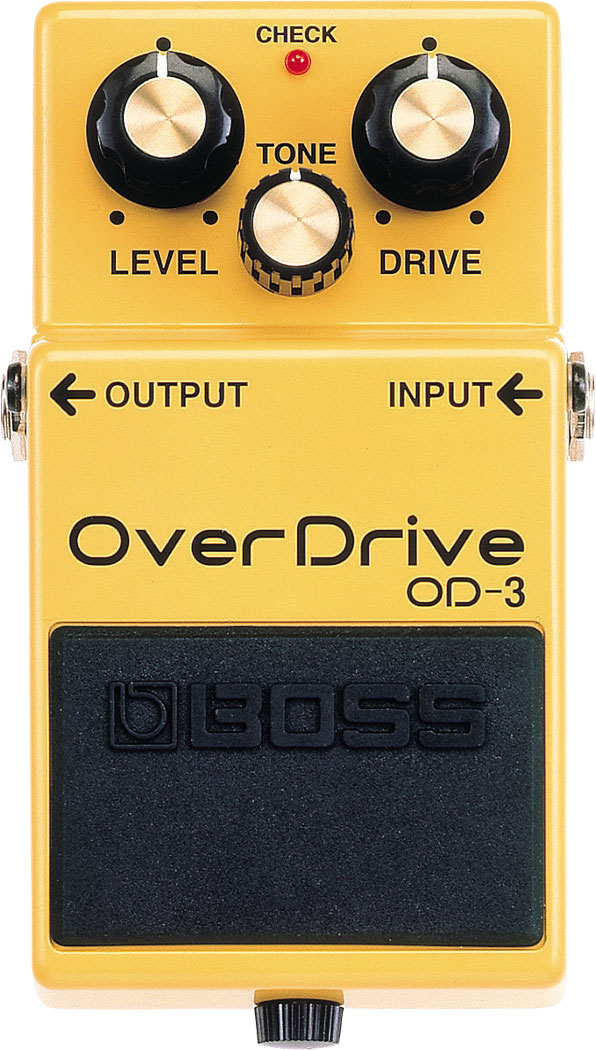

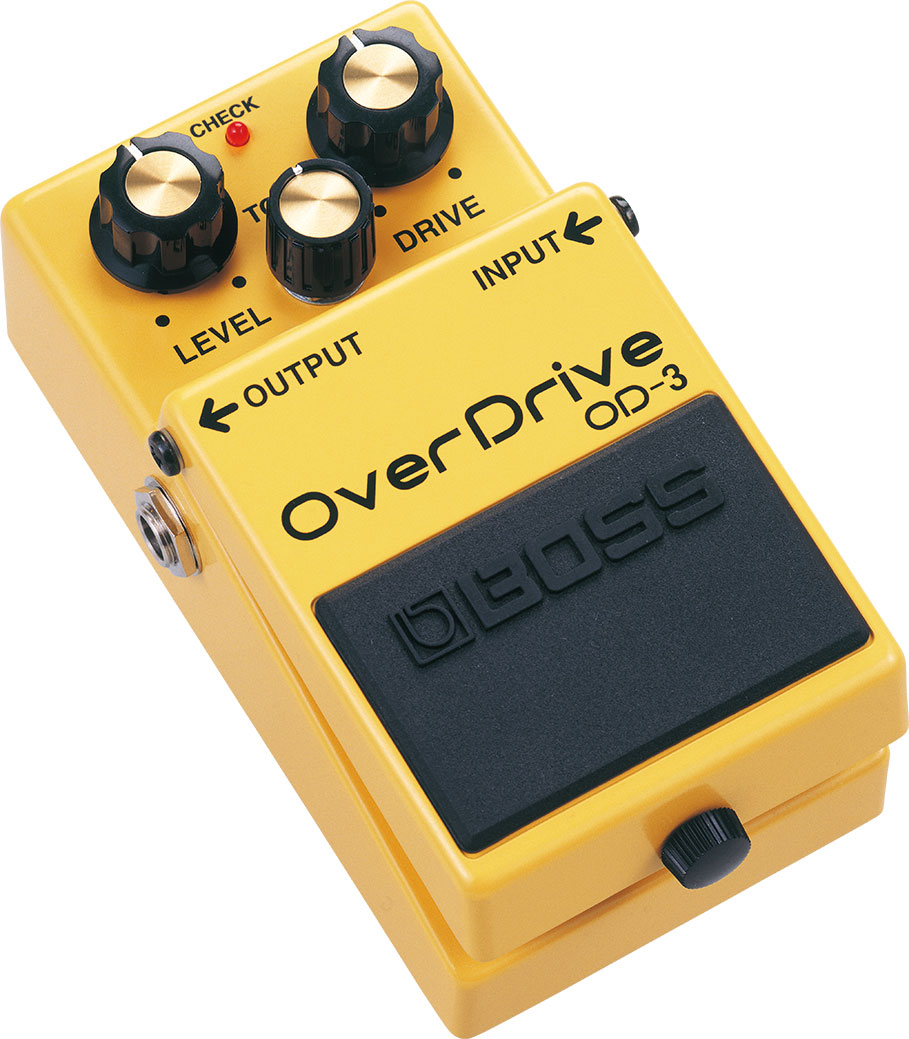

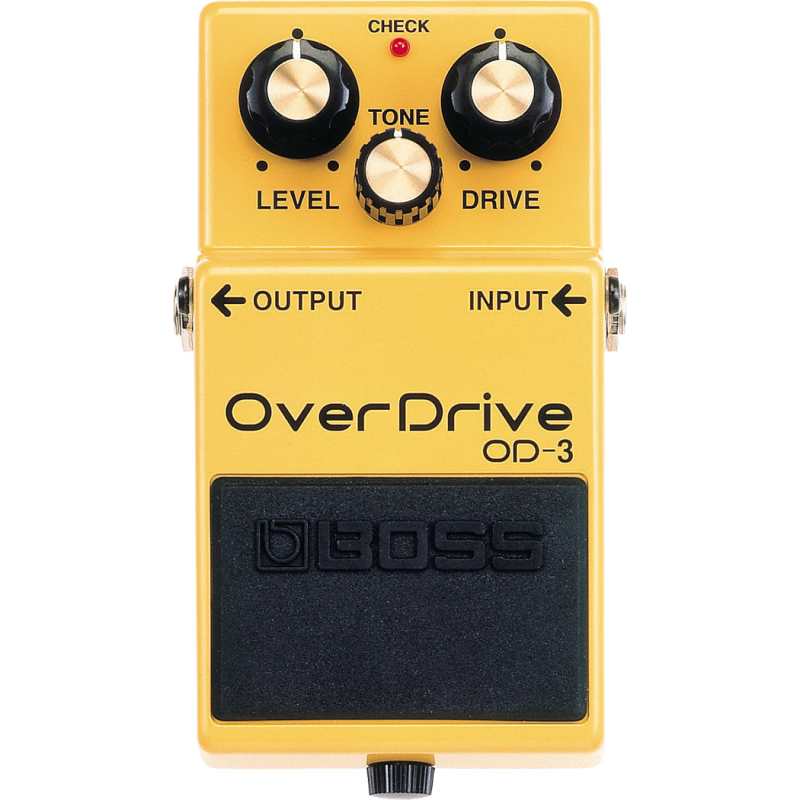

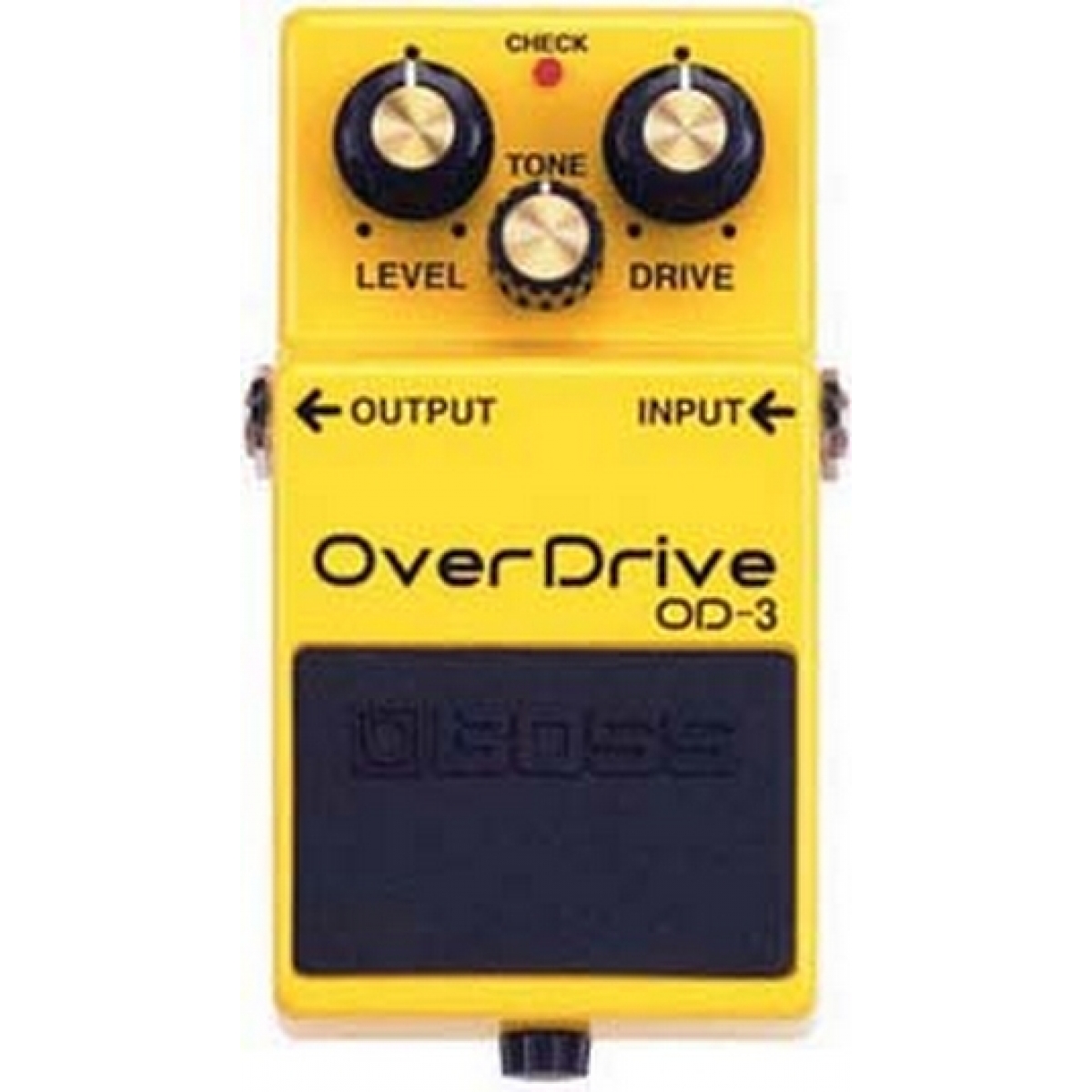

Built in the tradition of the legendary Boss overdrives, the OD-3 OverDrive pedal gives guitarists a greatly expanded range of smooth overdrive tones and improved response while staying true to the original.
- Dual-Stage Overdrive Circuit offers a level of sustain and compression unmatched by any overdrive pedal
- Increased dynamics yield a "bigger" sound than any previous BOSS overdrive pedal
- Dynamic, non-muffled tones reminiscent of classic overdriven "stack" amps
- Straightforward Drive, Tone and Level controls
-
Boss 5-Year Warranty
Specs
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohms
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohms
- Equivalent Input Noise Level
- -115 dBu (IHF-A Weighted, Typ.)
- Connectors
- INPUT Jack, OUTPUT Jack, AC Adaptor Jack (DC 9 V)
- Power Supply
- DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
- Current Draw
- 9 mA (DC 9 V)
- Accessories
- Dry Battery 9 V type (6F22/9 V)
- Option
- AC Adaptor (PSA-Series)
- Size and Weight ( incl. battery )
- Width
- 73 mm
- 2-7/8 inches
- Depth
- 129 mm
- 5-1/8 inches
- Height
- 59 mm
- 2-3/8 inches
- Weight
- 0.4 kg
- 0 lbs. 15 oz.
