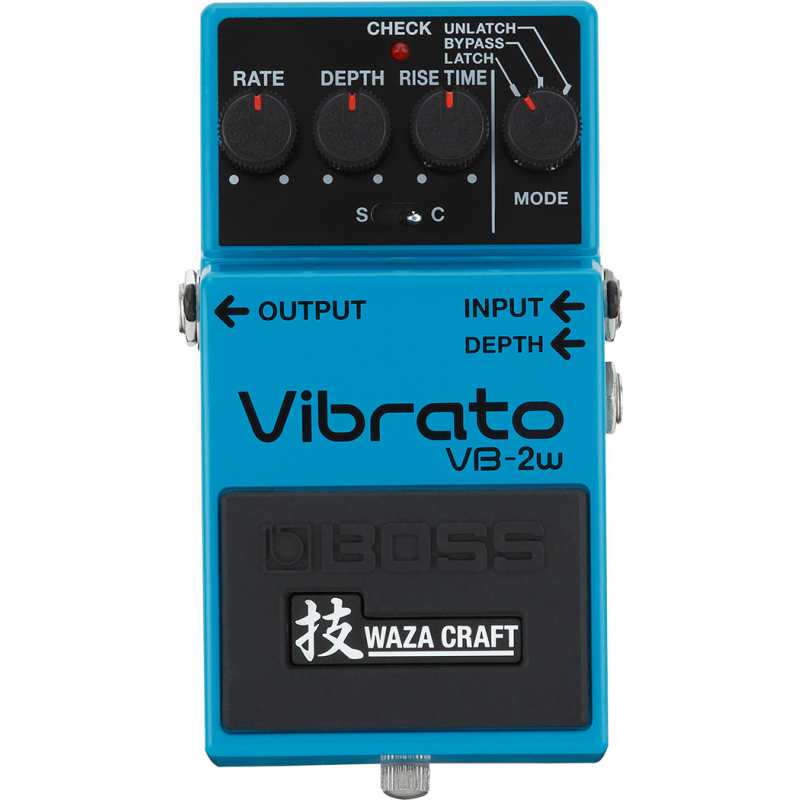

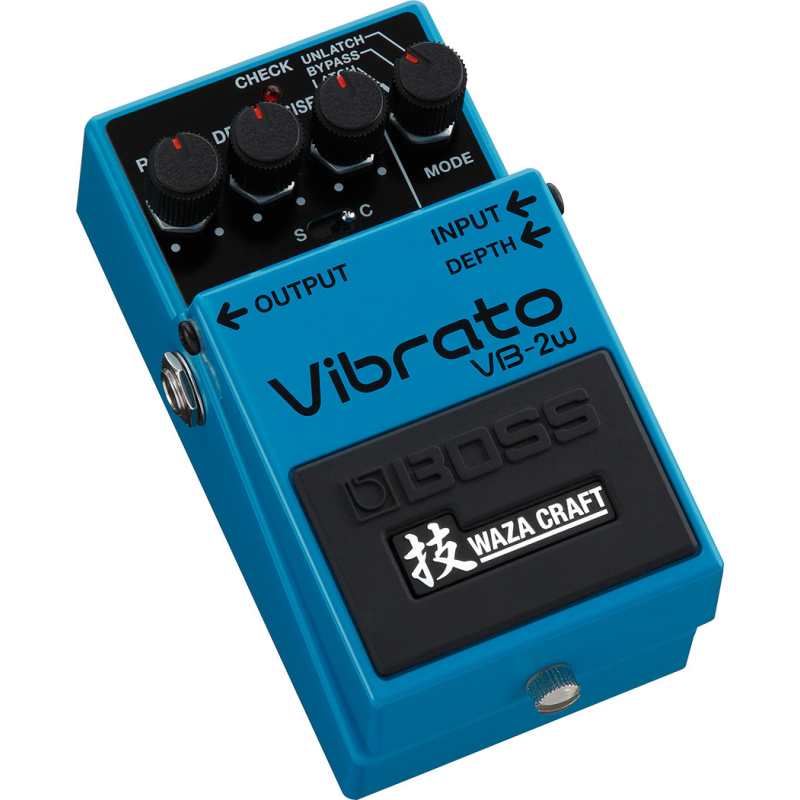

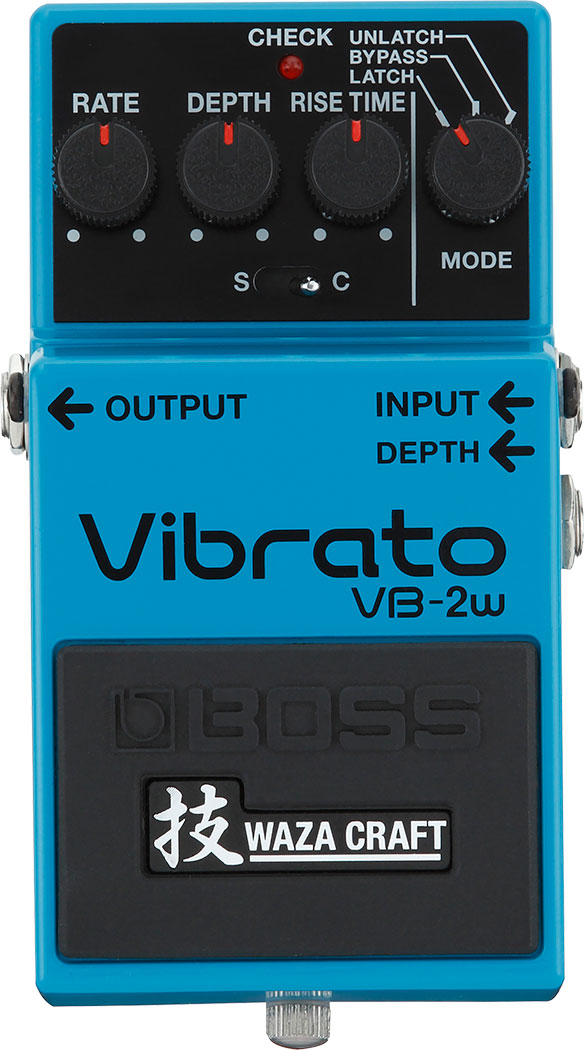

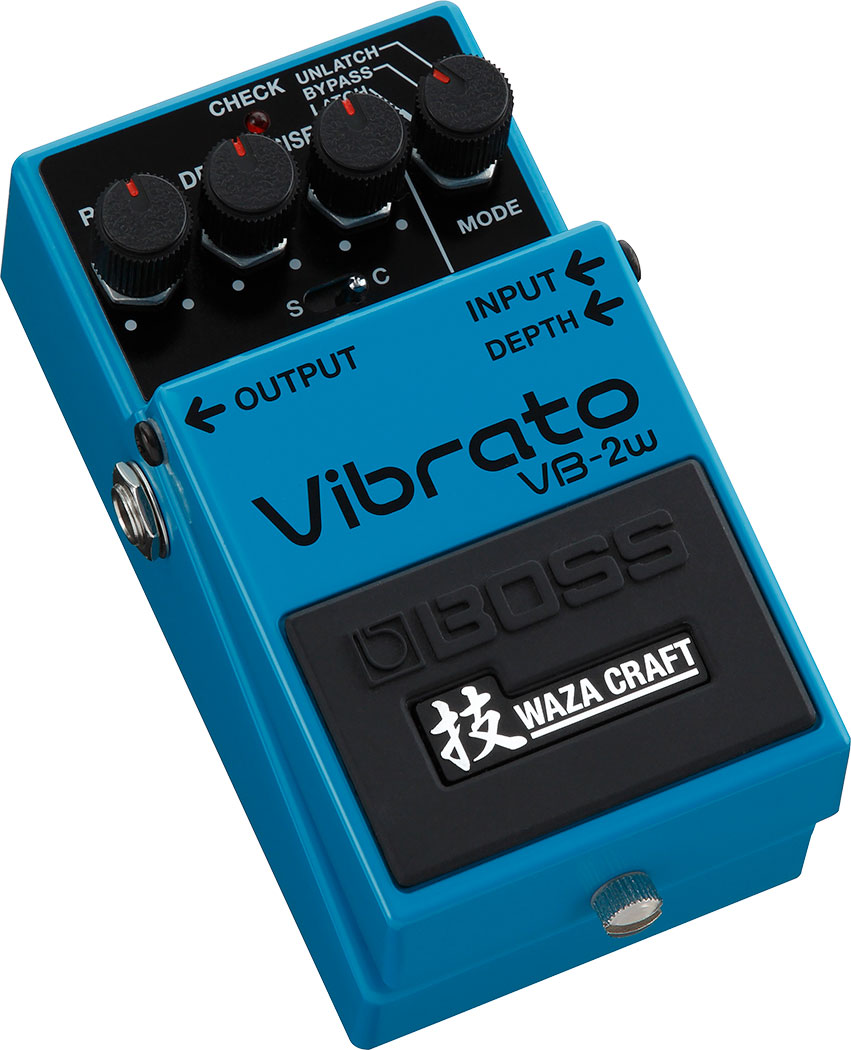

Boss VB-2W Vibrato
True Vibrato Expression, Reborn with Waza Innovation
Ahead of its time when it debuted in 1982, the VB-2 Vibrato has been rediscovered by modern players looking to create unique guitar textures with stompbox effects. Thanks to its expressive, one-of-a-kind sound, this rare pedal has gone on to become one of the most valuable BOSS effects in the vintage market. Now, the progressive spirit of the VB-2 has been reborn as the Waza Craft VB-2W. Using all-analog circuitry, the VB-2W authentically reproduces the true pitch-shifted vibrato of the original pedal, and also adds an innovative new vibrato mode and real-time control function for enhanced expression.
- Premium edition Waza Craft pedal delivers the ultimate BOSS tone experience
- Custom mode features a totally new vibrato sound with unique filter wave
- Standard mode provides a true reproduction of the vintage VB-2 Vibrato sound
- All-analog circuit with BBD (bucket brigade) vibrato line
- Control the effect depth in real time with an optional expression pedal
- Rise Time knob to control the initial onset of the vibrato effect
- Unlatch mode activates the effect only while pressing the pedal, ideal for adding vibrato to specific notes and chords
- Bypass mode takes the BBD out of the signal path to eliminate latency when the effect is off
- BOSS five-year warranty
Waza Craft: The Art of Superior Tone
Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this enthusiastic spirit, we are pleased to introduce the Waza Craft series. In Japan, “Waza” is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship. With final sound approval carried out by BOSS in Japan, the Waza Craft series brings you exceptional tone and touch response through carefully selected analog components, refined circuitry, and meticulous attention to detail.
Specifications
Modes
3 modes
LATCH
UNLATCH
BYPASS
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
Pedal switch
Standard/Custom switch
RATE knob
DEPTH knob
RISE TIME knob
MODE knob
Indicator
CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack
OUTPUT jack
DEPTH jack
DC IN jack
Power Supply
Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately)
Current Draw
35 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 22 hours
Carbon: Approx. 4 hours
Accessories
Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Expression Pedal: FV-500H, FV-500L, Roland EV-5
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
450 g
1 lb
* 0 dBu = 0.775 Vrms
