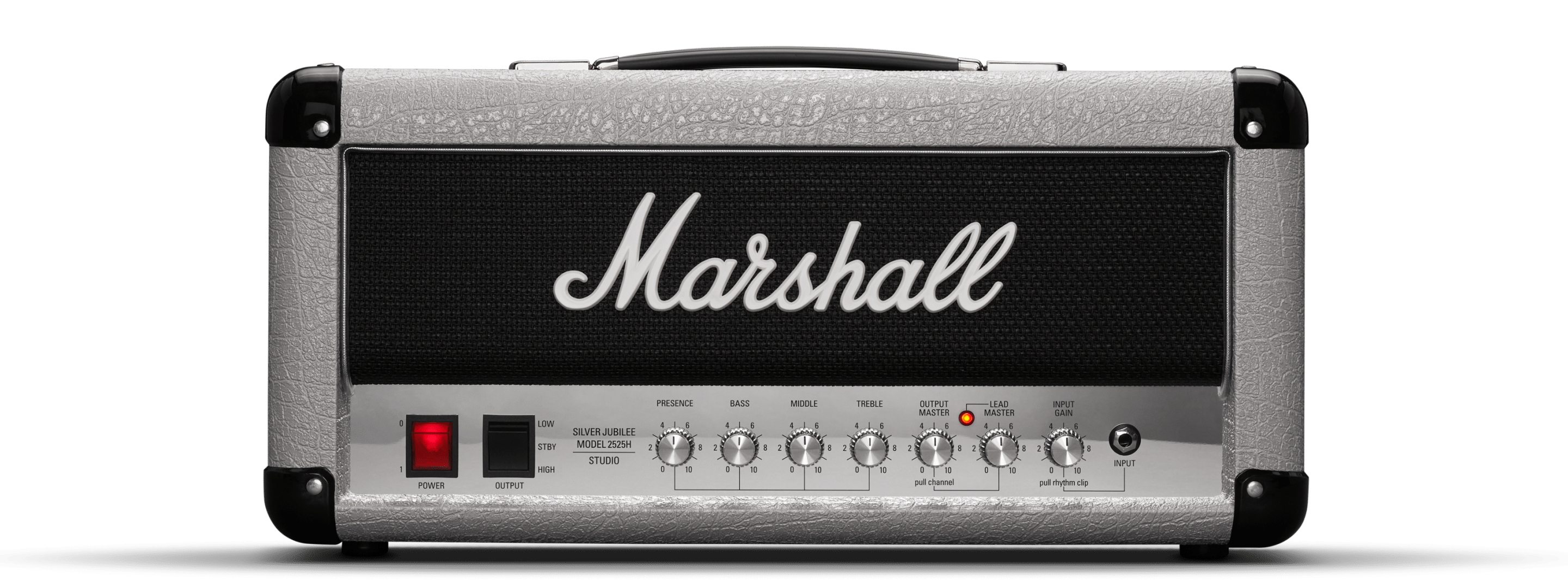

STUDIO JUBILEE HEAD
Compact 20W head built in the UK
With clean, lead and rhythm sounds, three-band EQ, presence and gain controls, you can effortlessly move between pristine cleans, modern crunch and gritty distortion.
Play in a variety of environments from rehearsal rooms to the small venues.
STUDIO JUBILEE HEAD KEY FEATURES:
Built in our UK factory
All-valve
20W to 5W at the flick of a switch
Same crunch as the original Silver Jubilee
Output and lead master volume
The same familiar EQ found on the Silver Jubilee 2555X Vintage Reissue Head
POWER REDUCTION FROM 20W TO 5W AT THE FLICK OF A SWITCH
Find the right power for the right environment without compromising on tone. A simple flip of a switch allows you to opt for a power output of either 5W or 20W. Ideal for effortlessly moving between the bedroom and the studio.
INSPIRED BY THE ORIGINAL SILVER JUBILEE
Experience the versatile tones of the Silver Jubilee, in a smaller package. Originally released in 1987 to mark 25 years of Marshall. The Silver Jubilee became a quick favourite with guitar legends, such as Slash and John Frusciante, for its ferocious tone and split-channel design. You can now take the celebration with you, wherever you choose to play.
ALL-VALVE
This instantly recognisable tone is driven by two ECC83s in the preamp along with an ECC83 phase splitter and two EL34s in the power amp.
BUILT IN OUR UK FACTORY
Meticulously crafted at our Bletchley, England facility, the Studio Jubilee Head is built on our unrivalled expertise in creating legendary sound. Rooted in our heritage but made for today, the studio series incorporates elements of hand-soldering and mirrors the circuit design of its larger, older counterparts.
This harmonious blend of contemporary engineering and traditional craftsmanship has enabled us to create faithful reproductions of our iconic amplifiers.
GENERAL
MODEL
2525H
RANGE
STUDIO
CHANNELS
2
TECHNOLOGY
VALVE
ELECTRONICS
OUTPUT WATTAGE
20W (WITH POWER REDUCTION OPTION TO 5W)
OUTPUTS
SPEAKER OUTPUTS: 5 X 1/4″ JACK SOCKETS (16Ω LOAD / 8Ω LOAD / 4Ω LOAD), DI (1/4″ JACK)
INPUTS
1 X 1/4″ INSTRUMENT INPUT JACK, FOOTSWITCH
CONTROLS
INPUT GAIN (PULL RHYTHM CLIP), LEAD MASTER, OUTPUT MASTER (PULL CHANNEL), TREBLE, MIDDLE, BASS, PRESENCE
EFFECTS
NONE
EFFECTS LOOP
YES, 1 X SERIES SWITCHABLE
VALVES
PREAMP VALVES
2 X ECC83, 1 X ECC83 (PHASE SPLITTER)
POWER AMP VALVES
2 X EL34
UNIT DIMENSIONS
WEIGHT (KG)
10 KG / 22 LBS
WIDTH (MM)
510 MM / 20.1″
HEIGHT (MM)
232 MM / 9.1″
DEPTH (MM)
220 MM / 8.7″
INCLUDED IN THE BOX
BOX CONTENTS
PEDL-90003 INCLUDED
DETACHABLE POWER CABLE INCLUDED
