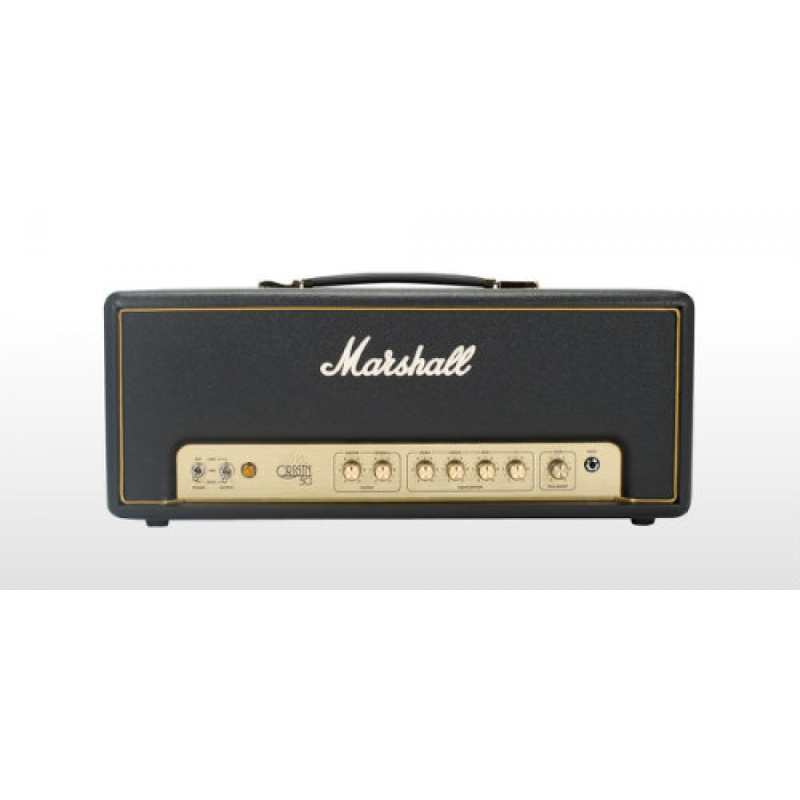

Origin 50 Head
This 50W head enables you to express your personality. The Origin50HTM delivers classic, rich and harmonic tones with a contemporary, sleek style. This all-valve amp has power reducing features making it ideal for different environments from performing on stage to recording in the studio. With a 2-way footswitch available you can turn the gain boost and the FX loop on and off.
Key Features
Add a little boost
The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone.
You have the power
To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, PowerstemTM that allows you to have high, medium or low power modes.
Tilt your sound
With one channel, this amp still offers two voices, normal and high treble. By using the tilt control you can blend your sound between these two voices to access the one you prefer.
Control your tone
Crank up the master volume to get a classic overdrive sound and using the presence control you can increase the high frequency.
Technical Specification
General
Model
Origin50H
Range
Origin
Technology
Valve
Channels
1
Electronics
Output wattage
High power 50W, mid power approx 10W and low power approx 5W
Outputs
Speaker outputs: 3 x 1/4″ jack sockets (16Ω load / 8Ω load), DI out (1/4″ jack)
Inputs
1 x 1/4″ jack instrument input, footswitch
Controls
Gain, boost, tilt, bass, middle, treble, master, presence, powerstem
Effects
None
Effects loop
Yes, Series, Send/Return
Valves
Preamp valves
3 x ECC83
Power amp valves
2 x EL34
Accessories
Footswitch
PEDL-90016 included
Cable
Detachable power cable included
Dimensions (including feet and handle)
Weight
11.8 kg / 26 lbs
Width
577 mm / 22.7″
Height
228 mm / 9″
Depth
225 mm / 8.9″
