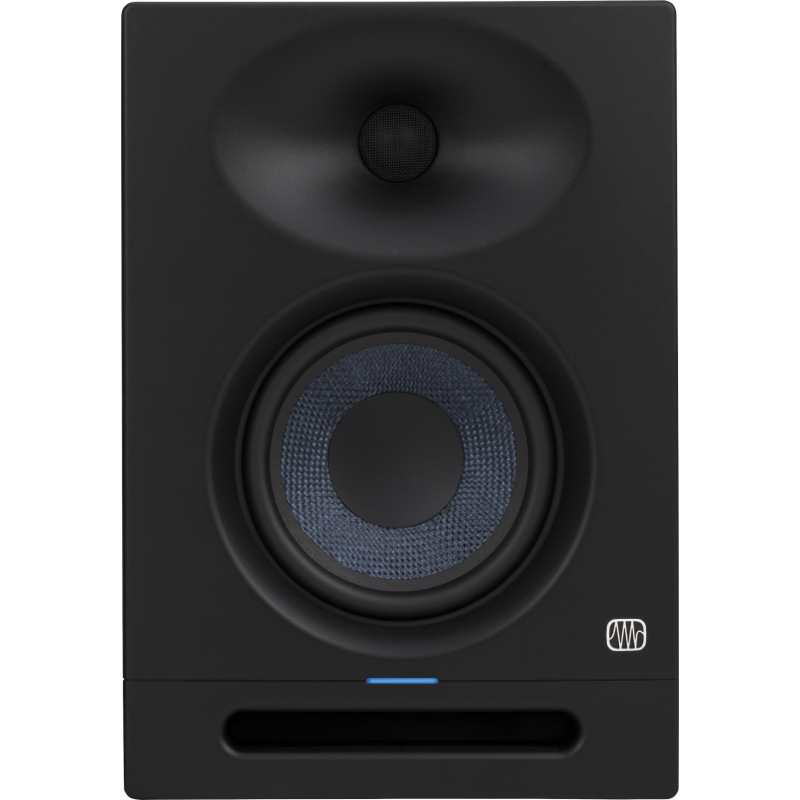

Building on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response, reproducing every detail in your recordings with a natural sound unparalleled in its class.
The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broad sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you’ll hear the finest details in your mix.
The woven-composite low-frequency driver offers Eris’ signature tight, clear bass, with plenty of punch. The ported enclosure and 80W of biamped power maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz – without a subwoofer. Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.
5.25-inch, woven-composite, low-frequency transducer
1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
120˚(H) x 60˚(V) EBM waveguide for a wide sweet spot
Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
80W, Class AB biamplification
48 Hz to 20 kHz frequency response
102 dB SPL (Peak, @ 1 meter)
Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
RF interference, output-current limiting, over-temperature, transient, subsonic protection and amplifier “soft start” feature (eliminates popping on power-up)
Internal power supply with IEC connector and power switch with on/off LED
Balanced XLR and ¼-inch inputs and unbalanced RCA inputs
See more
Features
5.25-inch woven composite low-frequency driver
1-inch, ultra-low mass, silk-dome, high frequency driver
Crossover Frequency 3.5 kHz
120˚ x 60˚ EBM waveguide provides a sweet spot
Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
80W, Class AB dual amplification
48 Hz to 20 kHz frequency response
102 dB Peak SPL (@ 1 meter)
Acoustic Tuning Controls:
Acoustic Space (Flat, -2 dB, -4 dB)
High Frequency (±6 dB, center 10 kHz, continuously variable)
Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
Inputs:
XLR and 1/4-inch TRS balanced rear-panel inputs
RCA unbalanced rear-panel inputs
Protection:
RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
Power Saver mode (engages after 40 minutes)
