Sound you can trust.
PreSonus® Eris-series studio monitors are used worldwide by audio engineers who need to hear every detail of their recordings. Ideal for music lovers, content creators, and gamers, the Eris E4.5 media reference monitors deliver the same studio-quality sound and accurate frequency response professional Eris-series studio monitors are known for, in an elegant, compact form ideal for home use. Features like onboard EQ controls and an integrated headphone amplifier, make it easy to cater your Eris E4.5 monitors to taste for a customized listening experience.
Clean overall sound, smooth high end, and a wide sweet spot
Every Eris-series studio monitor utilizes a woven composite low-frequency driver. The weave and nature of the Eris E4.5 speakers’ 4.5-inch woofer result in tight bass that you can feel, as well as a cleaner overall sound. The one-inch silk-dome tweeter produces a smooth and refined sound, accurately reproducing transients and high frequencies. The tweeter is designed to radiate sound with a fairly wide pattern, creating a large optimal listening area or “sweet spot” so you can move around and still hear an accurate stereo image. With 25 watts per side of onboard power, Eris 4.5 monitor speakers pack a serious punch, while still delivering clear, accurate audio.
Easy-to-use controls.

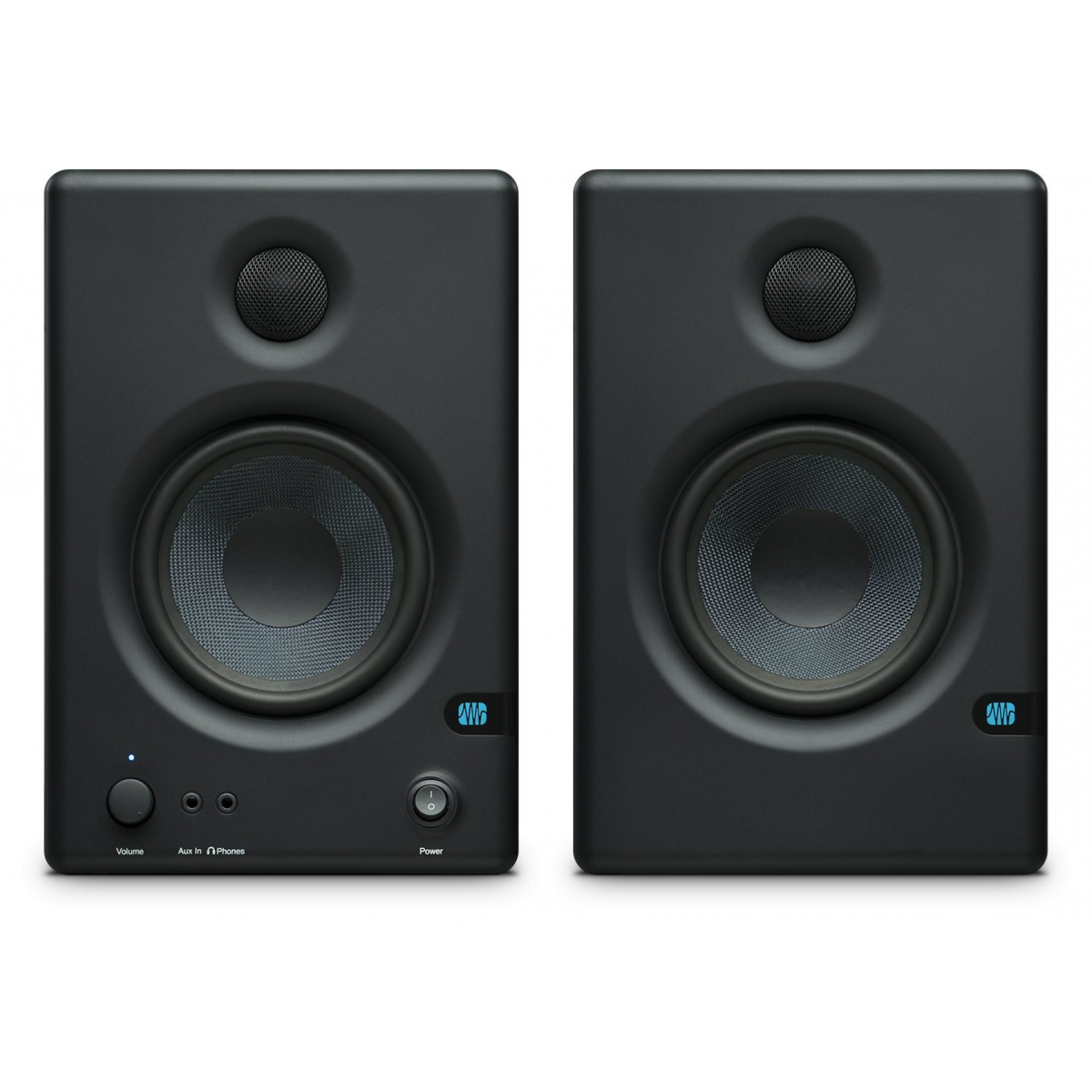

A speaker’s response is affected by where you place it and the acoustics of your space. That’s why Eris E4.5 active media reference monitors offer controls to adjust the high- and low-frequency content, so your speakers always sound their best. A convenient front-panel volume knob sets both the speaker level and the integrated headphone amplifier’s level.
Flexible input options.

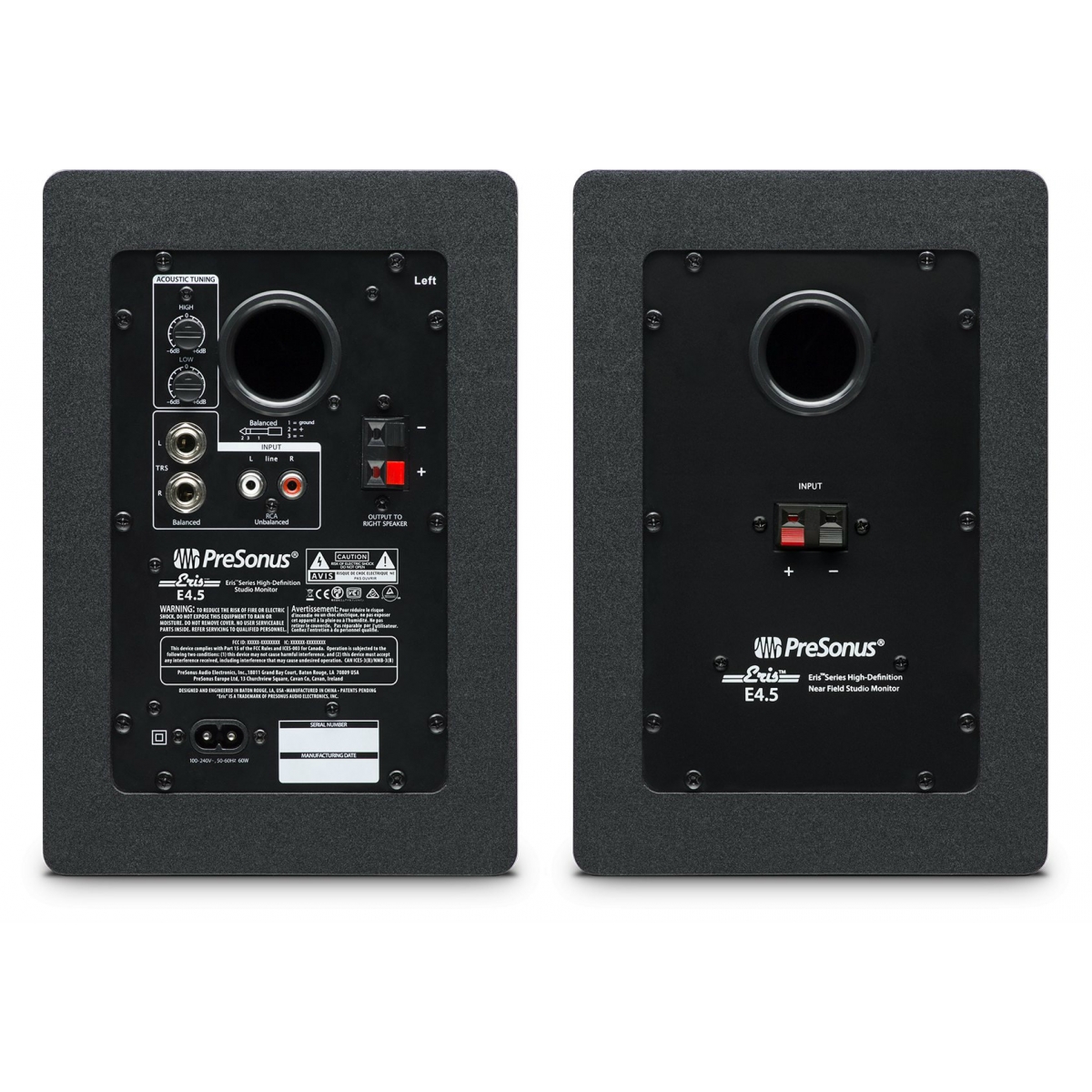

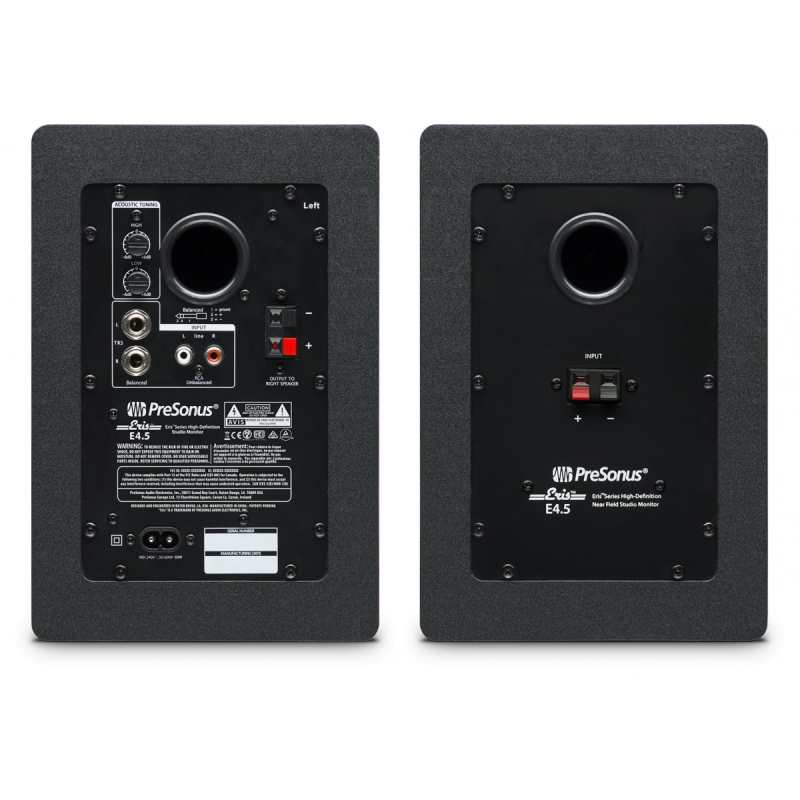

With three different types of audio inputs, it’s easy to feed audio to your Eris E4.5 monitors from almost any source with a line output. Play games, listen to music, and even create content with a computer, media player, mixer, or other line-level source using the Eris E4.5 speaker’s rear-panel, 1 ¼-inch TRS and RCA inputs and front-panel 1/8” stereo inputs. A loud, clear, front-panel headphone amplifier lets you work and play in stealth mode, without disturbing your housemates.
Accuracy defined.
Like all PreSonus speakers, the Eris E4.5 offers consistent, accurate listening, with the smooth and even frequency response that has made Eris studio and media reference monitors popular around the world. Their compact and powerful design makes them an ideal solution for any small space. Want extra-deep low end? Pair the compact Eris E4.5 with PreSonus’ powerful Temblor® T8 active subwoofer for a truly full-range sound system that fits almost anywhere.
Features
Components and construction
4.5-inch (114 mm) woven composite low-frequency transducer
1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
Rear-firing acoustic port for superior bass-frequency reproduction
Optimized, resonance-suppressing internal bracing
User controls
High- and low-frequency tuning controls
Front-panel Volume control for speakers and headphone amplifier
Power and safety
50 watt (25W/side), Class AB bi-amplification
RF interference, output current limiting, over-temperature, transient, and subsonic protection
Amplifier “soft start” feature eliminates popping on power-up
Internal power supply with IEC connector
Power switch with on/off LED
Inputs and outputs
Balanced ¼-inch TRS, unbalanced 1/8-inch stereo, and RCA inputs
Integrated stereo headphone amplifier with front-panel 1/8-inch output
Technical Specifications
Inputs
1- Stereo 1/8"
2- Balanced ¼” TRS
2- Unbalanced RCA
Performance
Frequency Response 70 Hz – 20 kHz
Crossover Frequency 2.8 kHz
LF Amplifier Power 25W/speaker
HF Amplifier Power (not biamped)
Peak SPL (@ 1 meter) 100 dB
LF Driver 4.5"
HF Driver 1” silk dome
Input Impedance 10 kΩ
User Controls
Volume Range A-type taper
MF Control Variable (-6 to +6 dB)
HF Control Variable (-6 to +6 dB)
Low Cut Flat, 80 Hz, 100 Hz
Acoustic Space Flat, -2 dB, -4 dB
Protection
RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
External mains fuse
Power
100-120V ~50/60 Hz or 220-240V ~50/60 Hz
Cabinet
Vinyl-laminated, medium-density fiberboard
Physical
Width 6.42" (163 mm)
Depth 7.09" (180 mm)
Height 9.45" (241 mm)
Weight 13 lb. (5.9 kg)
