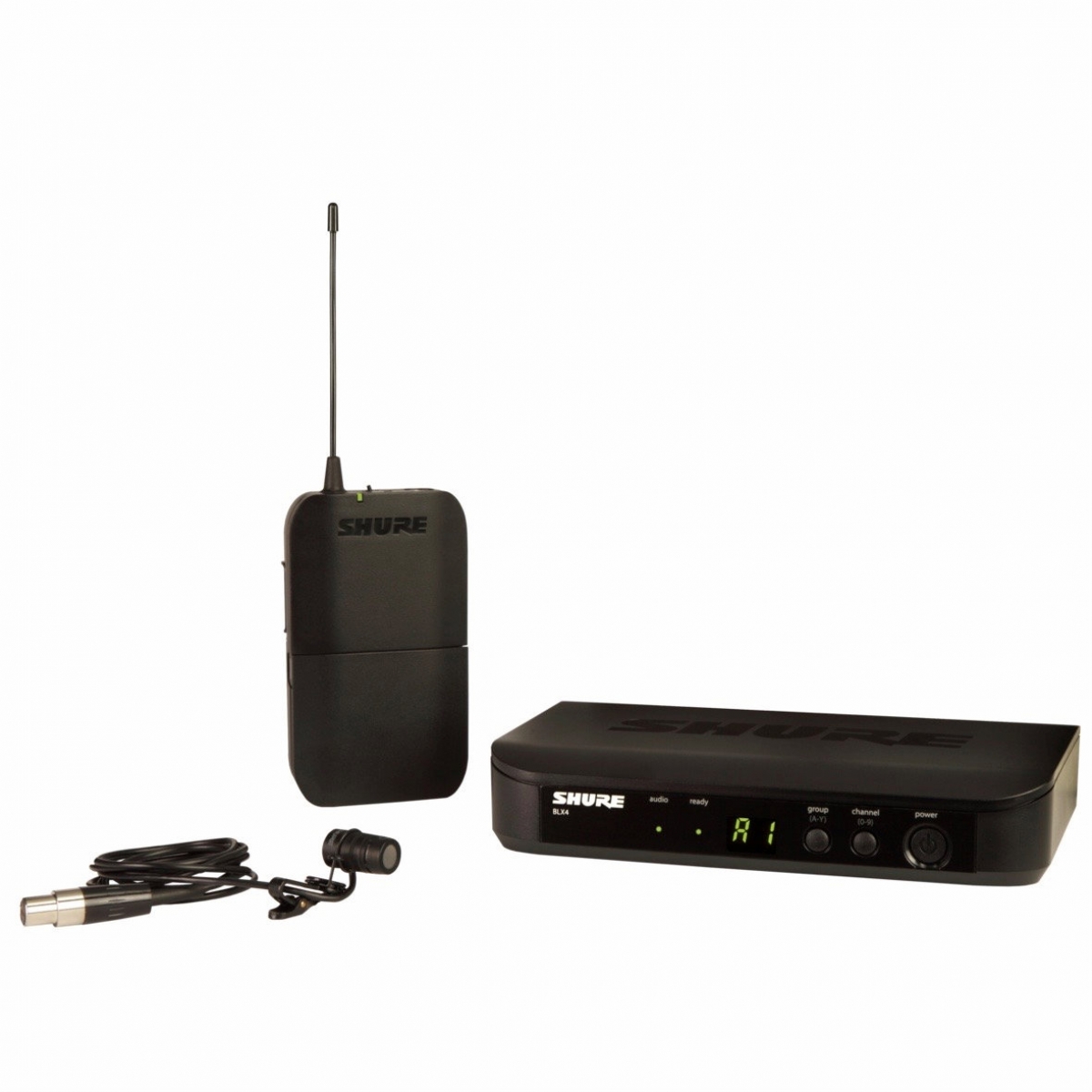

Shure BLX14/W85 Wireless Presenter System with WL185 Lavalier Microphone
Premium cardioid lavalier microphone with analogue wireless transmission
The BLX14/W85 Presenter System with WL185 brings a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, this lavalier uses an interchangeable condenser cartridge, meaning there will always be a lavalier to suit your application. With analogue wireless transmission.
Main Features
Available Transmitter Form factors: Bodypack
Operating range (up to): 100 m (Under typical conditions)

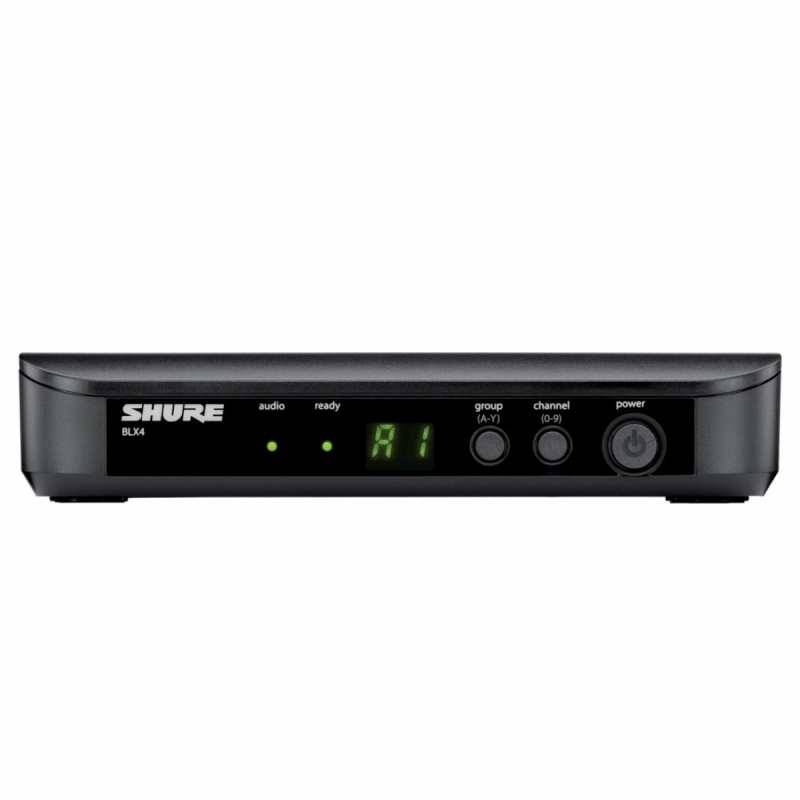

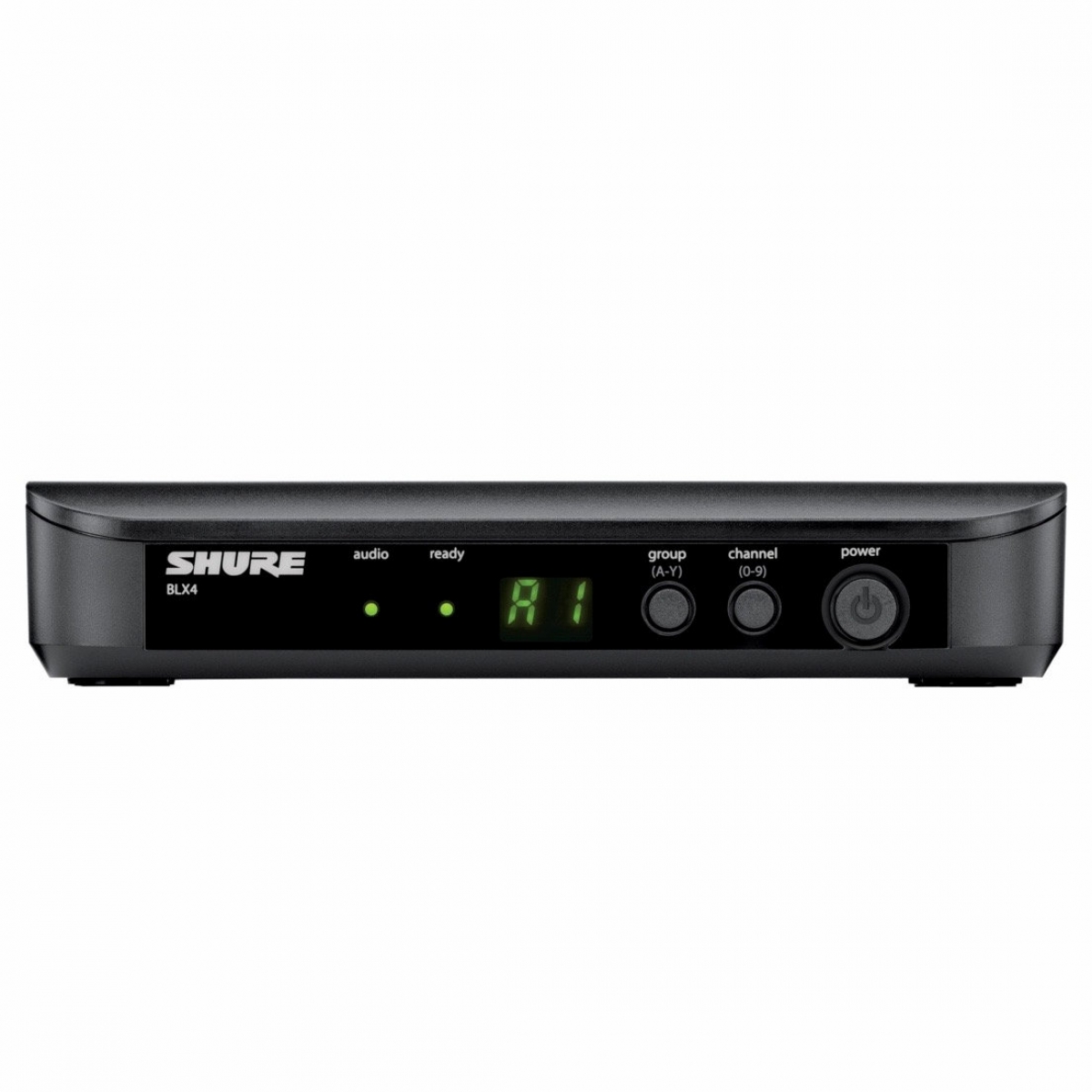

BLX4 Wireless Receiver for BLX Wireless System
Up to 12 compatible systems (region dependent)
Microprocessor-controlled internal antenna diversity
One touch QuickScan locates the best open frequency

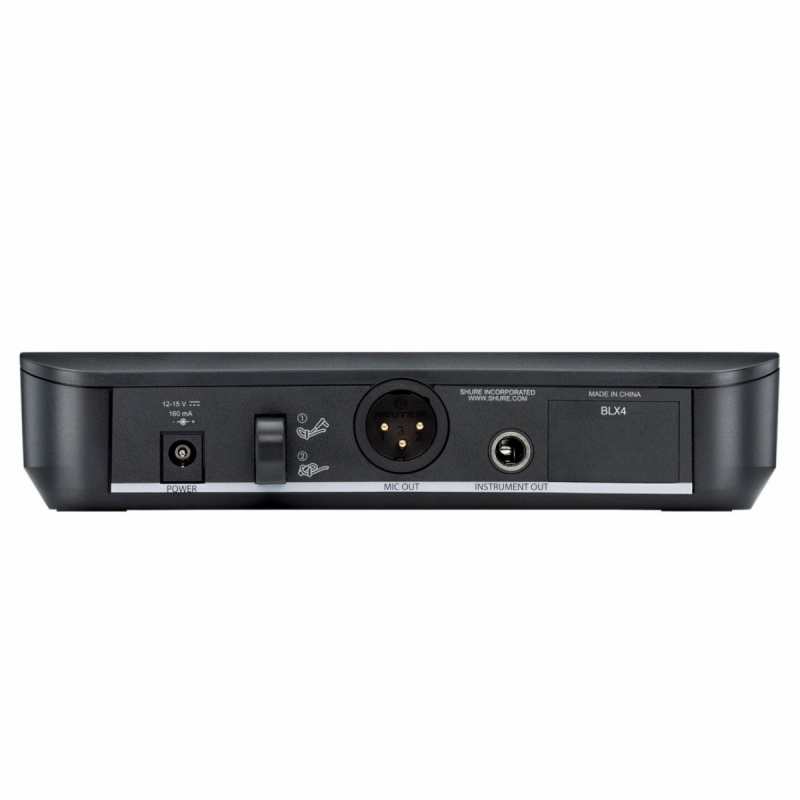

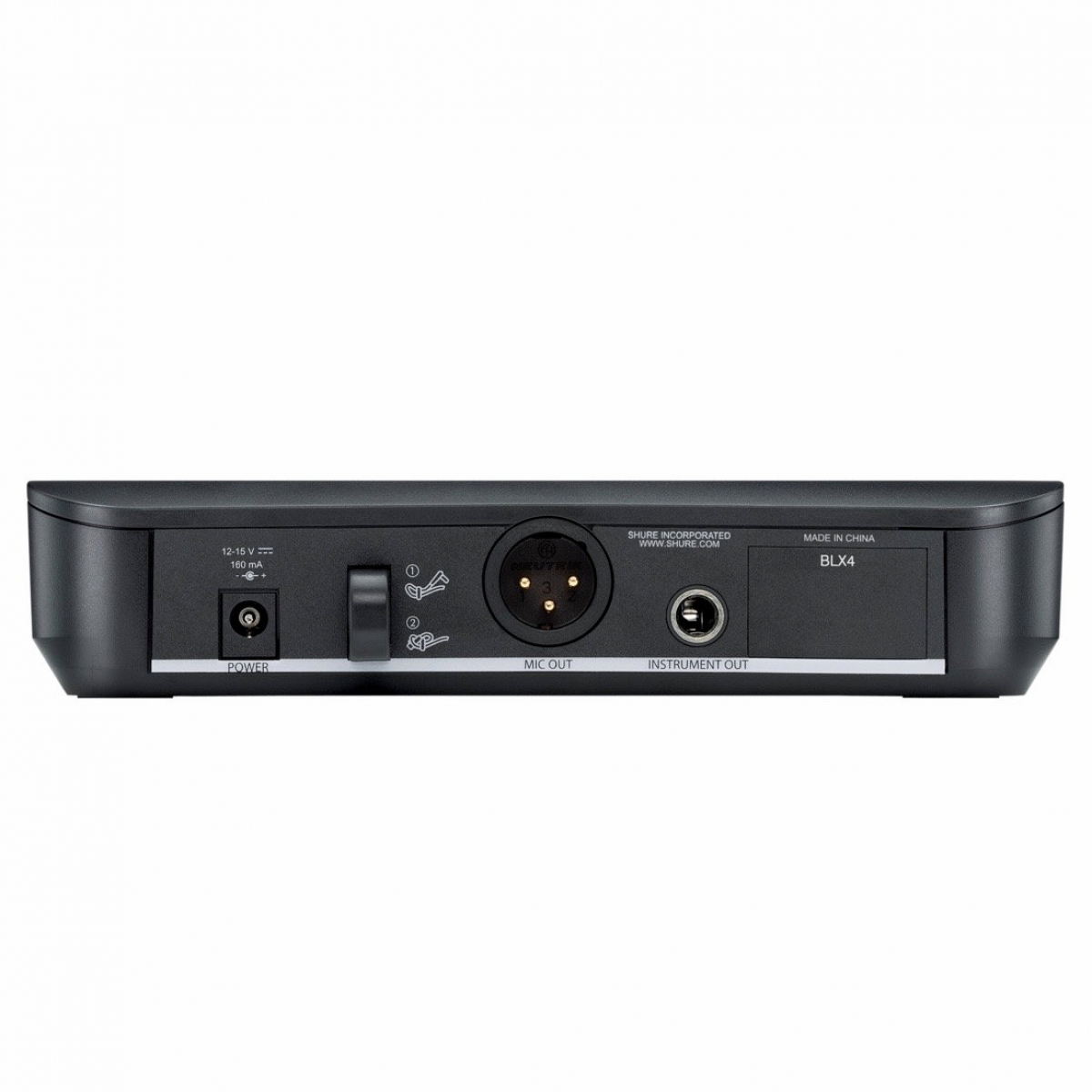

¼" and XLR audio outputs
Two color audio status indicator LED
Green: Normal audio levels
Red: Excessive audio levels (overload/clipping)

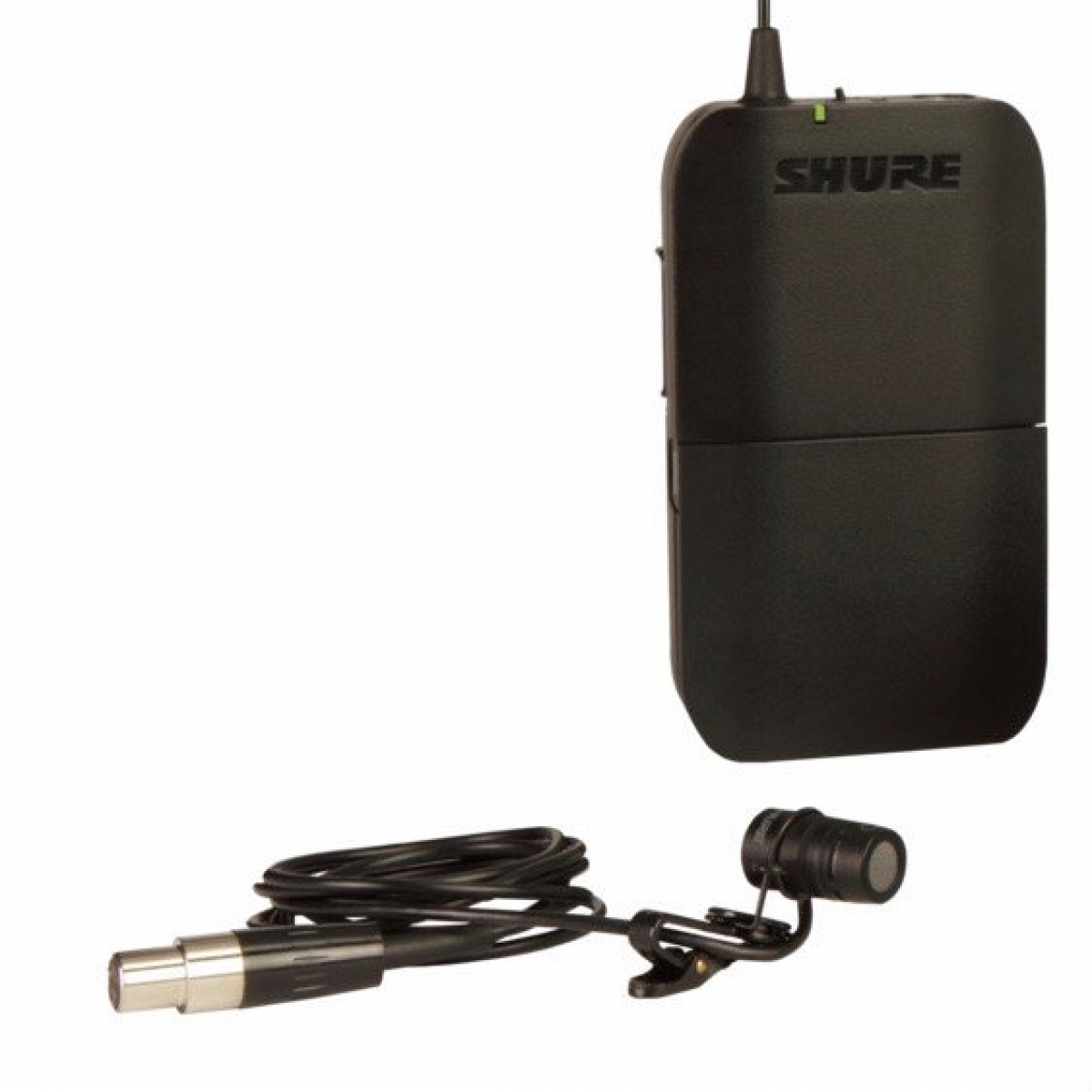

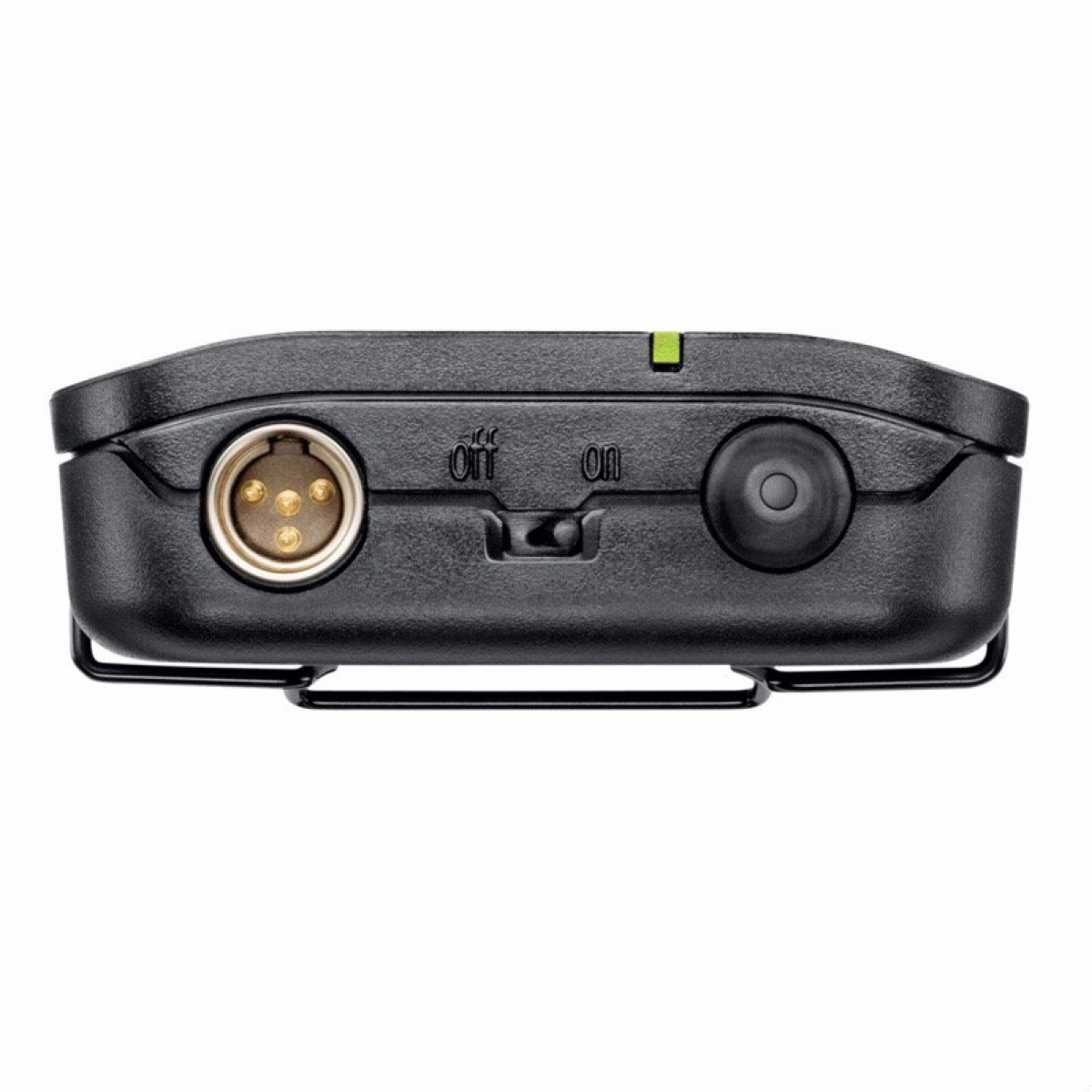

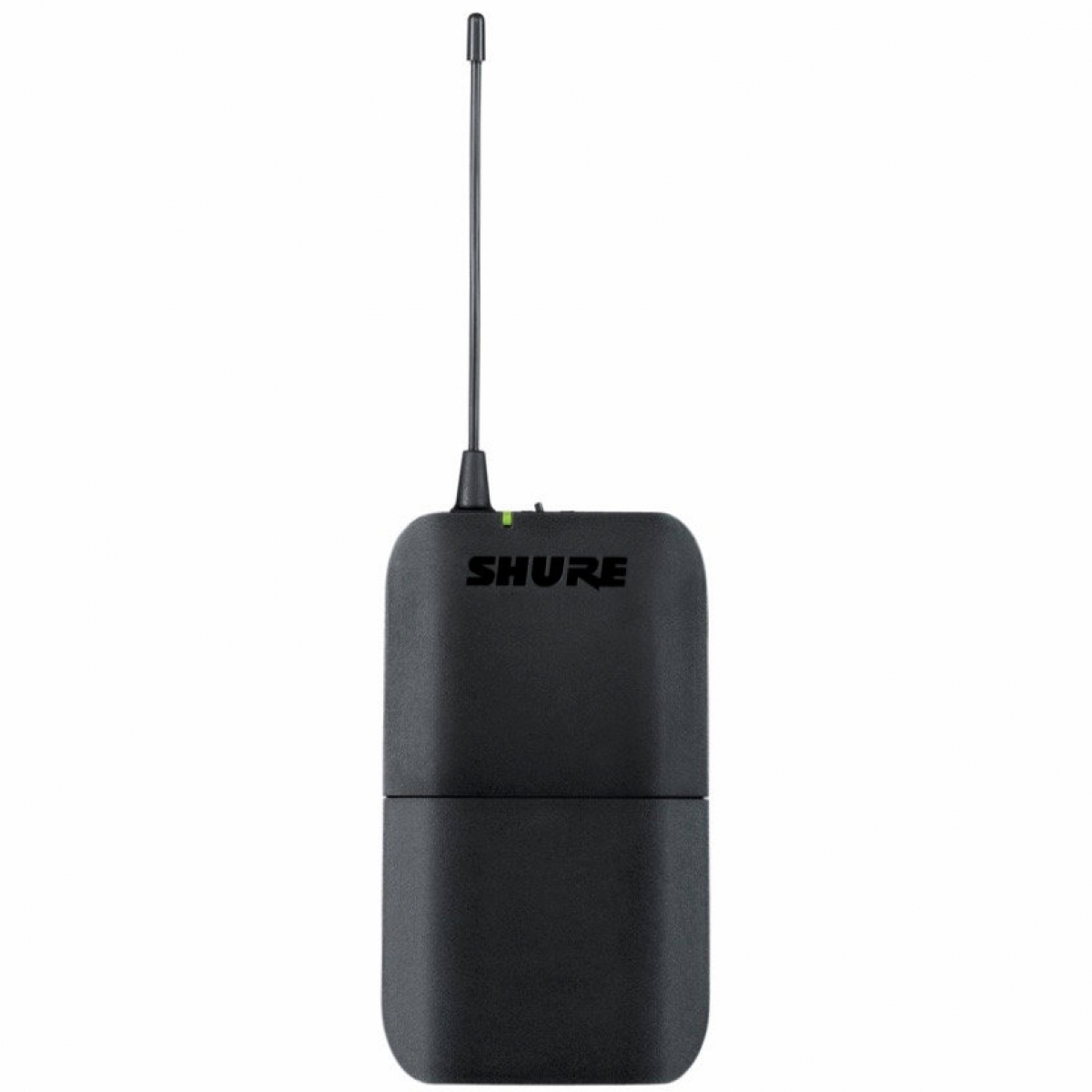

BLX1 Wireless Bodypack Transmitter
Power and battery status LED
Adjustable gain control
Quick and easy frequency matching
AA batteries (included) provide up to 14 hours of continuous use
100 m (300 ft.) operating range (line of sight)

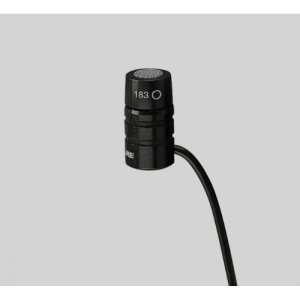

WL185 TQG Lavalier Microphone
Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
Interchangeable cartridges that provide an optimal choice for each application
Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
Supplied snap-fit foam windscreen that controls breath noise and stays on securely
Balanced, transformerless output for increased immunity to noise over long cable runs
Supplied dual tie clip holds two microphones for dual miking applications
Illustration Shure WL185 TQG Lavalier Microphone
Microphones
A cardioid microphone has the most sensitivity at the front and is least sensitive at the back. This isolates it from unwanted ambient sound and gives much more resistance to feedback than omnidirectional microphones. This makes a cardioid microphone particularly suitable for loud stages.
Condenser microphones are more sensitive than Dynamic microphones. They use an electrically-charged diaphragm & backplate assembly to form a sound sensitive capacitor. When sound sets the diaphragm in motion, the distance between the diaphragm and the backplate changes. This variation in spacing changes the capacity of the capacitor, and produces the needed electrical signal. All condenser microphones need to be powered: either by batteries in the microphone or by externally provided phantom power.
A microphone with tailored frequency response is usually designed to enhance a sound source in a particular application. For instance, a microphone may have a peak in the 2 – 8 kHz range to increase intelligibility for live vocals.
A lavalier microphone or lavalier (also known as a lav, lapel mic, clip mic, body mic, collar mic, neck mic or personal mic) is a small electret or Ribbon diaphragm microphone that allows for hands-free operation. Typical applications include television, theatre, and public speaking.
TQG (also called TA4F or 4-Pin Mini) is a four pin audio connector used available for all Shure bodypack tranmsitters and all Shure wireless microphones.
Microphone – WL185
Cardioid TQG lavalier microphone offers an interchangeable cartridge and consists of a rotatable tie clip, and snap-fit foam windscreen.
Wireless Receivers – BLX4
Analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up.
Transmitter – BLX1
Wireless bodypack transmitter offers a lightweight, durable design and adjustable gain control.
