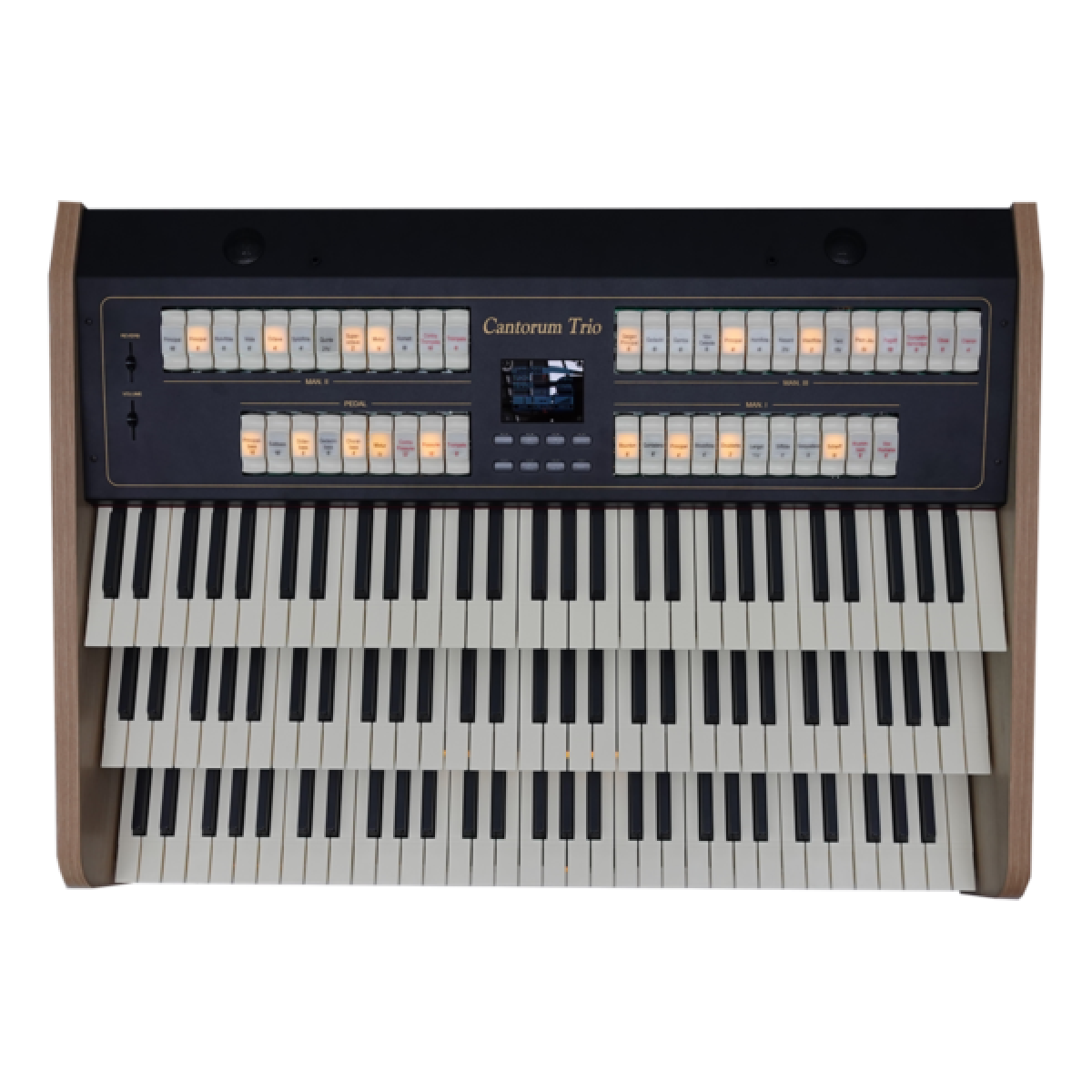

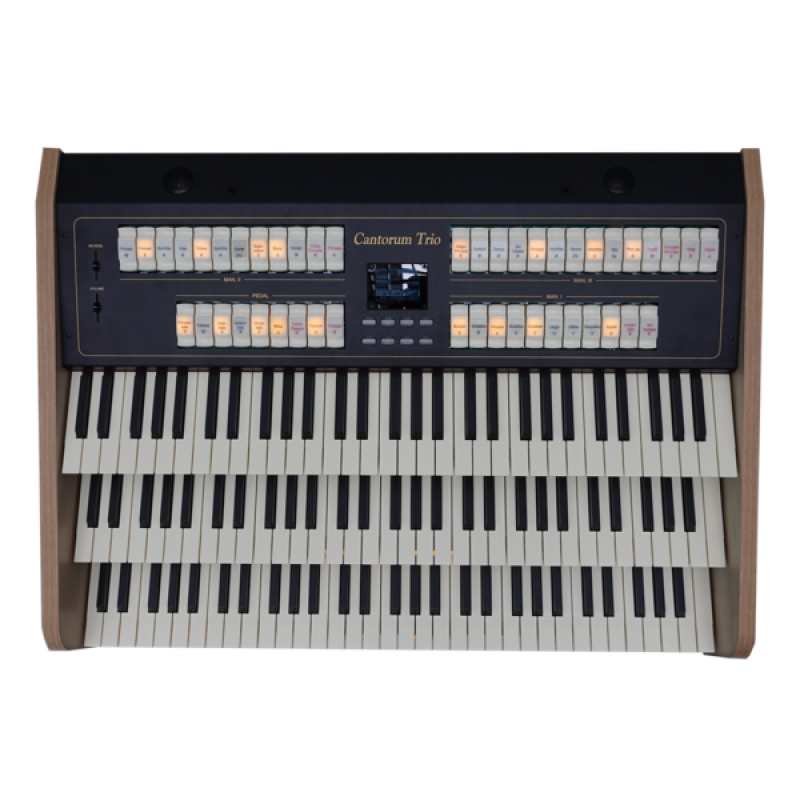

CANTORUM TRIO

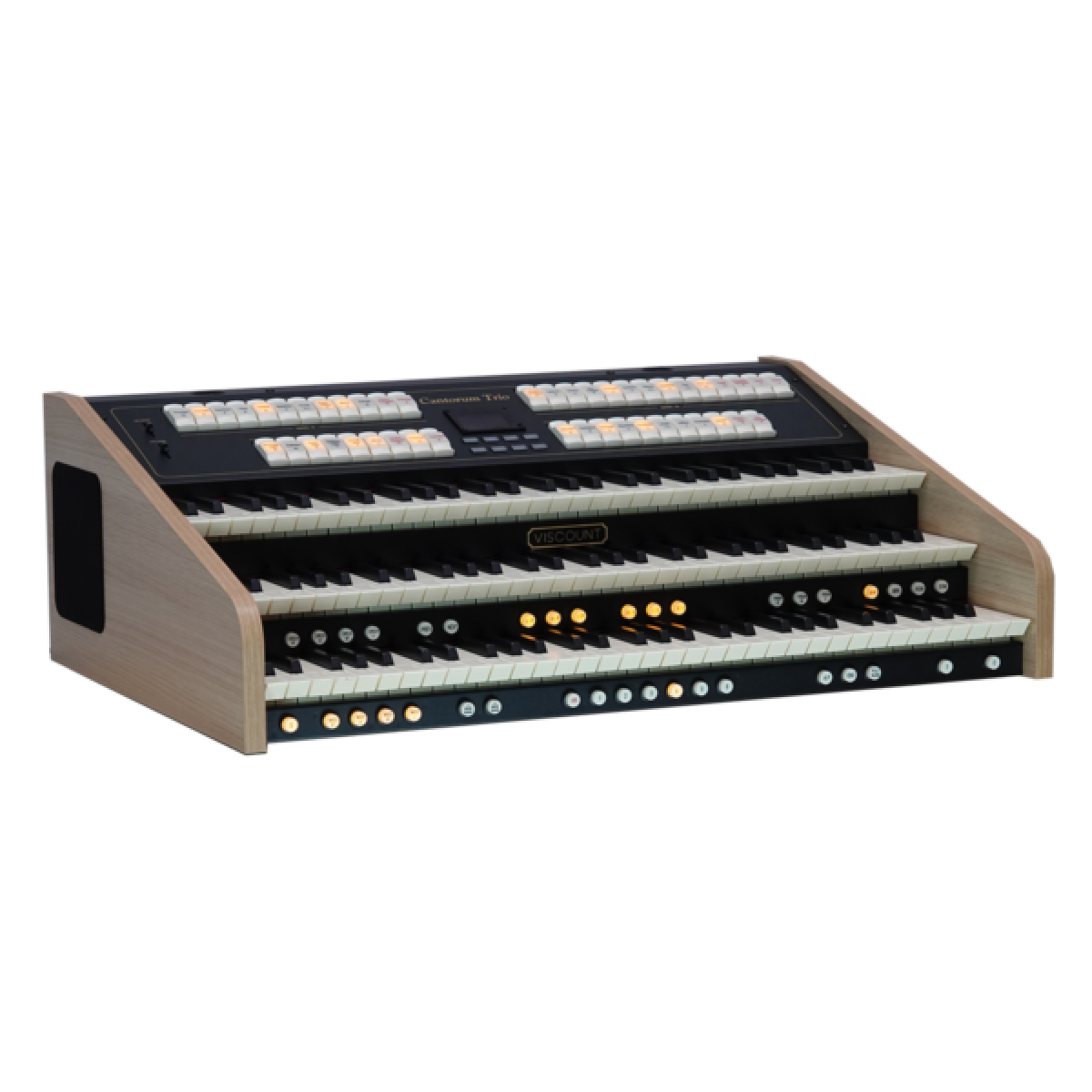

The new Cantorum Trio is a 3 manual portable organ by Viscount. The last addition of the world acclaimed Cantorum line, offers 46 voices, convenient stoptab arrangement and built in amplification, providing everything at your fingertips to experience the latest sampled sound technology available in a digital organ.The superb sound and the contemporary aesthetic make this genuine Viscount organ a remarkable yet affordable instrument. Whether you are a quality-conscious church or an organist on a limited budget, the Cantorum Trio is now available in any situation. The compact but sturdy cabinet is easy to move and allows you to use the instrument in a fully multifunctional way.
DESCRIPTION
Cantorum Trio is a completely portable organ with 3 manuals, 46 speaking stops and 4 orchestral voices. It’s the ideal instrument for the discerning student or church on a limited budget.
Viscount Cantorum Trio utilises the newly developed ARTEM technology (Advanced Real TEchnology Music), a powerful sampled sound generator that is capable of faithfully reproducing the authentic sound and performance of a traditional pipe organ.
This unique platform faithfully reproduces pipe sounds from the world’s most famous styles of organ building. It has the four organ specifications (Baroque, North German Barock, Romantic, Symphonic) each having their own samples and distinctive disposition. You can easily select the organ of your choice and create your own preferred audio environment through acoustic modeling.
The Cantorum Trio offers a built amplification system composed by 4 Speakers and 2×55 Watt digital amplifier.
The organ’s settings are easy to access, modify and store through the enhanced graphic display on the front panel. You simply can’t find better value for money when considering sampled sound technology than you have in the Viscount Cantorum Trio.

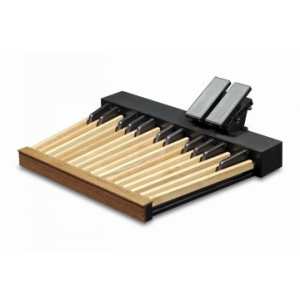

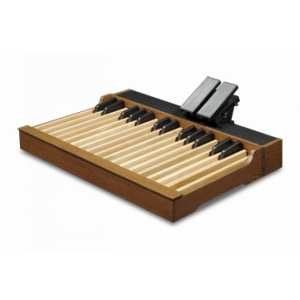

A wide range of optional, as stands, bench, pedalboard, pedals and powerful external amplifers can all be added to the organ to increase it’s flexibility and mobility.
OVERVIEW
Tecnology ARTEM technology
Manuals 3 x 61 keys "Tracker Action" keyboards, with velocity control for MIDI and Orchestra sections
Stop Controls Tilt Tabs
Internal Amplification 2 Channels, 4 Speakers, 110 W Total (2 x 55 Watt @ THD 1%)
Expression Pedals Available with an optional pedal
Crescendo Pedal Available with an optional pedal
STOPS & VOICES
Organ Stops 46
Pedal 9
Manual I 11
Manual II 12
Manual III 14
Couplers 6
Tremulants 3, Programmable with independent Depth and Speed for each Organ Division
Orchestral Voices Stops 4
Styles 4 Preset: Baroque, North German Barock, Romantic, Symphonic
Temperaments 17
Ensemble Adjustable
MEMORIES
General Pistons 6
Total General Memories 96: 6*16 Banks
Piston Sequencer Previous, Next, Memory Bank-, Memory Bank+
Return to Handset Registration Yes
Tutti Programmable
ACCESSORY FUNCTIONS
Transposer -6/+5 semitones
Automatic Pedal Yes
Enclosed Yes
Midi Trasmission Enable Yes, Independent for each Organ Section activable with thumb piston
Reverb 8 different venues emulator
Internal Amp EQ 5 bands digital Graphic EQ
MIDI Sequencer Interactive sequencer with Overdubbing function
Keyboard Inversion Yes
Demo Songs yes
Organ Setup lock With Password
ON/OFF switch Switch
EXTERNAL AUDIO SYSTEM
Line Outputs 4
Output Volume Control Adjustable, for each output
Voices Output Routing Programmable for each organ section
Output EQ 5 bands digital Graphic EQ for each output
INTERFACE
MIDI Interface In, Out
Stereo Headphone Output yes
Stereo Aux Input yes
USB for Pen Drive Yes
CONSOLE

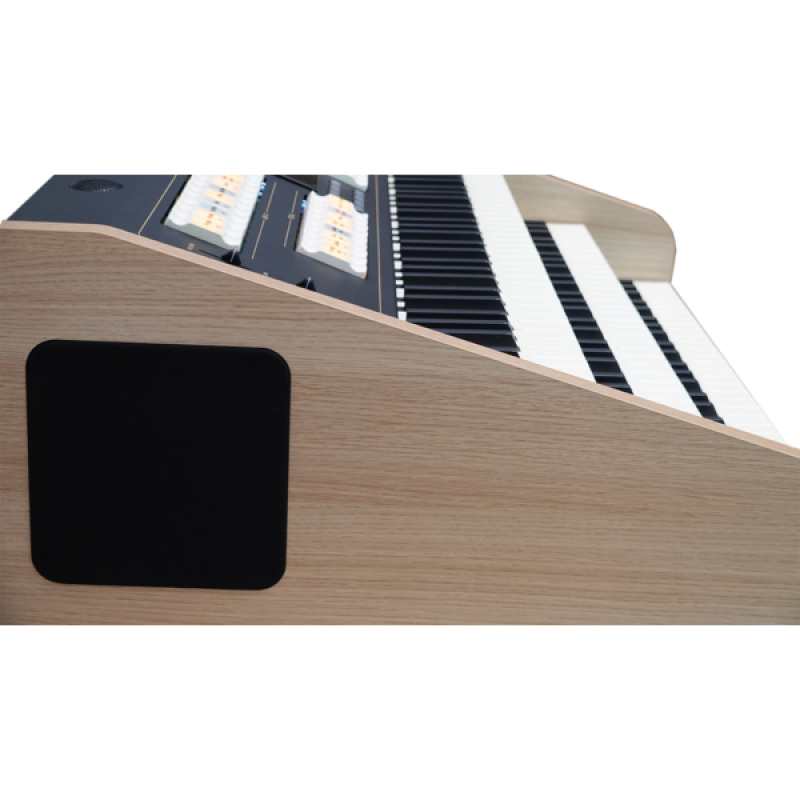

Cabinet Black painted metal with light oak simulated wood sides
Music Rack Metal
Dimensions (WxHxD) cm 90 x 29,5 x 62 cm – 35,4" x 11,6" x 24,4"
Weight Kg 32 / Lbs 70,54
INTERFACE

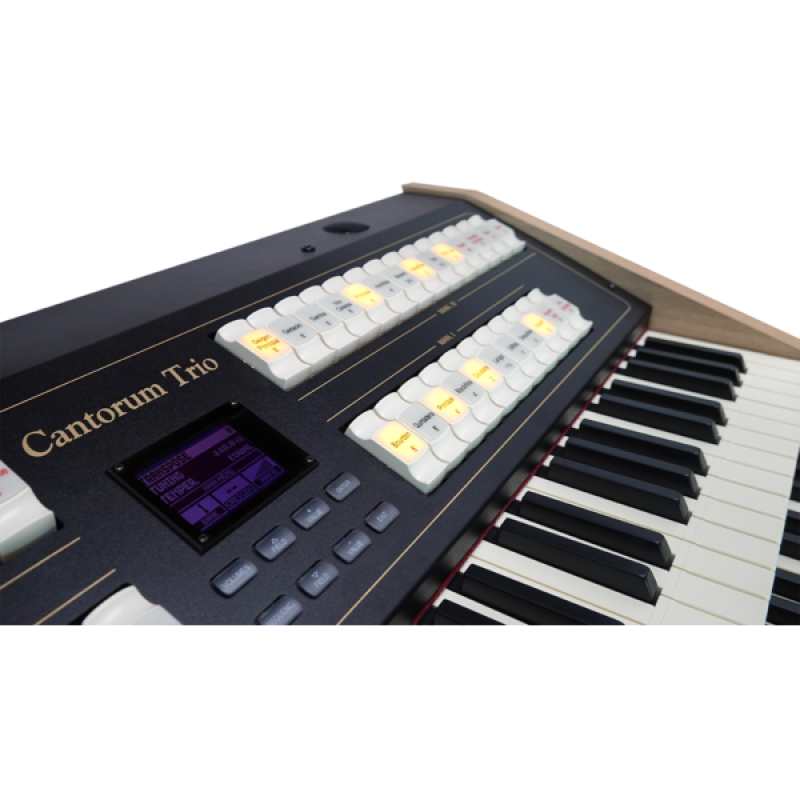

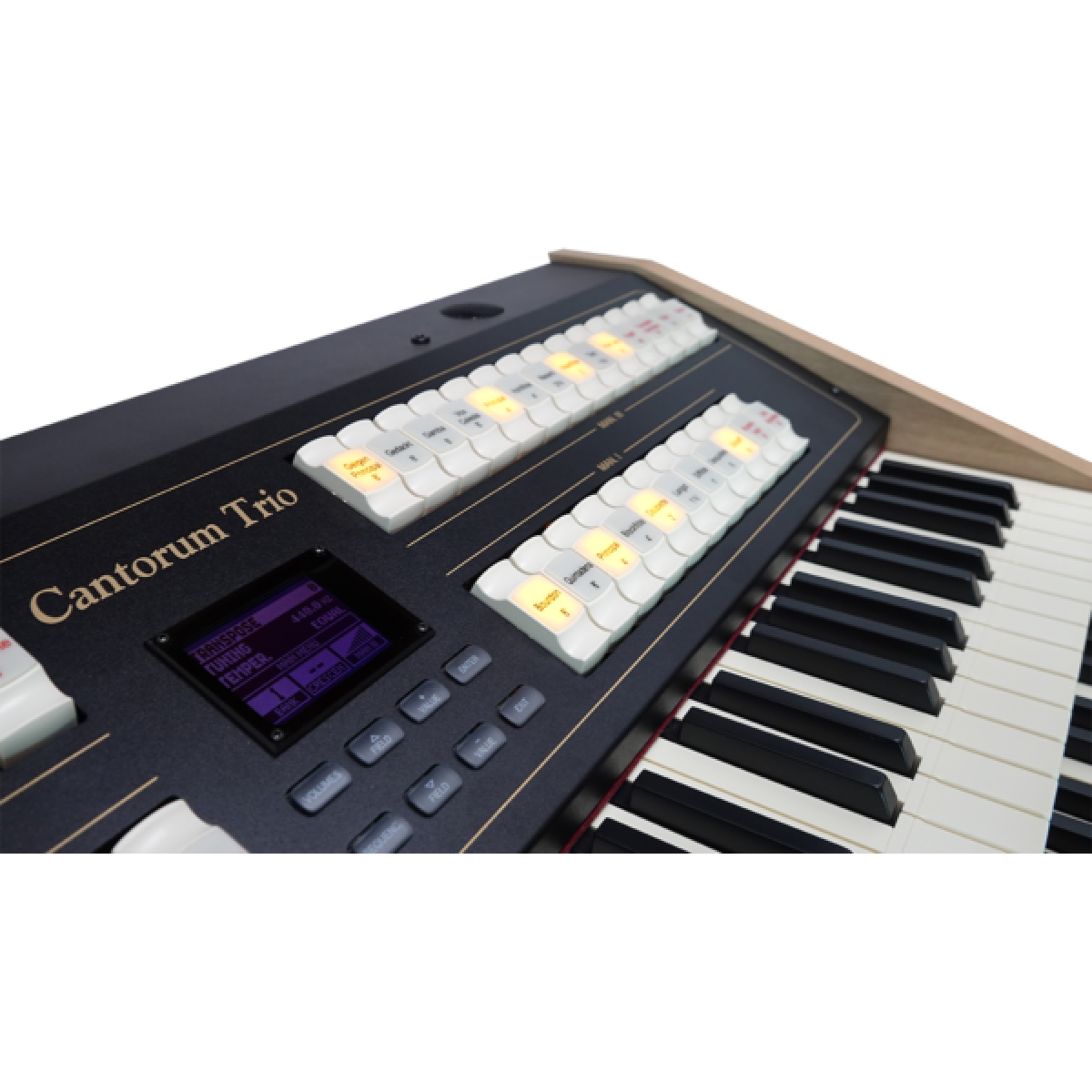

The rocker tabs, pistons and display provide effective control over the entire instrument.
The thumb pistons and rocker tabs that are used to control the organ’s voices have been ergonomically designed to respond quickly and easily to the demands of the player. The display is conveniently located on the right of the instrument with its own set of easy to use controls. There are six pistons available for general memories which are carefully positioned on the instrument to allow a wide range of possibilities and personalisation, all at your fingertips.
KEYBOARD
High-Quality Tracker Action Keyboards
The Cantorum Trio is equipped with 3 x 61 notes “Tracker Action” keyboards. We understand the importance of having the right feel to the organ keyboard so have taken the utmost care in using the very best components. The feel of the keys conveys the touch of a true Tracker Action. When using MIDI and Orchestral Voices, the keys instantly become touch sensitive and give the player the ability to be more expressive musician that you are.
SOUND GENERATION
Powered by Viscount’s newly designed ARTEM Sampling Technology
Cantorum Trio uses proprietary ARTEM technology (Advanced Real TEchnology Music).
– Advanced, we have advanced our sampling and computation capabilities.
– Real, the resulting sound is exactly like a real pipe organ.
– TEchnology, we use state of the art digital sound generation technology.
– Music, for more than 100 years music has been our passion.
This powerful sampled sound generator has been designed by Viscount in Italy to faithfully reproduce the authentic sound and performance of a traditional pipe organ.
Cantorum Tro is equipped with 108 sampled stops and 15 orchestral voices arranged in four banks, each with 27 own unique set of voices. These enable you to choose between Baroque, North German Baroque, Romantic and Symphonic. You can easily select the various styles as well as create your preferred acoustic environment.
Cantorum Trio offers a choice of eight different acoustic room models. You can therefore select the optimum ambience for your style of playing by matching the acoustic environment to the historic organ of your choice.
AMPLIFICATION
High Fidelity Amplification
The internal amplification of the Cantorum Duo has been designed to give you an incredibly large and robust sound right out of the box. It’s also designed to give you remarkable sonic excellence right down to the lowest frequencies, even whilst set at the lowest volumes for small spaces. The 4 speakers are driven by a 2 channel amplification system: 2 x 55 Watt. Audio outputs are available to connect additional external amplification, should this organ be installed in a church, or to give an even more pipe-like experience in the home. The Cantorum Duo also includes a headphone socket should you ever need to play in total silence.
CONNECTIONS
Extensive Connections
An extensive selection of external connections is located on the rear of the instrument. In addition to the standard connections, MIDI In-Out, headphones and mini-jack stereo inputs, dual audio output, there is also USB pen drive to save and upload sound settings, and for MIDI song recording and playback. The external audio can be adjusted with independent 5-band audio equalizers for each channel. Master volume and reverb controls are conveniently located on the left of the front panel.
